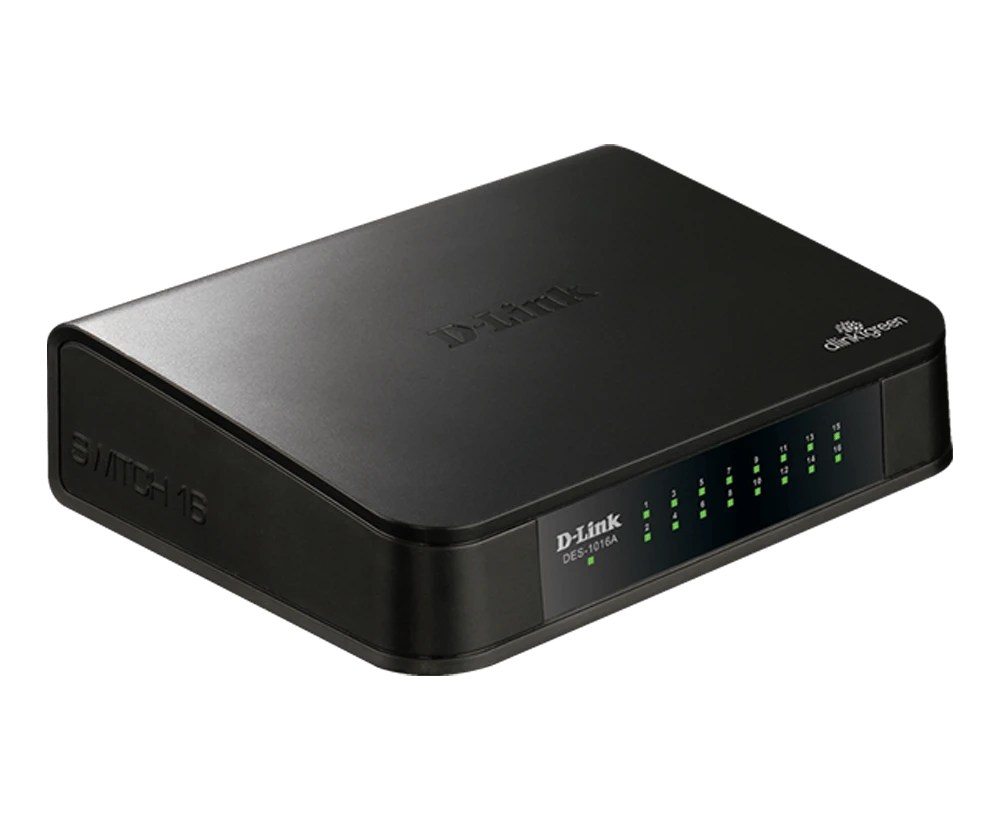

D-Link DES-1016A 16-Port Unmanaged Network Switch

The D-Link DES-1016A is a high-performance 16-port unmanaged network switch designed to deliver fast, reliable networking for small to medium-sized networks. With support for 10/100 Mbps speeds, this switch is perfect for connecting multiple devices in a rackmount form factor, making it ideal for server rooms, offices, or data closets.

Features

• 16 Ports: Equipped with 16 x 10/100 Mbps LAN ports, this switch allows seamless connectivity for up to 16 devices.
• PoE Support: No PoE support, making it suitable for non-PoE devices.
• Unmanaged: This is an unmanaged switch, offering easy plug-and-play functionality without the need for complex configuration.
• Data Transfer Rate: Supports 10/100 Mbps speeds for efficient data transmission across devices.
• Transmission Method: Uses Store-and-Forward transmission, ensuring error-free data handling.

Design and Build

• Rackmount Form Factor: Ideal for server rooms or data centers, the rackmount design offers easy installation in standard 19-inch racks.
• Indicators: Includes Link/Activity/Speed LEDs per port and a Power LED to monitor device status.

Power Efficiency

• Power Supply: AC and DC input options with low power consumption.
• Approx. Power Consumption:
• Power On (Standby): 1.0W (DC input), 1.79W (AC input)
• Maximum Consumption: 1.25W (DC input), 2.28W (AC input), ensuring energy-efficient operation.

Technical Specifications

• Total Ports: 16 Ports
• Network Standards:
• IEEE 802.1P
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3az
• IEEE 802.3x
• ANSI/IEEE 802.3
• Data Transfer Rate: 10/100 Mbps
• Switching Capacity: 3.2 Gbps
• Transmission Method: Store-and-Forward
• Access Method: CSMA/CD
• Form Factor: Rackmount
• Body Color: Black
• Dimensions: 155.7 x 122 x 41 mm

Power Attributes

• Power Supply: AC or DC input
• Approx. Power Consumption:
• Power On (Standby): 1.0W (DC input), 1.79W (AC input)
• Maximum Consumption: 1.25W (DC input), 2.28W (AC input)

Package Contents

• 1 x D-Link DES-1016A Network Switch
• 1 x User Manual

Warranty

1-Year Warranty (Without Adapter)
