Cudy GS1026PS2 28-Port PoE+ Network Switch

The Cudy GS1026PS2 is a high-performance network switch designed for powering devices like IP cameras, wireless access points, and VoIP phones, while maintaining fast data transfer speeds across a network. With its 28 ports, including 24 PoE+ ports, 2 Gigabit uplink ports, and 2 SFP ports, it offers excellent flexibility for diverse network configurations.

Features

• 28 Total Ports: Includes 24 PoE+ ports for powering and connecting network devices and 2 Gigabit uplink ports for connecting to other network switches or higher-speed devices. Additionally, the 2 SFP ports provide flexibility for fiber optic connections.
• PoE+ Support: Supports IEEE802.3af/at PoE+ standards, delivering up to 15.4W of power per port for PoE-powered devices, making it an ideal choice for environments with high power demands like security systems and wireless access points.
• Data Transfer Rate: Supports 10/100/1000 Mbps speeds for reliable network connections and optimal performance for various network devices.
• Manageability: The switch is unmanaged, making it a plug-and-play solution for those who require basic functionality without the need for configuration.

Design and Build

The Cudy GS1026PS2 comes in a rackmount form factor, making it perfect for installation in a server rack or network cabinet. Its gray metal housing ensures durability, while its fanless design ensures quiet operation, ideal for office or server room environments.

Power Efficiency

• Power Supply: AC 100-240V, 50-60Hz
• Power Consumption: The total power consumption is 300W, with a PoE budget of 280W, ensuring enough power for PoE-powered devices.

Technical Specifications

• Total Ports: 28 Ports
• PoE+ Ports: 24 x 10/100/1000 Mbps PoE+ Ports
• Gigabit Ports: 2 x 10/100/1000 Mbps Uplink Ports
• SFP Ports: 2 x 1.25G SFP Ports
• Data Transfer Rate: 10/100/1000 Mbps
• Transmission Method: Store-and-Forward
• Connector Type: 24 x 10/100/1000 Mbps RJ45 PoE Ports, 2 x 10/100/1000 Mbps Uplink Ports, 2 x 1.25G SFP Ports
• Indicators: PWR (Power), 1-28 Green Light (Link & Data), 1-24 (Yellow Light for PoE)
• Body Material: Metal
• Body Color: Gray
• Form Factor: Rackmount
• Dimensions: 320 x 207 x 44mm
• Weight: 1.967 kg

Power Attributes

• Input Voltage: AC 100-240V, 50-60Hz
• Power Supply: 52V / 5.76A
• Approx. Power Consumption: 300W (Total), 280W (PoE Budget)

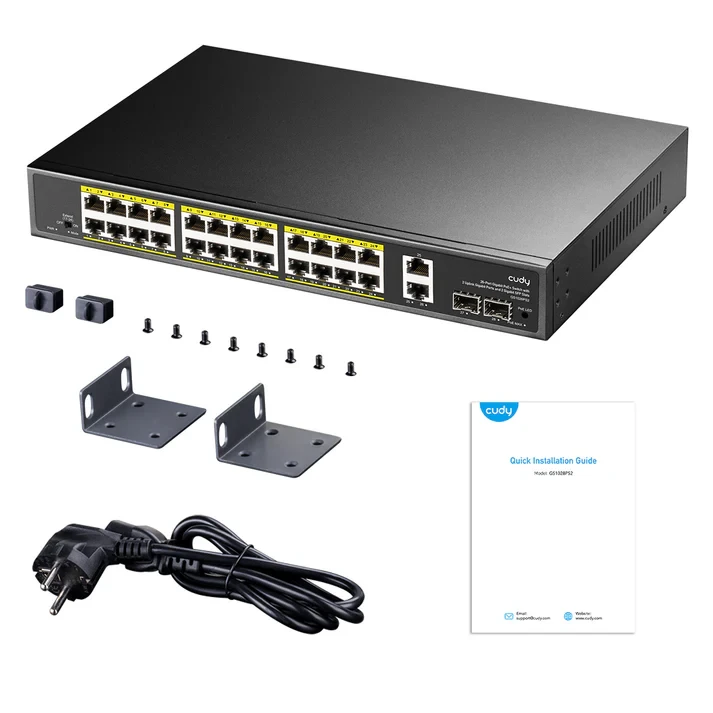

Package Contents

• 1 x Cudy GS1026PS2 Network Switch
• 1 x Power Cord
• 1 x User Manual

Warranty

1-Year Warranty (Without Adapter)
