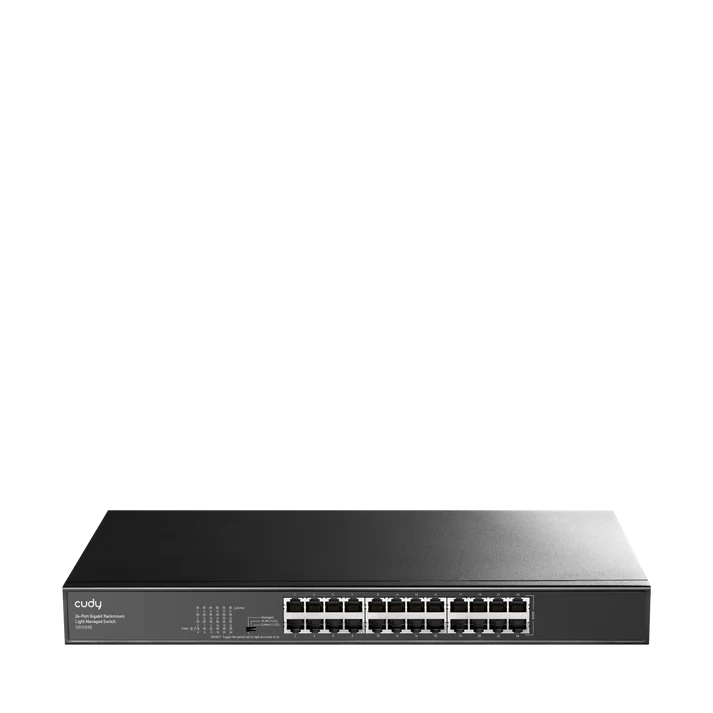

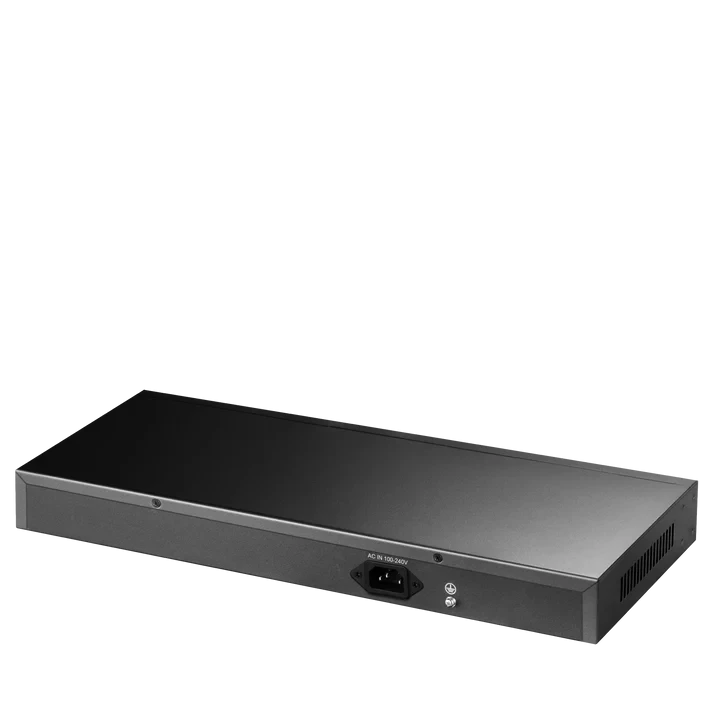

Cudy GS1024E 24-Port Managed Network Switch

The Cudy GS1024E 1.0 is a powerful and efficient managed network switch designed to provide reliable and high-speed connectivity for small to medium-sized networks. With 24 gigabit Ethernet ports, this switch delivers 10/100/1000 Mbps data transfer speeds, making it suitable for high-bandwidth applications such as file sharing, video conferencing, and data streaming.

Features

• Managed Switch: The Cudy GS1024E 1.0 is a managed switch, offering flexibility and advanced configuration options to optimize network performance. It supports network monitoring, traffic management, and remote management through a web-based interface, providing enhanced control over network traffic.
• 24 Gigabit Ports: The 24 x 10/100/1000 Mbps Ethernet ports offer ample connectivity for a variety of network devices. Whether you need to connect computers, servers, printers, or other networked devices, this switch ensures fast and stable connections.
• Switching Capacity: With a switching capacity of 48 Gbps, the Cudy GS1024E 1.0 can handle a large volume of data without slowing down, making it ideal for high-traffic networks.

Design and Durability

The Cudy GS1024E 1.0 features a metal body with a sleek black finish, making it both durable and stylish. Its desktop and rackmount form factors provide installation flexibility, whether in a server room or an office setup.

Efficient Power Usage

With a power supply range of AC 90-260V and an approximate power consumption of 11W, this switch ensures energy-efficient operation, helping to reduce overall energy costs for businesses.

Indicators

The switch comes equipped with indicators for Power, Speed, and Link/ACT for each Ethernet port, allowing easy monitoring of the switch's performance and status.

Technical Specifications

• Total Ports: 24 Ports
• Gigabit Ports: 24 x 10/100/1000 Mbps RJ45 Ports
• Data Transfer Rate: 10/100/1000 Mbps
• Switching Capacity: 48 Gbps
• Memory: 8 MB (64 Mbit NOR)
• Connector Type: RJ45
• Network Standards: IEEE 802.3
• Indicators: Power, Speed/Link/ACT per Ethernet Port
• Body Material: Metal
• Body Color: Black
• Form Factor: Desktop/Rackmount
• Dimensions: 440 x 180 x 44 mm
• Weight: 1.69 kg

Power Attributes

• Power Supply: AC 90 - 260V, 50/60Hz
• Approx. Power Consumption: 11W

Package Contents

• 1 x Cudy GS1024E Network Switch
• 1 x Power Cord
• 1 x Installation Guide

Warranty

1-Year Warranty (Without Adapter)
