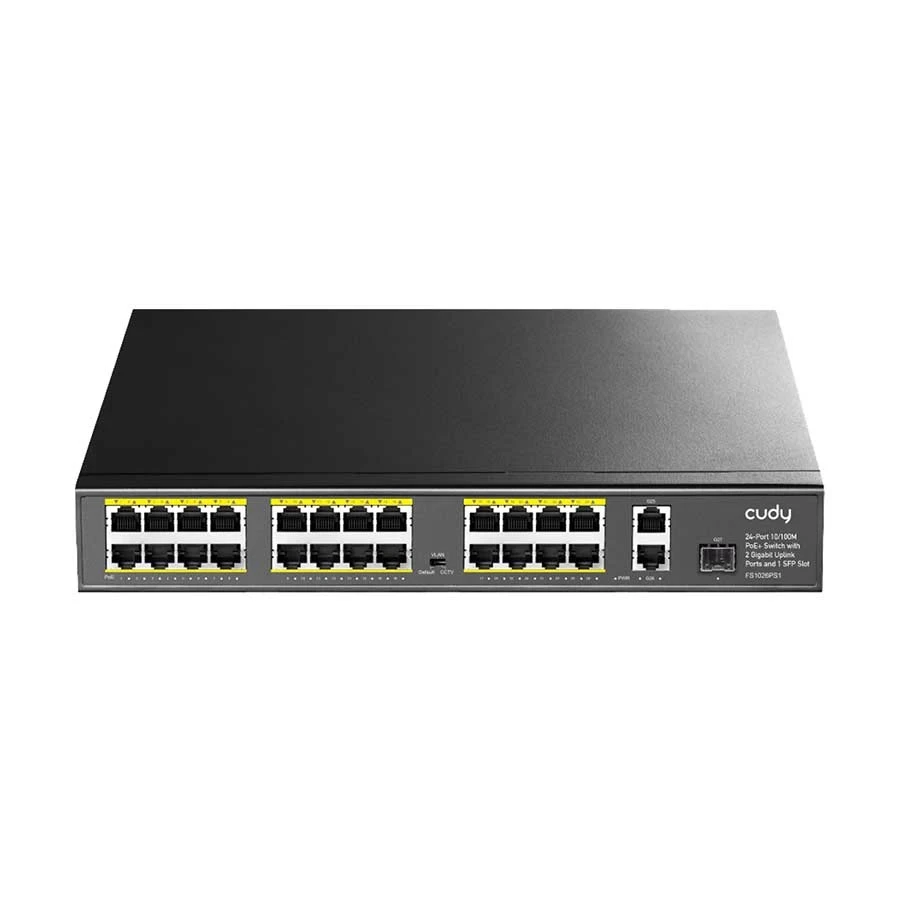

Cudy FS1026PS1 26-Port PoE+ Network Switch

The Cudy FS1026PS1 is a high-performance unmanaged network switch designed to meet the needs of growing networks. Featuring 26 ports, including 24 PoE+ ports and 2 Gigabit uplink ports, it provides the flexibility to power devices like IP cameras, Wi-Fi access points, and VoIP phones, while ensuring fast data transfer speeds across your network.

Features

• 26 Total Ports: The Cudy FS1026PS1 comes with 24 PoE+ ports that provide both data and power to compatible devices, making it an excellent choice for environments that require centralized power distribution for networked devices. The switch also includes 2 Gigabit uplink ports for fast connectivity to higher-speed devices or other network switches.
• PoE+ Capability: The switch supports IEEE802.3af/at PoE standards, delivering up to 15.4W of power per port, which is perfect for power-hungry devices like IP cameras, phones, and wireless access points.
• SFP Slot: The inclusion of a SFP port enables flexible fiber optic connections, extending the range and reliability of your network.
• Data Transfer Rate: 10/100 Mbps data transfer rate ensures stable and reliable connections for low to moderate bandwidth applications.

Design and Build

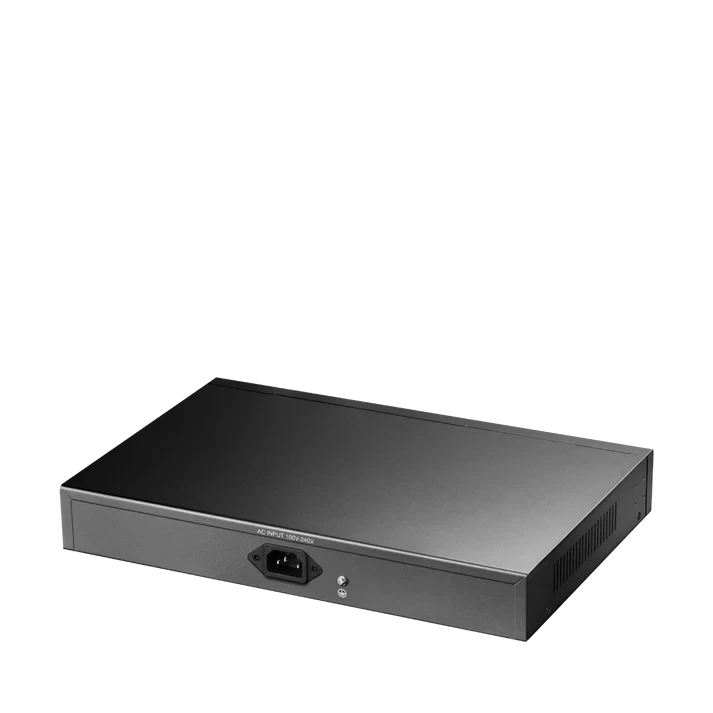

Designed with a rackmount form factor, the Cudy FS1026PS1 is perfect for installation in a server rack, helping to save space and keep your network organized. Its fanless design ensures quiet operation, which is ideal for office environments.

Power Efficiency

• Power Supply: AC100-240V, 50/60Hz
• Power Consumption: The switch operates efficiently with an approximate power consumption of 300W, ensuring optimal performance without compromising energy efficiency.

Technical Specifications

• Total Ports: 26 Ports
• PoE+ Ports: 24 x 10/100 Mbps PoE+
• Gigabit Ports: 2 x Gigabit Uplink Ports
• SFP Port: 1 SFP Slot
• Data Transfer Rate: 10/100 Mbps
• Memory: 1 MB
• Transmission Method: Store-and-Forward
• Connector Type: 24 x 10/100 Mbps PoE+ Ports, 2 x Gigabit Uplink Ports, 1 x SFP Slot
• MTBF (Mean Time Between Failures): 100,000 hours
• Indicators: PWR, SW, 1-27
• Body Material: Metal
• Body Color: Black
• Form Factor: Rackmount
• Dimensions: 320 x 210 x 46 mm
• Weight: 1.9 kg

Power Attributes

• Power Supply: AC 100-240V, 50/60Hz
• Approx. Power Consumption: 300W

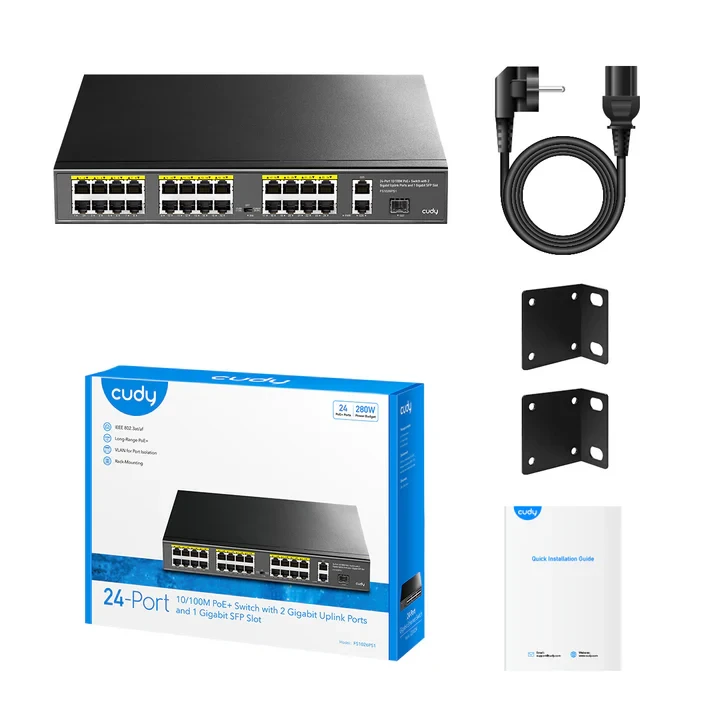

Package Contents

• 1 x Cudy FS1026PS1 Network Switch
• 1 x Power Cord
• 1 x Mounting Kit
• 1 x Installation Guide

Warranty

1-Year Warranty (Without Adapter)
