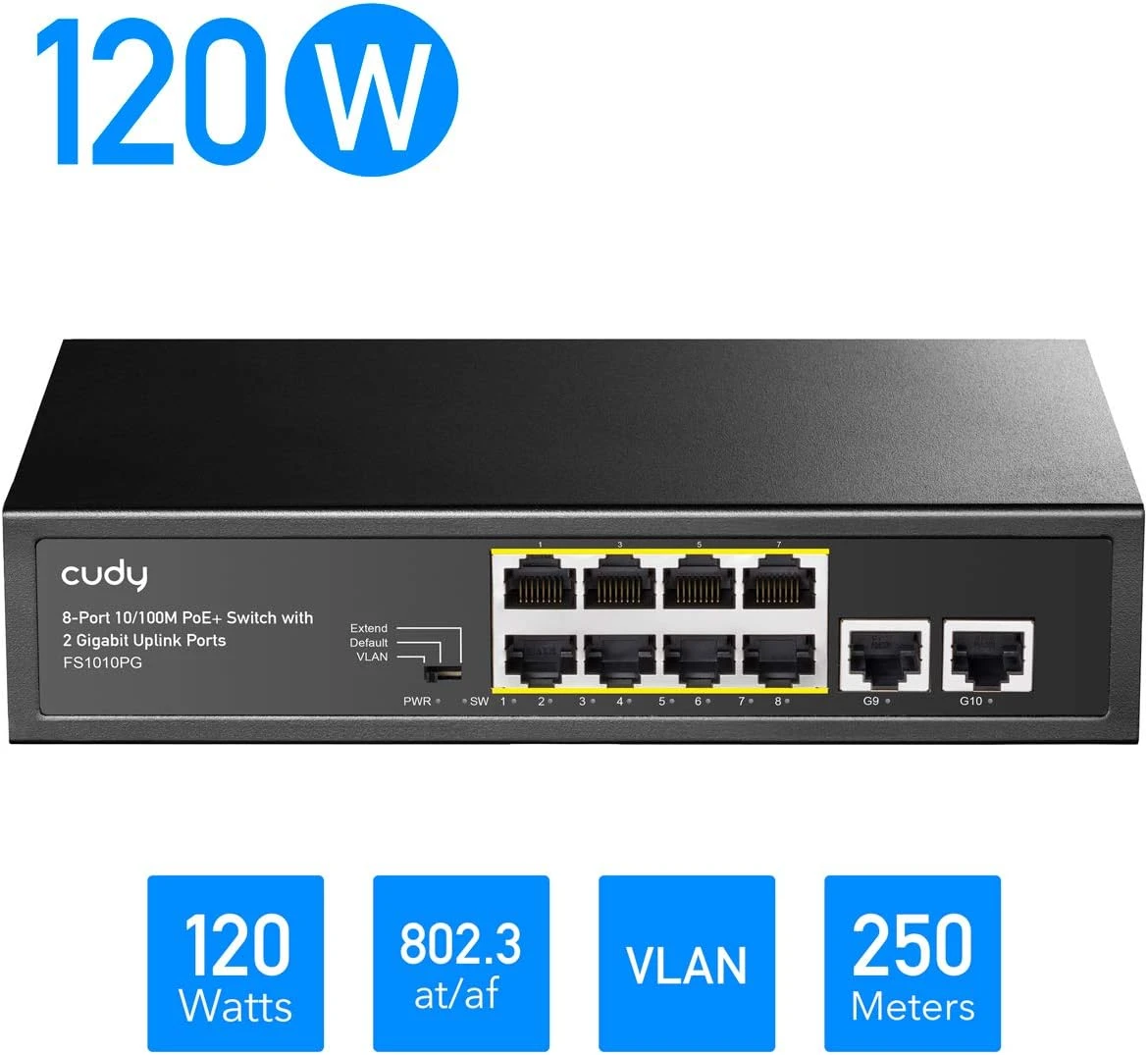

Cudy CFS1010PG 10-Port PoE+ Network Switch

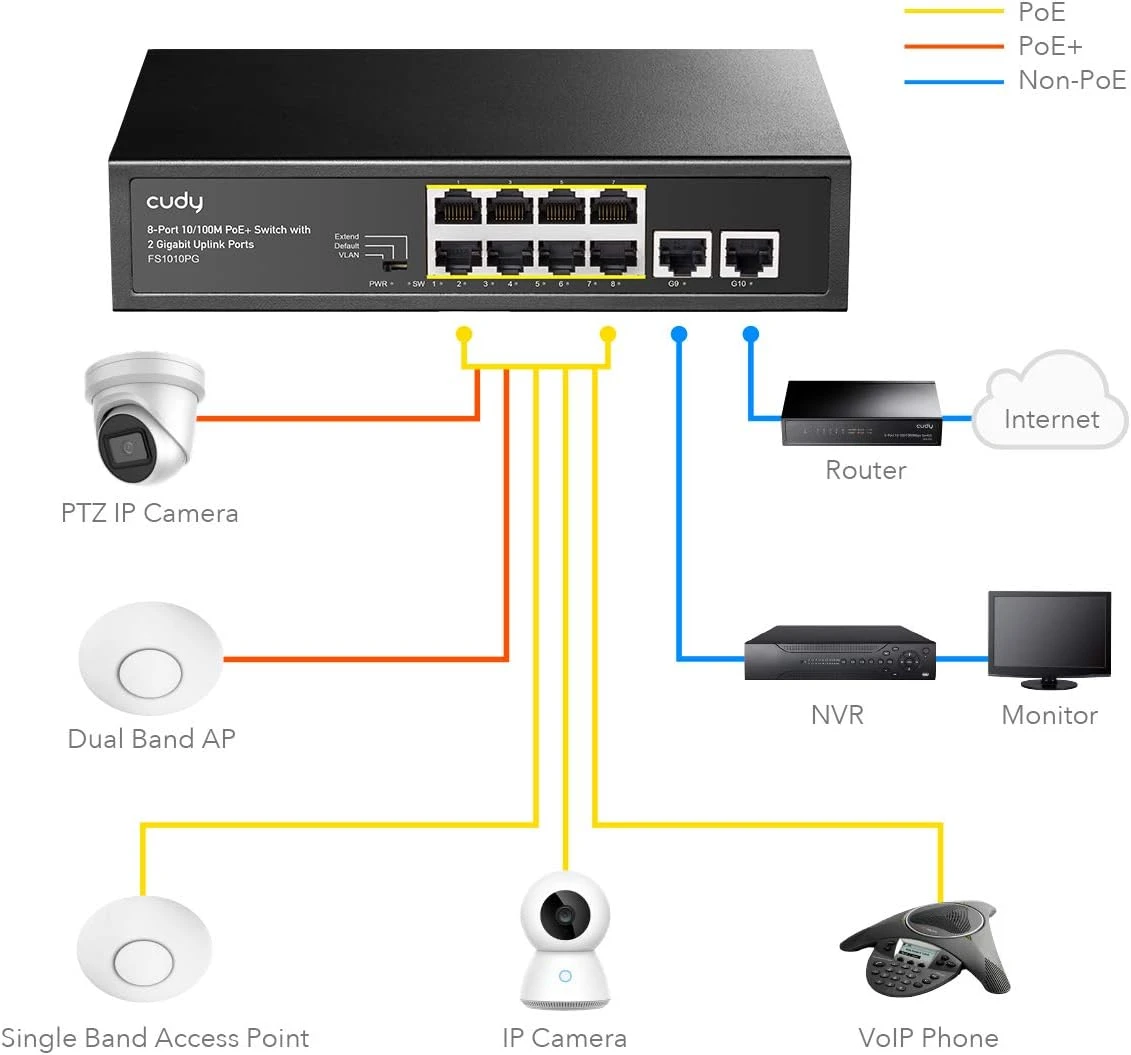

The Cudy CFS1010PG is a high-performance network switch designed to provide reliable and efficient connectivity for small to medium-sized networks. With its PoE+ capability, it can deliver both data transmission and power to networked devices such as IP cameras, wireless access points, and VoIP phones. Ideal for office environments and surveillance systems, this desktop switch ensures seamless operation with an easy-to-use, fanless design.

Key Features

The Cudy CFS1010PG features a total of 10 ports, with 2 Gigabit uplink ports and 8 PoE+ ports, offering a flexible networking solution. The PoE+ ports support the IEEE802.3af/at standards, enabling efficient power delivery up to 15.4W per port for PoE devices. It is equipped with 10/100/1000 Mbps transfer speeds, ensuring fast and stable data connectivity for your network.

Compact & Fanless Design

This switch features a fanless design, which makes it suitable for noise-sensitive environments such as small offices or home offices. The compact dimensions (220 x 150 x 44mm) allow for easy installation, either on a desktop or in a rack-mounted setup, making it versatile and adaptable to your network needs.

Efficient & Reliable Power

With a 120W power supply, the Cudy CFS1010PG offers stable performance, ensuring power-efficient operation while minimizing energy consumption. The PoE+ capability eliminates the need for additional power cables or adapters for connected devices, streamlining your network setup.

Advanced Features & Indicators

The Cudy CFS1010PG comes with LED indicators for power (PWR), link/activity (LNK/ACT), and PoE status, providing easy monitoring of your network. This ensures quick troubleshooting and a clear overview of your network's health.

Technical Specifications

• Total Ports: 10 x Ports
• PoE+ Ports: 8 x 10/100 Mbps PoE+
• Uplink Ports: 2 x 10/100/1000 Mbps Gigabit
• PoE Standard: IEEE802.3af/at
• Data Transfer Rate: 10/100/1000 Mbps
• MTBF: >50000 hours
• Indicators: PWR, LNK/ACT, PoE
• Form Factor: Desktop
• Dimensions: 220 x 150 x 44mm
• Weight: >1 kg
• Body Color: Black
• Power Supply: 120W

Package Contents

• 1 x Cudy CFS1010PG Switch
• 1 x Power Cord
• 1 x Installation Guide

Warranty

1-Year Warranty (Without Adapter)
