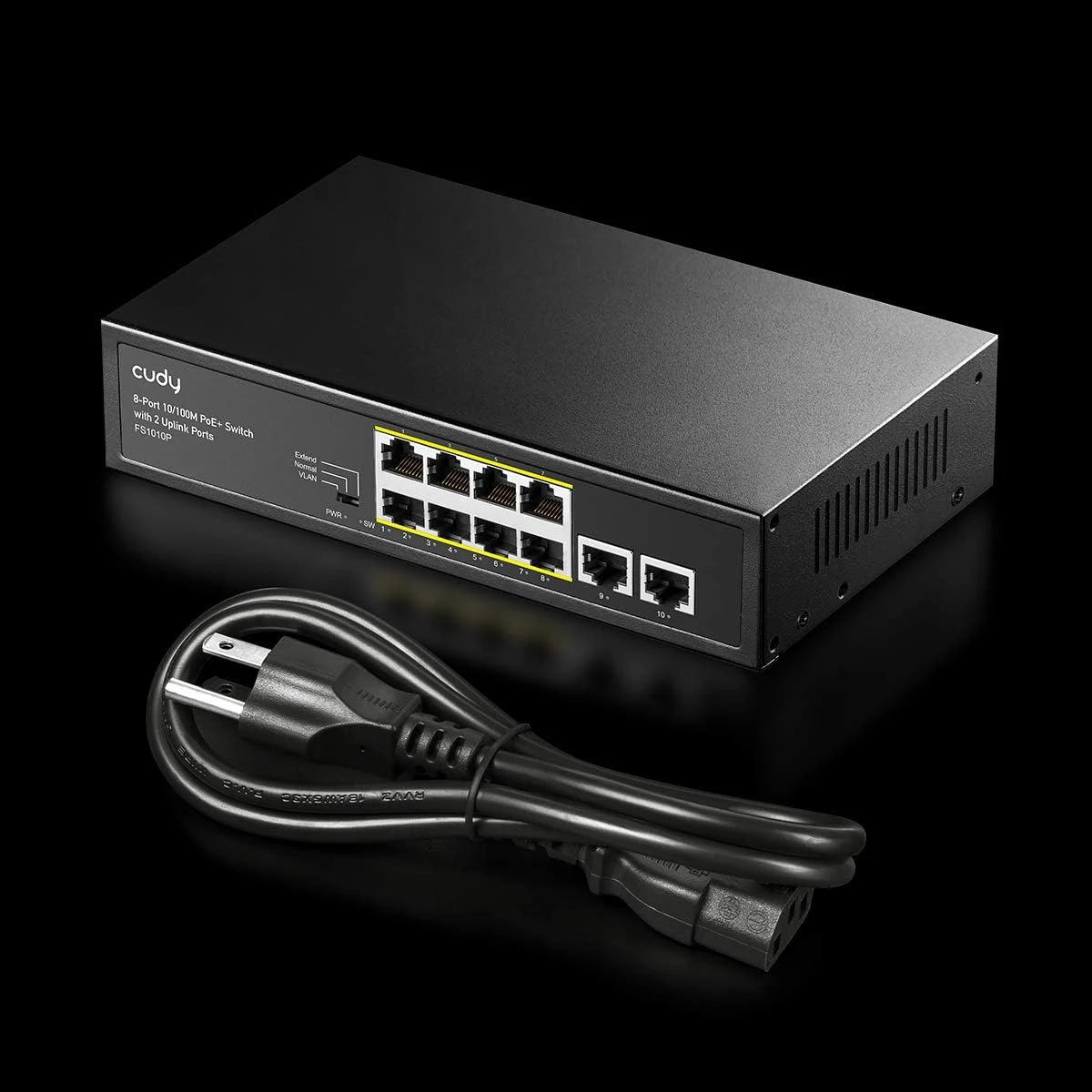

Cudy FS1010P 10-Port PoE+ Switch

The Cudy FS1010P is a high-performance 10-port unmanaged network switch, designed for users seeking affordable and reliable network expansion with Power over Ethernet (PoE+) support. Ideal for small offices, home offices, or business networks, this rackmount switch provides seamless connectivity and power to your network devices with its PoE+ functionality.

Efficient Power & Data Transmission

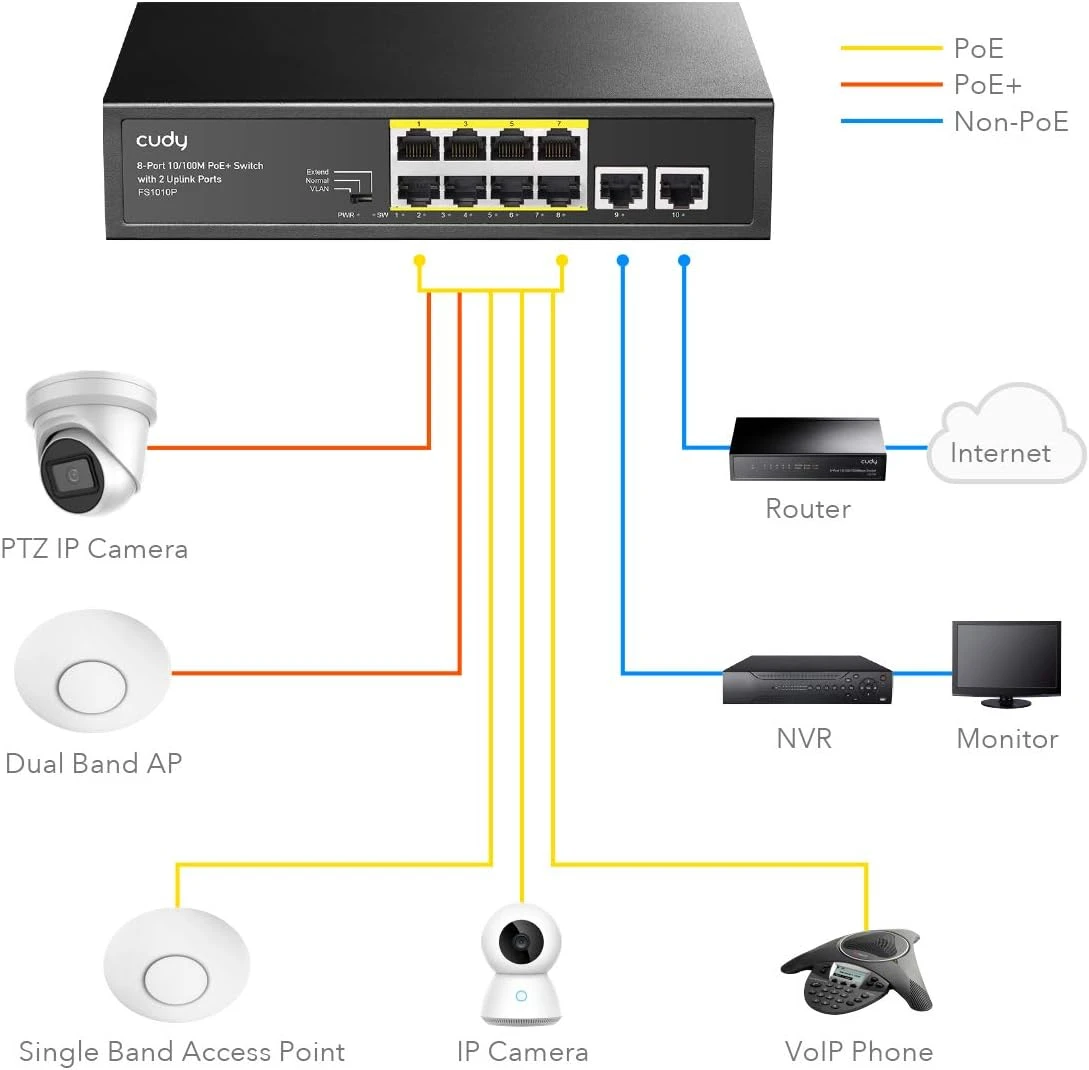

Equipped with 8 PoE+ ports and 2 uplink ports, the Cudy FS1010P delivers 10/100 Mbps data transfer rates, ensuring fast and stable performance for your networked devices. The PoE+ ports allow you to power devices such as IP cameras, access points, and VoIP phones directly from the switch, eliminating the need for separate power adapters.

Unmanaged Design for Easy Setup

As an unmanaged switch, the FS1010P is easy to install and requires no configuration. Its plug-and-play capability allows you to quickly add devices to your network without needing complex setup steps.

Silent and Efficient Operation

Designed with a fanless system, the Cudy FS1010P operates silently, making it perfect for environments where noise levels are important, such as office spaces or conference rooms. Its low power consumption of 120W ensures that it operates efficiently, providing energy savings while maintaining consistent performance.

Durable and Compact Design

The rackmountable design of the Cudy FS1010P ensures space-saving installation, while its black body color and robust plastic material provide a durable yet lightweight construction. The compact dimensions (220 x 150 x 44mm) allow for easy integration into network setups without taking up much space.

Technical Specifications

• Total Ports: 10 x 10/100 Mbps
• PoE+ Ports: 8
• Uplink Ports: 2
• PoE Standard: IEEE802.3at / IEEE802.3af
• Data Transfer Rate: 10/100 Mbps
• Transmission Method: Store-and-Forward
• Connector Type: 10 x 10/100 Mbps RJ45 Ports
• MTBF: >50000 hours
• Indicators: PWR, LNK/ACT, PoE
• Form Factor: Rackmount
• Dimensions: 220 x 150 x 44mm
• Weight: 1 kg
• Body Color: Black
• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption: 120W

Package Includes

• 1 x Cudy FS1010P 10-Port PoE+ Switch
• 1 x Power Cord
• 1 x Installation Guide

Warranty

1-Year Warranty (Without Adapter)
