Biostar Z590MHP DDR4 Intel Motherboard
Key Specification
Product Specification
|
Brand |
Biostar |
|
Model |
Biostar
Z590MHP |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z590 Sockets
Supported: LGA1200 Built-in
Processor: N/A Supported
CPU: 10th / 11th Gen Intel Core, Pentium and Celeron processors Generation:
10th/11th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 4000(OC)/ 3866(OC)/ 3800(OC)/
3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC Memory Channel: Dual Memory Slot: 2 Memory Max: 64GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion : 1 x M.2 Type 2242/ 2260/ 2280 SSD module. |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 2 x PCIe 3.0 x1 Slot, 1 x
PCle 3.0/ 4.0 x16 Slot (x16 mode) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Intel I219V LAN Speed (Mbps): 0/100/1000 Mbps |
|
Ports Data |
USB
Port: 2 x USB3.0, 4 x USB2.0 VGA
Port: 1 HDMI
Port: 1 SATA
Port: 2 x SATA3, 2 x SATA2 |
|
Technical Data |
Cable Management: Front Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / Windows 11 Compatible
Products: Core i3 10100F, Core i5 10400F, Core i3 10105, Core i5 11400F, Core
i7 11700, Core i7 10700 |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details

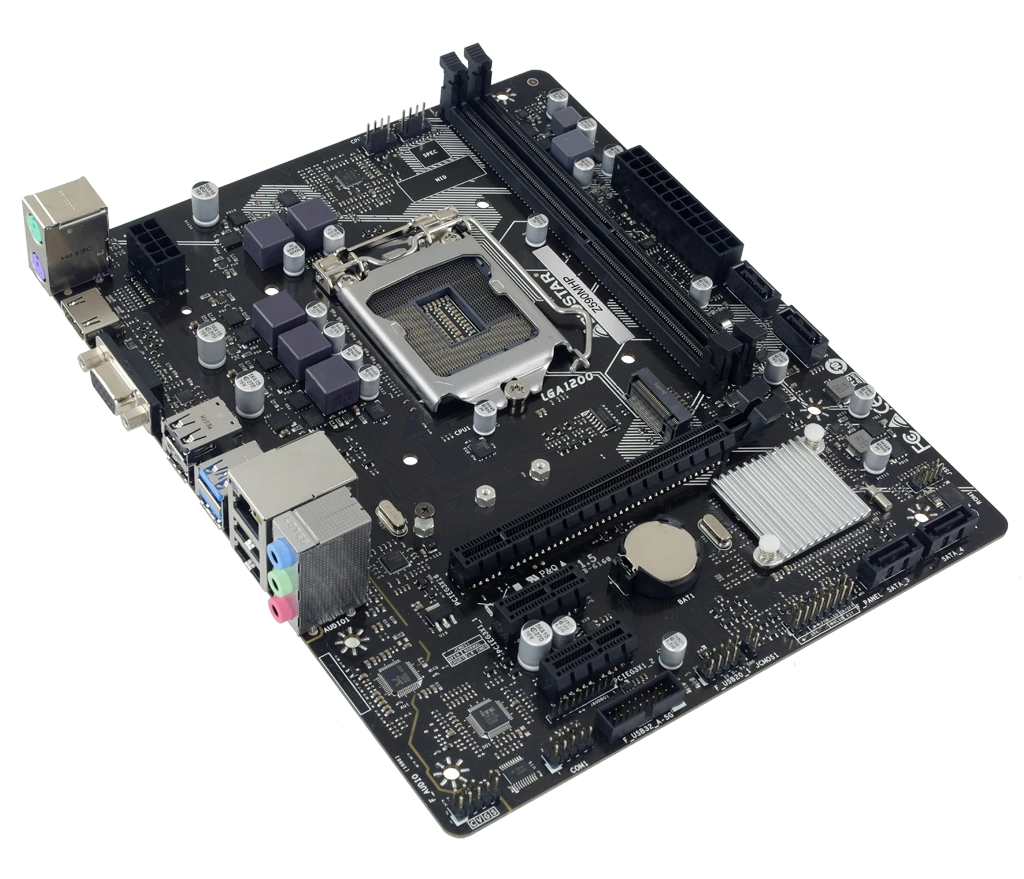

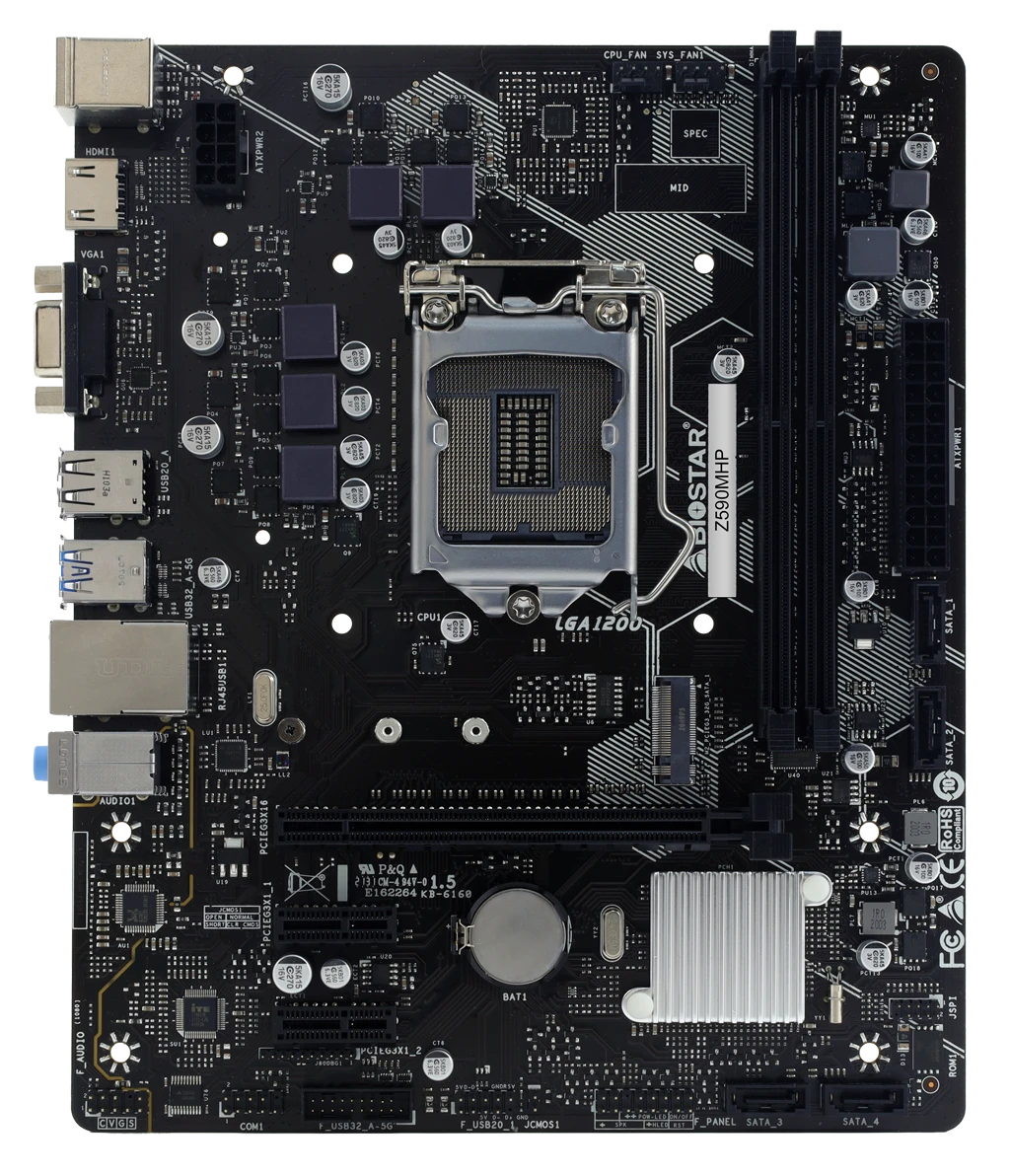

Biostar
Z590MHP Micro-ATX Motherboard
The Biostar Z590MHP is a
high-performance Micro-ATX motherboard built on the robust Intel Z590
chipset, designed to support 10th and 11th Gen Intel Core, Pentium, and
Celeron processors via the LGA1200 socket. Ideal for compact yet
powerful system builds, this motherboard delivers fast memory performance,
reliable connectivity, and versatile expansion options. It’s tailored for
gamers and professionals seeking a space-saving board with dependable power and
speed.
Features
- Intel Z590 Chipset:
Optimized for 10th/11th Gen Intel processors, ensuring excellent
performance and compatibility.
- DDR4 Memory Overclocking Support: Up to 4000MHz (OC) for faster data processing
and multitasking.
- PCIe 4.0 Support:
The x16 slot supports PCIe 4.0 with 11th Gen CPUs,
enabling next-gen GPU and NVMe SSD performance.
- 7.1 Channel HD Audio:
Powered by Realtek ALC897, offering immersive sound for
entertainment and gaming.
Memory
Support
- Memory Type:
DDR4
- Supported Speeds:
2133 to 4000MHz (OC)
- Memory Slots:
2 DIMM slots
- Maximum Capacity:
Up to 64GB
- Memory Channel:
Dual-channel architecture for stable performance
Storage
and Expansion
- SATA Ports:
- 2 x SATA3 (6Gb/s)
- 2 x SATA2 (3Gb/s)
- M.2 Slot:
- 1 x M.2 (Type 2242/2260/2280) for high-speed SSDs
Graphics
and Expansion Slots
- PCIe Slots:
- 1 x PCIe 3.0/4.0 x16 slot (x16 mode)
- 2 x PCIe 3.0 x1 slots
- Integrated Graphics Support (via CPU) with HDMI and VGA outputs
Audio
and Networking
- Audio Chipset:
Realtek ALC897, 7.1-channel HD audio
- LAN Chipset:
Intel I219V, providing Gigabit Ethernet (10/100/1000 Mbps)
for fast and reliable networking

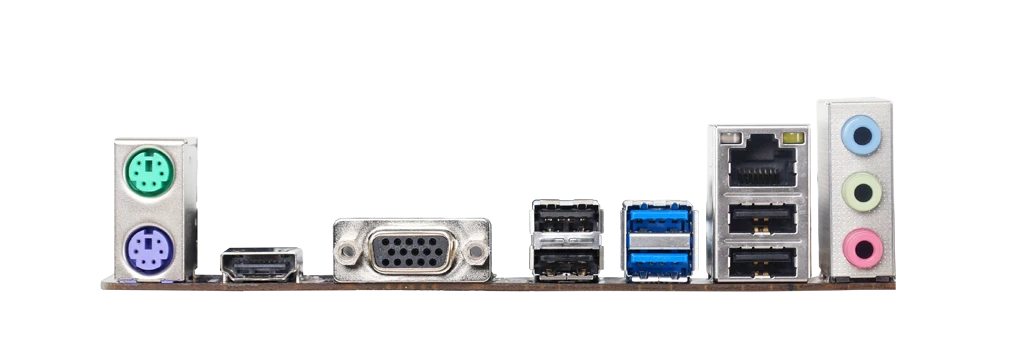

Ports
and I/O
- USB Ports:
- 2 x USB 3.0
- 4 x USB 2.0
- Display Outputs:
- 1 x HDMI
- 1 x VGA
- SATA Interface:
Combination of SATA3 and SATA2 for a variety of storage configurations
Design
and Build
- Form Factor:
Micro-ATX, fits most mid-size and compact PC cases
- Power Efficiency:
Approx. 60W power consumption, energy efficient for daily computing
and productivity
- Cable Management:
Front I/O support ensures neat and accessible system layouts
Compatibility
- Supported Operating Systems: Windows 10 / Windows 11
- Compatible CPUs:
Ideal for builds with processors like:
- Core i3-10100F / 10105
- Core i5-10400F / 11400F
- Core i7-10700 / 11700
Warranty
Information
- 3-Year Warranty:
Reliable support and service from Biostar
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh
