Biostar H81MHV3 LGA 1150 Socket DDR3 Motherboard for Intel 4th Gen Processor
Key Specification
Product Specification
|
Brand |
Biostar |
|
Model |
Biostar
H81MHV3 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H81 Sockets
Supported: LGA1150 Built-in
Processor: N/A Supported
CPU: Core i7 / i5 / i3 / Pentium Processors Generation:
4th |
|
Memory Support |
Memory Type: DDR3 Memory MHz: 1600/ 1333/ 1066MHz Memory Channel: Dual Memory Slot: 2 Memory Max: 16GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, 3Gb/s M.2/SSD
Expansion Slot: Unmentioned M.2/SSD
Expansion : N/A |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCI-E 2.0 x16 Slot, 1
x PCI-E 2.0 x1 Slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC662 Audio
Channel - 6 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111G LAN Speed (Mbps): 0/100/1000 Mbps |
|
Ports Data |
USB
Port: 2 x USB3.0, 4 x USB2.0 VGA
Port: 1 HDMI
Port: 1 SATA
Port: 2 x SATA3, 2 x SATA2 |
|
Technical Data |
Cable Management: Front DirectX Support: 11.1 Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 7 / 8 / 8.1 / 10 Compatible
Products: Compatible with 4th gen Intel Core i7, i5, i3, Pentium Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Biostar

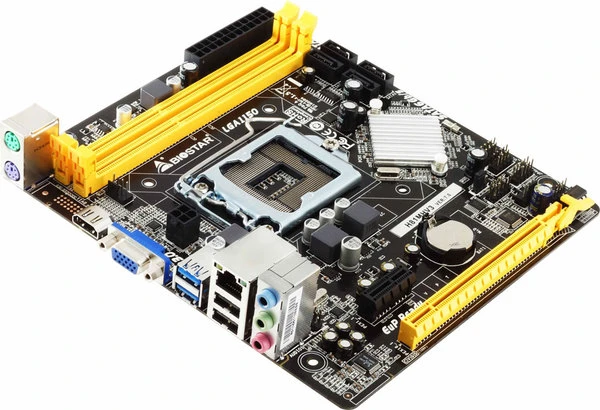

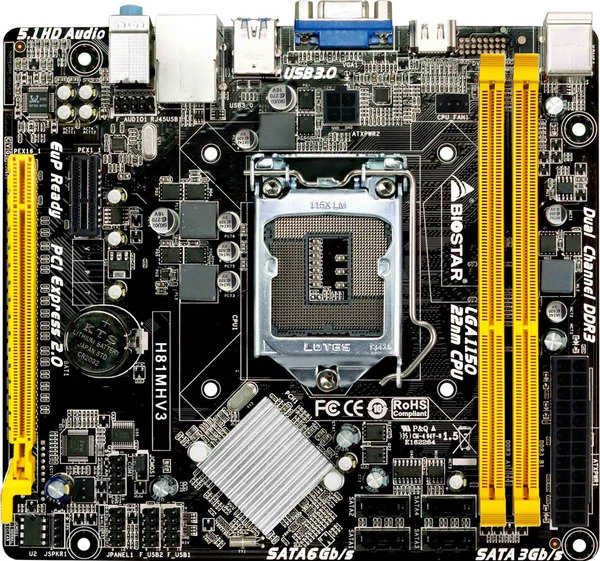

H81MHV3 Micro-ATX Motherboard
The Biostar H81MHV3 is a
compact and cost-effective Micro-ATX motherboard designed to support 4th
generation Intel Core, i7, i5, i3, and Pentium processors using the LGA1150
socket. Featuring the Intel H81 chipset, it’s suitable for everyday
home and office computing. With reliable performance, support for DDR3
memory, and basic connectivity options including HDMI and VGA, this
board is an ideal choice for entry-level system builders.
Features
- Intel H81 Chipset:
Delivers dependable performance for 4th gen Intel Core processors.
- DDR3 Memory Support:
Offers compatibility with older yet widely available DDR3 RAM,
running up to 1600MHz.
- Expansion Options:
- 1 x PCIe 2.0 x16
slot for graphics upgrades.
- 1 x PCIe 2.0 x1
slot for additional add-on cards.
Memory
Support
- Memory Type:
DDR3
- Supported Speeds:
1066 / 1333 / 1600 MHz
- Memory Slots:
2
- Maximum Capacity:
Up to 16GB total
- Memory Channel:
Dual-channel support ensures stable multitasking.
Storage
and Expansion
- SATA Ports:
- 2 x SATA3 (6Gb/s)
- 2 x SATA2 (3Gb/s)
- M.2 Slot:
Not available.
Audio
and Networking
- Audio Chipset:
Realtek ALC662 delivering 6-channel HD audio for a clear
listening experience.
- LAN Chipset:
Realtek RTL8111G supporting Gigabit Ethernet (10/100/1000 Mbps)
for reliable networking.

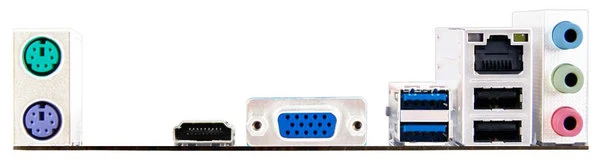

Ports
and I/O
- USB Ports:
- 2 x USB 3.0
for faster data transfer
- 4 x USB 2.0
for legacy devices
- Display Outputs:
- 1 x HDMI port
for high-definition displays
- 1 x VGA port
for analog monitors
- SATA Ports:
2 x SATA3, 2 x SATA2
Design
and Build
- Form Factor:
Micro-ATX, ideal for compact PC builds.
- Power Efficiency:
Consumes approximately 60W under load, suitable for
energy-conscious builds.
- Cable Management:
Front-panel cable connections for tidy case layout.
- DirectX Support:
DirectX 11.1 for improved multimedia handling and gaming
compatibility.
Compatibility
- Supported OS:
Compatible with Windows 7, 8, 8.1, and 10
- Processor Compatibility: Works with Intel 4th generation Core i7/i5/i3 and
Pentium processors on LGA1150 socket.
Warranty
Information
- 3-Year Warranty:
Backed by Biostar's standard warranty for long-term peace of mind.
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh
