Biostar H610MS DDR4 12th/13th/14th Gen LGA1700 Socket Motherboard
Key Specification
Product Specification
|
Brand |
Biostar |
|
Model |
Biostar
H610MS |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H610 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and
Intel Pentium processors/ Intel Celeron processors. Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 1866/ 2133/ 2400/ 2666/ 2933/
3200 Memory Channel: Dual Memory Slot: 2 Memory Max: 64GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion : 1 x M.2 Type 2242/ 2260/ 2280 SSD module. |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1x PCIe 3.0 x1 , 1 x PCIe
4.0 x 16 |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio Channel
– 7.1 |
|
Network & Connectivity |
LAN Chipset: RTL8168H-CG LAN Speed (Mbps): 0/100/1000 Mbps |
|
Ports Data |
USB
Port: 1 x USB 3.2 (Gen1) port, 4 x USB 2.0 ports VGA
Port: N/A HDMI
Port: 1 Display
Port: 1 TPM: 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front FireWire: Yes Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / Windows 11 Compatible
Products: 12th / 13th / 14th Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors.
LGA1700 socket. |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details

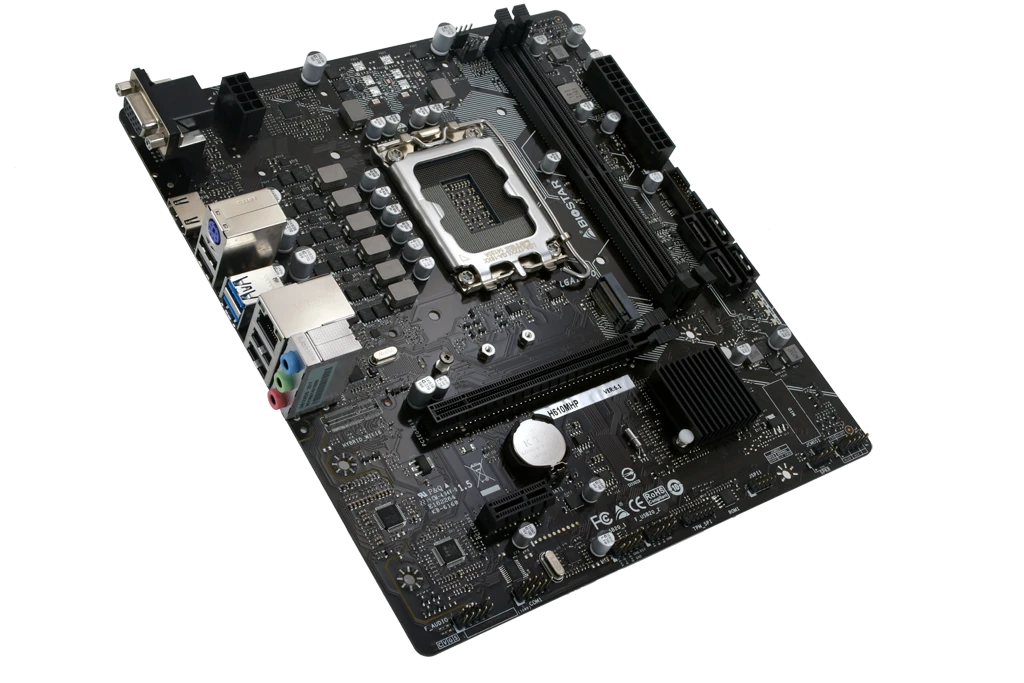

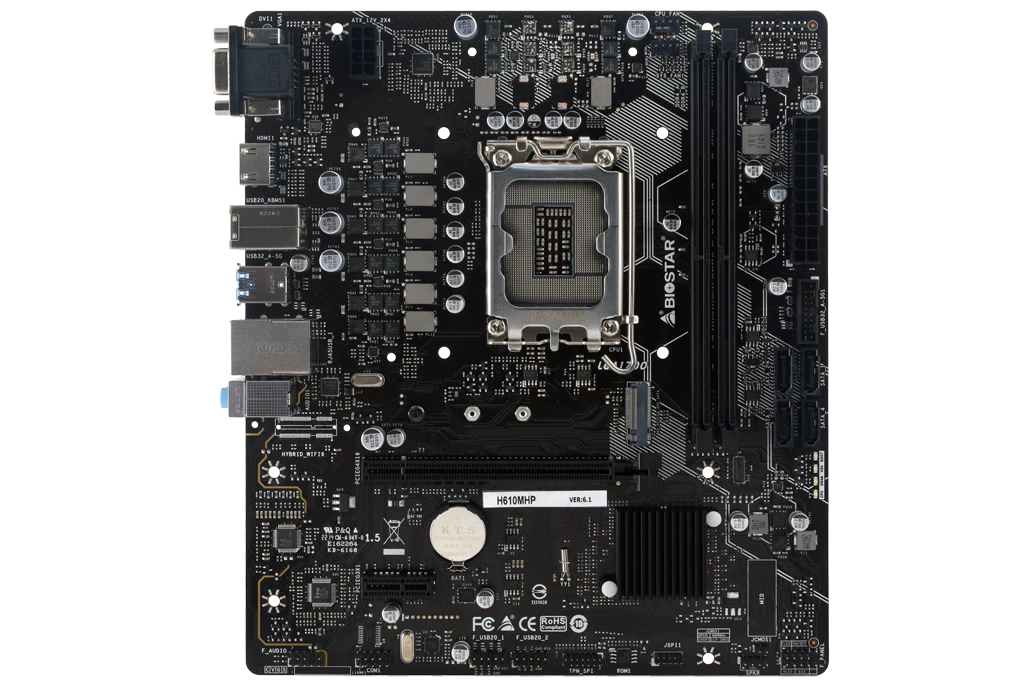

Biostar
H610MS Micro-ATX Motherboard
The Biostar H610MS is a
compact and capable Micro-ATX motherboard powered by the Intel H610 chipset,
offering support for the latest 12th, 13th, and 14th Generation Intel Core,
Pentium, and Celeron processors via the LGA1700 socket. This
motherboard strikes the perfect balance between modern functionality and
affordability, making it an excellent foundation for budget-friendly builds,
everyday computing, and light productivity tasks.
Features
- Intel H610 Chipset:
Optimized for LGA1700 socket CPUs, including Intel Core
i9/i7/i5/i3, Pentium, and Celeron processors from 12th to 14th Gen.
- High-Speed Memory Support: Supports up to 64GB of DDR4 RAM at speeds up
to 3200MHz, enabling smooth multitasking.
- PCIe 4.0 x16 Slot:
Offers next-generation GPU or NVMe SSD support with fast data throughput.
- 7.1 Channel HD Audio:
Enhanced audio experience powered by Realtek ALC897.
Memory
Support
- Memory Type:
DDR4
- Supported Speeds:
1866 / 2133 / 2400 / 2666 / 2933 / 3200MHz
- Memory Slots:
2 DIMM slots
- Maximum Capacity:
Up to 64GB
- Memory Architecture:
Dual-channel support
Storage
and Expansion
- SATA Interface:
- 4 x SATA Ports (6Gb/s)
- M.2 Slot:
- 1 x M.2 (Type 2242/2260/2280) SSD slot for high-speed storage
Graphics
and Expansion Slots
- PCIe Slots:
- 1 x PCIe 4.0 x16 slot for GPU or other expansion cards
- 1 x PCIe 3.0 x1 slot
for network or audio cards
- Integrated Graphics Support (via CPU) with HDMI and DisplayPort outputs
Audio
and Networking
- Audio Chipset:
Realtek ALC897, delivering 7.1-channel HD audio
- LAN Chipset:
Realtek RTL8168H-CG, providing Gigabit Ethernet (10/100/1000
Mbps) connectivity

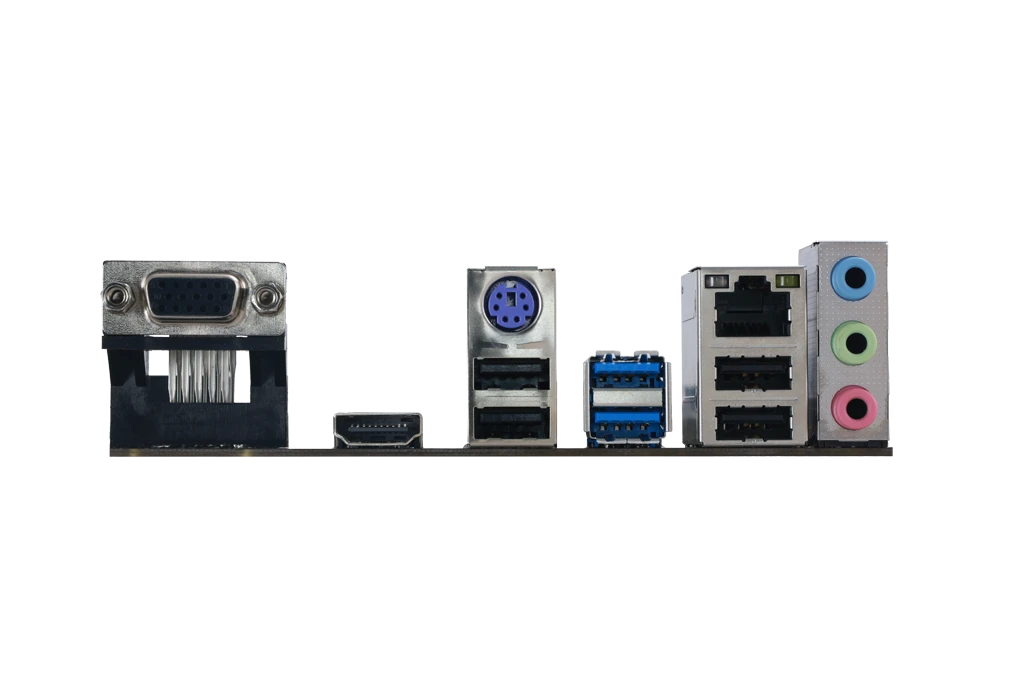

Ports
and I/O
- USB Ports:
- 1 x USB 3.2 Gen1
- 4 x USB 2.0
- Video Outputs:
- 1 x HDMI
- 1 x DisplayPort
- TPM Header:
For enhanced security integration
- FireWire Support:
Yes
Design
and Build
- Form Factor:
Micro-ATX, suitable for compact and mid-tower cases
- Cable Management:
Front I/O alignment for easier assembly
- Power Efficiency:
Approx. 60W average power consumption, ideal for energy-conscious
setups
Compatibility
- Operating System Support: Windows 10 / Windows 11
- CPU Compatibility:
Supports all 12th, 13th, and 14th Gen Intel LGA1700 CPUs,
including:
- Core i9 / i7 / i5 / i3
- Pentium and Celeron
Warranty
Information
- 3-Year Warranty:
Manufacturer-backed warranty for peace of mind
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh
