Biostar H610MHP DDR4 Motherboard
Key Specification
Product Specification
|
Brand |
Biostar |
|
Model |
Biostar
H610MHP |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H610 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and
Intel Pentium processors/ Intel Celeron processors. Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 1866/ 2133/ 2400/ 2666/ 2933/
3200 Memory Channel: Dual Memory Slot: 2 Memory Max: 64GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion : 1 x M.2 Type 2242/ 2260/ 2280 SSD module. |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1x PCIe 3.0 x1 , 1 x PCIe
4.0 x 16 |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Intel I219V LAN Speed (Mbps): 0/100/1000 Mbps |
|
Ports Data |
USB
Port: 2 x USB3.0, 4 x USB2.0 VGA
Port: 1 HDMI
Port: 1 TPM: 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front FireWire: Yes Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / Windows 11 Compatible
Products: 12th / 13th / 14th Intel Core i9/ i7/ i5/ i3, Pentium, Celeron
processors. LGA1700 socket. |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Biostar

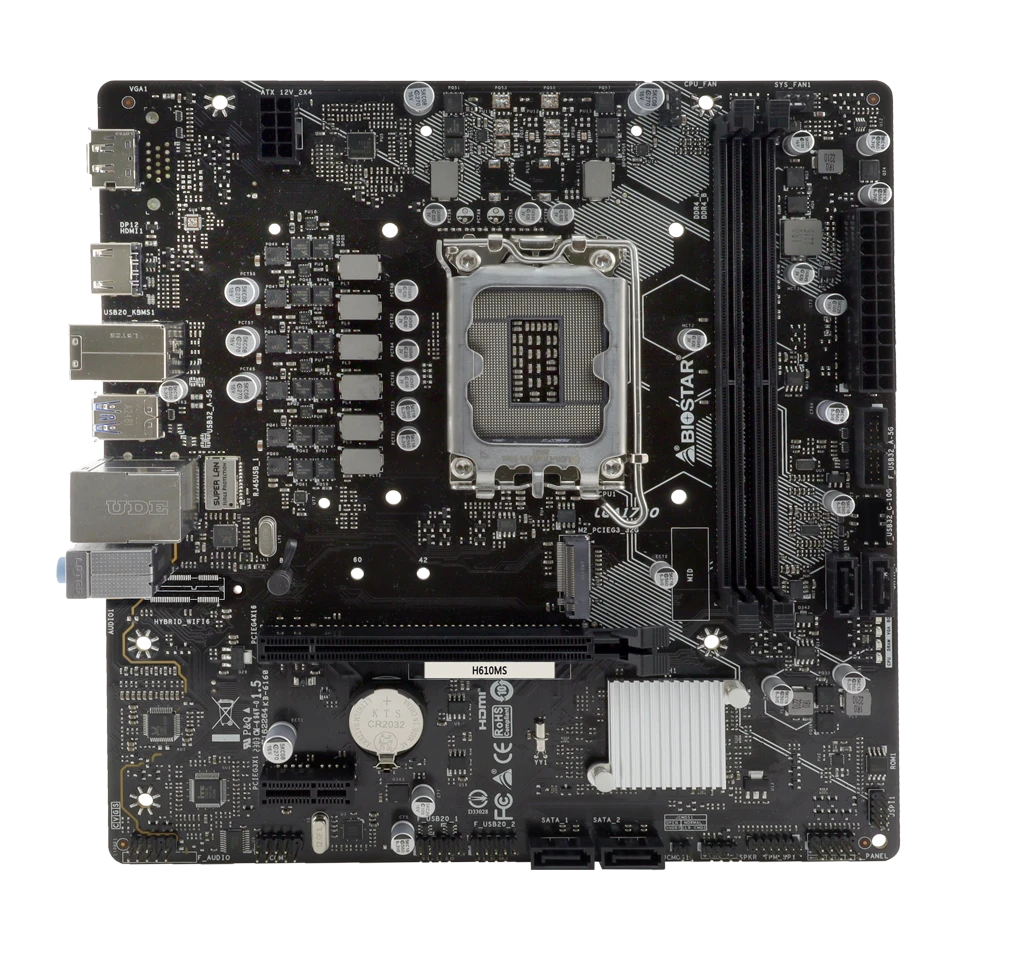

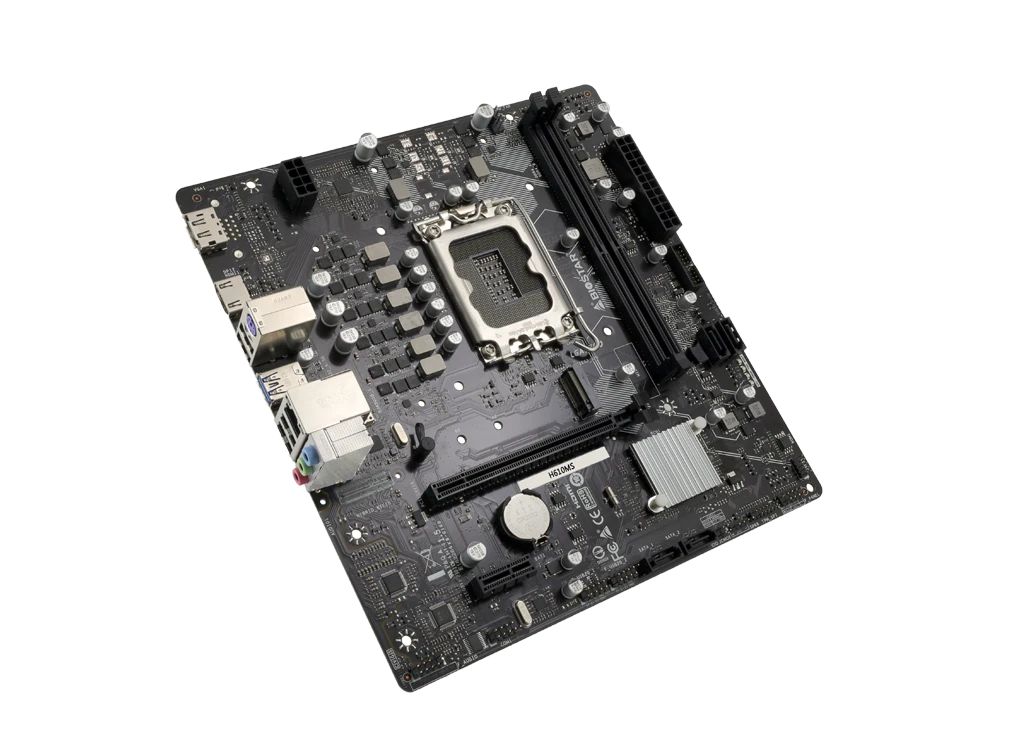

H610MHP Micro-ATX Motherboard
The Biostar H610MHP is a
reliable and feature-rich Micro-ATX motherboard designed for mainstream
users looking to build or upgrade with 12th, 13th, or 14th Gen Intel Core
processors on the LGA1700 socket. Engineered with the Intel H610
chipset, it supports modern connectivity and expansion options while
maintaining energy efficiency and system stability for daily computing,
productivity, and small office setups.
Features
- Intel H610 Chipset:
Built to support Intel Core i9/i7/i5/i3, Pentium, and Celeron
processors from the 12th to 14th generation.
- Dual Channel DDR4 Support: Up to 64GB memory capacity with speeds
reaching 3200MHz.
- PCIe 4.0 Ready:
One PCIe 4.0 x16 slot for discrete graphics and one PCIe 3.0 x1
slot for expansion cards.
- HD Audio:
Immersive 7.1-channel surround sound powered by Realtek ALC897.
Memory
Support
- Memory Type:
DDR4
- Supported Speeds:
1866 / 2133 / 2400 / 2666 / 2933 / 3200 MHz
- Memory Slots:
2 DIMM slots
- Maximum Capacity:
64GB
- Channel Architecture:
Dual Channel
Storage
and Expansion
- SATA Interface:
4 x SATA 6Gb/s ports
- M.2 Slot:
- 1 x M.2 (Type 2242/2260/2280) for SSDs
Graphics
and Expansion Slots
- PCIe Slots:
- 1 x PCIe 4.0 x16 (graphics or high-speed expansion)
- 1 x PCIe 3.0 x1 (for add-in cards)
- Integrated Graphics Output:
- 1 x HDMI
- 1 x VGA
Audio
and Networking
- Audio Chipset:
Realtek ALC897
- Audio Support:
7.1-Channel HD Audio
- LAN Chipset:
Intel I219V
- LAN Speed:
10/100/1000 Mbps Gigabit Ethernet

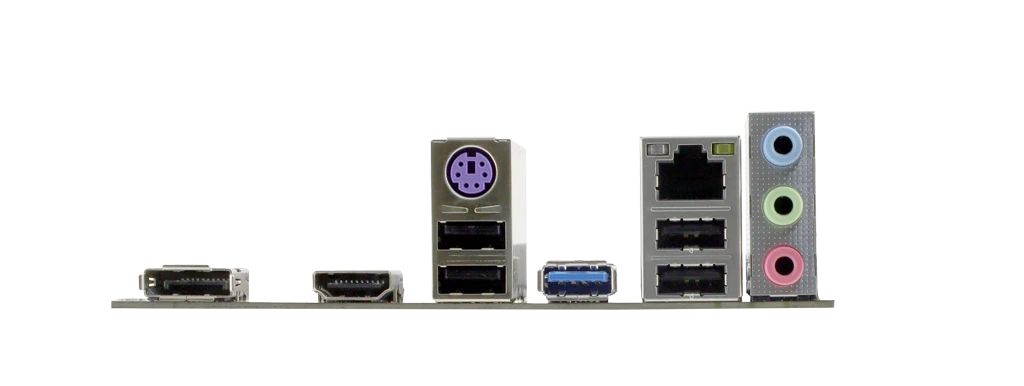

Ports
and I/O
- USB Ports:
- 2 x USB 3.0
- 4 x USB 2.0
- Display Outputs:
- 1 x HDMI
- 1 x VGA
- TPM Header:
Available
- FireWire Support:
Yes
Design
and Build
- Form Factor:
Micro-ATX, suitable for small and mid-tower cases
- Cable Management:
Front-accessible design for simplified cable routing
- Power Consumption:
Approx. 60W for efficient operation
Compatibility
- Operating System:
Compatible with Windows 10 and Windows 11
- Supported Processors:
- 12th, 13th, and 14th Gen Intel Core i9 / i7 / i5 / i3
- Intel Pentium / Intel Celeron
- All using LGA1700 socket
Warranty
Information
- 3-Year Manufacturer Warranty
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh
