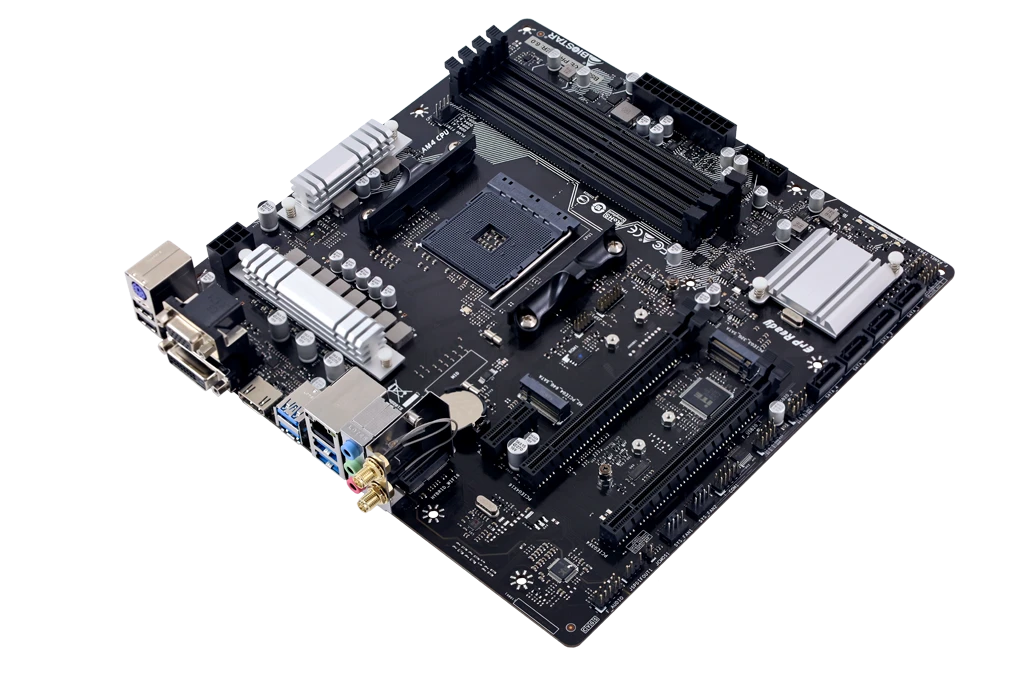

Biostar B550MX/E PRO ATX Motherboard – Detailed Overview

The Biostar B550MX/E PRO is an exceptional ATX motherboard powered by the AMD B550 chipset, offering outstanding performance and support for the latest AMD Ryzen 3rd Gen and 4th Gen processors. Ideal for users seeking a reliable motherboard for gaming, content creation, and productivity, the B550MX/E PRO provides dual-channel DDR4 memory, advanced storage options, and robust connectivity features, all housed in a durable and compact ATX form factor.

Features

• Chipset: AMD B550 chipset, enabling PCIe 4.0 support for higher bandwidth and faster data transfer rates.
• Socket Support: AM4 socket compatibility for both 3rd Gen Ryzen (Matisse/Renoir) and 4th Gen Ryzen (Vermeer/Cezanne) processors, ensuring future-proofing with support for the latest AMD CPU architectures.
• Memory Support:
• Supports DDR4 memory with speeds up to 4400+(OC), allowing high-speed performance for demanding applications.
• Dual-channel architecture with 4 memory slots, accommodating up to 128GB of non-ECC and ECC un-buffered memory.

Storage and Expansion

• Storage Interface:
• 6Gb/s SATA III interface for reliable storage connectivity.
• 2 x M.2 slots:
• 1 x M.2 PCIe 4.0 x4 slot (supports M.2 Type 2242/2260/2280 SSDs).
• 1 x M.2 PCIe 3.0 x4 slot (supports M.2 Type 2242/2260/2280 SSDs).
• Expansion Slots:
• 1 x PCIe 3.0 x4 slot for additional cards and accessories.
• 1 x PCIe 4.0 x4 slot for faster expansion card data transfer.

Connectivity Options

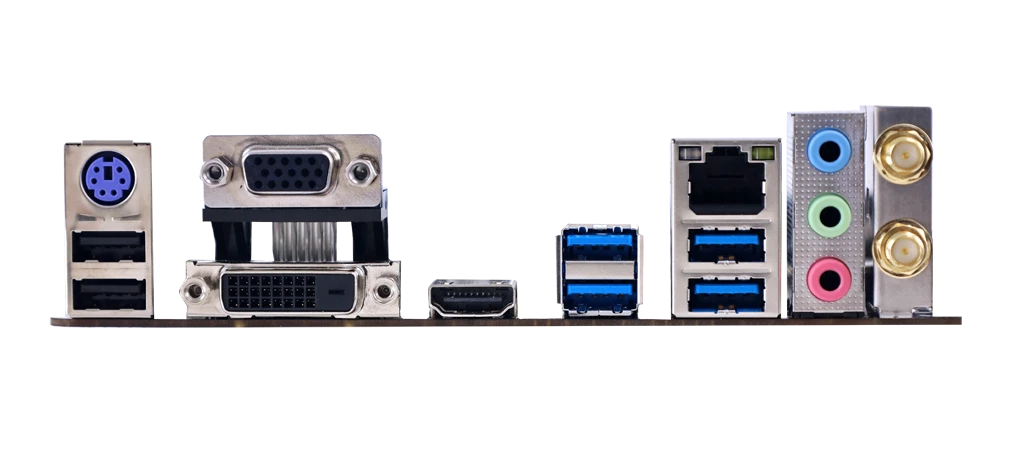

• USB Ports:
• 4 x USB 3.2 Gen1
• 2 x USB 2.0
  These options ensure fast data transfer speeds for your peripherals.
• Video Outputs:
• 1 x VGA port, 1 x DVI port, and 1 x HDMI port for flexible display options.
• Networking:
• Realtek RTL8111H LAN chipset supporting 10/100/1000Mbps Ethernet connectivity for fast and reliable network access.
• TPM (Trusted Platform Module) support for enhanced system security.

Audio and Video

• Audio Codec:
• Realtek ALC897, providing 7.1-channel high-definition audio, ideal for immersive sound during gaming or media consumption.

Design and Build

• Form Factor: ATX, offering more expansion slots and greater overall size for larger builds and extra components.
• Heatsink: No dedicated heatsinks are included, so a third-party cooling solution may be recommended for high-performance use.
• Cable Management: Supports front cable management for a clean and organized build.

Power and Efficiency

• Power Consumption: The motherboard consumes approximately 70W, making it efficient for various tasks while delivering excellent performance.
• Compatibility: Works seamlessly with a wide range of AMD Ryzen processors, including top-end models like Ryzen 9 5950X, Ryzen 7 5800X, and Ryzen 5 5600X.

Compatibility

• Supported Operating Systems:
• Fully compatible with Windows 10 (64bit) and Windows 11 (64bit).
• Ideal for AMD Ryzen 3rd Gen (Matisse/Renoir) and 4th Gen (Vermeer/Cezanne) processors, making it versatile for various build requirements.

Warranty Information

• The Biostar B550MX/E PRO is backed by a 3-year warranty, providing long-term reliability for your system.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x Biostar B550MX/E PRO ATX Motherboard
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x User Manual

Price and Availability

• Available now at Computer Village Agrabad, Chattogram, Bangladesh.
