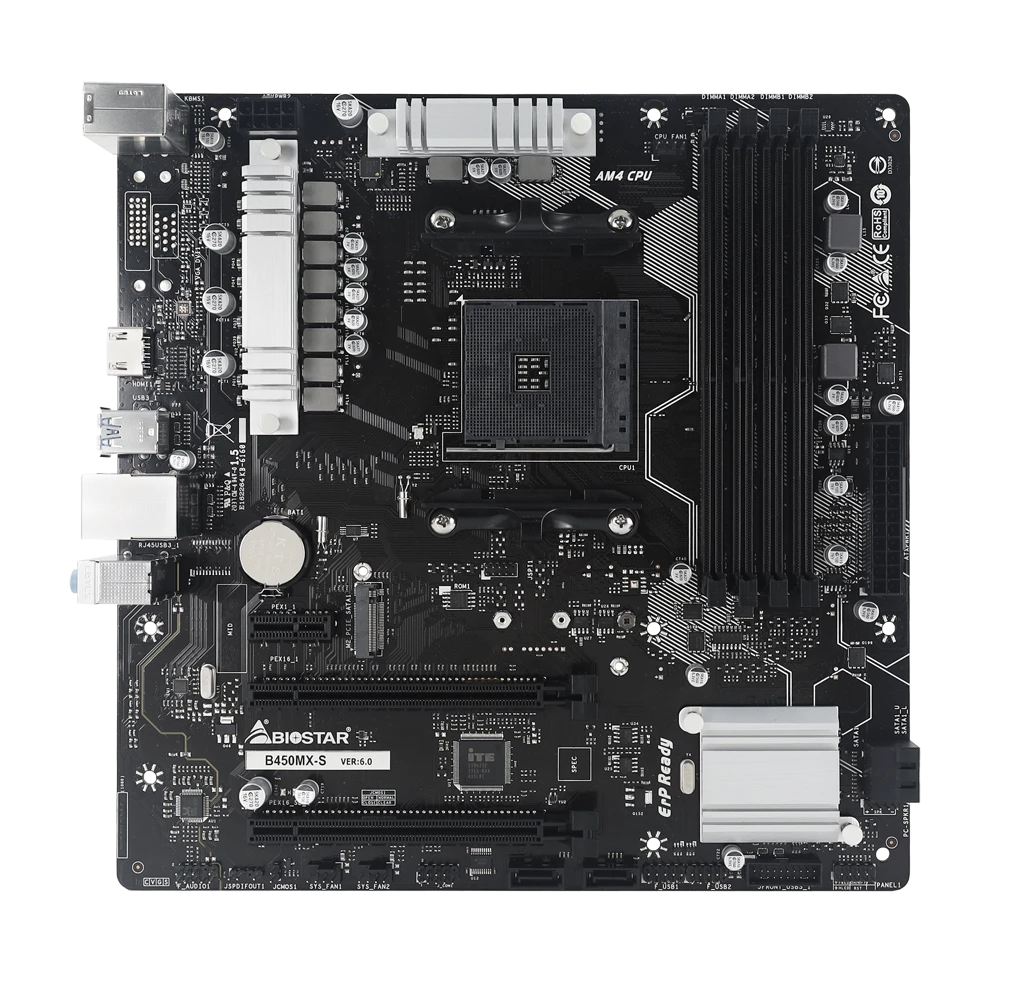

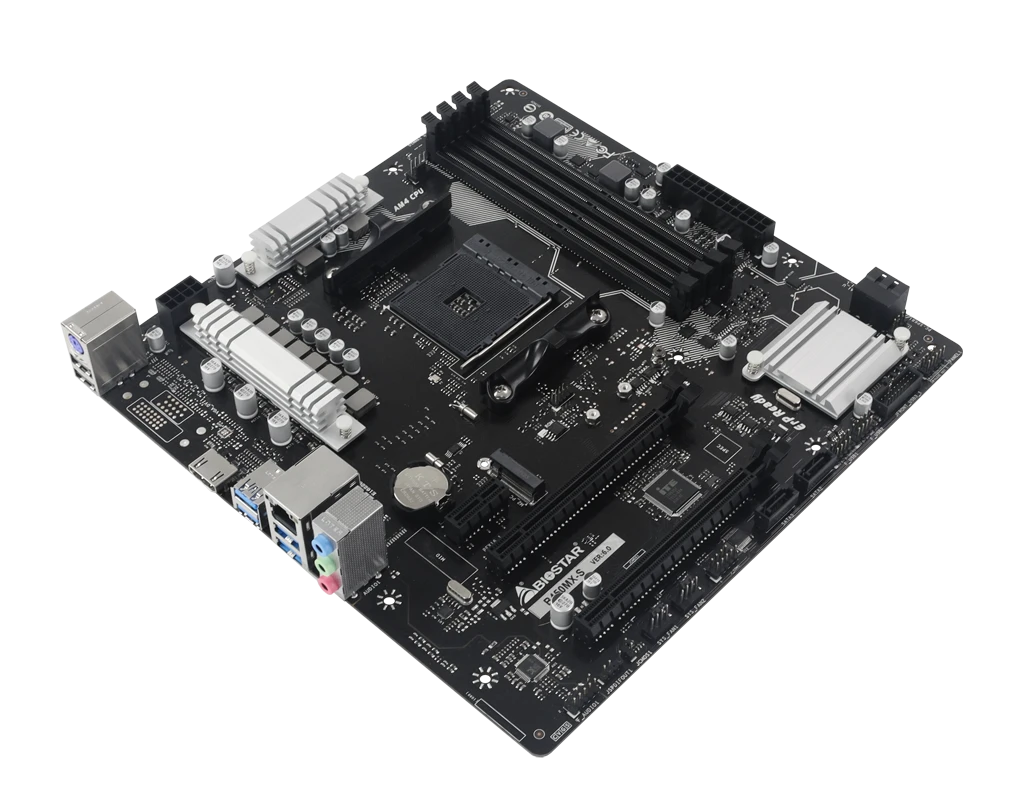

Biostar B450MX-S Micro-ATX Motherboard – Detailed Overview

The Biostar B450MX-S is a cost-effective and reliable Micro-ATX motherboard based on the AMD B450 chipset, designed for users looking to build mid-range systems without compromising on performance. Compatible with a wide range of AMD Ryzen processors, this board offers a solid foundation for general computing, gaming, and productivity builds. It supports both Ryzen CPUs and APUs, and accommodates high-speed DDR4 memory up to 4000MHz (OC) across four DIMM slots, making it suitable for power users on a budget.

Despite its budget-friendly positioning, the B450MX-S offers modern features such as M.2 SSD support, HDMI video output, and 7.1-channel audio, making it a well-rounded choice for everyday PC builders.

Features

• Chipset: Powered by the stable and efficient AMD B450 chipset, designed for Ryzen platform compatibility.
• Socket Support: Equipped with an AM4 socket, compatible with a wide range of AMD Ryzen CPUs and APUs, including Summit Ridge, Pinnacle Ridge, Matisse, Raven Ridge, and Picasso.
• Memory Support: Supports DDR4 memory at speeds of 1866 to 4000MHz (OC), enabling versatile configurations with dual-channel architecture.
• Memory Capacity: Up to 128GB supported across 4 memory slots, ideal for multitasking-heavy workloads and gaming.

Storage and Expansion

• SATA Interface: Offers 4 x SATA III 6Gb/s ports, suitable for traditional SSDs and HDDs.
• M.2 Expansion: Includes 1 x M.2 slot, suitable for high-speed NVMe or SATA SSDs (exact type unmentioned).
• Expansion Slots:
• 1 x PCIe 3.0 x16 (full mode with Ryzen CPUs)
• 1 x PCIe 2.0 x16 (x4 mode)
• 1 x PCIe 2.0 x1 slot
  These expansion options provide flexibility for discrete graphics cards and additional peripherals.

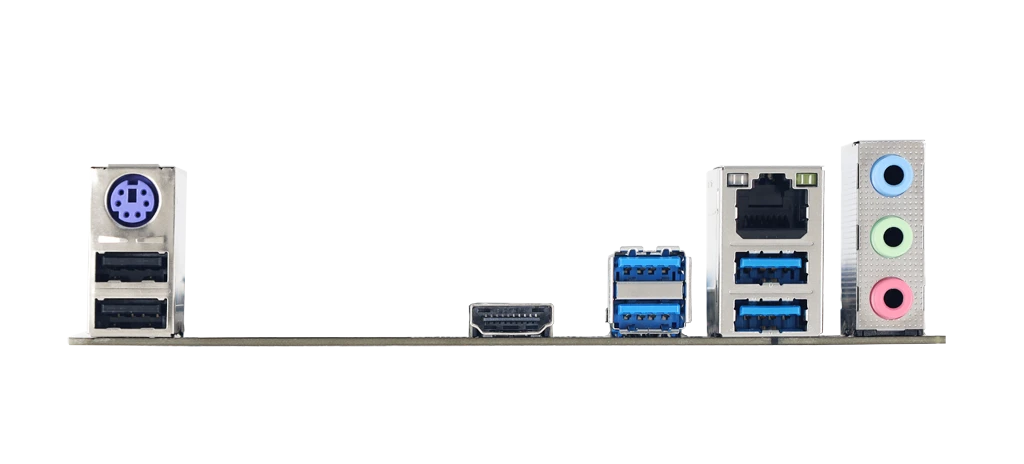

Connectivity Options

• USB Ports:
• 4 x USB 3.1 Gen 1
• 2 x USB 2.0
  Offers essential peripheral connectivity with fast data transfer support.
• Video Output:
• 1 x HDMI port, useful when paired with Ryzen APUs with integrated graphics.
• Networking:
• Realtek RTL8111H LAN chipset
• Supports speeds of 10/100/1000 Mbps, ensuring stable and fast Ethernet connections.

Audio and Visual Capabilities

• Audio Codec: Features either ALC887 or ALC897, delivering 7.1-channel surround sound for an immersive audio experience.
• Ideal for basic multimedia playback, casual gaming, and voice communication.

Design and Build

• Form Factor: Micro-ATX, ideal for mid-tower or compact PC builds with limited space.
• Color Scheme: Sleek black PCB, giving it a professional and minimalistic look.
• Cooling and Management:
• Front cable management for cleaner builds
• No dedicated heatsinks, so external cooling solutions are recommended for high thermal environments.

Power and Efficiency

• Power Consumption: Operates at around 65W, offering efficient performance for day-to-day tasks.
• Best paired with 65W TDP or lower CPUs for optimal temperature and energy efficiency.

Compatibility

• Supported CPUs: AMD Ryzen APUs (Raven Ridge, Picasso) and CPUs (Summit Ridge, Pinnacle Ridge, Matisse).
• Operating Systems: Compatible with Windows 7 and Windows 10.

Warranty Information

• Backed by a 3-year warranty, ensuring long-term reliability and support.
• Note: Product specs may vary depending on kit version or manufacturing batch.

Included Accessories

• 1 x Biostar B450MX-S Motherboard
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x User Manual and Setup Guide

Price and Availability

• Available now at Computer Village Agrabad, Chattogram, Bangladesh
