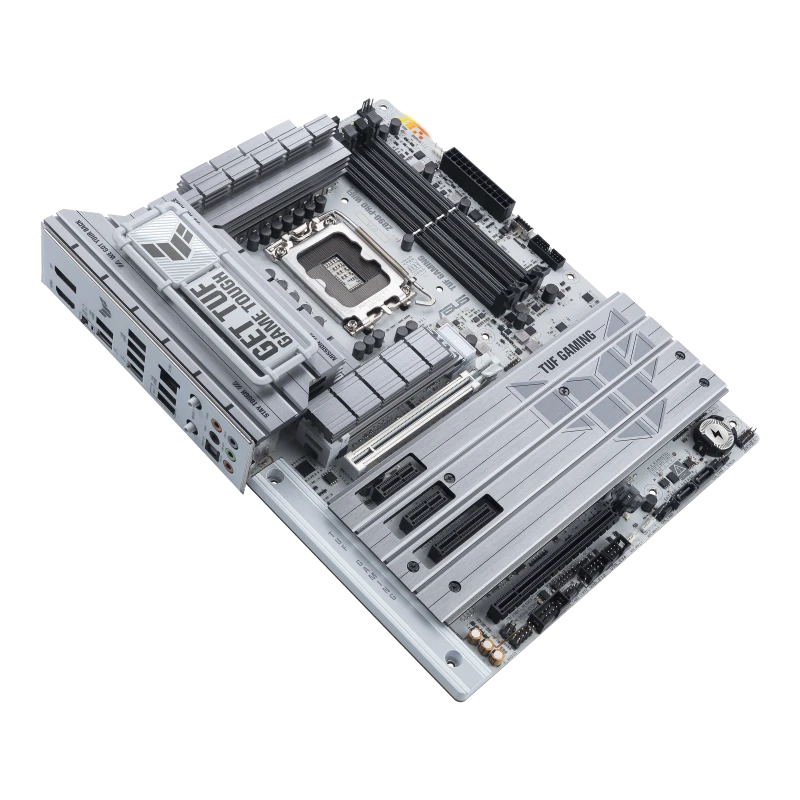

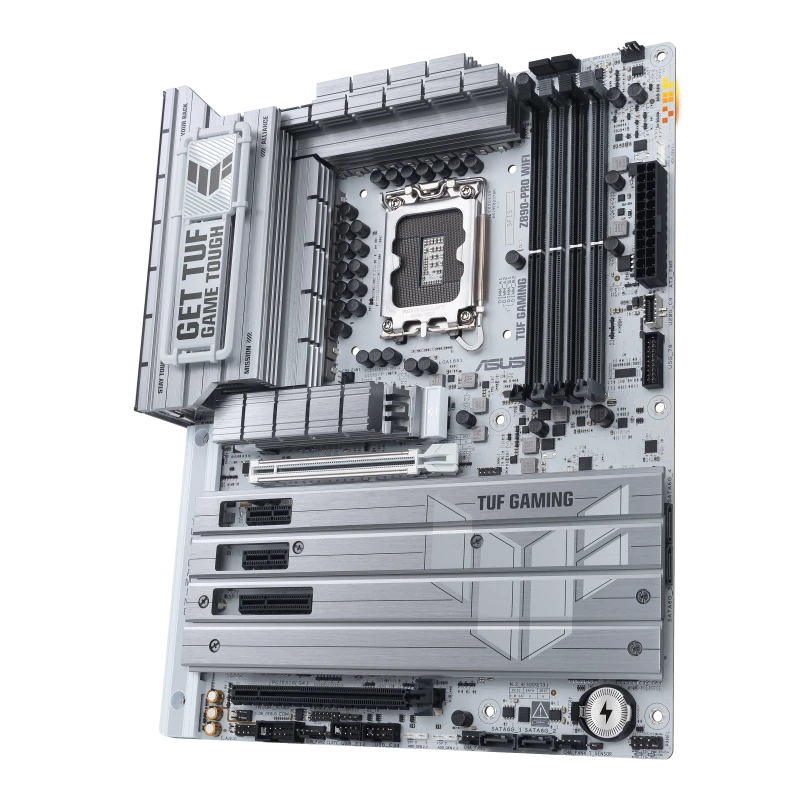

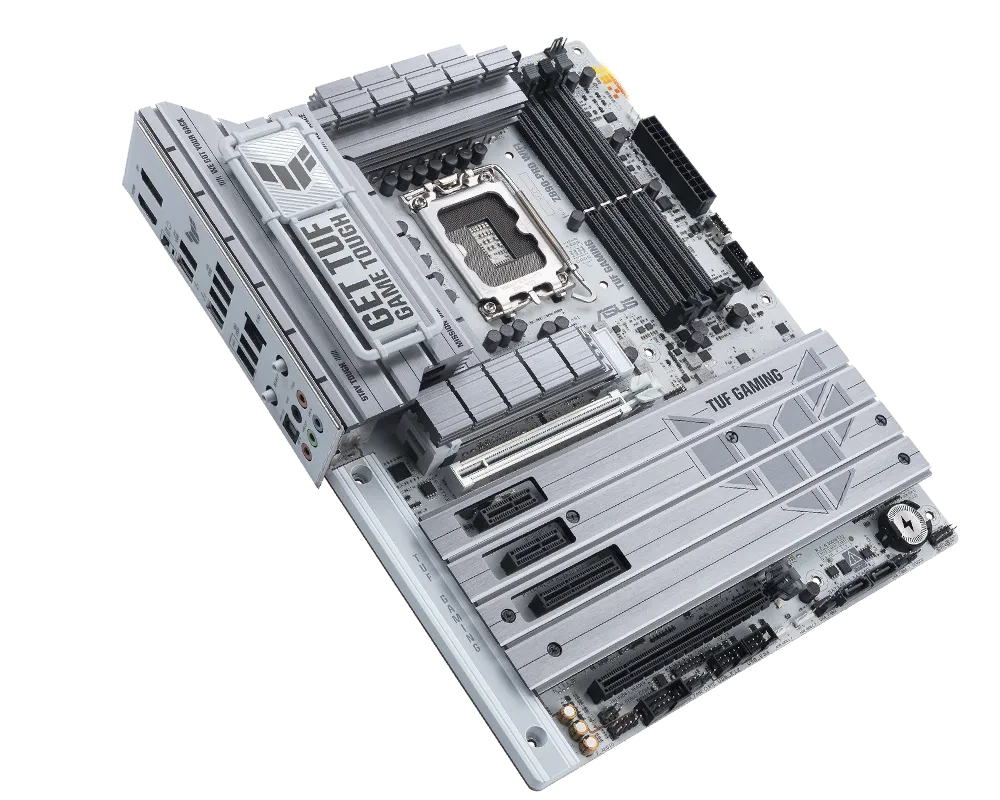

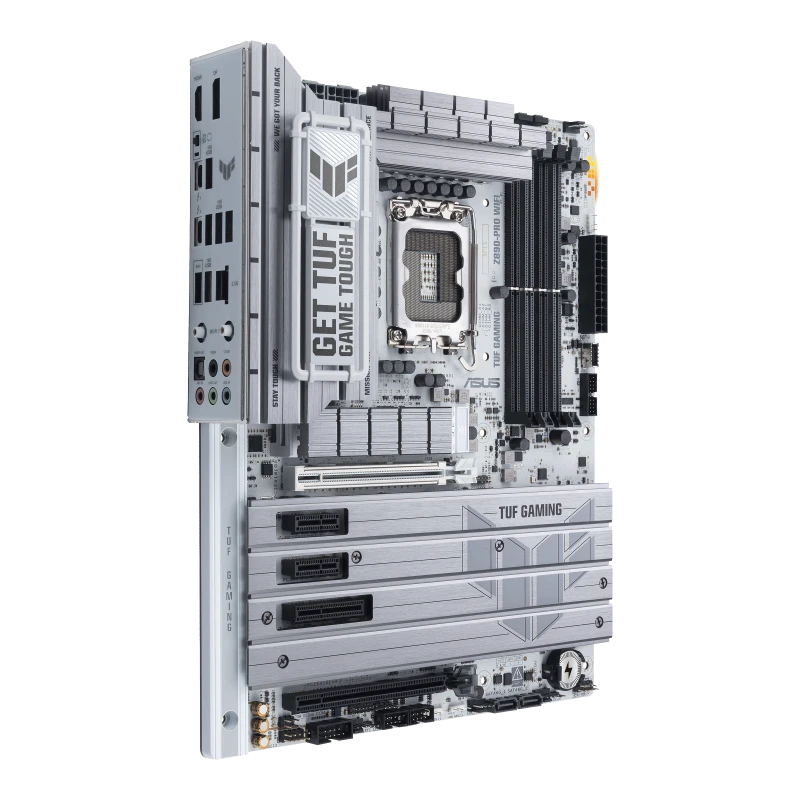

Asus TUF GAMING Z890-PRO (Wi-Fi 7) ATX Motherboard

The Asus TUF GAMING Z890-PRO (Wi-Fi 7) motherboard is a high-performance solution for gamers and PC enthusiasts seeking cutting-edge technology. With support for Intel Core Ultra Processors (Series 2), Wi-Fi 7, and PCIe 5.0, it delivers exceptional gaming and multitasking capabilities, making it an ideal choice for advanced builds.

Features

• Intel Z890 Chipset: Designed for Intel Core Ultra Processors (Series 2) with LGA1851 socket.
• PCIe 5.0 Support: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), and additional slots for GPU and storage expansion.
• Multi-GPU Support: While not explicitly mentioned, the motherboard is capable of handling multiple GPUs for enhanced graphical performance.

Memory Support

• DDR5 Memory: Supports DDR5 memory with speeds up to 9066+ MT/s (OC).
• Dual-Channel Configuration: Equipped with 4 DIMM slots supporting up to 192GB of Non-ECC, un-buffered memory.
• On-Die ECC Function: DDR5 memory supports an On-Die ECC function for additional memory reliability.

Storage Expansion and Connectivity

• M.2 Expansion: Includes 4 x M.2 slots:
• M.2_1 slot for PCIe 5.0 x4 mode (supports 2242/2260/2280 sizes).
• M.2_2 slot for PCIe 4.0 x4 mode (supports 2280 size).
• M.2_3 slot for PCIe 4.0 x4 mode (supports 2280/22110 sizes).
• M.2_4 slot for PCIe 4.0 x4 & SATA modes (supports 2242/2260/2280 sizes).
• SATA Ports: 4 x SATA ports for additional storage devices.

Audio and Networking

• Audio Chipset: Realtek ALC1220P for 7.1 surround sound audio.
• LAN Chipset: Realtek 2.5Gb Ethernet offering 10/100/1000/2500 Mbps speeds for high-speed internet access.
• Wi-Fi: Integrated Wi-Fi 7 (802.11be) for the latest wireless technology.
• Bluetooth: Supports Bluetooth 5.4 for seamless connectivity with wireless peripherals.

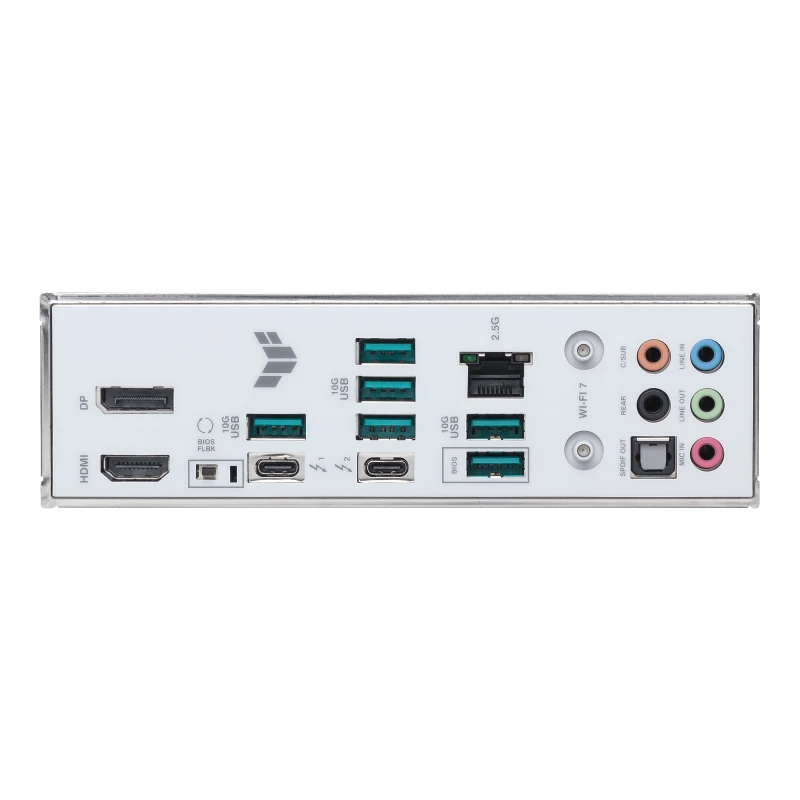

Ports and I/O

• USB Ports: Includes:
• 2 x Thunderbolt 4 for high-speed data transfer and connectivity.
• 6 x USB Type-A for various peripheral connections.
• Display Ports: Includes 1 x HDMI and 1 x DisplayPort for video output.
• COM Port: Supports COM Port for legacy connectivity.

Design and Build Quality

• ATX Form Factor: Standard ATX form factor suitable for most gaming cases.
• Cable Management: Features front cable management for a cleaner and organized build.
• Heatsink: Integrated heatsinks to keep critical components cool under load.
• RGB Support: ARGB lighting with customizable options, featuring 3 x RGB LED headers and 3 x addressable LED headers for personalized lighting effects.

Power and Efficiency

• Power Consumption: The motherboard draws approximately 70W of power, ensuring efficient operation without excessive power usage.

Compatibility

• Operating System: Fully compatible with Windows 11 for smooth, stable performance.
• Processor Compatibility: Designed for LGA1851 Core Ultra Processors (Series 2).

Warranty and Support

• 3-Year Warranty: The motherboard comes with a 3-year warranty for added peace of mind.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
