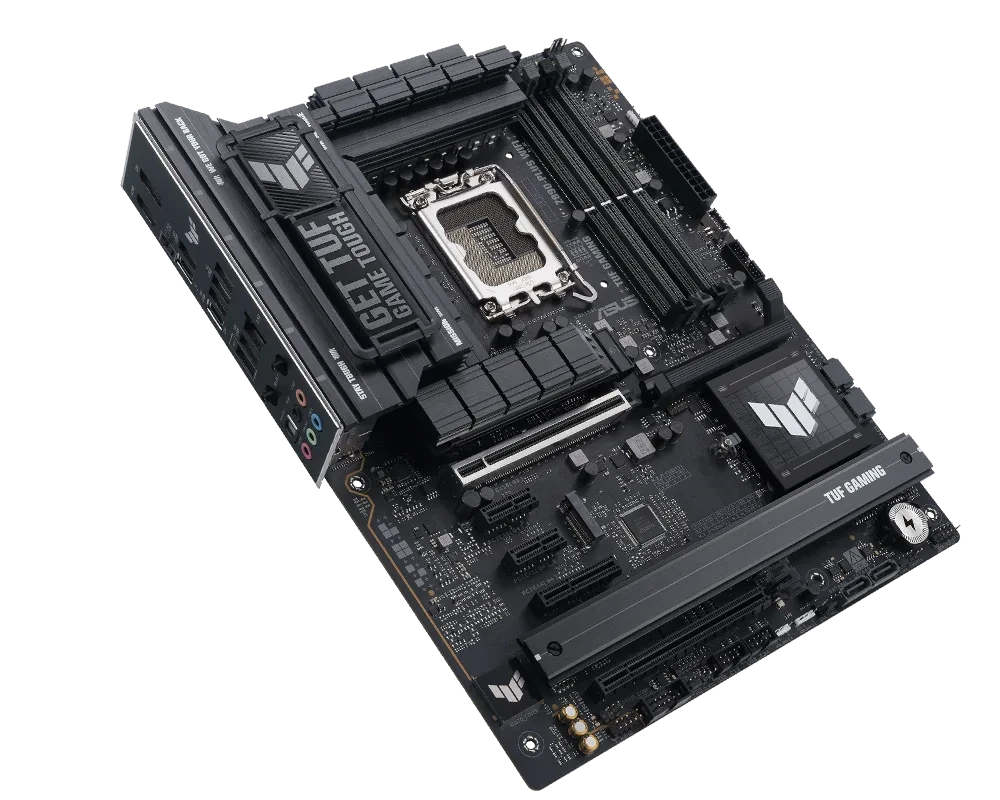

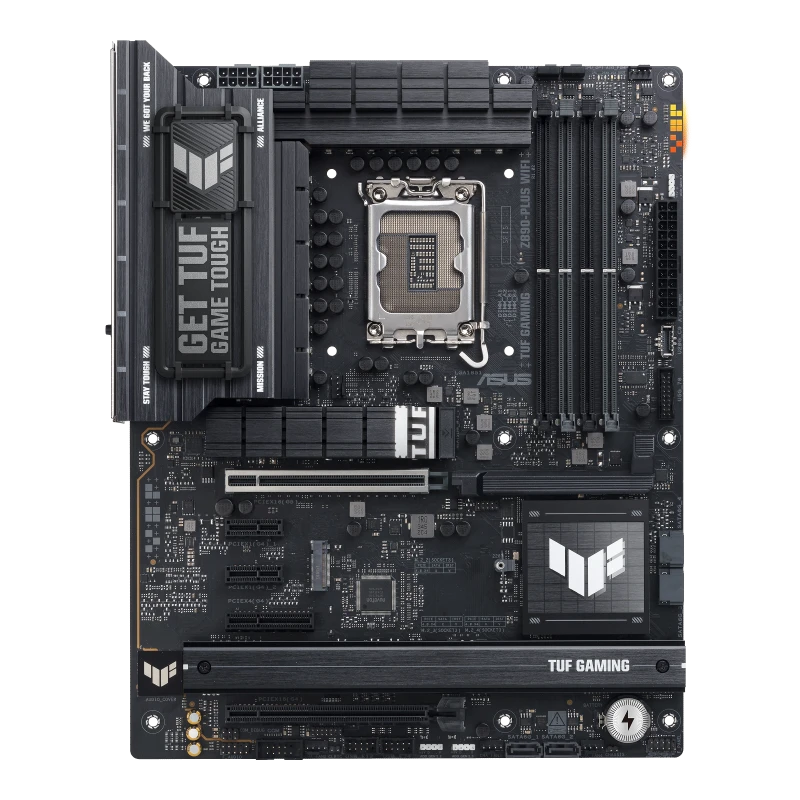

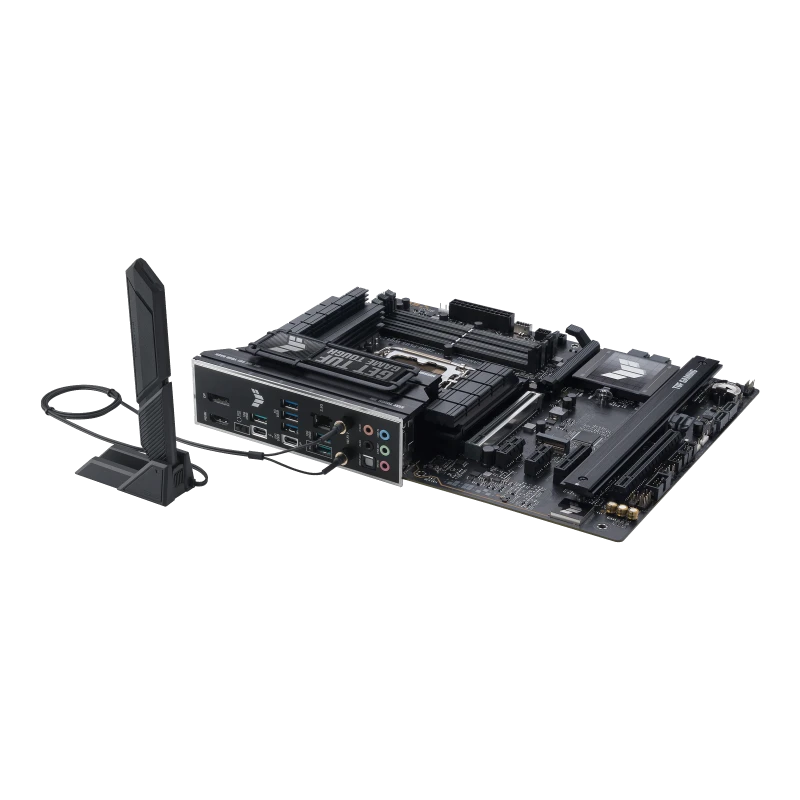

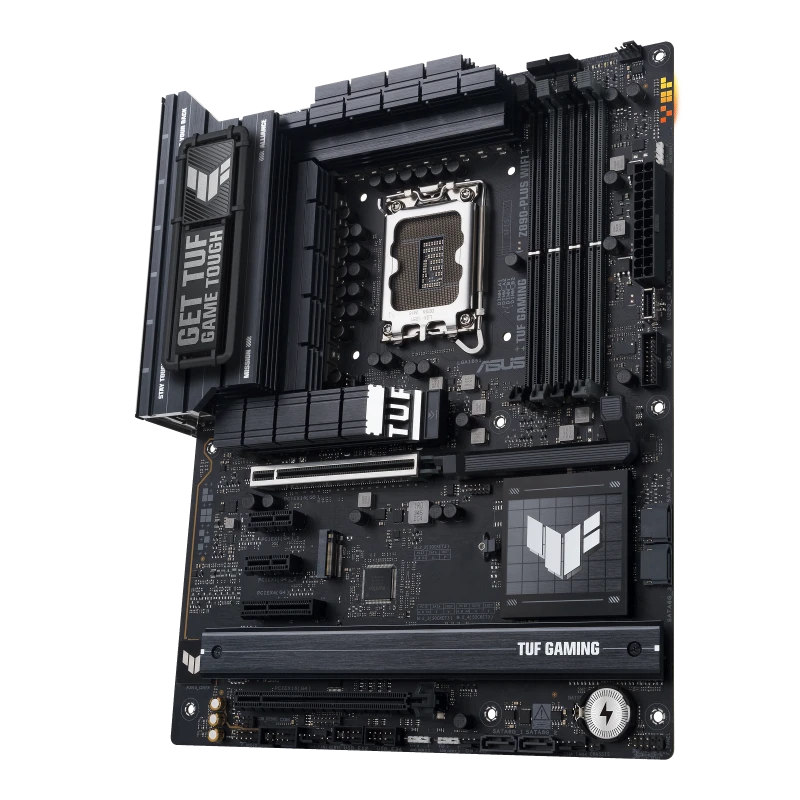

Asus TUF GAMING Z890-PLUS (Wi-Fi 7) ATX Motherboard

The Asus TUF GAMING Z890-PLUS (Wi-Fi 7) motherboard is engineered to provide a durable and high-performance experience for gamers and enthusiasts. With support for Intel Core Ultra Processors (Series 2), PCIe 5.0, and Wi-Fi 7, it combines robust features for speed, connectivity, and reliability in demanding gaming environments.

Features

• Intel Z890 Chipset: Compatible with Intel Core Ultra Processors (Series 2) and LGA1851 socket.
• PCIe 5.0 Support: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), and additional slots for GPU and storage expansion.
• Multi-GPU Support: Not mentioned, but capable of supporting various GPU setups for enhanced graphics performance.

Memory Support

• DDR5 Memory: Supports DDR5 memory with speeds up to 9066+ MT/s (OC).
• Dual-Channel Configuration: Equipped with 4 DIMM slots supporting up to 192GB of Non-ECC, un-buffered memory.
• Overclocking: Overclocking support for DDR5 memory speeds up to 9066+ MT/s.

Storage Expansion and Connectivity

• M.2 Expansion: Includes 4 x M.2 slots:
• M.2_1 slot for PCIe 5.0 x4 mode (supports 2242/2260/2280 sizes).
• M.2_2 slot for PCIe 4.0 x4 mode (supports 2280 size).
• M.2_3 slot for PCIe 4.0 x4 mode (supports 2280/22110 sizes).
• M.2_4 slot for PCIe 4.0 x4 & SATA modes (supports 2242/2260/2280 sizes).
• SATA Ports: 4 x SATA ports for additional storage devices.

Audio and Networking

• Audio Chipset: Realtek ALC1220P for 7.1 surround sound audio.
• LAN Chipset: Realtek 2.5Gb Ethernet offering 10/100/1000/2500 Mbps speeds for high-speed internet access.
• Wi-Fi: Integrated Wi-Fi 7 (802.11be) for the latest wireless technology.
• Bluetooth: Supports Bluetooth 5.4 for seamless connectivity with wireless peripherals.

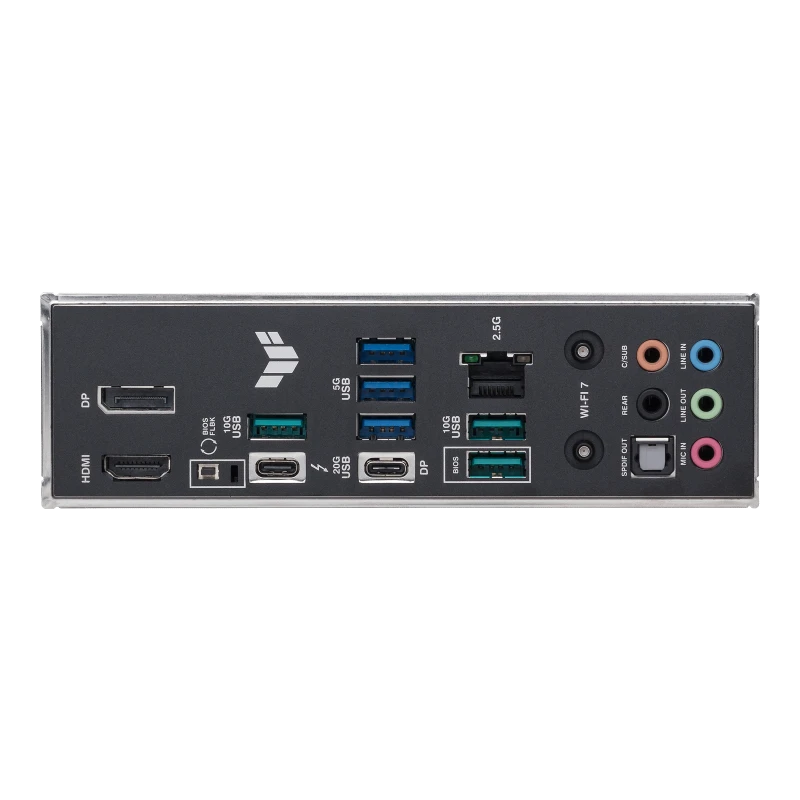

Ports and I/O

• USB Ports: A variety of USB ports, including:
• 4 x USB 2.0 Type-A.
• 2 x USB 5Gbps Type-A.
• 2 x USB 10Gbps Type-A.
• 1 x USB 10Gbps Type-C.
• 1 x USB4 20Gbps Type-C for ultra-fast data transfer.
• Display Ports: Includes 1 x HDMI and 1 x DisplayPort for video output.
• Thunderbolt: 1 x Thunderbolt port for high-speed data transfer.

Design and Build Quality

• ATX Form Factor: Standard ATX form factor suitable for most gaming cases.
• Cable Management: Features front cable management for a cleaner build.
• Heatsink: Comes with integrated heatsinks for optimal cooling.
• RGB Support: Equipped with ARGB lighting and customizable options with 3 x RGB LED headers and 3 x addressable LED headers.

Power and Efficiency

• Power Consumption: The motherboard draws approximately 70W of power, providing efficient performance without excessive power requirements.

Compatibility

• Operating System: Fully compatible with Windows 11 for seamless performance.
• Processor Compatibility: Supports LGA1851 Core Ultra Processors (Series 2).

Warranty and Support

• 3-Year Warranty: Enjoy peace of mind with a 3-year warranty.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
