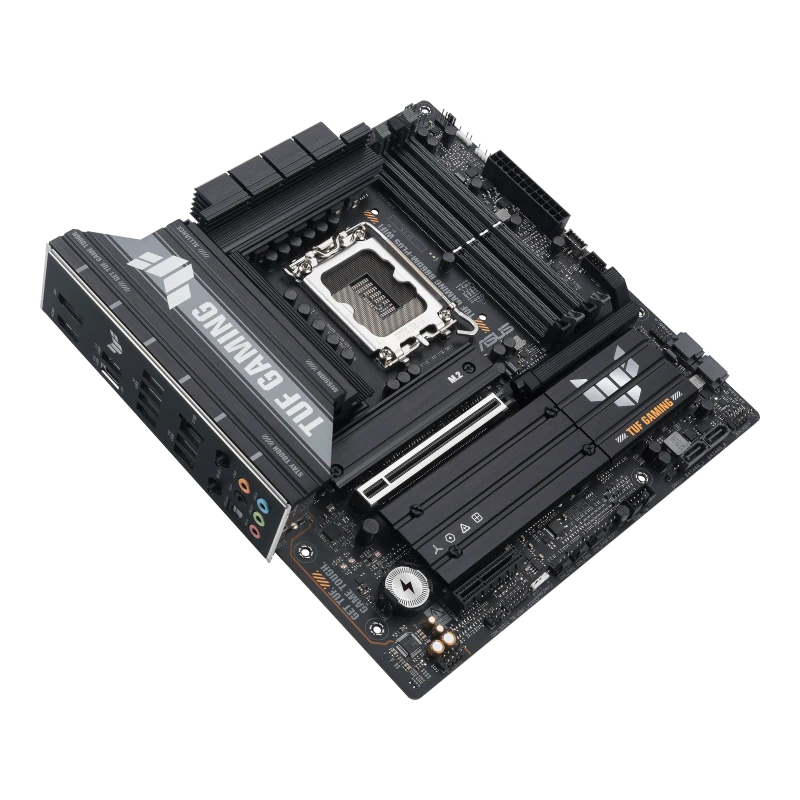

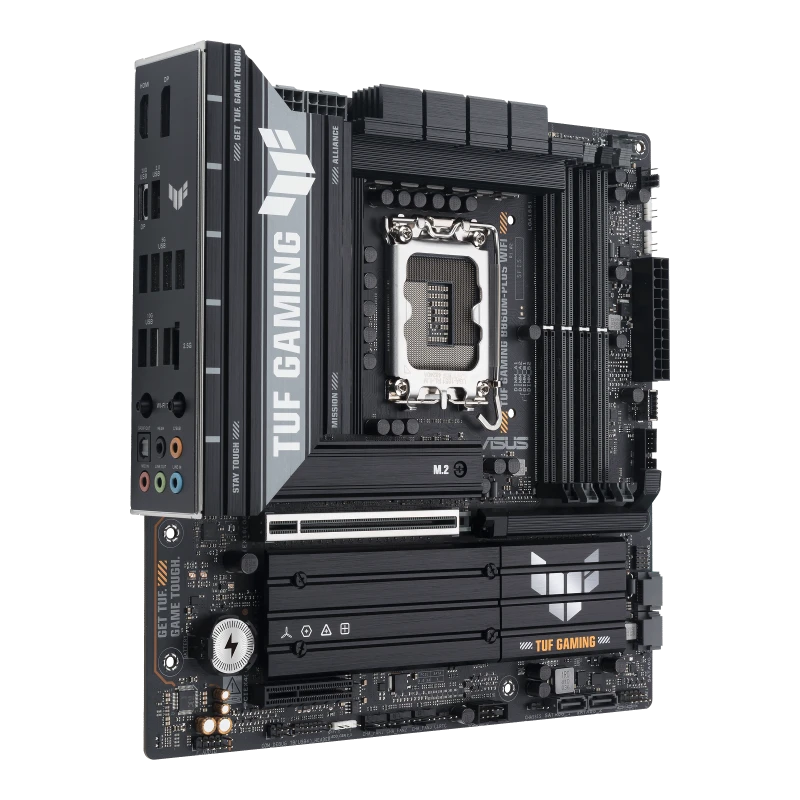

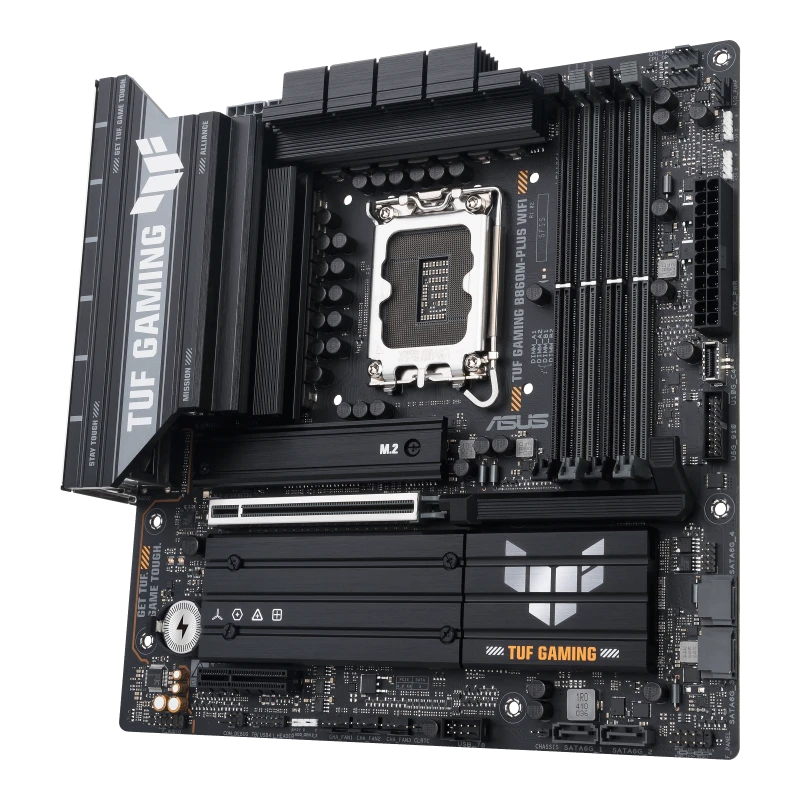

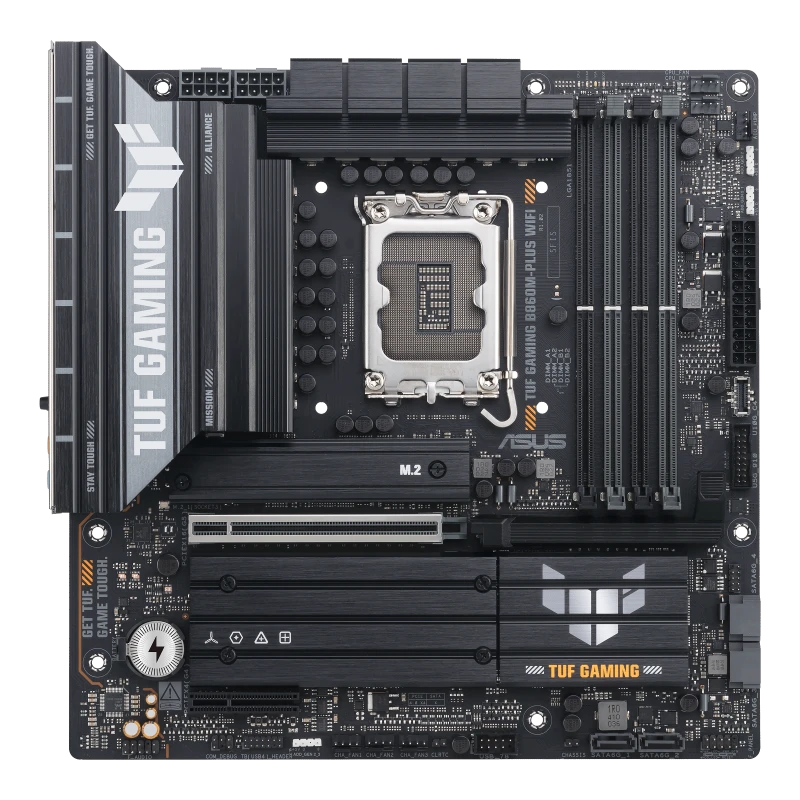

Asus TUF GAMING B860M-PLUS (Wi-Fi 7) Micro-ATX Motherboard

The Asus TUF GAMING B860M-PLUS (Wi-Fi 7) is a high-performance motherboard designed to support the latest Intel Core Ultra Processors (Series 2) with the LGA1851 socket. It delivers exceptional speed with support for DDR5 memory and PCIe 5.0 technology, making it perfect for gamers, content creators, and power users. The board's robust design, including advanced Wi-Fi 7 and ARGB support, ensures it offers both cutting-edge performance and customizable aesthetics.

Features

• Intel B860 Chipset: Designed for Intel Core Ultra Processors (Series 2) with the LGA1851 socket.
• PCIe 5.0 Support: Features a PCIe 5.0 x16 slot for the latest GPUs, as well as a PCIe 4.0 x4 slot for additional expansion cards.
• Multi-GPU Support: Multi-GPU support is unmentioned.

Memory Support

• DDR5 Memory: Supports DDR5 memory with speeds up to 8800+ MT/s (OC) for top-tier performance.
• Dual-Channel Configuration: Features 4 DIMM slots, supporting up to 256GB of memory, allowing for demanding multitasking and high-performance applications.
• Non-ECC, Un-buffered Memory: Compatible with Non-ECC, Un-buffered memory for reliable operation.

Storage Expansion and Connectivity

• M.2 Expansion: Equipped with 3 x M.2 slots:
• M.2_1 slot (Key M), type 2280 (PCIe 5.0 x4 mode).
• M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode).
• M.2_3 slot (Key M), type 2280 (PCIe 4.0 x4 mode).
• SATA Ports: 4 x SATA ports are available for additional storage options.

Audio and Networking

• Audio Chipset: Equipped with Realtek 7.1 Surround Sound, delivering immersive audio for gaming and entertainment.
• LAN Chipset: Includes Dragon RTL8125BG for 2.5Gb Ethernet support, with speeds of 10/100/1000/2500 Mbps.
• Wi-Fi: Features Wi-Fi 7 (802.11be) with 2x2 Wi-Fi 7 for ultra-fast wireless connectivity.
• Bluetooth: Supports Bluetooth 5.4 for seamless connectivity with wireless peripherals.

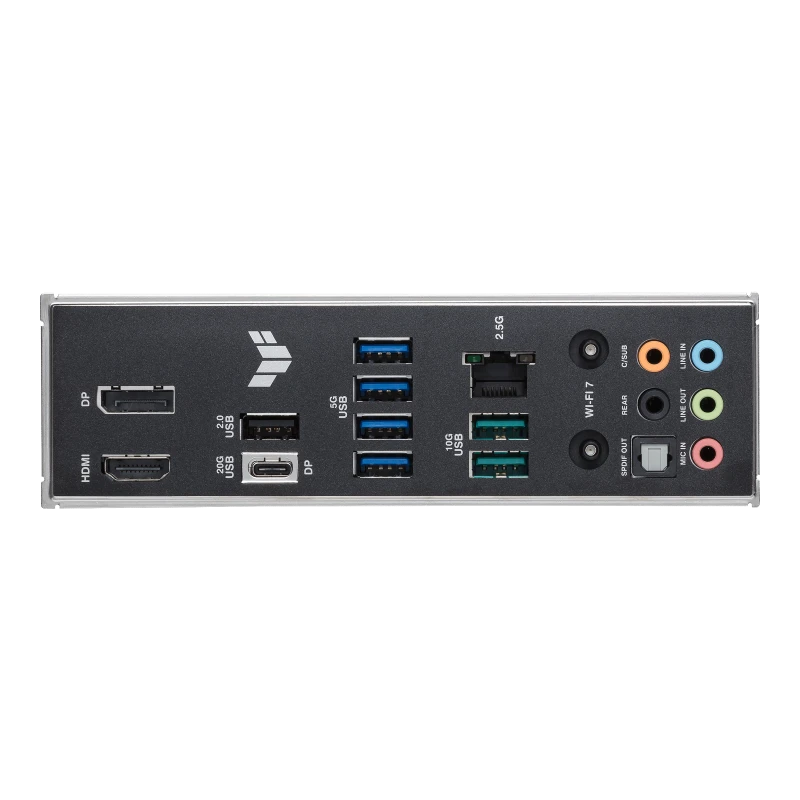

Ports and I/O

• USB Ports: Offers a wide selection of USB ports:
• 1 x USB Type-C 20Gbps.
• 2 x USB Type-A 10Gbps.
• 4 x USB Type-A 5Gbps.
• 1 x USB 2.0 Type-A.
• Display Ports: Includes 1 x HDMI and 1 x DisplayPort for video output.

Design and Build Quality

• Micro-ATX Form Factor: Compact Micro-ATX design, ideal for space-efficient builds.
• Cable Management: Offers front cable management for a clean and organized setup.
• Heatsink: Comes equipped with heatsinks for efficient cooling during high workloads.
• RGB Support: Features ARGB support with 3 x RGB LED Headers and 3 x Addressable LED Headers, providing customizable lighting options for your build.

Power and Efficiency

• Power Consumption: The motherboard consumes approximately 60W, ensuring low power usage without compromising performance.

Compatibility

• Operating System Support: Fully compatible with Windows 11 for the latest features and performance optimizations.
• Processor Compatibility: Designed for Intel Core Ultra Processors (Series 2) with the LGA1851 socket.

Warranty and Support

• 3-Year Warranty: Includes a 3-year warranty for peace of mind.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
