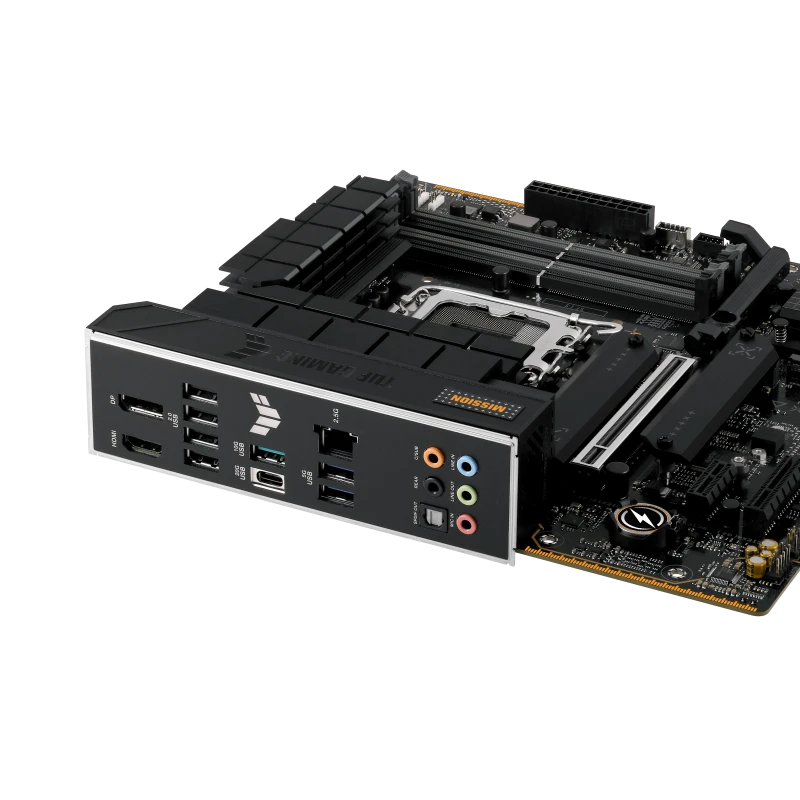

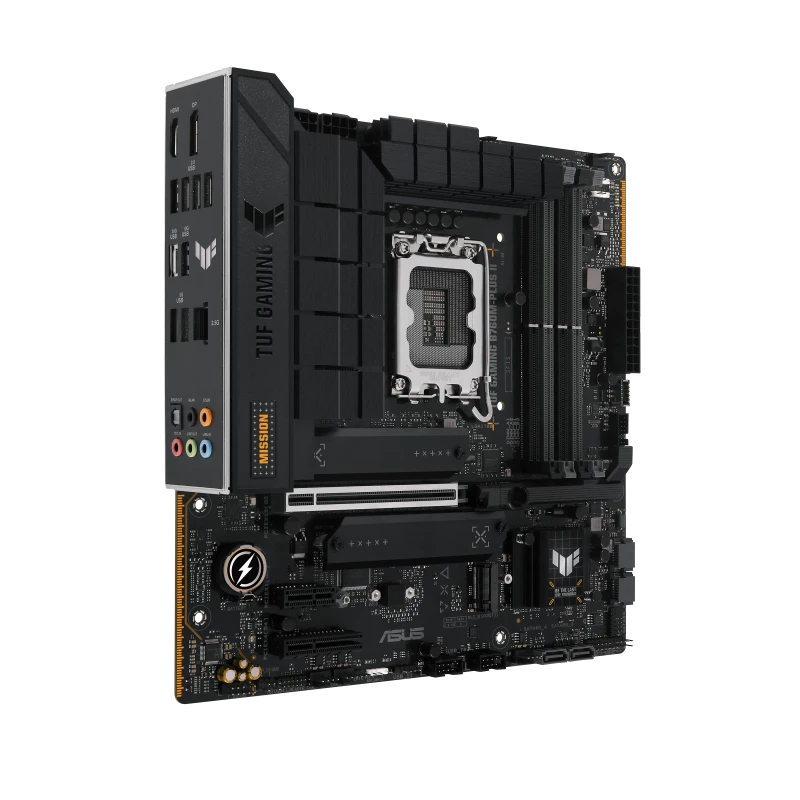

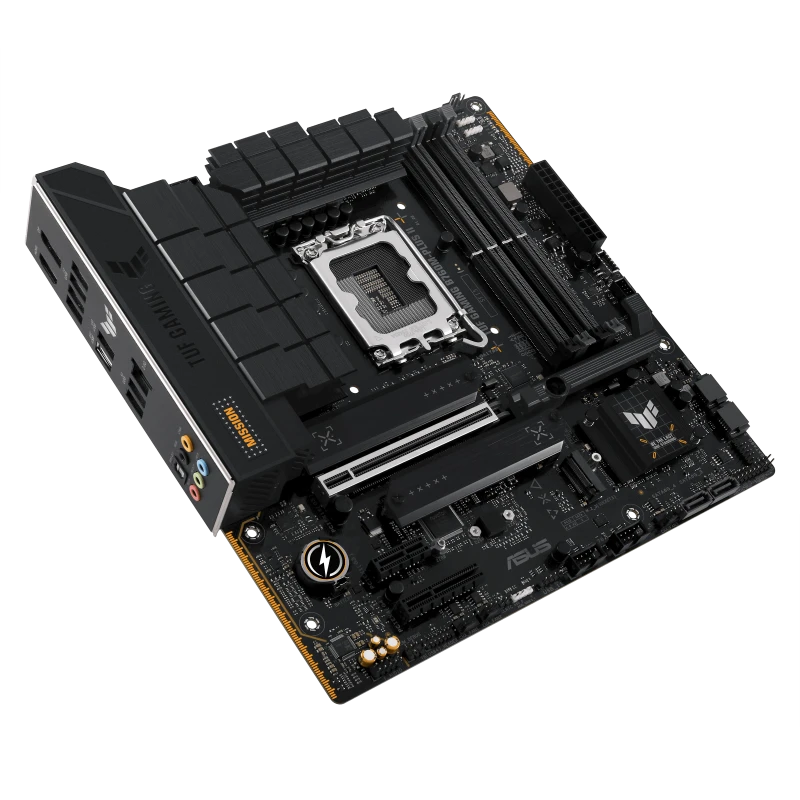

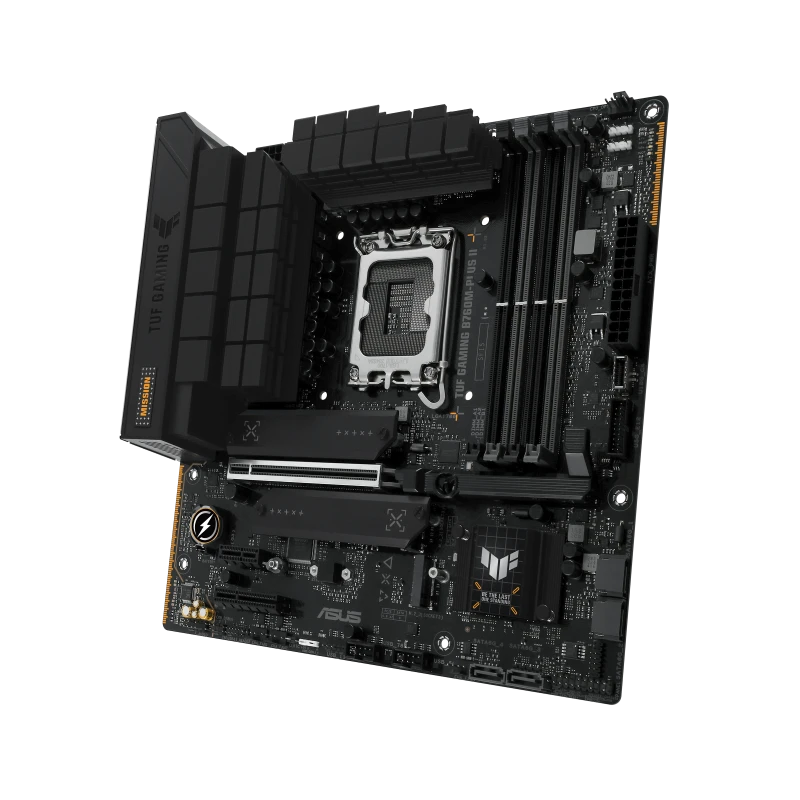

Asus TUF GAMING B760M-PLUS II DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
Key Specification
Product Specification
|
Brand |
Asus |
|
Model |
Asus
TUF GAMING B760M-PLUS II |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: Intel Core 14th & 13th Gen
Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion : 3 x M.2 slots ( 2 x M.2 type 2242/2260/2280(supports PCIe 4.0 x4
mode), 1 x M.2 type 2242/2260/2280 (supports PCIe 4.0 x2 mode)) |
|
Graphics Info |
Multi-GPU Support: unmentioned PCI Express Slot: 1 x PCIe 5.0 x16 slot, 1 x
PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5Gb Ethernet LAN Speed (Mbps): 10/100/1000/2500 Mb/s |
|
Ports Data |
USB
Port: 1 x USB Type-C 20Gbps, 1 x USB Type-A 10Gbps, 2 x USB Type-A 5Gbps, 4 x
USB Type-A 2.0 VGA
Port: N/A HDMI Port:
1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3 x Addressable Gen 2 RGB
headers Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 64-bit Compatible
Products: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors,
Intel Core 12th Gen, Pentium Gold and Celeron Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
|
Brand |
Asus |
|
Model |
Asus
TUF GAMING B760M-PLUS II |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: Intel Core 14th & 13th Gen
Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7800(OC)/ 7600(OC)/ 7400(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion : 3 x M.2 slots ( 2 x M.2 type 2242/2260/2280(supports PCIe 4.0 x4
mode), 1 x M.2 type 2242/2260/2280 (supports PCIe 4.0 x2 mode)) |
|
Graphics Info |
Multi-GPU Support: unmentioned PCI Express Slot: 1 x PCIe 5.0 x16 slot, 1 x
PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5Gb Ethernet LAN Speed (Mbps): 10/100/1000/2500 Mb/s |
|
Ports Data |
USB
Port: 1 x USB Type-C 20Gbps, 1 x USB Type-A 10Gbps, 2 x USB Type-A 5Gbps, 4 x
USB Type-A 2.0 VGA
Port: N/A HDMI Port:
1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3 x Addressable Gen 2 RGB
headers Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 64-bit Compatible
Products: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors,
Intel Core 12th Gen, Pentium Gold and Celeron Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
