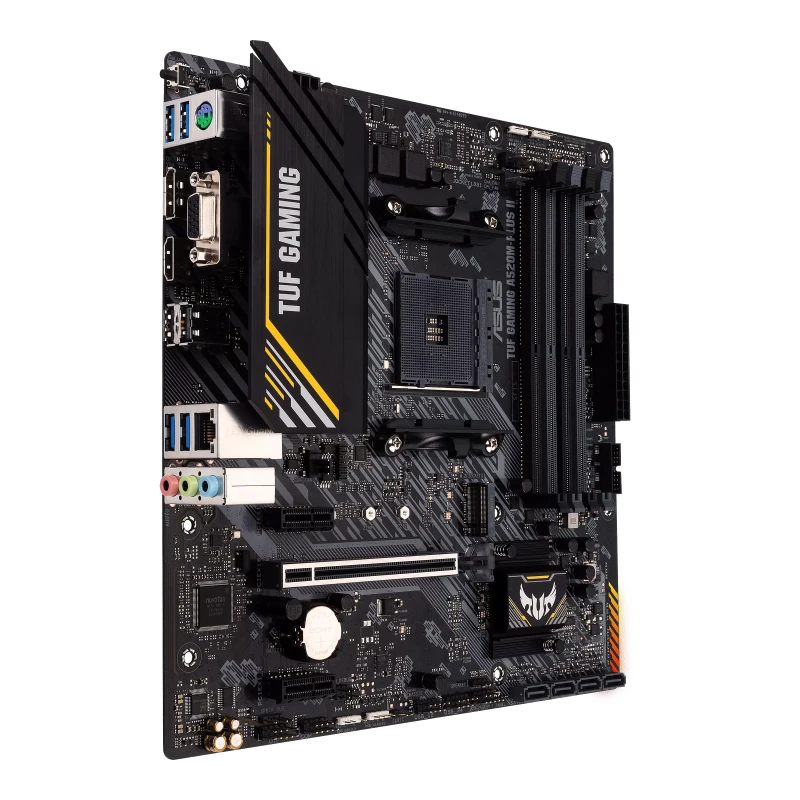

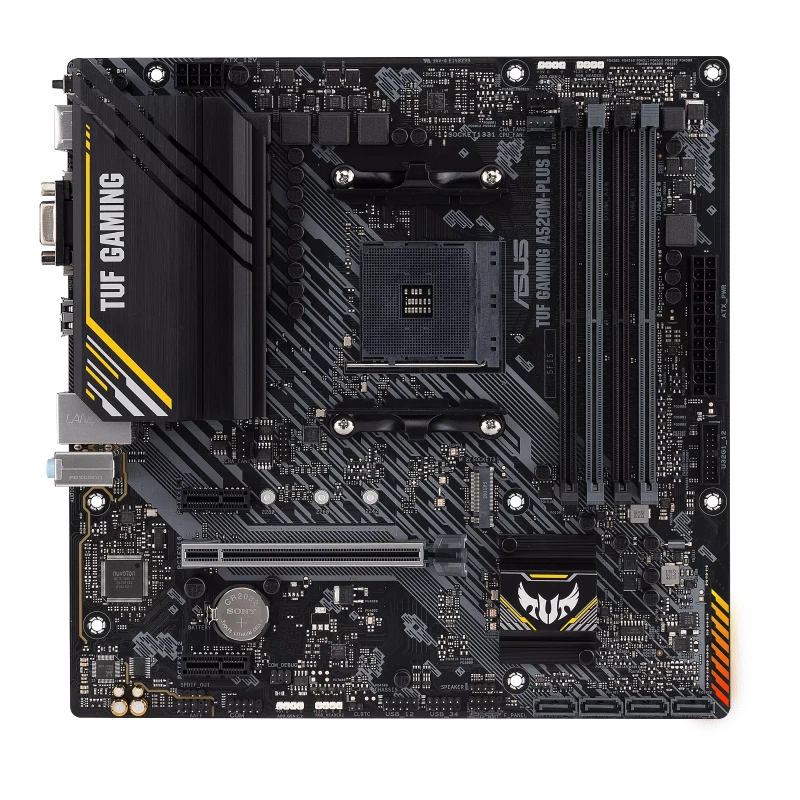

ASUS TUF GAMING A520M-PLUS II motherboard offers solid performance and durability for gamers and PC enthusiasts looking to build a reliable and powerful desktop system. Featuring the AMD A520 chipset, this microATX motherboard is compatible with a wide range of AMD Ryzen™ processors, including the 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors. It supports AM4 socket processors from 3rd, 2nd, and 1st Gen AMD Ryzen™, along with Athlon™ processors with Radeon™ Vega Graphics for exceptional performance across various tasks, from gaming to productivity.

Memory Support

The motherboard supports up to 128GB of DDR4 memory, with speeds ranging from 2133 MHz to 4400 MHz (OC), providing plenty of bandwidth for demanding applications. The TUF GAMING A520M-PLUS II supports dual-channel memory architecture, ensuring a smoother and more responsive system, and it also supports ECC memory in ECC mode, depending on the processor.

Storage and Connectivity

For storage, this motherboard features 1 x M.2 Socket 3 (Key M) that supports SATA and PCIe 3.0 x4 storage devices, such as NVMe SSDs, for lightning-fast data transfer speeds. Additionally, there are 4 x SATA 6Gb/s ports, allowing you to connect additional storage devices like hard drives or SSDs. This setup ensures ample storage capacity for large file management and quick access to your system's data.

Graphics and Display

The ASUS TUF GAMING A520M-PLUS II offers versatile graphics output options, including 1 x DisplayPort 1.2, 1 x HDMI™ 2.1 (supporting 4K at 60Hz), and 1 x D-Sub. These options enable smooth, high-quality visuals for gaming, content creation, and media consumption. Whether you use a single monitor or a multi-display setup, this motherboard can handle it with ease.

Network and Expansion

Equipped with Realtek 1Gb Ethernet and TUF LANGuard technology, the motherboard ensures a stable and high-speed internet connection, minimizing the risk of lag during online gaming and streaming. The TUF GAMING A520M-PLUS II includes multiple PCIe slots, including 1 x PCIe 3.0 x16 slot (with x16 mode) for high-performance GPUs and 2 x PCIe 3.0 x1 slots for additional expansion cards like network adapters or sound cards.

Durability and Protection

As part of the TUF Gaming series, this motherboard is designed to withstand rigorous conditions, offering robust protection features such as ESD Guards, TUF LANGuard, and overvoltage protection. SafeSlot Core+ reinforces the PCIe slot to prevent damage from heavy-duty use, and the stainless-steel back I/O provides enhanced corrosion resistance for long-lasting durability.

Audio and USB Support

The motherboard features Realtek ALC887/897 7.1 Surround Sound High-Definition Audio CODEC, delivering clear and immersive sound quality for gaming and multimedia. Additionally, it offers multiple USB ports, including 4 x USB 3.2 Gen 1 and 2 x USB 2.0 ports on the back panel, along with additional USB 3.2 and USB 2.0 headers for even more connectivity options.

BIOS and Software Features

With UEFI AMI BIOS, the ASUS TUF GAMING A520M-PLUS II provides an intuitive interface and numerous advanced features, such as ASUS EZ Flash 3 for easy BIOS updates and CrashFree BIOS 3 for system recovery. It also includes AI Suite 3, Aura Sync, and Fan Xpert 2+ for optimized performance and cooling, ensuring your system stays stable and efficient under load.

Warranty

This motherboard is backed by a 3-year warranty, providing peace of mind for users seeking a dependable, long-lasting component for their gaming or workstation build. Whether you're assembling a powerful gaming rig or a high-performance work machine, the ASUS TUF GAMING A520M-PLUS II motherboard is a reliable choice for building a durable and high-performing system.
