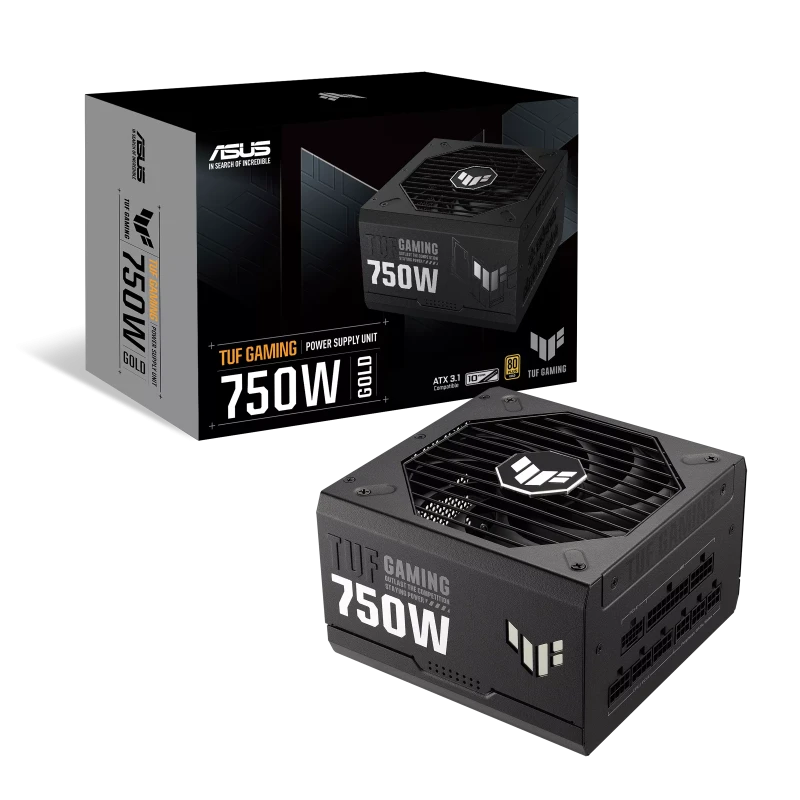

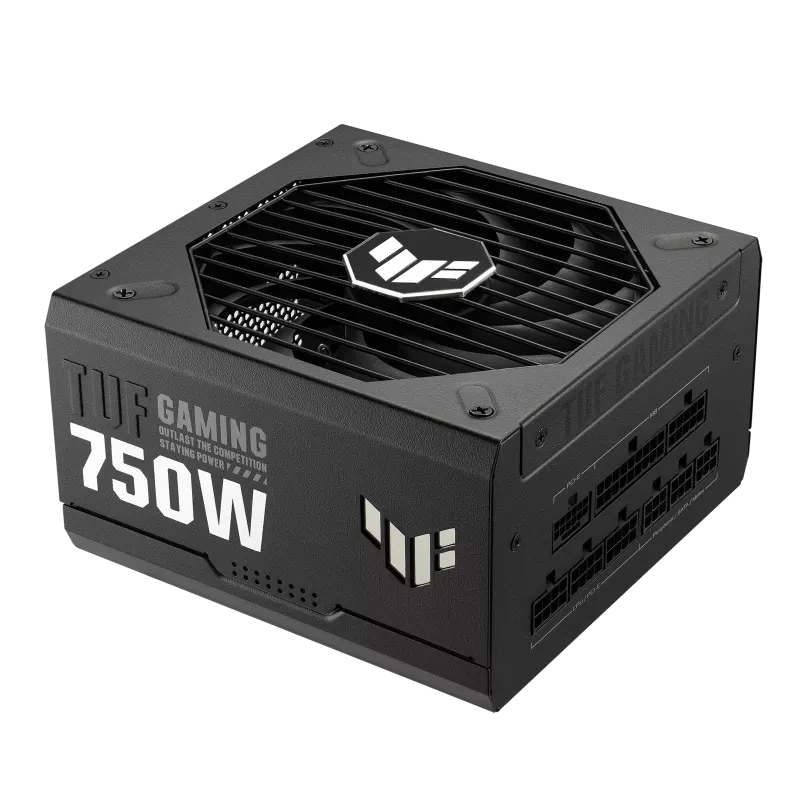

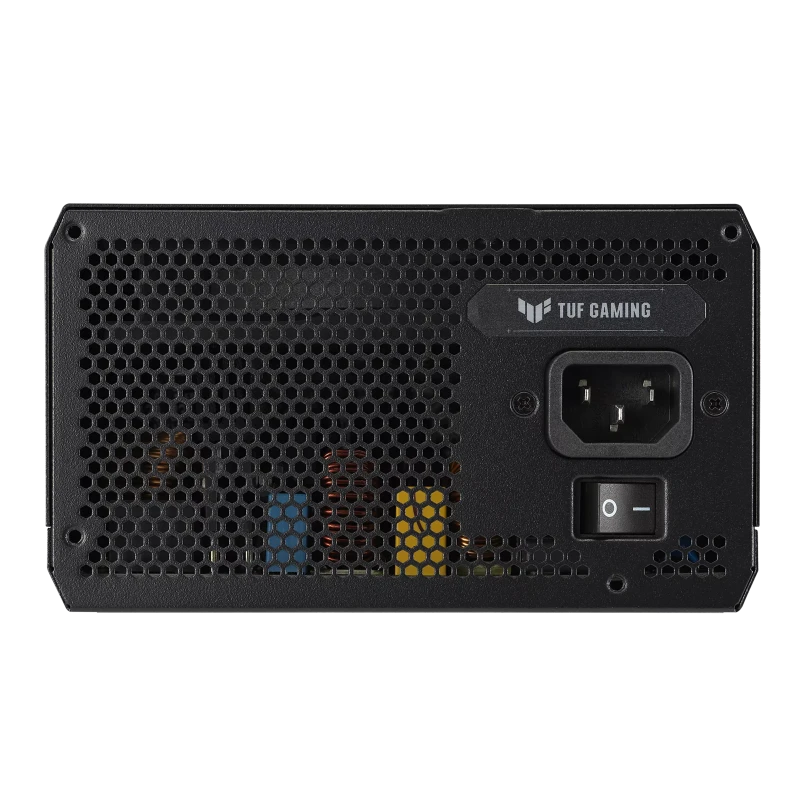

Asus TUF Gaming 750W Power Supply

The Asus TUF Gaming 750W is a full modular power supply that offers solid power delivery for gaming rigs or high-performance computers. With 80 Plus Gold certification, this PSU promises high energy efficiency, ensuring less power waste and heat generation.

Power and Performance

• Maximum Power Output: 850W – Sufficient for gaming systems or workstations with demanding components such as multiple GPUs.
• Efficiency Rating: 80 Plus Gold – Delivers high efficiency (typically 87-90%) at load, ensuring your system runs efficiently while lowering your energy bills.
• Efficiency: Unmentioned – While the 80 Plus Gold certification is noted, specific efficiency percentages are not provided.
• PFC (Power Factor Correction): Active PFC – Optimizes power usage and minimizes wasted electricity.

Protection Features

• Over Voltage Protection (OVP): Yes – Protects your components from potentially harmful voltage surges.
• Over Power Protection (OPP): Yes – Automatically shuts off or regulates the PSU if it exceeds its maximum power capacity.
• Over Current Protection (OCP): Yes – Prevents damage to components by regulating the current.
• Over Temperature Protection (OTP): Yes – The PSU will shut down if it overheats, safeguarding your system from potential damage.
• Short Circuit Protection (SCP): Yes – The PSU will stop power delivery in the event of a short circuit to avoid damage.
• Under Voltage Protection (UVP): Yes – Helps prevent issues caused by low voltage, ensuring a stable operation.

Connectors and Ports

• ATX Main Connector: Unmentioned – The specific details are not provided but is likely a 24-pin ATX connector.
• EPS Connectors: Unmentioned – Typically supports 8-pin EPS connectors for motherboard power, though not specified.
• PCIe Connectors: 4 – Adequate for powering multiple GPUs or high-performance graphics cards.
• SATA Power Connectors: 5 – Sufficient for powering storage devices like SSDs and HDDs.
• 4-Pin Peripheral Connectors: 4 – Useful for powering older peripherals such as case fans or optical drives.
• Floppy Connectors: Unmentioned – Not specified, though these are typically not needed in modern builds.

Cooling and Fan

• Fan Size: 120mm – A standard fan size that ensures adequate cooling during operation.
• Zero RPM Fan Mode: No – The fan operates continuously, but it will still maintain a stable temperature.
• Fan Bearing: Dual Ball Fan Bearings – Known for durability and efficient cooling, leading to reduced noise and longer lifespan.

Physical Attributes

• Form Factor: ATX 3.0 – This power supply complies with the latest ATX standards, making it compatible with most modern ATX cases.
• Dimensions: 150 x 150 x 86mm – A typical size that fits easily in most mid-to-full-size cases.
• Color: Black – A neutral color that integrates well into most gaming or workstation builds.

Warranty

• 10-Year Warranty – An extended warranty reflects the reliability and quality of the PSU, ensuring long-term peace of mind.
