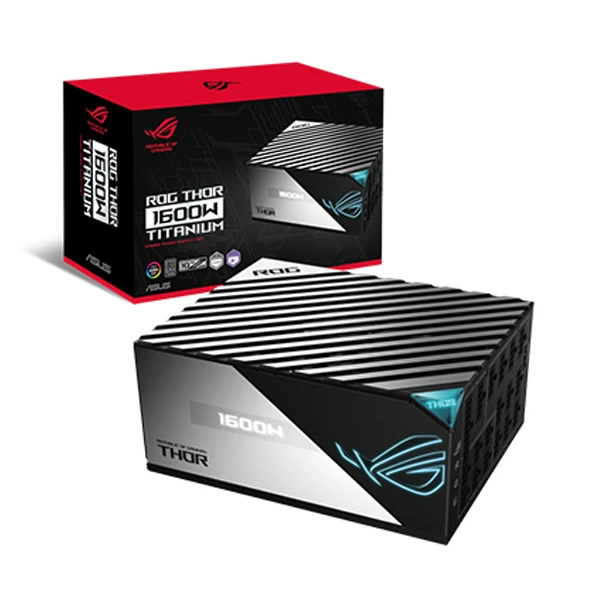

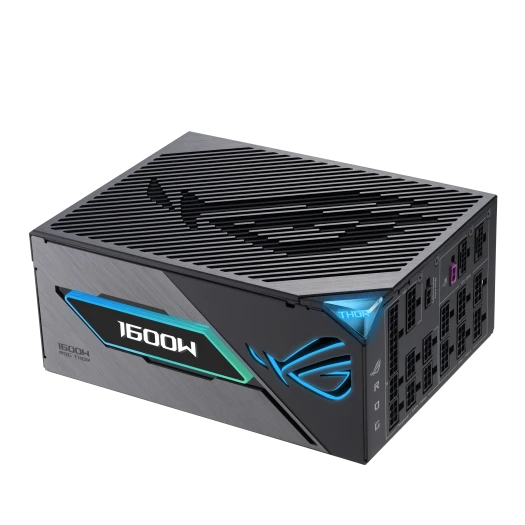

Asus ROG Thor 1600W Power Supply (Model: ROG THOR 1600T)

The Asus ROG Thor 1600T is a high-performance, full modular power supply unit designed for enthusiasts and gamers seeking extreme power for their systems. With a maximum power output of 1600W, this PSU is ideal for multi-GPU setups and overclocked systems that demand reliable, stable, and high-efficiency power delivery.

Power and Performance

• Maximum Power Output: 1600W – Designed to handle extremely power-hungry systems, such as multi-GPU configurations or workstations.
• Efficiency Rating: 80 Plus Titanium – Offers exceptional efficiency, with 80% of input power converted into usable power, minimizing waste heat and energy consumption.
• PFC (Power Factor Correction): Active PFC – Ensures that power from the outlet is used more effectively, which increases overall efficiency and stability.

Protection Features

• Over Voltage Protection (OVP): Yes – Protects the system by shutting down the PSU in case of dangerous voltage spikes.
• Over Power Protection (OPP): Yes – Prevents the PSU from delivering too much power, which could damage sensitive components.
• Over Current Protection (OCP): Yes – Ensures safe power delivery by cutting off power if the current exceeds safe limits.
• Over Temperature Protection (OTP): Yes – Automatically shuts down the PSU when it exceeds safe temperature limits.
• Short Circuit Protection (SCP): Yes – Protects your components in case of a short circuit.
• Under Voltage Protection (UVP): Yes – Protects against unstable or insufficient voltage.

Connectors and Ports

• ATX Main Connectors: 1 – Provides the main connection to the motherboard.
• EPS Connectors: No – No EPS connector for CPU power is required, typically more for older models or specific systems.
• PCIe Connectors: 11 – Provides ample power connections for multiple GPUs or other expansion cards requiring additional power.
• SATA Power Connectors: 12 – Suitable for powering multiple storage devices such as SSDs, HDDs, or optical drives.
• 4-Pin Peripheral Connectors: 4 – Can be used for powering other devices like case fans, optical drives, or legacy components.
• Floppy Connectors: No – Likely not required for modern builds.

Cooling and Fan

• Fan Size: 135mm – A large fan for superior airflow and cooling performance.
• Zero RPM Fan Mode: No – The fan runs continuously to ensure stable cooling for high power usage.
• Fan Bearing: Dual Ball Fan Bearing – Offers durability and quiet operation over long periods.

Physical Attributes

• Form Factor: ATX – Standard form factor for compatibility with most ATX cases.
• Dimensions: 190 x 150 x 86mm – A larger PSU, ideal for high-power systems but still fits most ATX cases.
• Color: Black – Neutral color to fit in with a wide variety of case designs.

Warranty

• 10-Year Warranty – Asus provides a 10-year warranty, demonstrating confidence in the product's quality and longevity.
