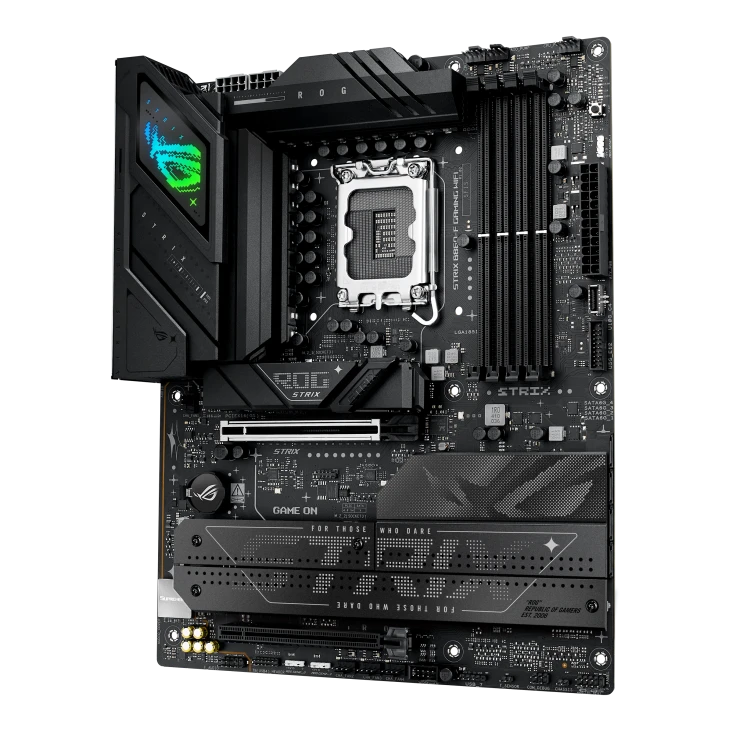

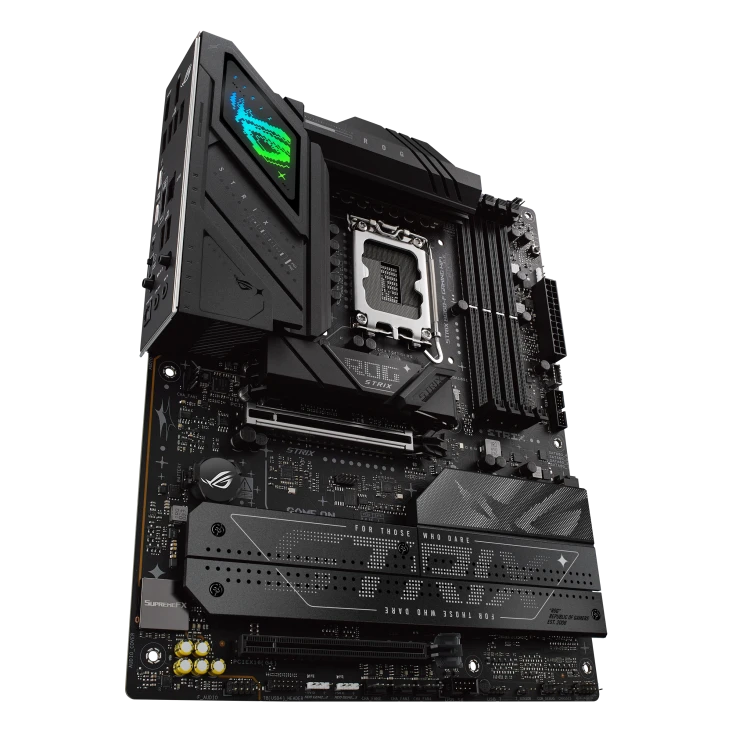

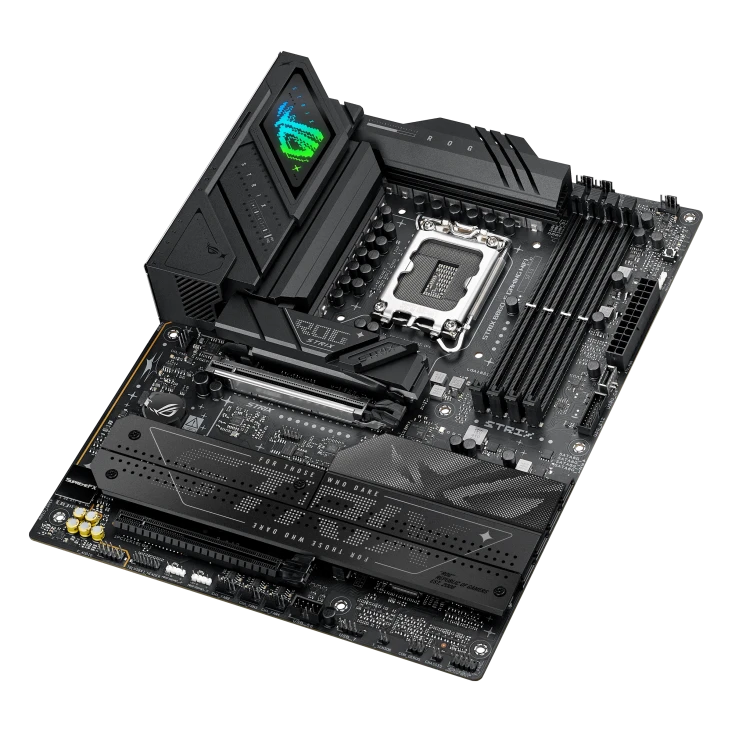

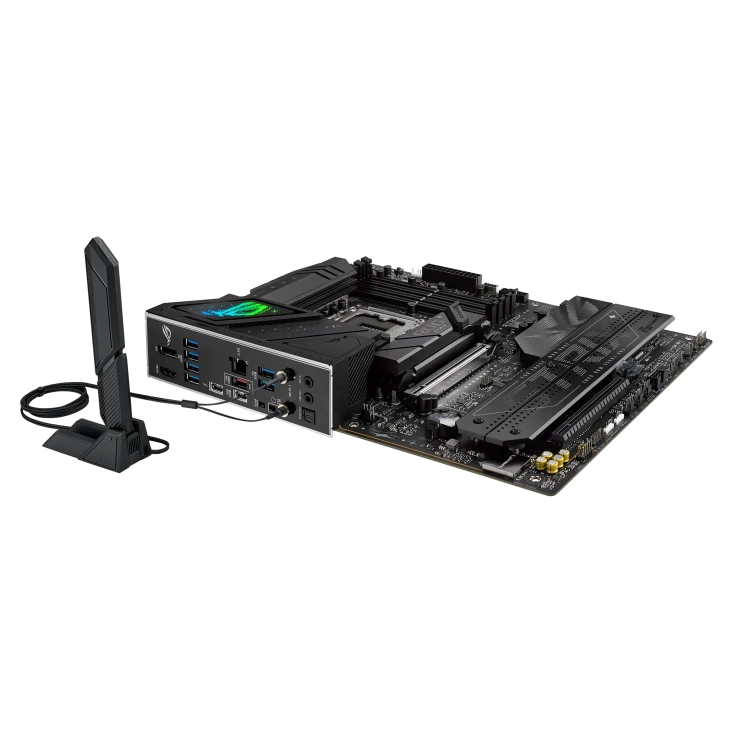

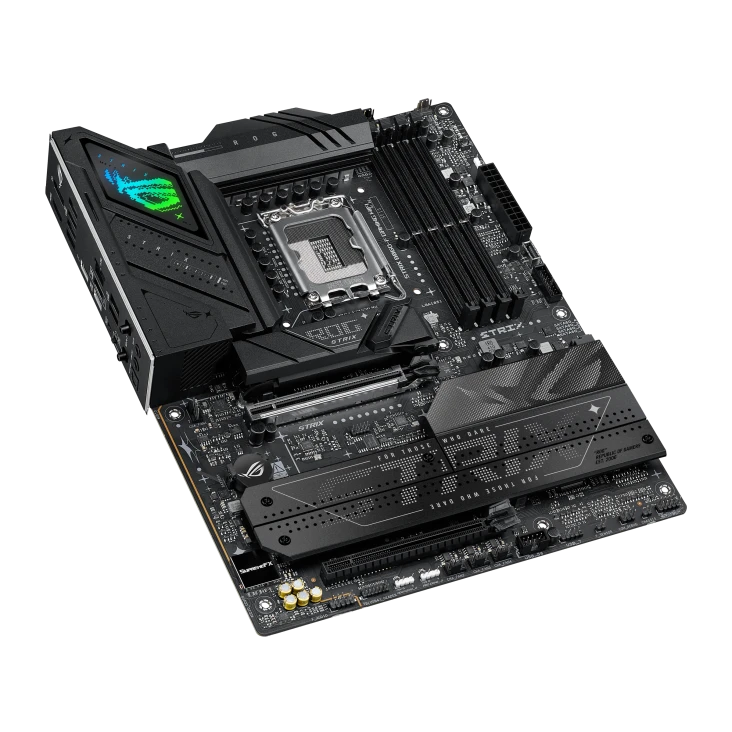

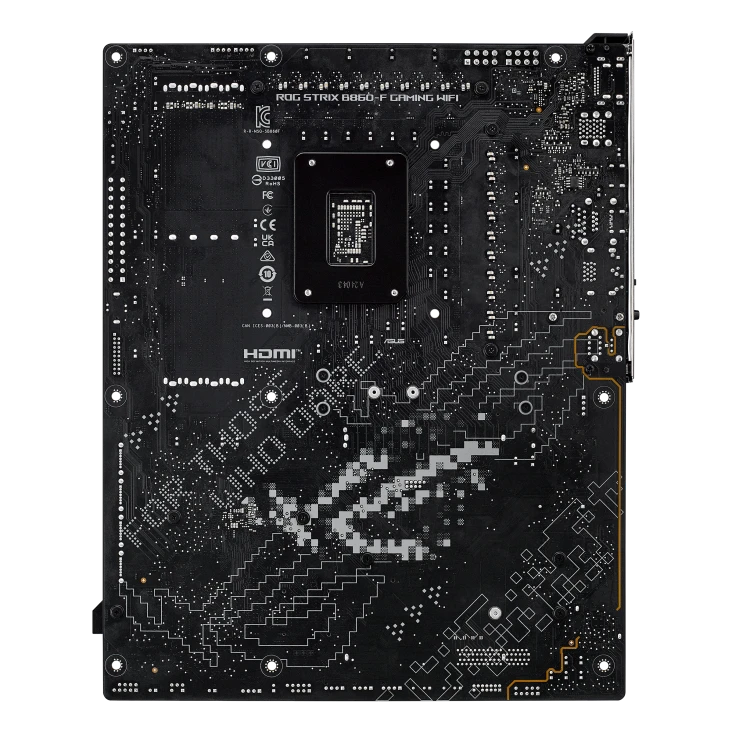

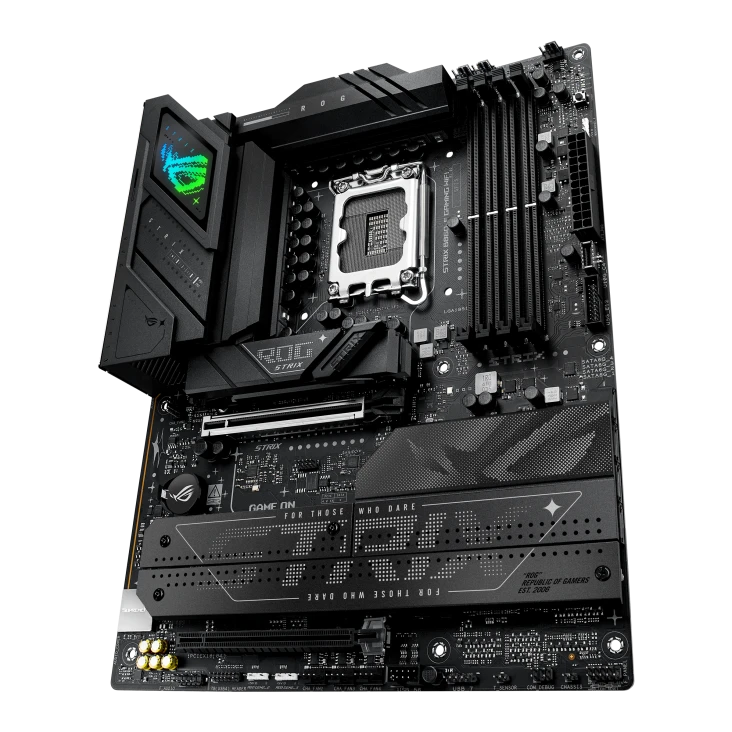

Asus ROG STRIX B860-A GAMING (Wi-Fi 7) ATX Motherboard

The Asus ROG STRIX B860-A GAMING (Wi-Fi 7) motherboard is designed to offer high-end performance for gamers and creators alike. With support for Intel Core Ultra Processors (Series 2), PCIe 5.0, Wi-Fi 7, and DDR5 memory overclocked up to 8600 MHz, it’s packed with features to provide top-tier speed, connectivity, and performance.

Features

• Intel B860 Chipset: Designed for Intel Core Ultra Processors (Series 2) with LGA1851 socket.
• PCIe 5.0 Support: Includes 1 x PCIe 5.0 x16 slot for a next-gen GPU and 1 x PCIe 4.0 x16 slot for additional expansion.
• Multi-GPU Support: Not mentioned, but likely supports advanced GPU configurations.

Memory Support

• DDR5 Memory: Compatible with DDR5 memory up to 8600 MT/s (OC).
• Dual-Channel Configuration: 4 DIMM slots, supporting a maximum of 256GB of Non-ECC, un-buffered memory.
• Overclocking: Supports various overclocked speeds, up to 8600 MT/s.

Storage Expansion and Connectivity

• M.2 Expansion: Includes 4 x M.2 slots:
• M.2_1 slot (Key M) for PCIe 5.0 x4 mode (supports 2242/2260/2280 sizes).
• M.2_2 slot (Key M) for PCIe 4.0 x4 mode (supports 2280 size).
• M.2_3 slot (Key M) for PCIe 4.0 x4 mode (supports 2280/22110 sizes).
• M.2_4 slot (Key M) for PCIe 4.0 x4 mode (supports 2280 size).
• SATA Ports: 4 x SATA ports for additional storage.

Audio and Networking

• Audio Chipset: Features Realtek ALC1220P for 7.1 surround sound audio.
• LAN Chipset: Realtek 2.5Gb Ethernet offering 10/100/1000/2500 Mbps speeds.
• Wi-Fi: Integrated Wi-Fi 7 (802.11be) for superior wireless connectivity.
• Bluetooth: Supports Bluetooth 5.4 for wireless device connectivity.

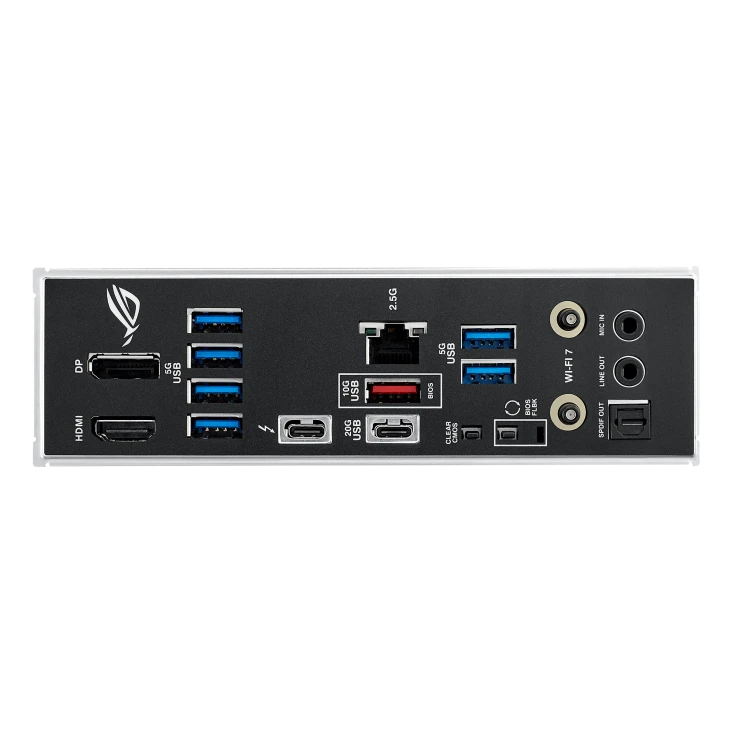

Ports and I/O

• USB Ports: Offers a variety of high-speed USB ports:
• 4 x USB 2.0 Type-A.
• 2 x USB 5Gbps Type-A.
• 2 x USB 10Gbps Type-A.
• 1 x USB 10Gbps Type-C.
• 1 x USB4 20Gbps Type-C.
• Display Ports: Includes 1 x HDMI and 1 x DisplayPort for video output.

Design and Build Quality

• ATX Form Factor: Standard ATX form factor suitable for most gaming and workstation cases.
• Cable Management: Features front cable management for a cleaner build.
• Heatsink: Equipped with heatsinks for thermal efficiency.
• RGB Support: Includes ARGB lighting with 3 x RGB LED headers and 3 x addressable LED headers for customizable lighting effects.

Power and Efficiency

• Power Consumption: Approximate power consumption is 70W, providing a balanced and efficient power profile.

Compatibility

• Operating System: Fully compatible with Windows 11 for optimal performance.
• Processor Compatibility: Supports LGA1851 Core Ultra Processors (Series 2) for the latest in Intel technology.

Warranty and Support

• 3-Year Warranty: Comes with a 3-year warranty for added peace of mind.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
