Asus ROG STRIX B850-A GAMING (Wi-Fi 7) DDR5 AMD Motherboard #ROG STRIX B850-A GAMING WIFI
Key Specification
Product Specification
|
Brand |
Asus |
|
Model |
Asus
ROG STRIX B850-A GAMING (Wi-Fi 7) |
|
Color |
White |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B840 Sockets
Supported: AM5 Built-in
Processor: N/A Supported
CPU: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors Generation:
N/A |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 8000(O.C)/ 7950(O.C)/ 7900(O.C)/
7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/
6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/
5400(O.C.)/ 5200(O.C.)/ 4800/ 4000 MHz ECC & non-ECC Un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 4 M.2/SSD
Expansion: 4 x M.2 (1 x M.2 2280 (PCIe 5.0 x4), 2 x M.2 2280 (PCIe 4.0 x4), 1
x M.2 22110 (PCIe 4.0 x4)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCIe 5.0 x16 SafeSlot
(CPU), 1 x PCIe 4.0 x16 Slot (x4) (Chipset) |
|
Audio
& Video |
Audio
Chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5Gb Ethernet LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps WiFi: Yes WiFi Technology: Wi-Fi 7 Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB
Port: 1 x USB 20Gbps port (1 x USB Type-C), 3 x USB 10Gbps ports (2 x Type-A
+ 1 x USB Type-C), 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x
Type-A) VGA
Port: N/A HDMI
Port: 1 Display:
2 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 11 Supported
Operating System: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000
Series Desktop Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Asus
ROG STRIX B850-A GAMING (Wi-Fi 7) ATX Motherboard
The Asus ROG STRIX B850-A GAMING
(Wi-Fi 7) motherboard is built for high-performance gaming and content
creation. With support for the AMD Ryzen 9000, 8000, and 7000
Series Desktop Processors and cutting-edge features like PCIe 5.0, Wi-Fi
7, and DDR5 memory, it is designed to handle demanding tasks while
offering a premium experience.
Features
- AMD B850 Chipset:
Built for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors
with AM5 socket.
- PCIe 5.0 Support:
1 x PCIe 5.0 x16 SafeSlot (CPU) and 1 x PCIe 4.0 x16 Slot
for expansive GPU and storage options.
- Multi-GPU Support:
Multi-GPU support is not mentioned.
Memory
Support
- DDR5 Memory:
Supports DDR5 memory with overclocking options up to 8000 MHz
(OC).
- Dual-Channel Configuration: Offers 4 DIMM slots, supporting up to 256GB
of ECC and non-ECC un-buffered memory.
- Flexible Memory Speeds: Compatible with a wide range of memory speeds from 4800
MHz to 8000 MHz (OC).
Storage
Expansion and Connectivity
- M.2 Expansion:
Includes 4 x M.2 slots:
- 1 x PCIe 5.0 x4 M.2
(2280).
- 2 x PCIe 4.0 x4 M.2
(2280).
- 1 x PCIe 4.0 x4 M.2
(22110).
- SATA Ports:
Includes 4 x SATA ports for additional storage devices.
Audio
and Networking
- Audio Chipset:
Features ROG SupremeFX 7.1 Surround Sound with ALC4080 audio
codec, delivering immersive sound.
- LAN Chipset:
Realtek 2.5Gb Ethernet for reliable wired networking at 10/100/1000/2500
Mbps.
- Wi-Fi:
Built-in Wi-Fi 7 for fast, reliable wireless connectivity.
- Bluetooth:
Supports Bluetooth 5.4 for seamless device pairing.
Ports
and I/O

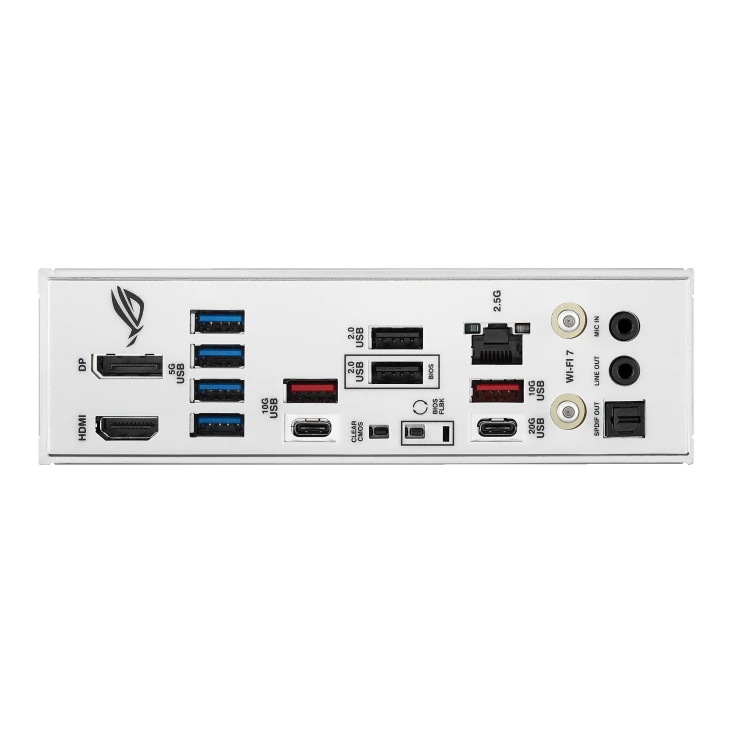

- USB Ports:
Includes a variety of high-speed USB ports:
- 1 x USB 20Gbps Type-C port.
- 3 x USB 10Gbps
ports (2 x Type-A, 1 x Type-C).
- 4 x USB 5Gbps Type-A
ports.
- 2 x USB 2.0 Type-A
ports.
- Display Ports:
Includes 1 x HDMI and 2 x Display ports for video output.
Design
and Build Quality
- ATX Form Factor:
Standard ATX form factor for easy installation in most cases.
- Cable Management:
Includes front cable management for a clean setup.
- Heatsink:
Equipped with heatsinks for optimal cooling under load.
- RGB Support:
Supports customizable RGB lighting for a personalized aesthetic.
Power
and Efficiency
- Power Consumption:
The motherboard has an approximate power consumption of 70W,
ensuring efficient performance.
Compatibility
- Operating System:
Fully compatible with Windows 11 for seamless operation.
- Processor Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series
Desktop Processors with AM5 socket.
Warranty
and Support
- 3-Year Warranty:
Covered by a 3-year warranty for peace of mind.
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh.
