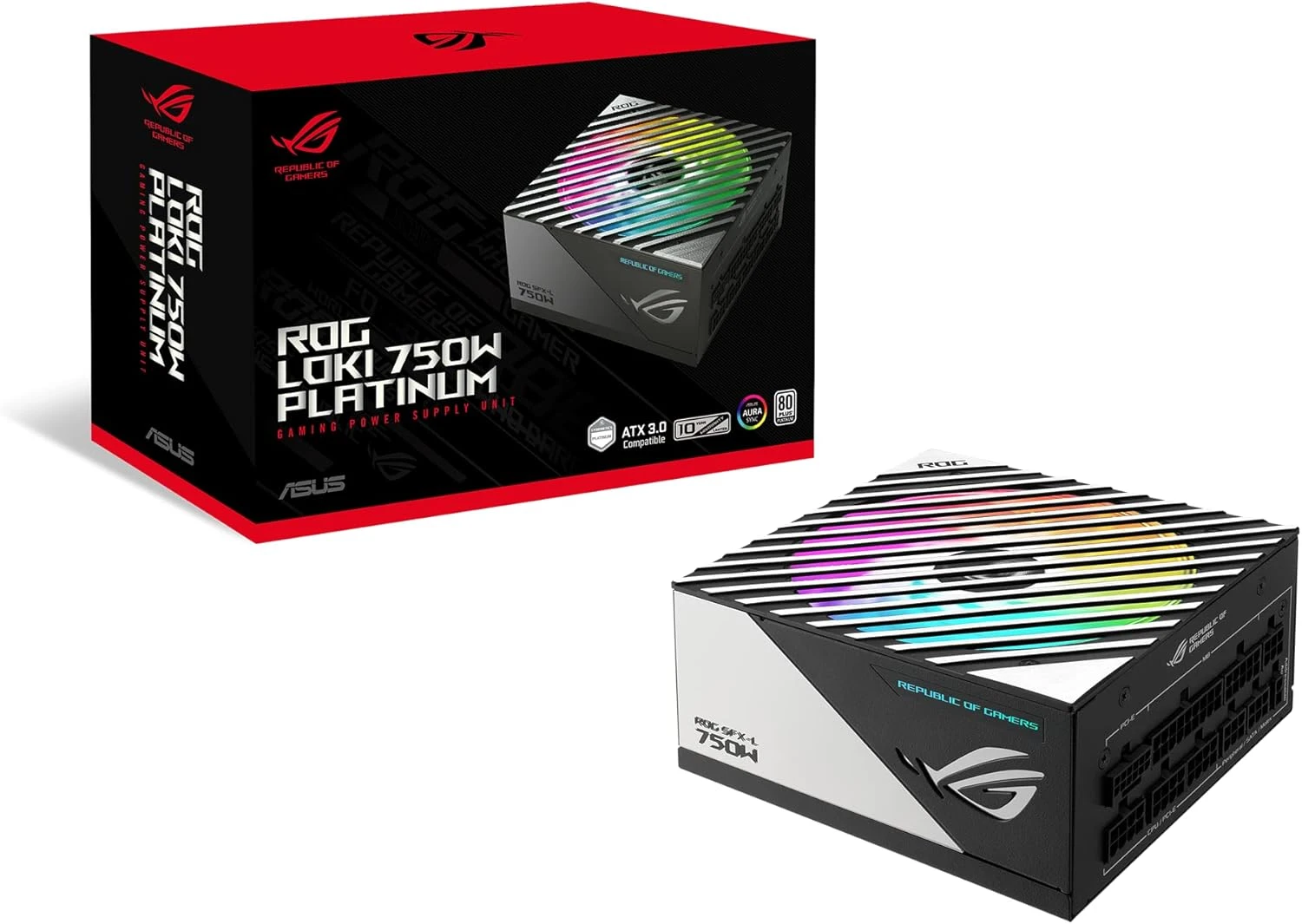

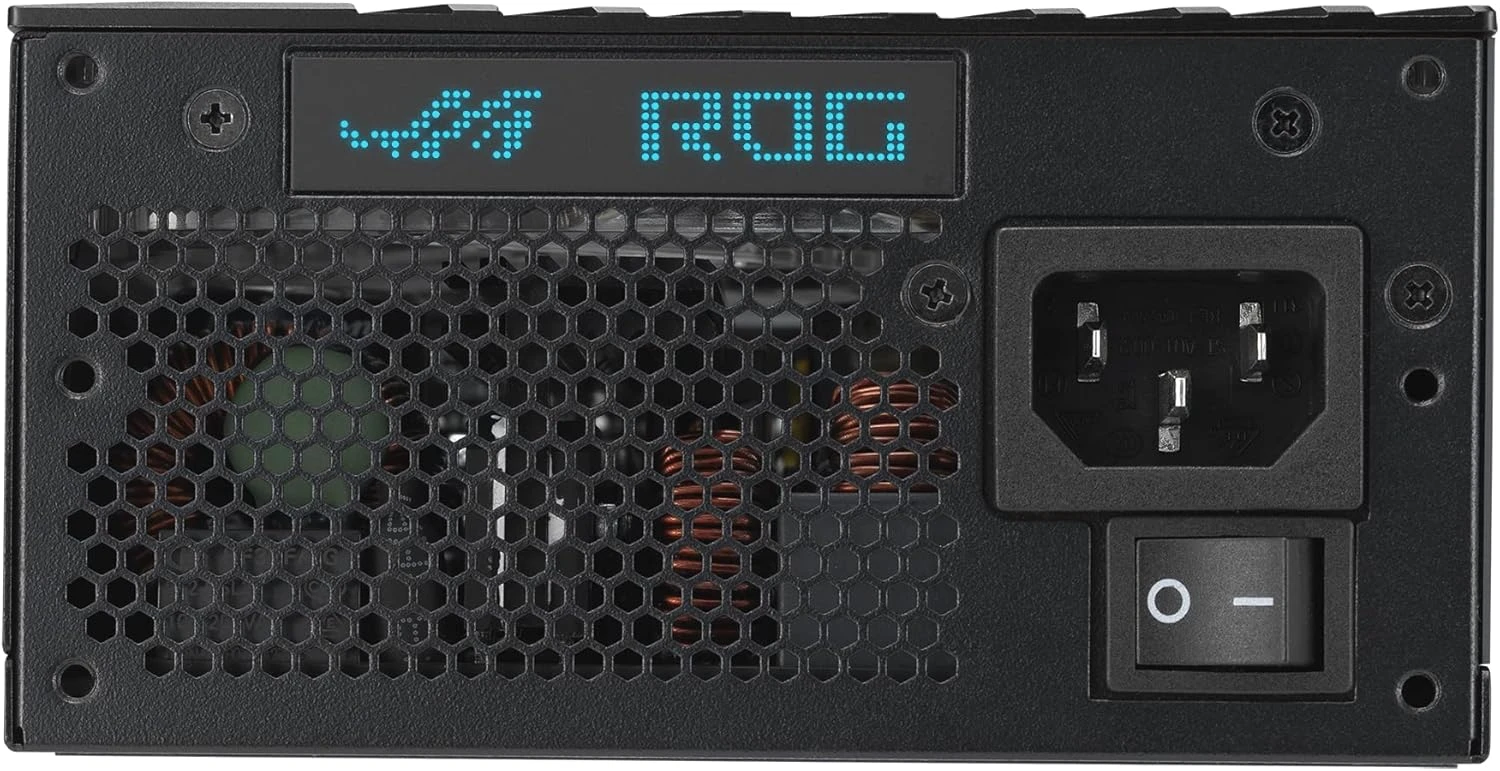

Asus ROG LOKI 750P SFX-L Gaming Power Supply

The Asus ROG LOKI 750P SFX-L Gaming Power Supply is a full modular SFX-L PSU designed for small form-factor gaming builds. With 80 Plus Platinum certification, this PSU guarantees 92% efficiency under typical loads, ensuring excellent power conversion and minimal energy waste.

Power and Performance

• Maximum Power Output: 750W – Ideal for gaming systems or compact builds that require high performance with power-hungry components.
• Efficiency Rating: 80 Plus Platinum – With 92% efficiency, this power supply offers one of the highest efficiency ratings, reducing electricity costs and heat generation.
• Efficiency: 92% Efficiency – High energy efficiency at load ensures that less power is wasted, providing more stable operation and lower running costs.
• PFC (Power Factor Correction): Active PFC – Ensures optimal power usage, reducing energy waste and providing better efficiency.

Protection Features

• Over Voltage Protection (OVP): Yes – Protects components from dangerous voltage spikes.
• Over Power Protection (OPP): Yes – Prevents overloading of the PSU, maintaining system stability.
• Over Current Protection (OCP): Yes – Limits excessive current from damaging components.
• Over Temperature Protection (OTP): Yes – Shuts down the PSU in case of overheating, keeping your system safe.
• Short Circuit Protection (SCP): Yes – Automatically cuts power to avoid damage from a short circuit.
• Under Voltage Protection (UVP): Yes – Protects your components from instability caused by low voltage.

Connectors and Ports

• ATX Main Connectors: 1 – Likely a 24-pin connector, suitable for most modern motherboards.
• EPS Connectors: Unmentioned – Most SFX power supplies come with 4+4 pin or 8-pin connectors for CPUs.
• PCIe Connectors: 4 – Provides ample power for multi-GPU setups, including modern GPUs that require high power.
• SATA Power Connectors: 6 – Sufficient for powering multiple SSDs and HDDs in small form-factor builds.
• 4-Pin Peripheral Connectors: 4 – Useful for powering case fans or optical drives.
• Floppy Connectors: Unmentioned – Likely not necessary for modern builds.

Cooling and Fan

• Fan Size: 120mm – The fan ensures efficient cooling in small form-factor cases.
• Zero RPM Fan Mode: No – The fan operates continuously to provide cooling, but it is optimized for quieter performance.
• Fan Bearing: Dual Ball Fan Bearings – Known for increased durability and reduced noise compared to standard bearings.

Physical Attributes

• Form Factor: SFX – Compact and ideal for smaller cases, allowing for better airflow and space efficiency.
• Dimensions: 125 x 125 x 63.5mm – Compact enough to fit in SFX cases while still offering substantial power.
• Color: Black – A neutral color that blends well with most builds.

Warranty

• 10-Year Warranty – This extended warranty indicates the reliability and quality of the PSU, giving users confidence in its long-term use.
