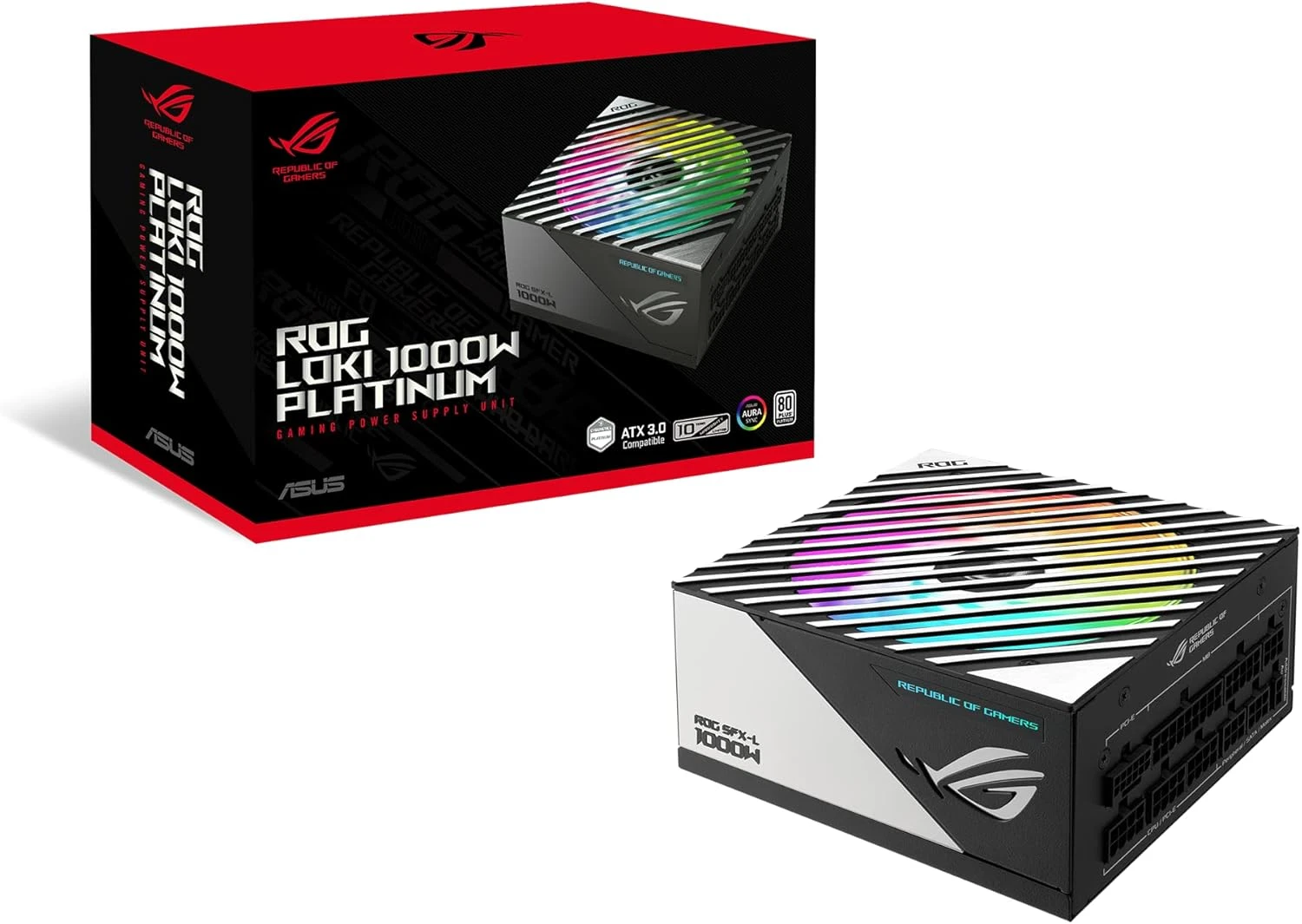

Asus ROG Loki 1000W SFX-L Gaming Power Supply

The Asus ROG Loki 1000W SFX-L Gaming PSU is a high-performance, full modular power supply designed for compact, high-end gaming PCs and workstations. With 1000W of power and an 80 Plus Platinum certification, this PSU ensures 92% efficiency, offering optimal performance for demanding gaming and professional applications.

Power and Performance

• Maximum Power Output: 1000W – Adequate for high-performance setups, including multi-GPU systems and overclocked components.
• Efficiency Rating: 80 Plus Platinum – Offers 92% efficiency, ensuring that the power is used effectively, reducing heat generation and energy wastage.
• PFC (Power Factor Correction): Active PFC – Improves power efficiency and minimizes energy loss.

Protection Features

• Over Voltage Protection (OVP): Yes – Protects components from harmful voltage surges.
• Over Power Protection (OPP): Yes – Prevents overloading by automatically shutting down the PSU when it exceeds safe operating limits.
• Over Current Protection (OCP): Yes – Protects the system from excessive current that could damage components.
• Over Temperature Protection (OTP): Yes – Protects the PSU and your components from overheating.
• Short Circuit Protection (SCP): Yes – Safeguards the PSU and system in the event of a short circuit.
• Under Voltage Protection (UVP): Yes – Helps protect against under-voltage conditions that could cause instability.

Connectors and Ports

• ATX Main Connectors: 1 – Provides the necessary connection to the motherboard.
• EPS Connectors: Unmentioned – Typically used for CPU power (may include 8-pin or 4+4 pin).
• PCIe Connectors: 4 – Sufficient to power multiple GPUs or other expansion cards.
• SATA Power Connectors: 6 – Can power multiple storage devices (SSDs and HDDs).
• 4-Pin Peripheral Connectors: 4 – To power legacy components like case fans or optical drives.
• Floppy Connectors: Unmentioned – Likely not needed in modern systems.

Cooling and Fan

• Fan Size: 120mm – Ensures effective cooling for high-power demands.
• Zero RPM Fan Mode: No – Fan operates continuously but is designed for efficiency.
• Fan Bearing: Dual Ball Fan Bearing – Known for durability and quiet performance over time.

Physical Attributes

• Form Factor: SFX – Compact form factor, ideal for small form factor (SFF) cases.
• Dimensions: 125 x 125 x 63.5mm – Small enough to fit in compact gaming builds while offering high power output.
• Color: Black – A sleek, neutral color to match various build aesthetics.

Warranty

• 10-Year Warranty – Reflects Asus's confidence in the PSU’s long-term reliability and durability.
