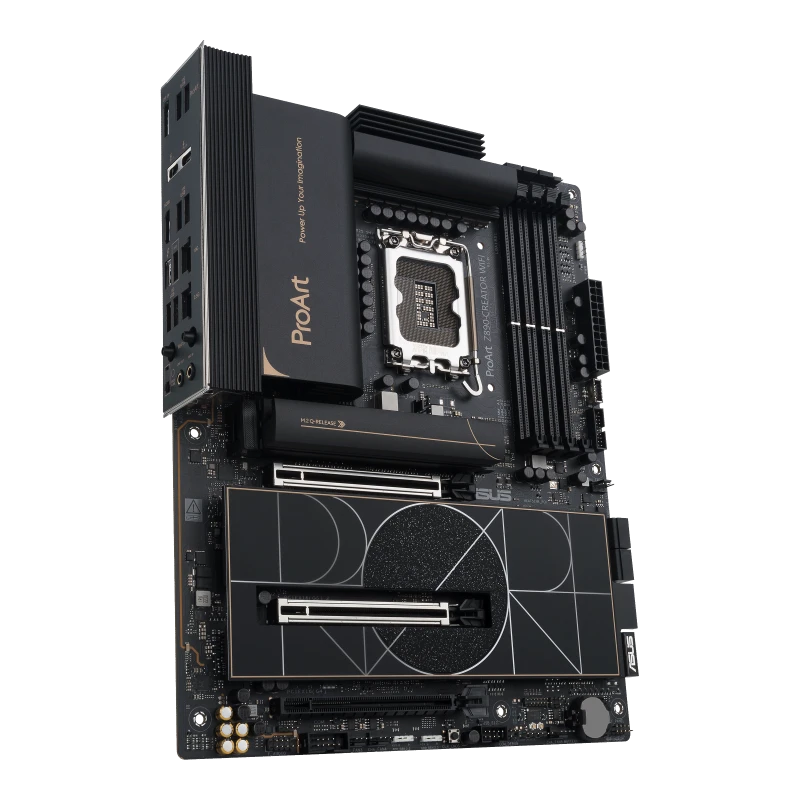

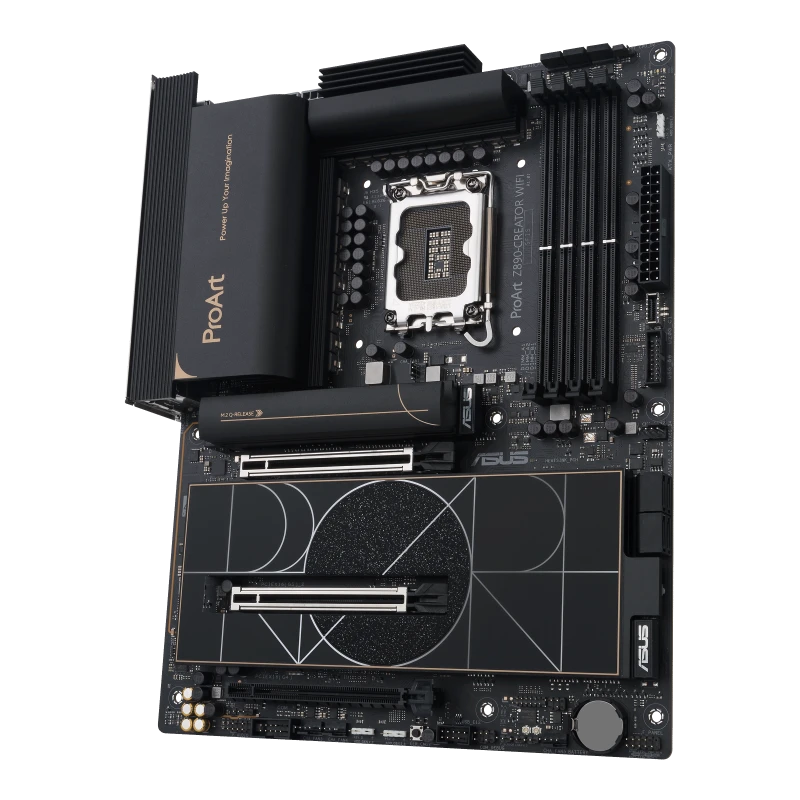

Asus ProArt Z890-CREATOR (Wi-Fi 7) ATX Motherboard

The Asus ProArt Z890-CREATOR (Wi-Fi 7) motherboard is built for creators, offering exceptional performance and connectivity. With support for the latest Intel Core Ultra Processors (Series 2) and Wi-Fi 7 technology, this motherboard is perfect for demanding workloads like content creation, 3D rendering, and video editing. The PCIe 5.0 and PCIe 4.0 slots, combined with ample M.2 storage expansion, provide seamless speed and flexibility for professionals.

Features

• Intel Z890 Chipset: Optimized for Intel Core Ultra Processors (Series 2), offering superior performance for creative and professional applications.
• PCIe Slots: Includes 2 x PCIe 5.0 x16 slots and 1 x PCIe 4.0 x16 slot for high-performance expansion cards.
• Multi-GPU Support: While multi-GPU support is not explicitly mentioned, the multiple PCIe x16 slots provide flexibility for GPUs and other high-performance devices.

Memory Support

• DDR5 Memory: Supports DDR5 memory with overclocking speeds up to 9066+ MT/s.
• Dual-Channel Configuration: Equipped with 4 DIMM slots, supporting up to 256GB of Non-ECC, un-buffered, and clocked unbuffered DDR5 (CUDIMM) memory.
• Overclocking Support: Capable of running high-frequency memory for demanding tasks like video editing and rendering.

Storage Expansion and Connectivity

• M.2 Expansion: Comes with 5 x M.2 slots, including:
• 1 x M.2 22110 supporting PCIe 5.0 x4 mode.
• 4 x M.2 2280 slots, with PCIe 4.0 x4 and SATA modes.
• SATA Ports: 4 x SATA ports for additional storage devices.

Audio and Networking

• Audio Chipset: Realtek ALC1220P for high-quality 7.1 surround sound.
• LAN Chipsets:
• 1 x Marvell AQtion 10Gb Ethernet for ultra-fast networking.
• 1 x Intel 2.5Gb Ethernet for reliable and efficient network performance.
• Wi-Fi: Wi-Fi 7 (802.11be) technology for the latest wireless standards and enhanced speeds.
• Bluetooth: Bluetooth 5.4 for seamless wireless connections to peripheral devices.

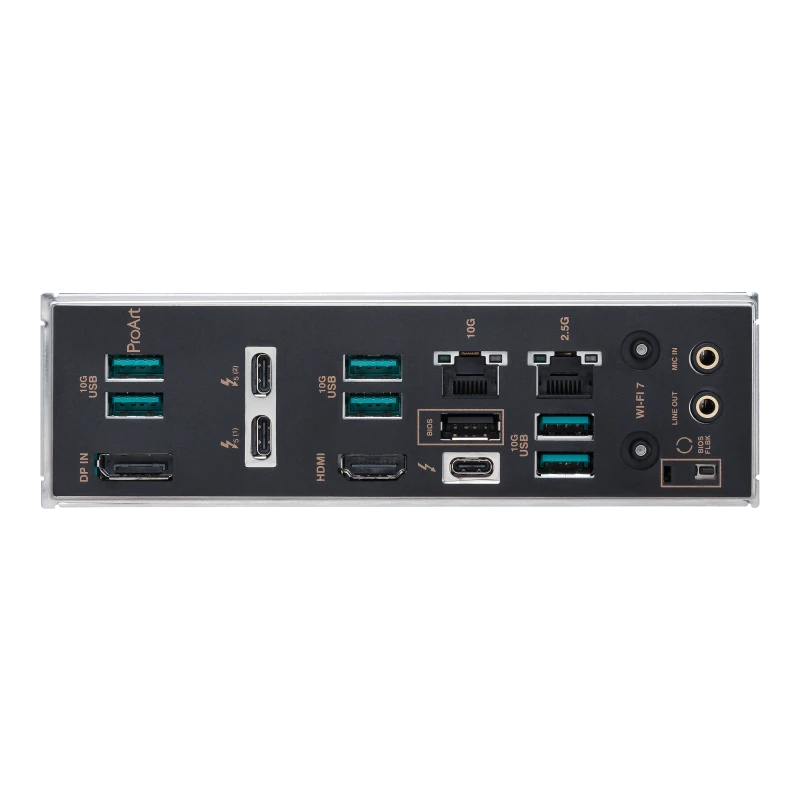

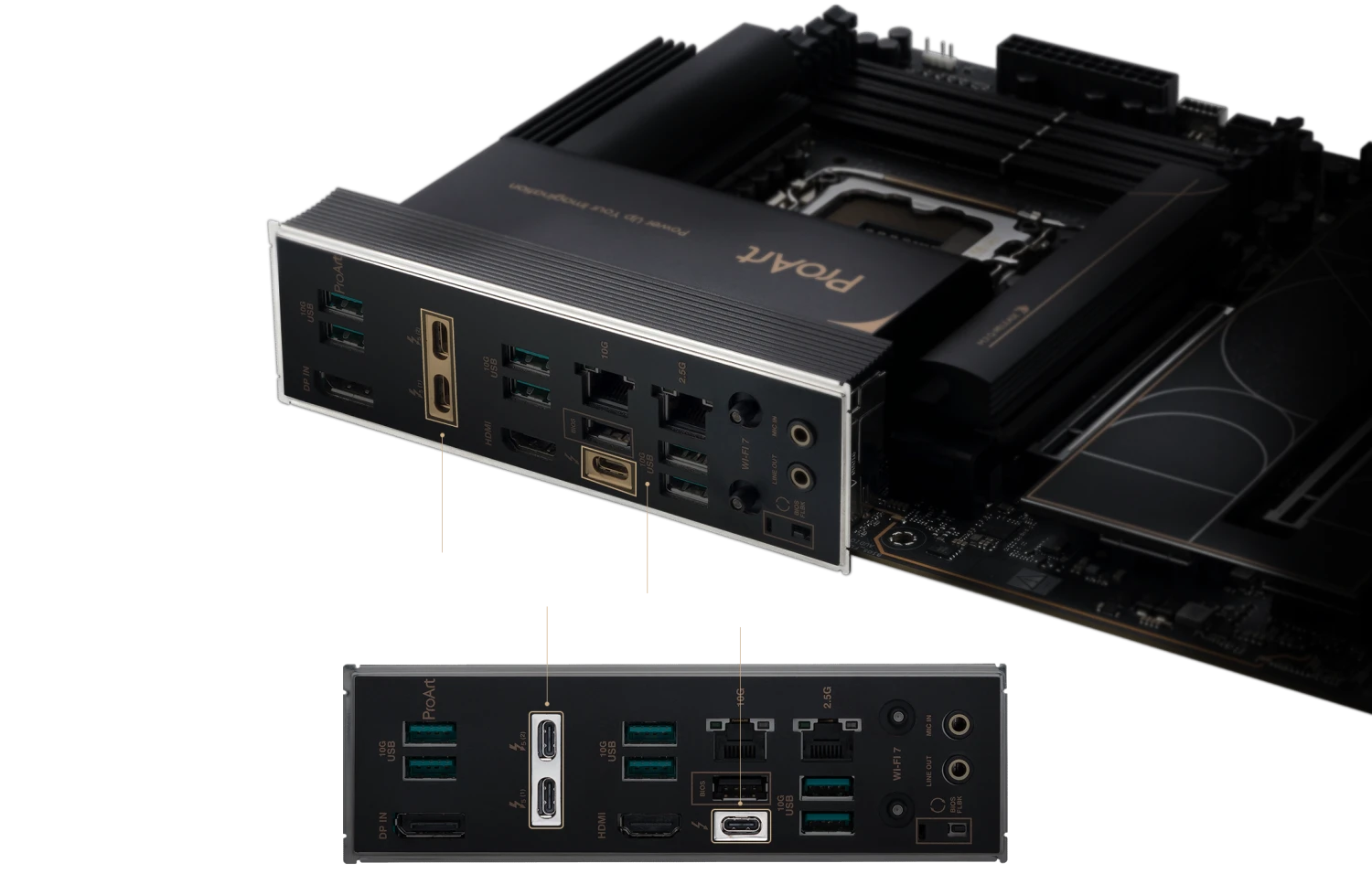

Ports and I/O

• USB Ports:
• 1 x USB Type-A 2.0
• 6 x USB Type-A
• 1 x Thunderbolt 4 port
• 2 x Thunderbolt 5 ports for high-speed data transfer and device connections.
• Display Ports: Includes 1 x HDMI and 1 x DisplayPort for video output.
• SATA Ports: Includes 4 x SATA ports for additional storage options.

Design and Build Quality

• ATX Form Factor: The ATX form factor is ideal for robust, high-performance builds.
• Cable Management: Includes front cable management for a clean and organized system setup.
• Heatsink: Equipped with a heatsink to ensure optimal thermal performance during heavy workloads.
• RGB Support: Customizable ARGB lighting with 3 x Addressable Gen2 headers for enhanced aesthetics.

Power and Efficiency

• Power Consumption: The motherboard consumes approximately 70W, offering a good balance of power efficiency and performance.

Compatibility

• Operating System: Compatible with Windows 11 for a smooth and modern user experience.
• Processor Compatibility: Designed for LGA1851 Core Ultra Processors (Series 2).

Warranty and Support

• 3-Year Warranty: Backed by a 3-year warranty for reliability and peace of mind.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
