Asus PRIME Z890-PLUS-CSM (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard #PRIME Z890M-PLUS WIFI-CSM
Key Specification
Product Specification
|
Brand |
Asus |
|
Model |
Asus
PRIME Z890-PLUS-CSM (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z890 Sockets
Supported: LGA1851 Built-in
Processor: N/A Supported
CPU: Intel Core Ultra Processors (Series 2) Generation:
Ultra |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 8400+(OC)/ 8200+(OC)/ 8000+(OC)/
7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Non-ECC, Un-buffered ,Clocked
Unbuffered DIMM (CUDIMM) Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion : 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode),
2 x PCIe 4.0 x16 slots (support x1 mode) |
|
Graphics Info |
Multi-GPU Support: unmentioned PCI Express Slot: 1 x PCIe 5.0 x16 slot, 1 x
PCIe 4.0 x4 slot |
|
Audio
& Video |
Audio
Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5Gb Ethernet LAN Speed (Mbps): 10/100/1000/2500 Mb/s WiFi: Yes WiFi Technology: Wi-Fi 7 2x2 (802.11be) Bluetooth
5.4 |
|
Ports Data |
USB
Port: 1 x USB Type-C, 5 x USB Type-A, 2 x USB 2.0 Type-A VGA
Port: N/A HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 6 x SATA TPM:
Yes |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3 x RGB LED Header, 3 x
Addressable LED Headers Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11 Compatible
Products: Compatible with LGA1851 Core Ultra Processors (Series 2) |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Asus

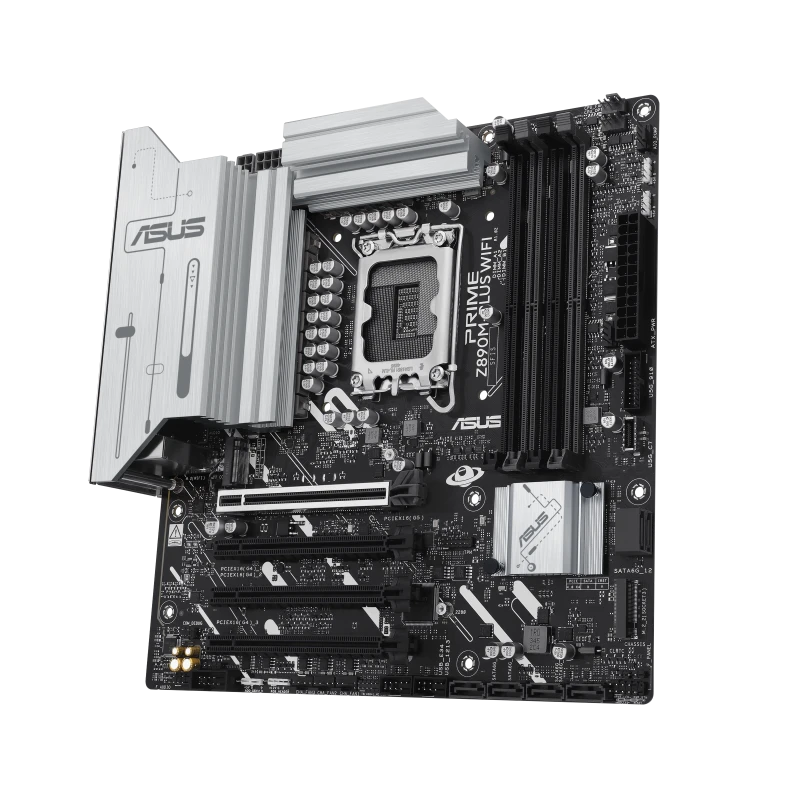

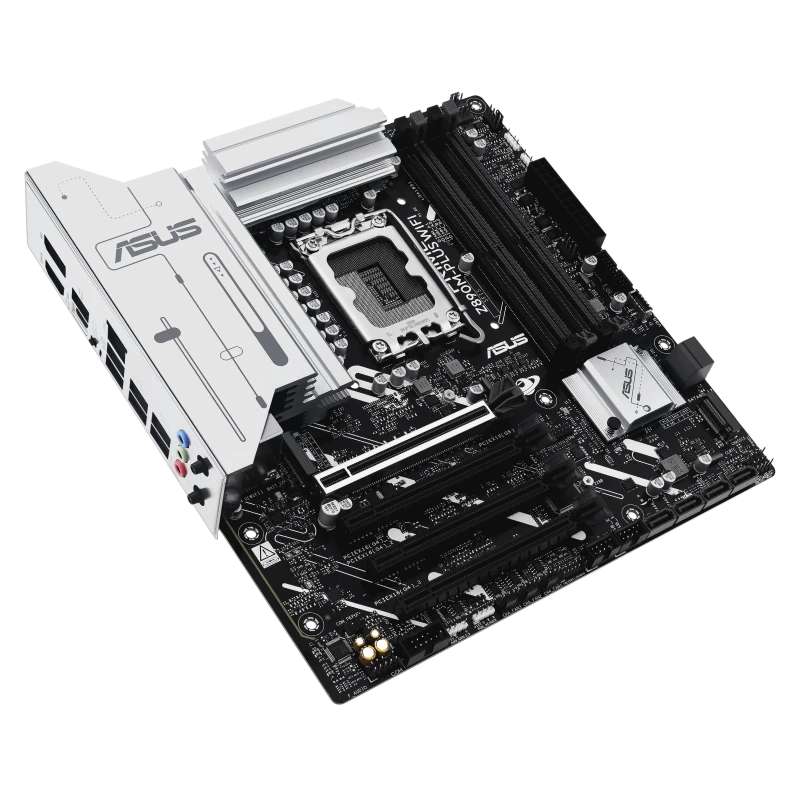

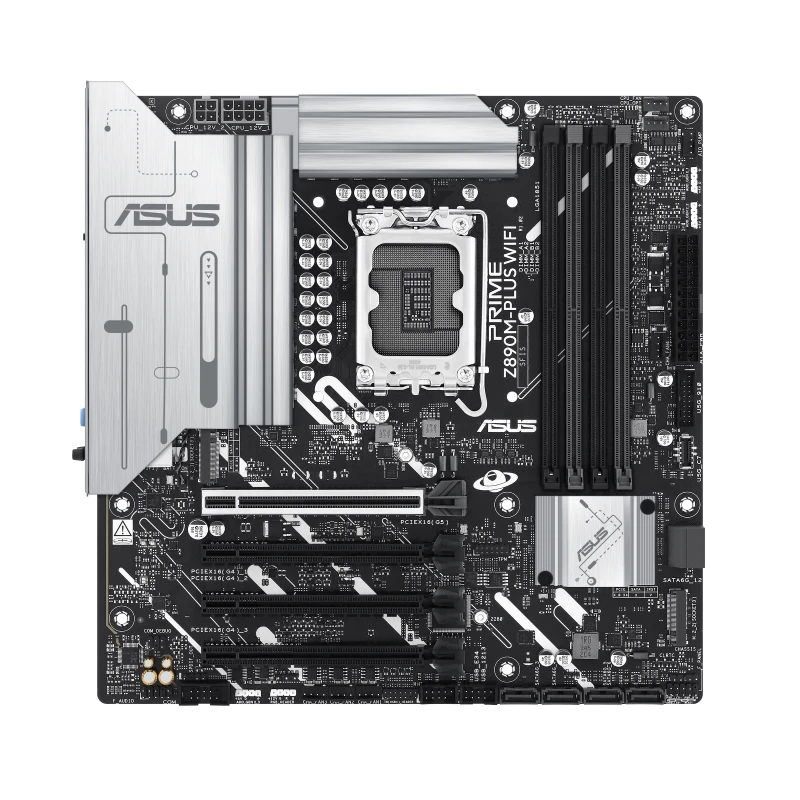

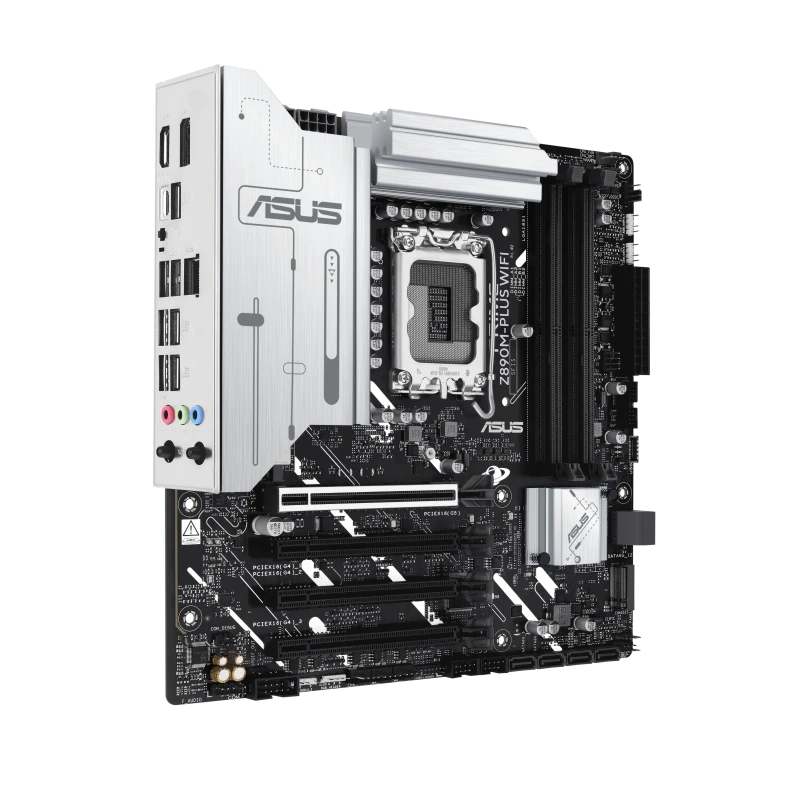

PRIME Z890-PLUS-CSM (Wi-Fi 7) Micro-ATX Motherboard
The Asus PRIME Z890-PLUS-CSM
(Wi-Fi 7) motherboard offers an exceptional blend of high performance and
connectivity. It is designed to support Intel Core Ultra Processors (Series
2) with the LGA1851 socket. With support for DDR5 memory, PCIe
5.0, and Wi-Fi 7, this motherboard is perfect for high-end gaming,
content creation, and power users seeking future-proof performance.
Features
- Intel Z890 Chipset:
Supports the latest Intel Core Ultra Processors (Series 2) with the
LGA1851 socket.
- PCIe 5.0 Support:
Features 1 x PCIe 5.0 x16 slot and 1 x PCIe 4.0 x4 slot for
high-speed expansion and future-proofing.
- Multi-GPU Support:
Multi-GPU support is unmentioned.
Memory
Support
- DDR5 Memory:
Supports DDR5 memory with speeds up to 8400+ MHz (OC) for
peak performance.
- Dual-Channel Configuration: Equipped with 4 DIMM slots, allowing for up to
192GB of Non-ECC, Un-buffered memory.
- JEDEC Support:
Compatible with JEDEC memory profiles for reliable and efficient
memory operation.
Storage
Expansion and Connectivity
- M.2 Expansion:
Includes 1 x PCIe 5.0 x16 slot and 2 x PCIe 4.0 x16 slots,
offering extensive storage expansion options.
- SATA Ports:
Provides 6 x SATA ports for additional storage devices and
HDDs/SSDs.
Audio
and Networking
- Audio Chipset:
Equipped with Realtek 7.1 Surround Sound, delivering immersive
audio experiences.
- LAN Chipset:
Includes Realtek 2.5Gb Ethernet with speeds of 10/100/1000/2500
Mbps for ultra-fast wired networking.

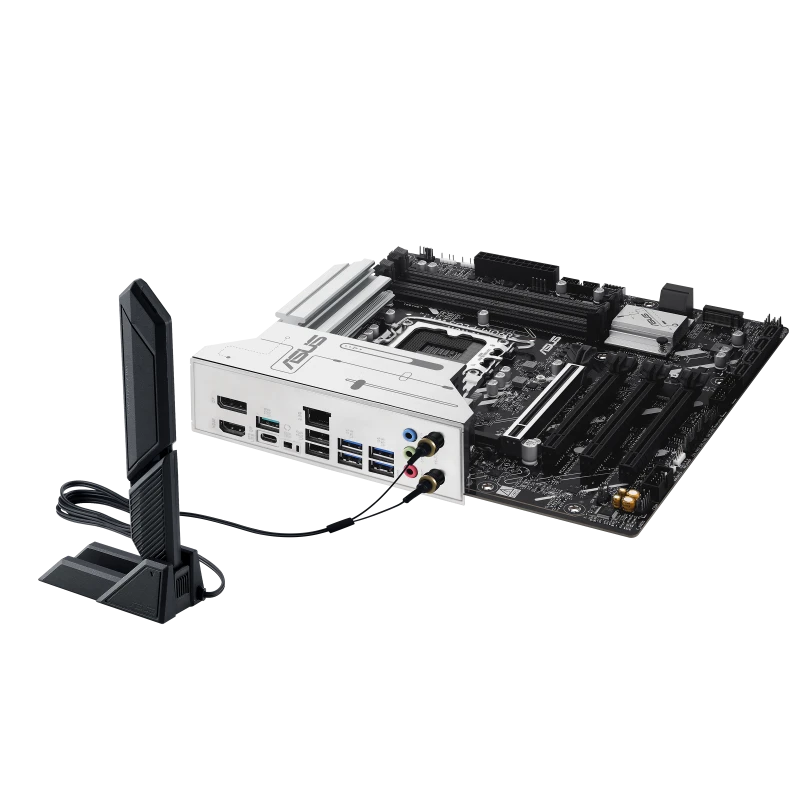

- Wi-Fi:
Features Wi-Fi 7 2x2 (802.11be) for fast and reliable wireless
connectivity.
- Bluetooth:
Supports Bluetooth 5.4, ensuring compatibility with a wide range of
wireless devices.

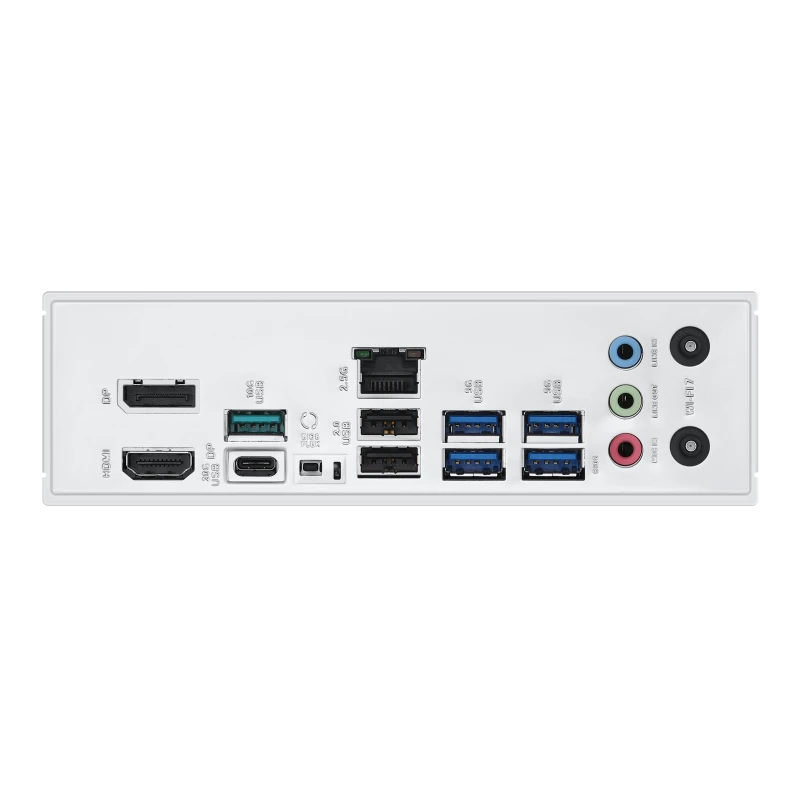

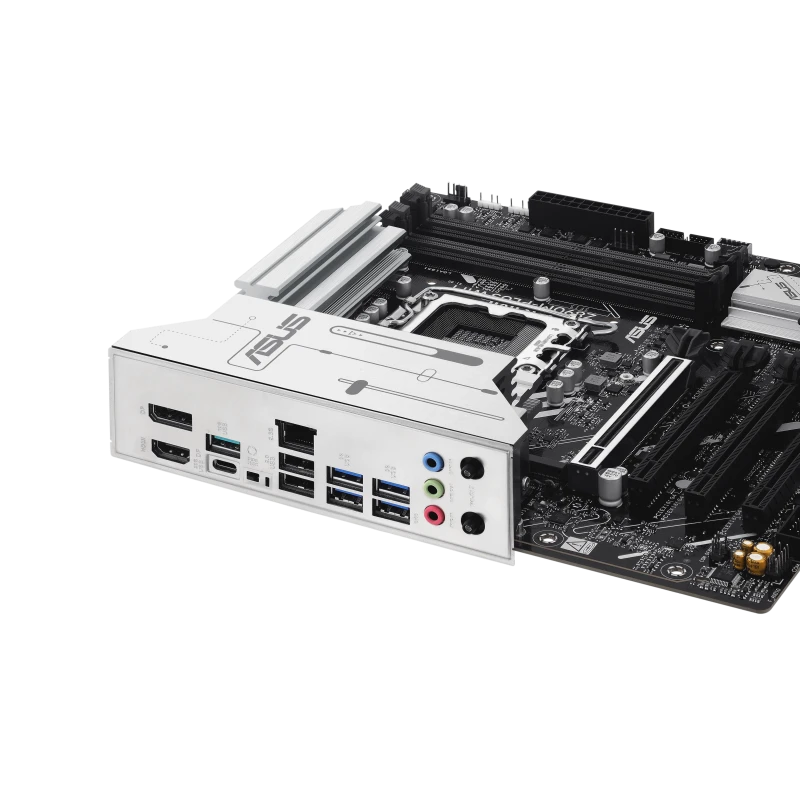

Ports
and I/O
- USB Ports:
Features a wide variety of USB ports:
- 1 x USB Type-C
for fast data transfer.
- 5 x USB Type-A
ports for multiple devices.
- 2 x USB 2.0 Type-A
for peripherals.
- Display Ports:
Includes 1 x HDMI and 1 x DisplayPort for video output.
- TPM: TPM
(Trusted Platform Module) support for security features.
Design
and Build Quality
- Micro-ATX Form Factor:
A compact Micro-ATX design that fits easily into small to medium
cases.
- Cable Management:
Features front cable management for an organized setup.
- Heatsink:
Equipped with heatsinks to ensure optimal cooling during
high-performance tasks.
- RGB Support:
Supports ARGB lighting with 3 x RGB LED Headers and 3 x
Addressable LED Headers for customizable aesthetics.
Power
and Efficiency
- Power Consumption:
The motherboard operates with an approximate power consumption of 60W,
offering efficient power use.
Compatibility
- Operating System Support: Fully compatible with Windows 11 for the
latest updates and optimizations.
- Processor Compatibility: Designed for Intel Core Ultra Processors (Series
2) with the LGA1851 socket.
Warranty
and Support
- 3-Year Warranty:
Backed by a 3-year warranty for peace of mind.
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh.
