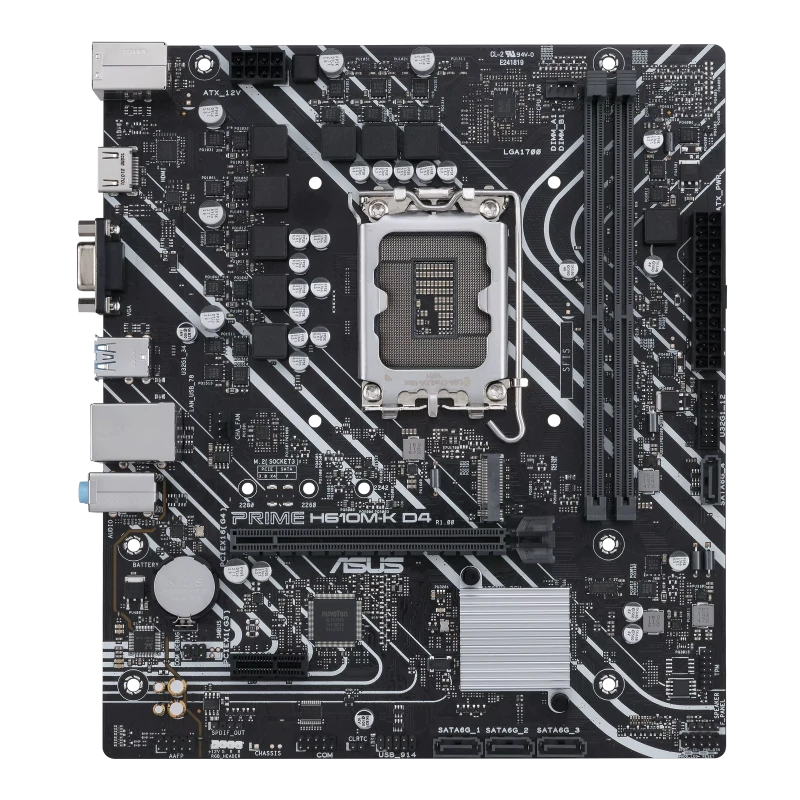

ASUS Prime H610M-K D4 Intel LGA 1700 12th, 13th & 14th Gen mATX Motherboard
Key Specification
§ Intel® LGA1700 12th, 13th
& 14th Gen CPU Support
§ 2x
DDR4- 3200MHz Support (Maximum 64GB)
§ 1x
HDMI & 1x D-Sub Output
§ mATX
From Factor
Product Specification
|
Model |
PRIME H610M-K D4 |
|
CPU Support |
Intel® Socket
LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th
Gen, Pentium® Gold and Celeron® Processors |
|
Chipset |
Intel® H610 Chipset |
|
Form Factor |
mATX Form Factor, 9.2-inch
x 8.0 inch (23.4 cm x 20.3 cm) |
|
Memory Support |
2x DIMM, Max. 64GB,
DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory
Architecture Supports Intel®
Extreme Memory Profile (XMP) |
|
Storage Support |
M.2 slot (Key M),
type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4x SATA 6Gb/s ports |
|
M.2 Socket |
M.2 slot (Key M),
type 2242/2260/2280 (supports PCIe 3.0) |
|
Graphics |
1x D-Sub port 1x HDMI® port |
|
Network |
1x Realtek 1Gb
Ethernet |
|
PCI |
1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot |
|
Internal
Connectors |
1 x 4-pin CPU Fan header 1 x 4-pin Chassis
Fan header 1 x 24-pin Main
Power connector 1 x 8-pin +12V Power
connector 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header
supports additional 2 USB 2.0 ports 1 x RGB header 1 x Clear CMOS
header 1 x COM Port header 1 x Front Panel
Audio header (AAFP) 1 x S/PDIF Out
header 1 x Speaker header 1 x SPI TPM header
(14-1pin) 1 x 10-1 pin System
Panel header |
|

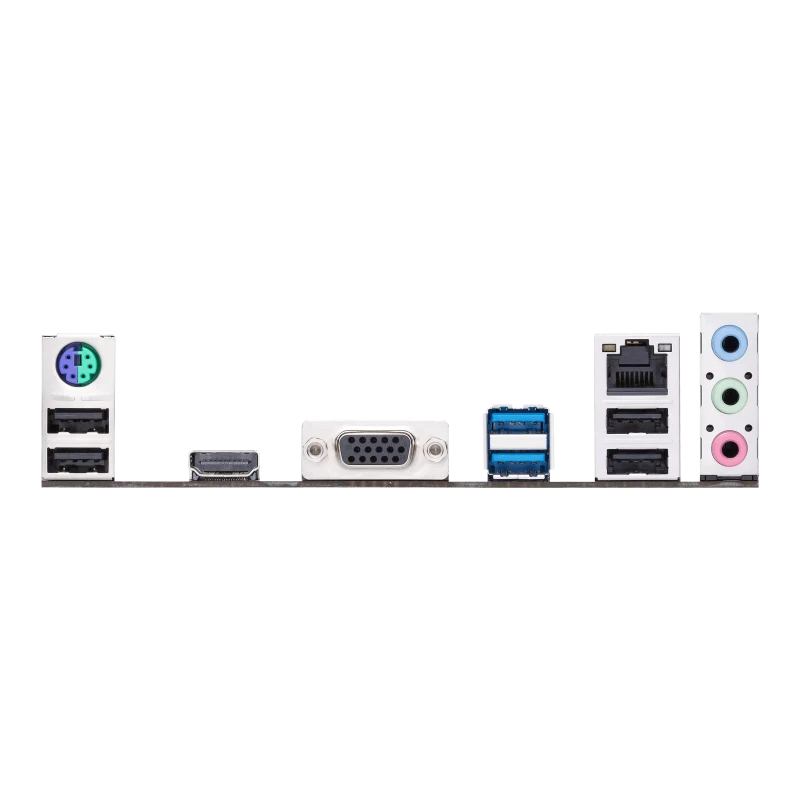

Back Panel Ports |
2 x USB 3.2 Gen 1
ports (2 x Type-A) 4 x USB 2.0 ports (4
x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb
Ethernet port 3 x Audio jacks 1 x PS/2
Keyboard/Mouse combo port |
|
Audio |
Realtek 7.1 Surround
Sound High-Definition Audio CODEC Audio Shielding Premium audio capacitors Dedicated audio PCB
layers |
|
USB |
Rear USB (Total 6
ports) 2 x USB 3.2 Gen 1
ports (2 x Type-A) 4 x USB 2.0 ports (4
x Type-A)
Front USB (Total 4
ports) 1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header
supports additional 2 USB 2.0 ports |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Special Features |
ASUS 5X PROTECTION
III - DIGI+ VRM - LANGuard - Overvoltage
Protection - SafeSlot Core - Stainless-Steel
Back I/O
ASUS Q-Design - Q-DIMM - Q-Slot
ASUS Thermal Solution - Aluminum heatsink
design
ASUS Lighting
Control - RGB header |
|
Software
Features |
ASUS Exclusive
Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe
(60 Days Free Trial) WinRAR
UEFI BIOS ASUS EZ DIY - ASUS CrashFree
BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ
Mode |
|
Warranty |
3 Years |
|
Model |
PRIME H610M-K D4 |
|
CPU Support |
Intel® Socket
LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th
Gen, Pentium® Gold and Celeron® Processors |
|
Chipset |
Intel® H610 Chipset |
|
Form Factor |
mATX Form Factor, 9.2-inch
x 8.0 inch (23.4 cm x 20.3 cm) |
|
Memory Support |
2x DIMM, Max. 64GB,
DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory
Architecture Supports Intel®
Extreme Memory Profile (XMP) |
|
Storage Support |
M.2 slot (Key M),
type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4x SATA 6Gb/s ports |
|
M.2 Socket |
M.2 slot (Key M),
type 2242/2260/2280 (supports PCIe 3.0) |
|
Graphics |
1x D-Sub port 1x HDMI® port |
|
Network |
1x Realtek 1Gb
Ethernet |
|
PCI |
1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot |
|
Internal
Connectors |
1 x 4-pin CPU Fan header 1 x 4-pin Chassis
Fan header 1 x 24-pin Main
Power connector 1 x 8-pin +12V Power
connector 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header
supports additional 2 USB 2.0 ports 1 x RGB header 1 x Clear CMOS
header 1 x COM Port header 1 x Front Panel
Audio header (AAFP) 1 x S/PDIF Out
header 1 x Speaker header 1 x SPI TPM header
(14-1pin) 1 x 10-1 pin System
Panel header |
|
Back Panel Ports |
2 x USB 3.2 Gen 1
ports (2 x Type-A) 4 x USB 2.0 ports (4
x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb
Ethernet port 3 x Audio jacks 1 x PS/2
Keyboard/Mouse combo port |
|
Audio |
Realtek 7.1 Surround
Sound High-Definition Audio CODEC Audio Shielding Premium audio capacitors Dedicated audio PCB
layers |
|
USB |
Rear USB (Total 6
ports) 2 x USB 3.2 Gen 1
ports (2 x Type-A) 4 x USB 2.0 ports (4
x Type-A)
Front USB (Total 4
ports) 1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header
supports additional 2 USB 2.0 ports |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Special Features |
ASUS 5X PROTECTION
III - DIGI+ VRM - LANGuard - Overvoltage
Protection - SafeSlot Core - Stainless-Steel
Back I/O
ASUS Q-Design - Q-DIMM - Q-Slot
ASUS Thermal Solution - Aluminum heatsink
design
ASUS Lighting
Control - RGB header |
|
Software
Features |
ASUS Exclusive
Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3
Product DetailsASUS PRIME H610M-K D4 is a versatile and feature-rich motherboard designed for
Intel's latest processors. Built for efficiency and reliability, this
motherboard supports a wide range of Intel processors, including Intel®
Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold,
and Celeron® processors. It is ideal for users who are looking for a
stable and high-performance foundation for their PC build. CPU
and Chipset Support The PRIME H610M-K D4
motherboard is equipped with the Intel® H610 Chipset and supports the Intel®
Socket LGA1700 for a variety of Intel® processors. This includes the latest
Intel® Core™ 14th, 13th, and 12th Gen processors, ensuring compatibility
with the most powerful chips for multitasking, gaming, and productivity tasks. Memory
Support Supporting 2x DIMM slots, the
PRIME H610M-K D4 can accommodate up to 64GB of DDR4 memory with
speeds ranging from 2133 MHz to 3200 MHz. The motherboard also supports Dual
Channel Memory Architecture and Intel® Extreme Memory Profile (XMP),
allowing users to maximize memory performance with higher speeds and
overclocking support. Storage
and Expansion For storage, the PRIME H610M-K D4
features 1x M.2 slot (Key M) supporting PCIe 3.0 x4 and SATA
modes for high-speed storage devices like SSDs. It also includes 4x SATA 6Gb/s
ports for additional storage devices, offering flexibility for various
storage configurations. Whether you’re using SSDs or traditional hard drives,
this motherboard ensures efficient data transfer and storage management. Graphics
and Display This motherboard supports 1x
D-Sub port and 1x HDMI® port, allowing users to connect multiple
display outputs for diverse setups. The HDMI port offers high-definition video
output, perfect for both gaming and professional applications. Network
and Connectivity The PRIME H610M-K D4 comes
with Realtek 1Gb Ethernet, ensuring stable and fast internet
connectivity. The PCIe slots include 1x PCIe 4.0 x16 slot for a
dedicated graphics card and 1x PCIe 3.0 x1 slot for additional
peripherals, offering flexibility for future upgrades. Audio
and USB The motherboard features Realtek
7.1 Surround Sound High-Definition Audio CODEC with audio shielding,
premium audio capacitors, and dedicated audio PCB layers for
exceptional sound quality. The rear USB ports include 2x USB 3.2 Gen
1 and 4x USB 2.0 ports, providing ample connectivity options for
your peripherals. Front USB support includes additional USB 3.2 Gen 1
and USB 2.0 headers for easy access to USB ports. Special
Features The ASUS PRIME H610M-K D4
motherboard is equipped with ASUS 5X PROTECTION III, which includes
features such as DIGI+ VRM, LANGuard, Overvoltage Protection,
and SafeSlot Core for enhanced durability. The motherboard also includes
RGB headers for customizable lighting effects using Aura Sync and
ASUS Thermal Solution with aluminum heatsinks to ensure the system
remains cool and stable during intensive tasks. BIOS
and Software The motherboard is powered by UEFI
AMI BIOS, featuring ASUS EZ DIY tools like CrashFree BIOS 3
and EZ Flash 3 for effortless system updates and recovery. Armoury
Crate and AI Suite 3 software allow for system optimization and
control, providing a seamless experience for users. Warranty The ASUS PRIME H610M-K D4
comes with a 3-year warranty, offering peace of mind and ensuring
long-term reliability for your PC build. With its balanced feature set,
robust performance, and excellent connectivity options, the ASUS PRIME
H610M-K D4 motherboard is an ideal choice for users seeking a stable,
high-performance base for their next Intel-based PC.
