Asus PRIME H510M-F R3.0 H470 Chipset DDR4 Intel Motherboard
Key Specification
Product Specification
|
Brand |
Asus |
|
Model |
Asus
PRIME H510M-F R3.0 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H470 Sockets
Supported: LGA1200 Built-in
Processor: Unmentioned Supported
CPU: 11th Gen Intel Core & 10th Gen Intel Core, Pentium Gold and Celeron
Processors Generation:
10th/11th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 3200(OC)/ 3000(OC)/ 2933/ 2800/
2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Memory Channel: Dual Memory Slot: 2 Memory Slot (Additional Info): Unmentioned Memory Max: 64GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2, type 2242/2260/2280 (supports PCIe 3.0 x4
& SATA modes) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated With Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCIe 4.0/3.0 x16 slot,
1 x PCIe 3.0 x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 1Gb Ethernet LAN Speed (Mbps): 10 / 100 / 1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB Port: 4 x USB 5Gbps ports (4 x Type-A), 2 x USB
2.0 ports (2 x Type-A) VGA Port: Unmentioned DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Yes |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 Compatible
Products: Intel Socket LGA1200 for 11th Gen Intel Core & 10th Gen Intel
Core, Pentium Gold and Celeron Processors |
|
Warranty |
3 Year Replacement Warranty |
|
* Product may vary with
different Kit or Version |
|
Product Details
Asus
PRIME H510M-F R3.0 Micro-ATX Motherboard
The Asus PRIME H510M-F R3.0
motherboard is a reliable option for those looking to build a budget-friendly
PC. Supporting Intel 10th and 11th Gen processors, it offers
solid memory and storage expansion for users seeking an entry-level or
mid-range system build.
Features
• Processor Support:
Supports Intel Core 10th and 11th Gen processors, as well as Pentium
Gold and Celeron processors, using the LGA1200 socket.
• Memory Support:
Supports DDR4 memory up to 3200 MHz (OC), with a maximum capacity
of 64GB.
• Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC for immersive
sound.
Storage
and Expansion
• M.2 Slot:
1 x M.2 Slot (Key M) for fast PCIe 3.0 x4 SSD storage (supports 2242/2260/2280
form factors).
• SATA Ports:
4 x SATA ports for additional storage drives.
Graphics
and Expansion
• Integrated Graphics:
Supports integrated graphics with compatible processors.
• PCIe Slots:
1 x PCIe 4.0/3.0 x16 slot for high-performance expansion cards like
graphics cards.
1 x PCIe 3.0 x1 slot for additional expansions.
Connectivity
Options

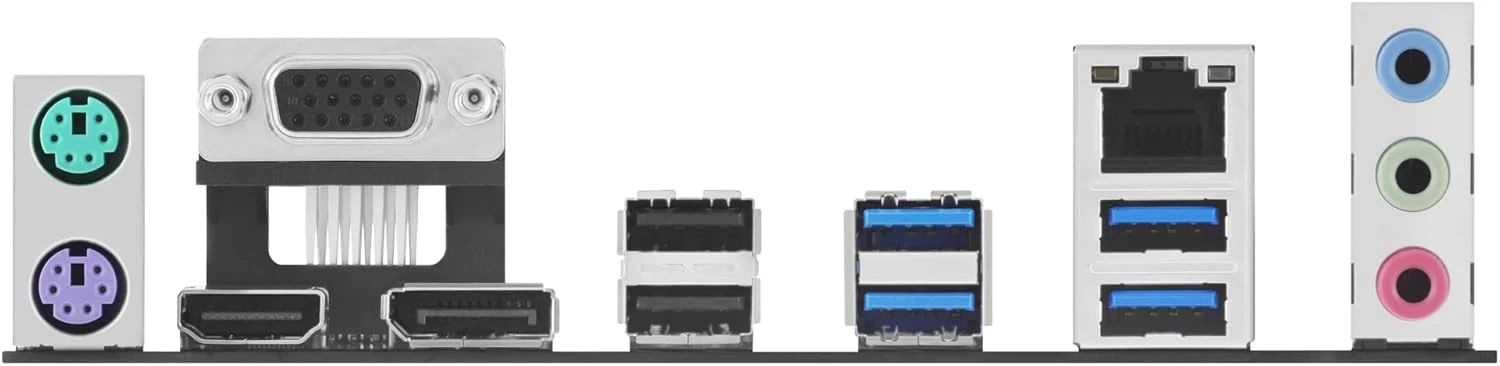

• USB Ports:
4 x USB 5Gbps Type-A ports for fast data transfer.
2 x USB 2.0 Type-A ports for other peripherals.
• Video Outputs:
1 x HDMI port for video output.
Network
and Audio
• LAN Chipset:
Realtek 1Gb Ethernet for stable and fast network speeds (10/100/1000
Mbps).
• Audio Chipset:
Realtek 7.1 Surround Sound for high-definition audio output.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Cable Management: Front cable management for a clean build.
Compatibility
• Supported Operating System:
Windows 10
• Compatible Products:
Compatible with Intel Core i9/i7/i5/i3, Pentium, and Celeron
processors for the LGA1200 socket.
Warranty
Information
• Warranty: 3-year replacement warranty.
Price
and Availability
The Asus PRIME H510M-F R3.0
motherboard provides a great option for budget-conscious builds with its
support for modern Intel processors. Available at authorized retailers at an
affordable price.
