Asus PRIME A520M-A II DDR4 AMD Motherboard
Key Specification
Product Specification
|
Brand |
Asus |
|
Model |
Asus
PRIME A520M-A II |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD A520 Sockets
Supported: AM4 Built-in
Processor: Unmentioned Supported
CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop
Processors Generation:
N/A |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC) /3333(OC)/3200/3000/2800/2666/2400/2133 MHz,
Un-buffered Memory Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info): Unmentioned Memory Max: 128GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details: 1 x M.2 (M.2 slot (Key M), type 2242/2260/2280
(supports PCIe 3.0 x4 & SATA modes)) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated With Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCIe 3.0 x 16
(supports x16 mode), 2 x PCIe 3.0 x 1 |
|
Audio
& Video |
Audio
Chipset: Realtek ALC887/897 Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: 1 x Realtek 1Gb LAN Speed (Mbps): 10 / 100 / 1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB Port: 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0
Type-A VGA Port: Unmentioned DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Unmentioned |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: RGB RGB Connector: 2 x AURA RGB headers Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 Compatible
Products: Unmentioned |
|
Warranty |
3 Year Replacement Warranty |
|
* Product may vary with
different Kit or Version |
|
Product Details
Asus

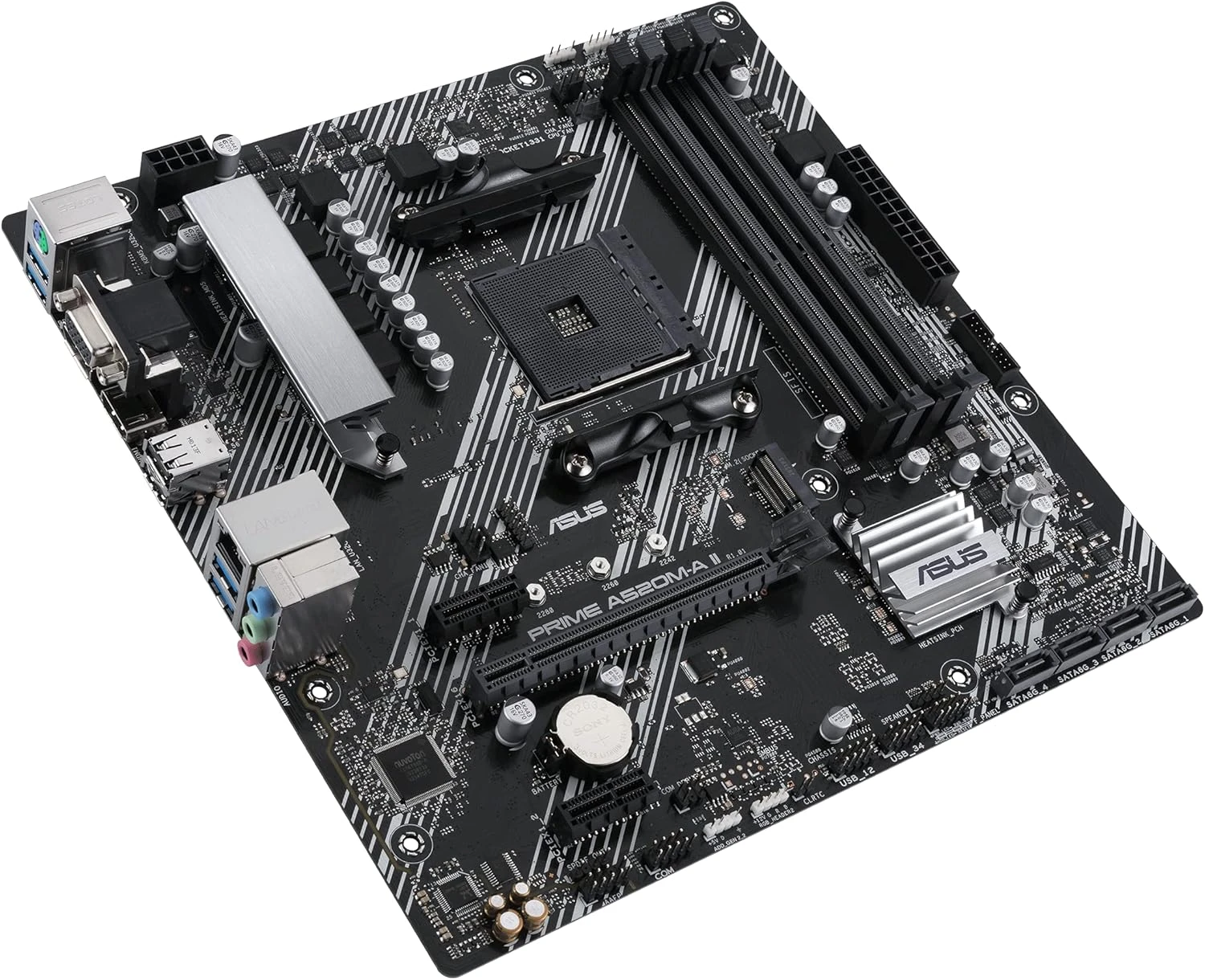

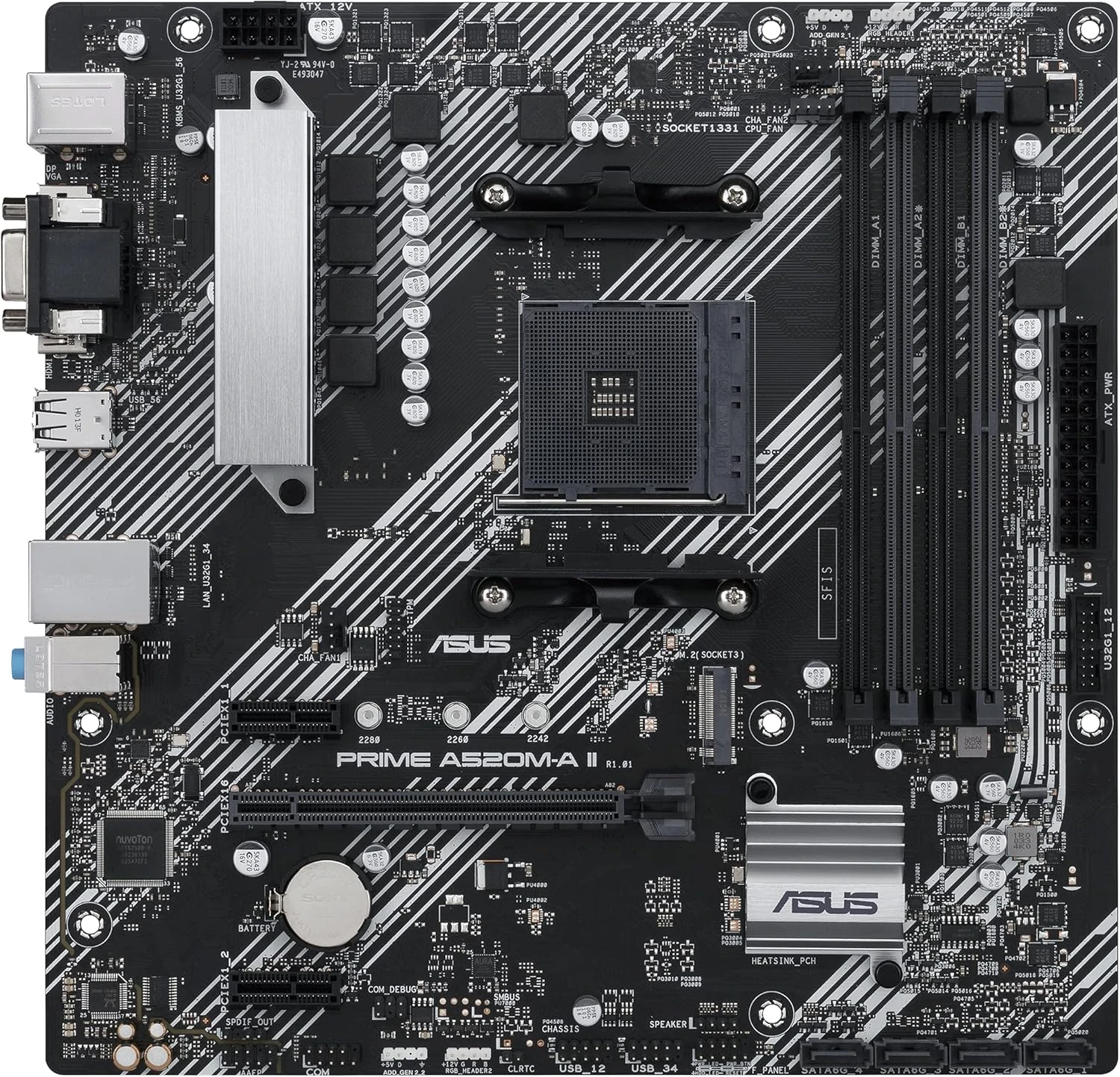

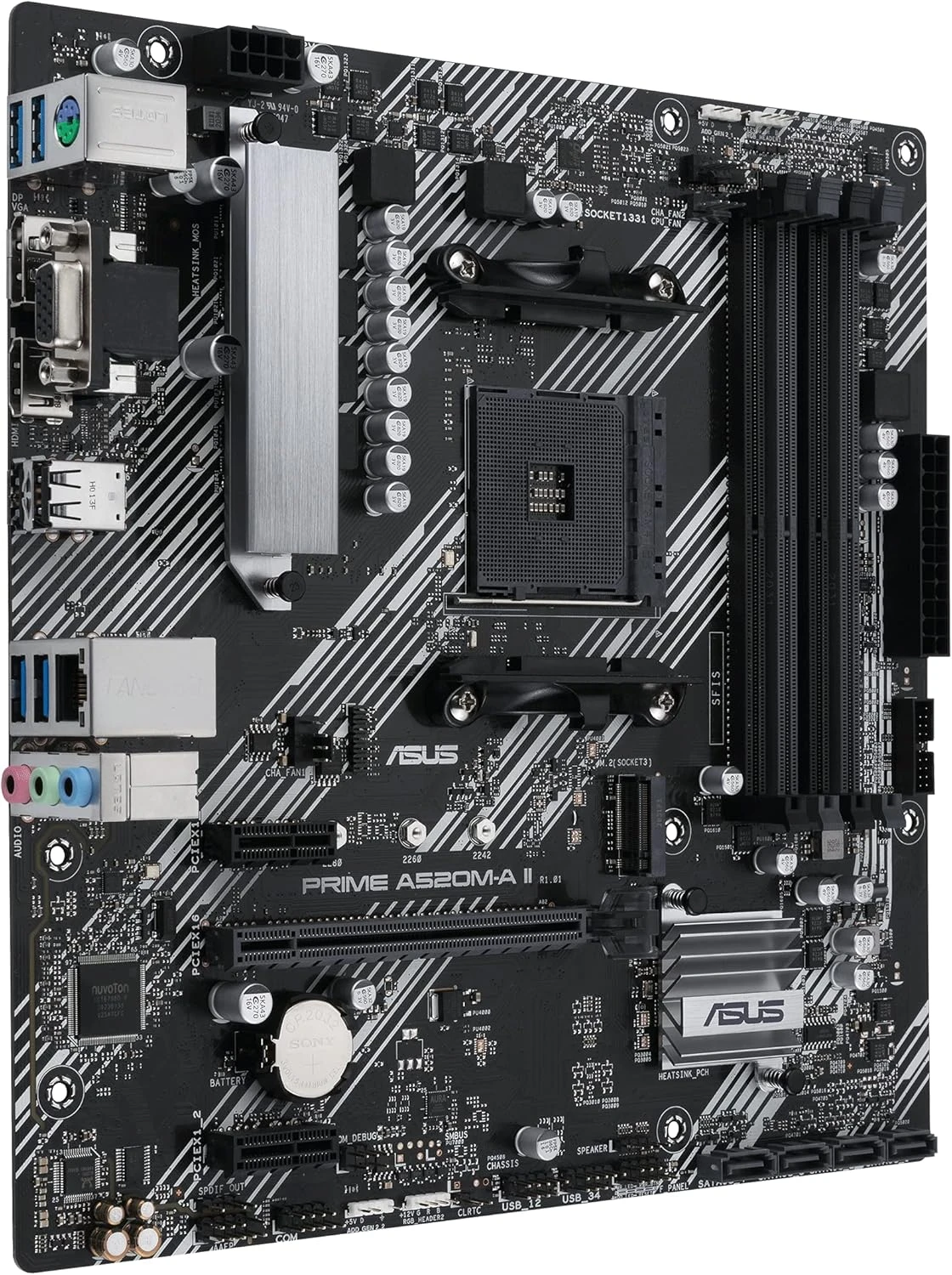

PRIME A520M-A II Micro-ATX Motherboard
The Asus PRIME A520M-A II
motherboard is a solid choice for building a budget-friendly AMD-based desktop.
Designed with AMD Ryzen 5000 and 4000 series processors in mind, this
motherboard offers great performance and expandability while maintaining an
efficient and compact Micro-ATX form factor.
Features
• Processor Support:
Supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and
3000 Series Desktop Processors via the AM4 socket.
• Memory Support:
Supports DDR4 memory with speeds up to 4866 MHz (OC) and a
maximum capacity of 128GB.
• Audio:
Realtek ALC887/897 Audio Codec providing high-quality 7.1 surround
sound.
Storage
and Expansion
• M.2 Slot:
1 x M.2 Slot supporting both PCIe 3.0 x4 and SATA modes
for fast SSD storage.
• SATA Ports:
4 x SATA ports for additional storage drives.
Graphics
and Expansion
• Integrated Graphics:
Supports integrated graphics when paired with compatible processors.
• PCIe Slots:
1 x PCIe 3.0 x16 slot for high-performance graphics cards and expansion.
2 x PCIe 3.0 x1 slots for additional expansion cards.
Connectivity
Options

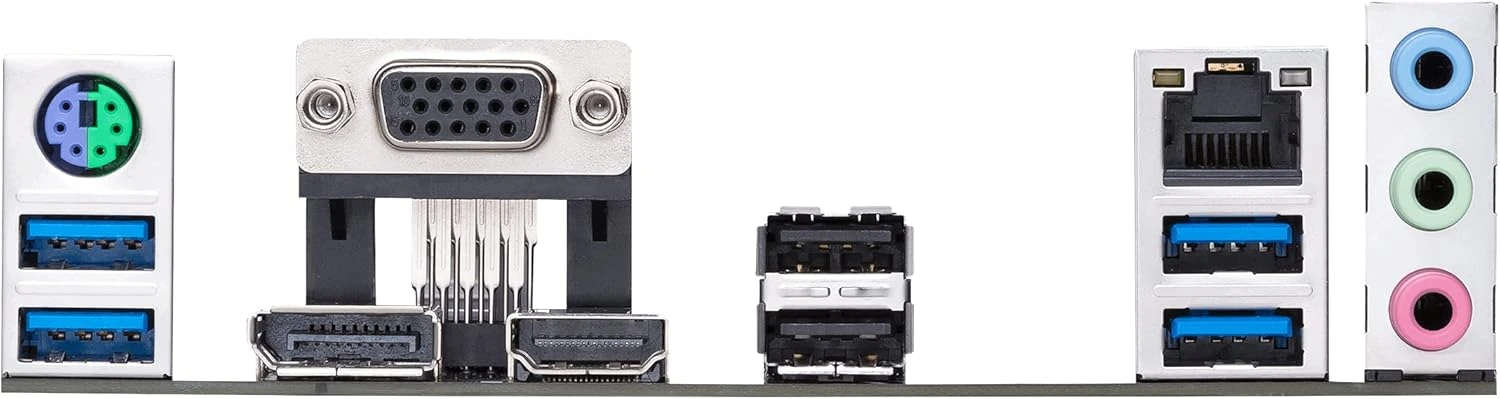

• USB Ports:
4 x USB 3.2 Gen 1 Type-A ports.
2 x USB 2.0 Type-A ports for additional devices.
• Video Outputs:
1 x HDMI port
1 x DisplayPort (DP) for video output options.
Network
and Audio
• LAN Chipset:
Realtek 1Gb Ethernet for stable and fast internet connections with
speeds of 10/100/1000 Mbps.
• Audio Chipset:
Realtek ALC887/897 for high-definition 7.1 surround sound audio.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• RGB Support:
Includes RGB lighting with 2 x AURA RGB headers for customizable
lighting options.
• Cable Management: Front cable management for easier assembly.
Compatibility
• Supported Operating System:
Windows 10
• Compatible Products:
Works with a range of AMD Ryzen processors and compatible components.
Warranty
Information
• Warranty: 3-year replacement warranty.
Price
and Availability
The Asus PRIME A520M-A II
motherboard is ideal for those looking for a stable and efficient motherboard
for their AMD Ryzen build. Available at authorized retailers for an
affordable price.
