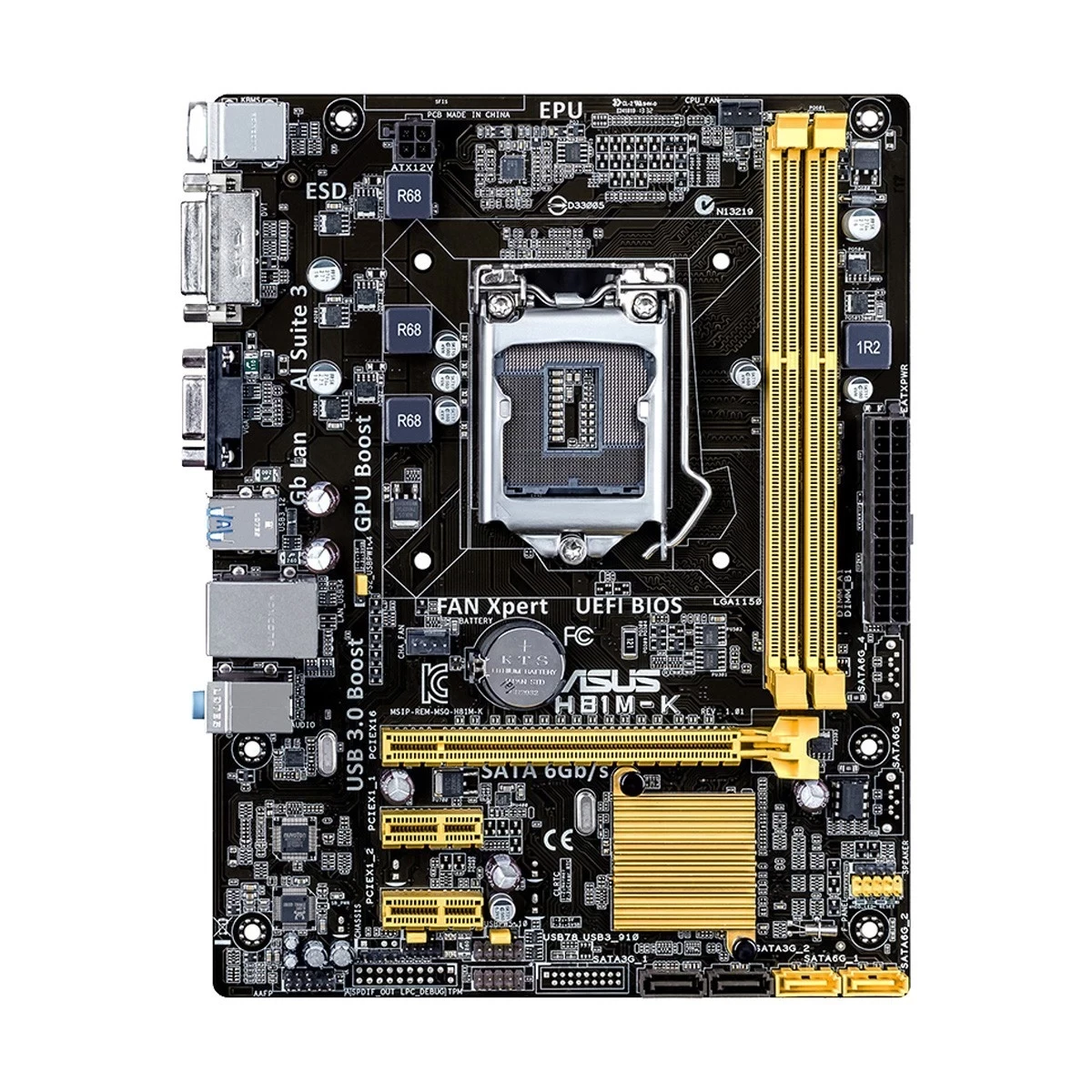

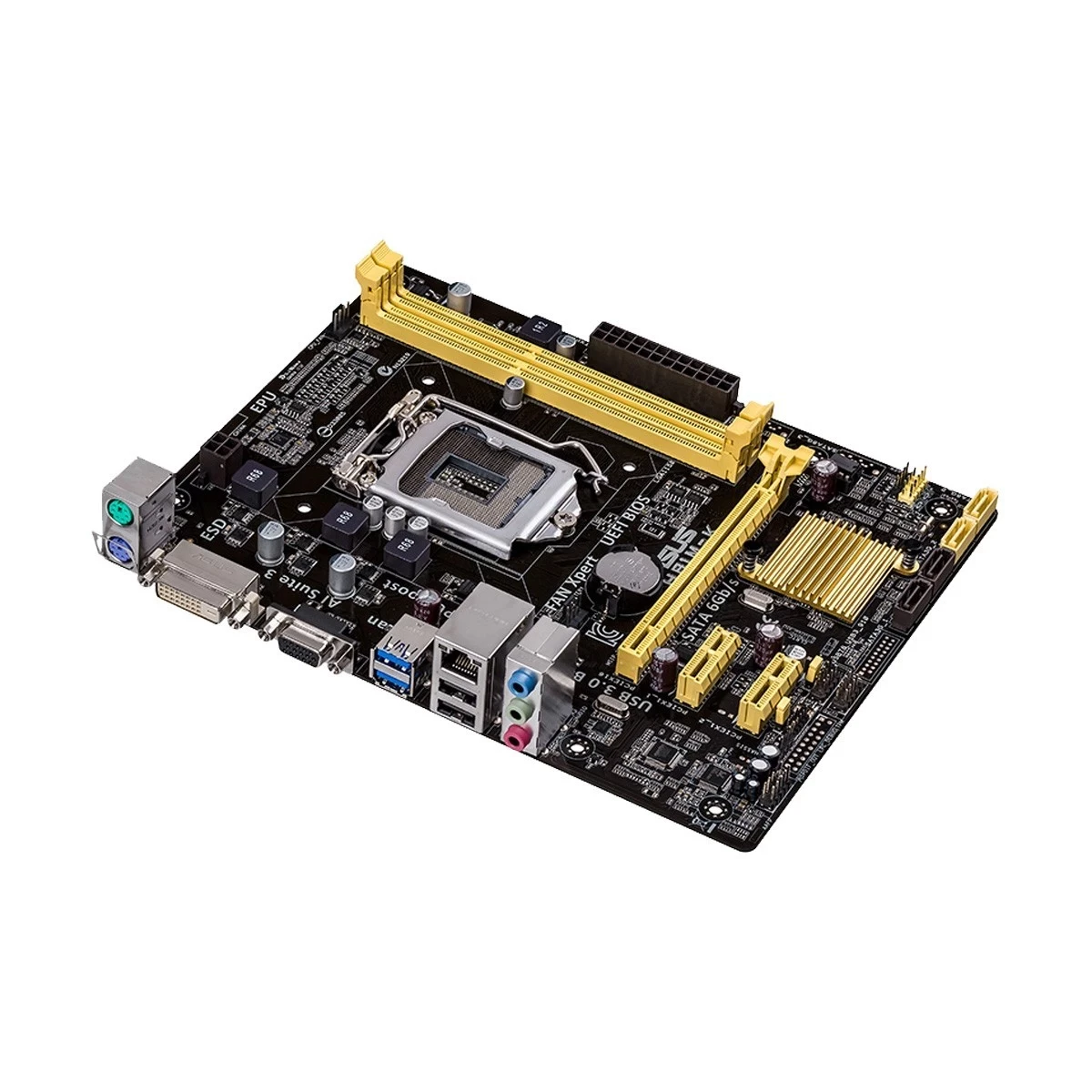

Asus H81M-K Micro-ATX Motherboard

The Asus H81M-K is a reliable Micro-ATX motherboard designed to support 4th Generation Intel Core processors. It offers a straightforward and efficient solution for budget-conscious builds while delivering solid performance and essential features for everyday computing needs.

Features

• Processor Support:
Supports 4th Generation Intel Core i7 / i5 / i3, Pentium, and Celeron processors with the LGA1150 socket.
• Memory Support:
Supports DDR3 memory with speeds up to 1600 MHz, with a maximum memory capacity of 16GB.
• Audio:
Realtek ALC887-VD audio chipset for 8-channel high-definition audio.

Storage and Expansion

• SATA Ports:
2 x SATA II (3Gb/s) and 2 x SATA III (6Gb/s) ports for fast storage connections.
• M.2 Slot:
No M.2 or SSD expansion slots.

Graphics and Expansion

• Integrated Graphics:
Supports integrated graphics via the processor for basic video needs.
• PCIe Slot:
1 x PCIe 2.0 x16 slot, 2 x PCIe 2.0 x1 slots, and 1 x PCI slot for expansion cards.

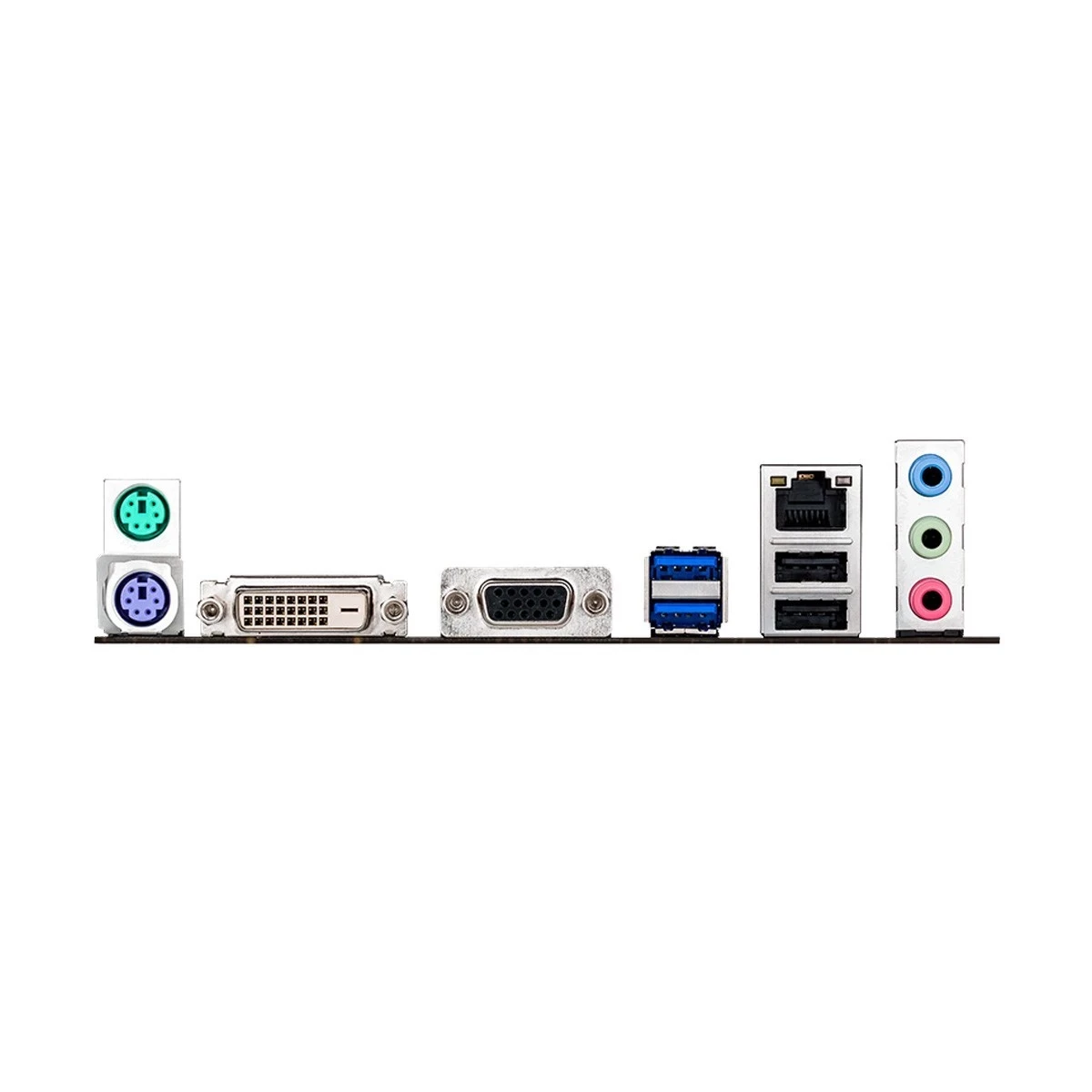

Connectivity Options

• USB Ports:
2 x USB 3.1 Gen 1, 8 x USB 2.0 for connecting peripherals.
• Video Outputs:
1 x VGA, 1 x DVI port for display connections.

Network and Audio

• LAN Chipset:
Realtek RTL8111G Ethernet for 1Gbps network speeds (10/100/1000 Mbps).
• Audio Chipset:
Realtek ALC887-VD audio chipset providing 8-channel sound.

Design and Build

• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Cable Management: Front cable management for a neat build.

Compatibility

• Supported Operating System:
Windows 7, Windows 8
• Compatible Products:
Supports LGA1150 socket for 4th Gen Intel processors.

Warranty Information

• Warranty: 3-year warranty.

Price and Availability

The Asus H81M-K motherboard is available from various retailers, offering an affordable option for building a system based on Intel's 4th Gen processors.
