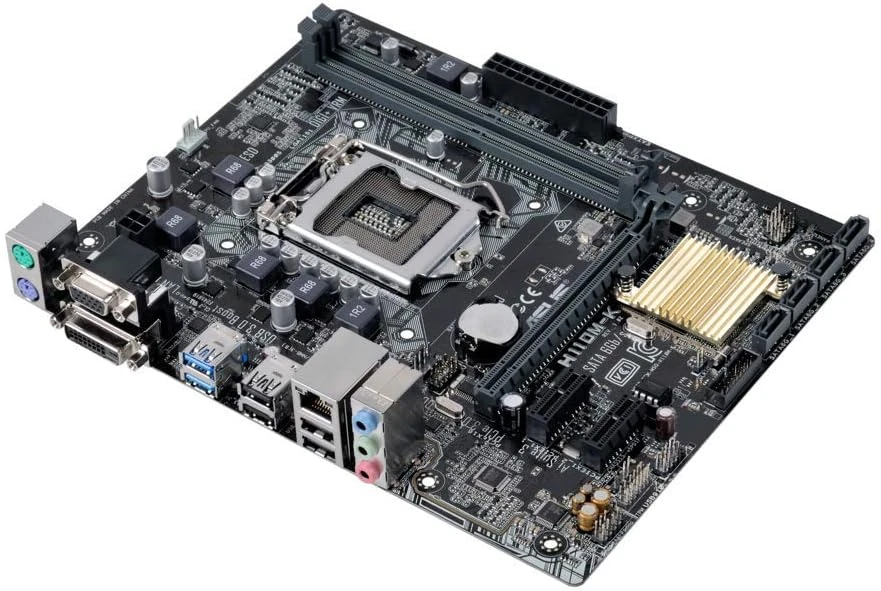

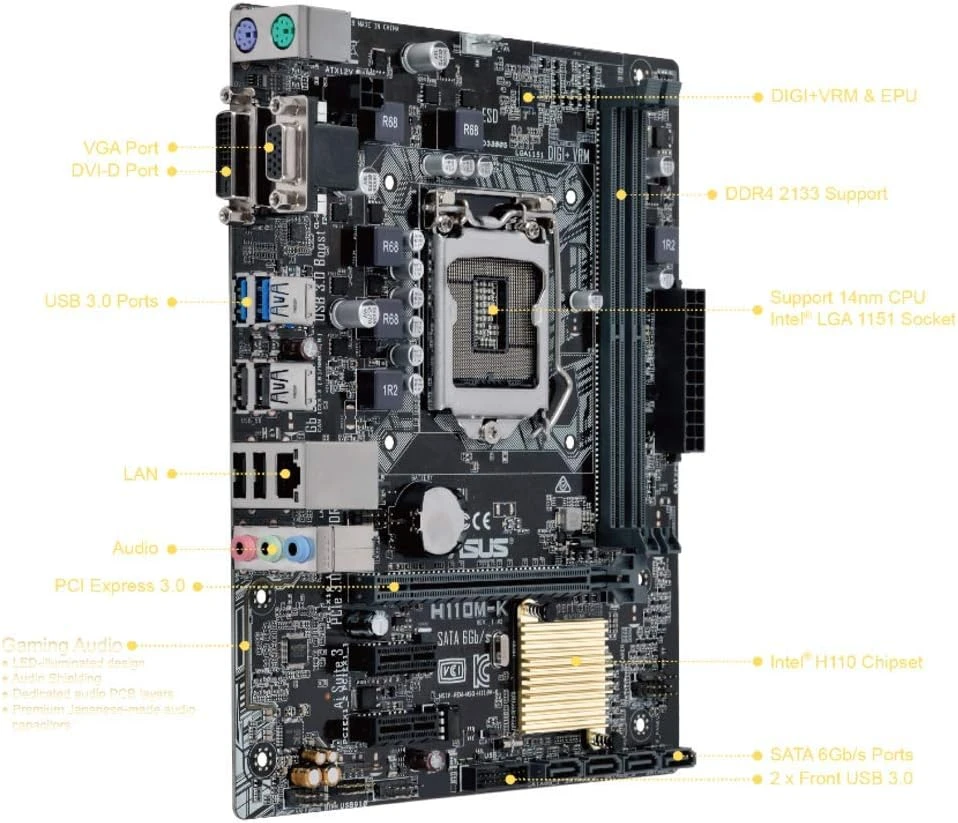

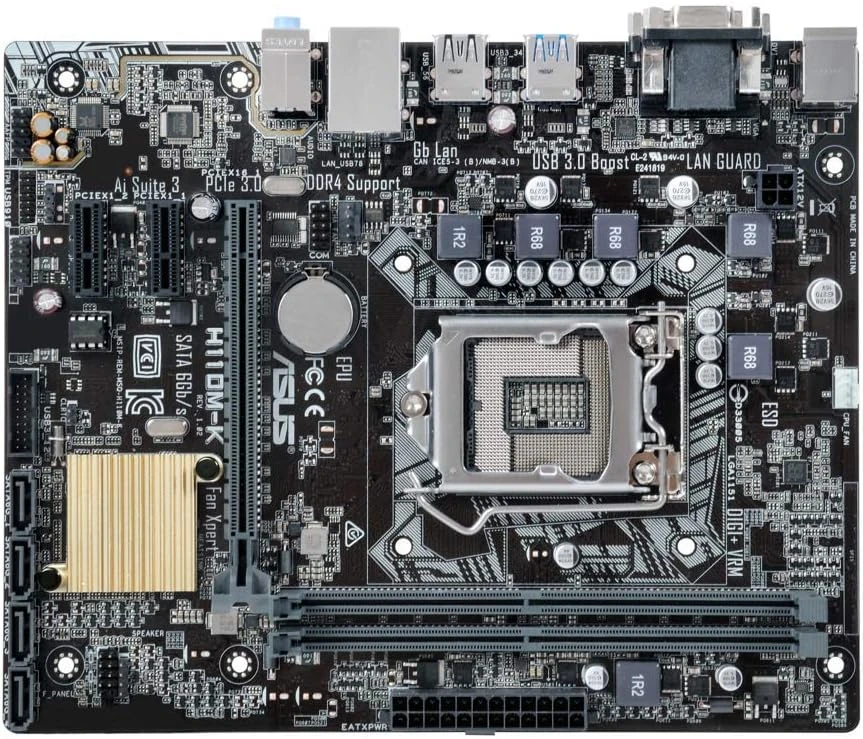

Asus H110M-K Micro-ATX Motherboard

The Asus H110M-K motherboard offers a solid foundation for budget-friendly PCs, supporting Intel 6th and 7th Gen processors. With a compact Micro-ATX form factor, it provides essential features for general computing tasks and light gaming.

Features

• Processor Support:
Compatible with Intel Core i7, i5, i3, Pentium, and Celeron processors (LGA1151 socket) from the 6th and 7th generations.
• Memory Support:
Supports DDR4 memory up to 2133/2400 MHz, with a maximum capacity of 32GB.
• Audio:
Realtek ALC887 audio chipset for 8-channel high-definition audio.

Storage and Expansion

• SATA Ports:
4 x SATA ports (6Gb/s) for data storage devices.
• M.2 Expansion:
No M.2/SSD expansion slot available.

Graphics and Expansion

• Integrated Graphics:
Supports Intel HD Graphics for integrated GPU support with compatible processors.
• PCIe Slot:
1 x PCI Express 3.0/2.0 x16 slot (gray) for graphics cards and other expansion cards.

Connectivity Options

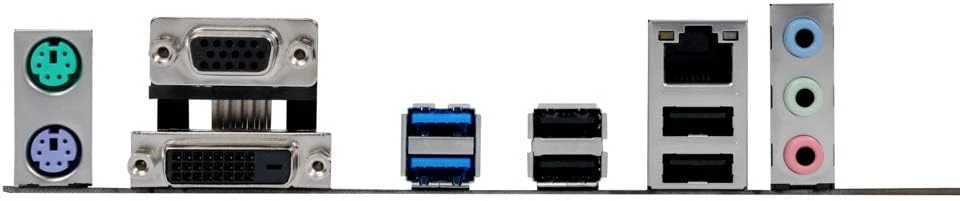

• USB Ports:
4 x USB 3.0/2.0 and 6 x USB 2.0/1.1 ports for peripheral connections.
• Video Outputs:
1 x VGA port and 1 x DVI port for external display connections.

Network and Audio

• LAN Chipset:
Realtek RTL8111H Ethernet controller for 1Gbps network speeds (10/100/1000 Mbps).
• Audio Chipset:
Realtek ALC887 audio chipset with 8-channel support for high-quality sound output.

Design and Build

• Form Factor: Micro-ATX
• Power Consumption: Approx. 65W
• Cable Management: Front cable management for better airflow.

Compatibility

• Supported Operating System:
Windows 7, Windows 8.1, Windows 10
• Compatible Products:
Compatible with Intel Core i7/i5/i3, Pentium, and Celeron processors for the LGA1151 socket.

Warranty Information

• Warranty: 3-year replacement warranty.

Price and Availability

The Asus H110M-K motherboard provides a budget-friendly solution for basic computing needs and is available at various authorized retailers at an affordable price.
