Asus EX-B650M-V7 DDR5 AMD Motherboard
Key Specification
Product Specification
|
Brand |
Asus |
|
Model |
Asus
EX-B650M-V7 |
|
Color |
Black & Red |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Built-in
Processor: N/A Supported
CPU: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors Generation:
N/A |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 8000+(OC)/ 7800(OC)/ 7600(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered
Memory Memory Channel: Dual Memory Slot: 2 Memory Max: 96GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion: 2 x M.2 (1 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 5.0
x4 mode), 1 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCIe 4.0 x16 (supports
x16 mode) ( AMD Ryzen 7000 Series), 1 x PCIe 4.0 x1 (AMD B650) |
|
Audio
& Video |
Audio
Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio
Channel – 5.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5Gb Ethernet LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps |
|
Ports Data |
USB
Port: 4 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, 1 x USB Type-C (10Gbps) Port VGA
Port: N/A HDMI
Port: 1 Display:
1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Supported
Operating System: AMD Ryzen 7000 Series AM5 Socket Desktop Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Asus
EX-B650M-V7 Micro-ATX Motherboard

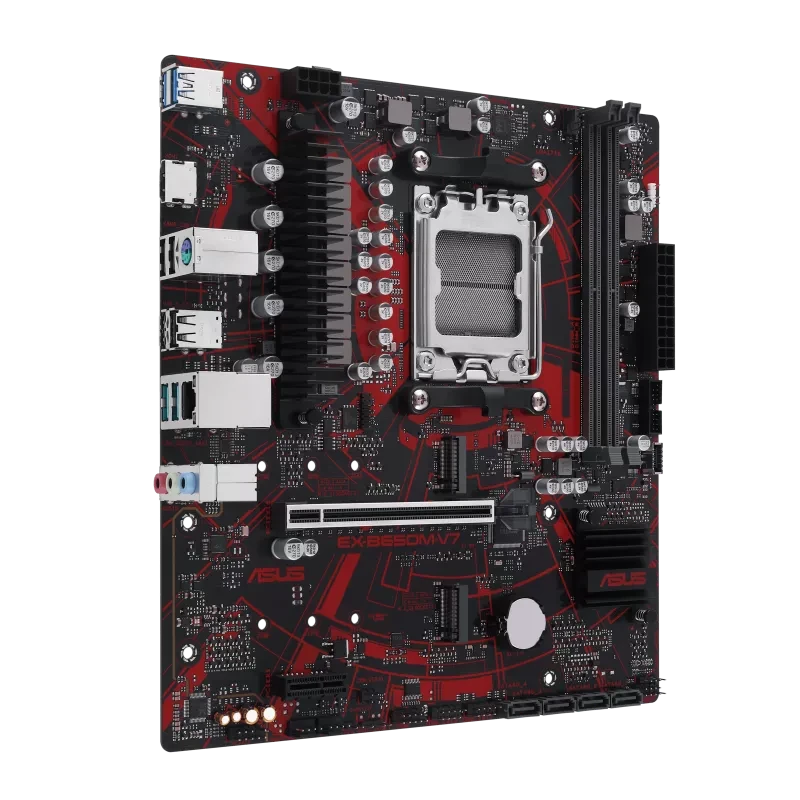

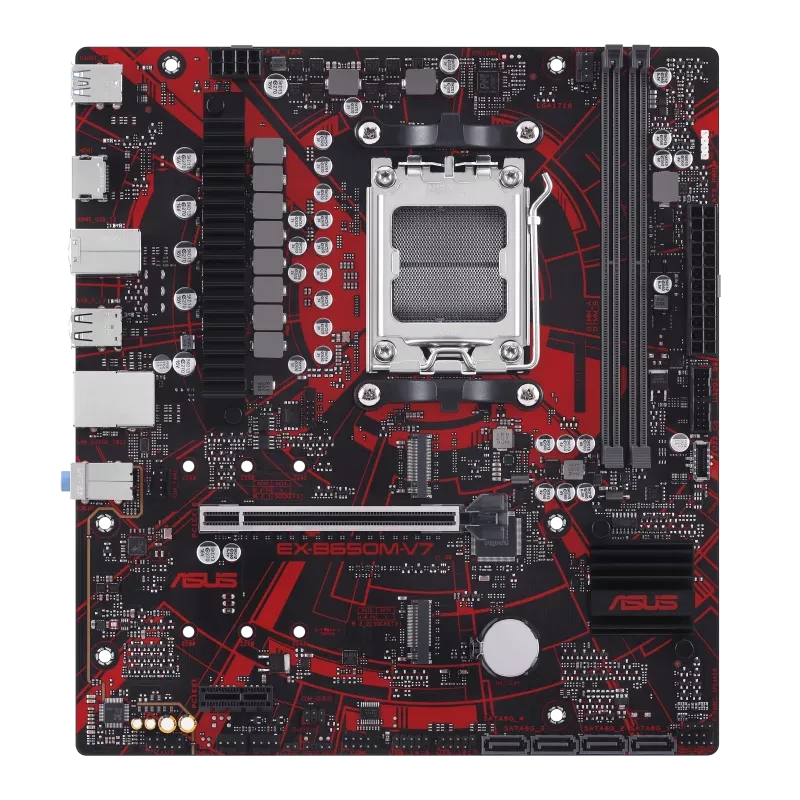

The Asus EX-B650M-V7
motherboard is designed to deliver high performance and expandability,
supporting the AMD Ryzen 7000 Series Desktop Processors. With DDR5
memory compatibility, PCIe 5.0 support, and 2.5Gb Ethernet,
this motherboard is perfect for gamers, content creators, and general users who
demand efficiency and power in a compact Micro-ATX form factor.
Features
- AMD B650 Chipset:
Equipped with the AMD B650 chipset, this motherboard ensures
optimized compatibility with the latest AMD Ryzen 7000 Series
processors.
- AM5 Socket:
Supports the AM5 socket, designed for AMD Ryzen 7000 Series
desktop processors, ensuring future-proof upgrades.
- PCIe 5.0 Support:
Enjoy faster speeds with PCIe 5.0 x4 mode support in the M.2
slots and PCIe 4.0 x16 for high-bandwidth expansion.
Memory
Support
- DDR5 Memory:
Supports DDR5 memory, with overclocking capabilities up to 8000MHz
and beyond, delivering powerful performance for high-demand applications
and gaming.
- Dual-Channel Configuration: Features 2 DIMM slots, supporting up to 96GB
of high-speed memory.
- ECC and Non-ECC Support: Compatible with both ECC and non-ECC,
un-buffered memory for a wide range of usage scenarios.
Storage
Expansion and Connectivity
- 2 x M.2 Slots:
Includes 2 M.2 slots with PCIe Gen5 and Gen4 support:
- M.2 Slot 1
(PCIe Gen5 x4) for fast SSDs.
- M.2 Slot 2
(PCIe Gen4 x4) for additional expansion.
- SATA Ports:
4 x SATA3 ports for connecting additional storage devices.
Graphics
and PCI Expansion
- PCIe Slots:
Features:
- 1 x PCIe 4.0 x16 Slot for high-performance GPUs.
- 1 x PCIe 4.0 x1 Slot
for additional expansion cards.
Audio
and Networking
- Audio Chipset:
Equipped with Realtek 7.1 Surround Sound high-definition audio
codec, delivering immersive audio quality for gaming, media, and
entertainment.
- LAN Chipset:
Features Realtek 2.5Gb Ethernet for fast and reliable wired network
connections, with speeds of 10/100/1000/2500 Mbps.
Ports
and I/O
- USB Ports:
Includes:
- 4 x USB 3.2 Gen1 Ports for fast data transfer.
- 4 x USB 2.0 Ports
for basic peripherals.
- 1 x USB Type-C (10Gbps) Port for high-speed data transfer.
- Video Outputs:
Includes 1 x HDMI and 1 x DisplayPort, enabling easy
connection to monitors and external displays.
Design
and Build Quality
- Form Factor:
Compact Micro-ATX form factor, ideal for smaller builds without
compromising on performance.
- Cable Management:
Features front cable management for a cleaner, more organized
build.
Power
and Efficiency
- Power Consumption:
The motherboard has an approximate 60W power consumption, balancing
performance and energy efficiency.
Compatibility
- Operating System Support: Fully compatible with Windows 11 and Windows
10.
- Processor Compatibility: Designed for AMD Ryzen 7000 Series AM5 Socket
desktop processors.
Warranty
and Support
- 3-Year Warranty:
The motherboard is backed by a 3-year warranty, ensuring long-term
reliability.
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh.
!
