Brand

Asus

Model

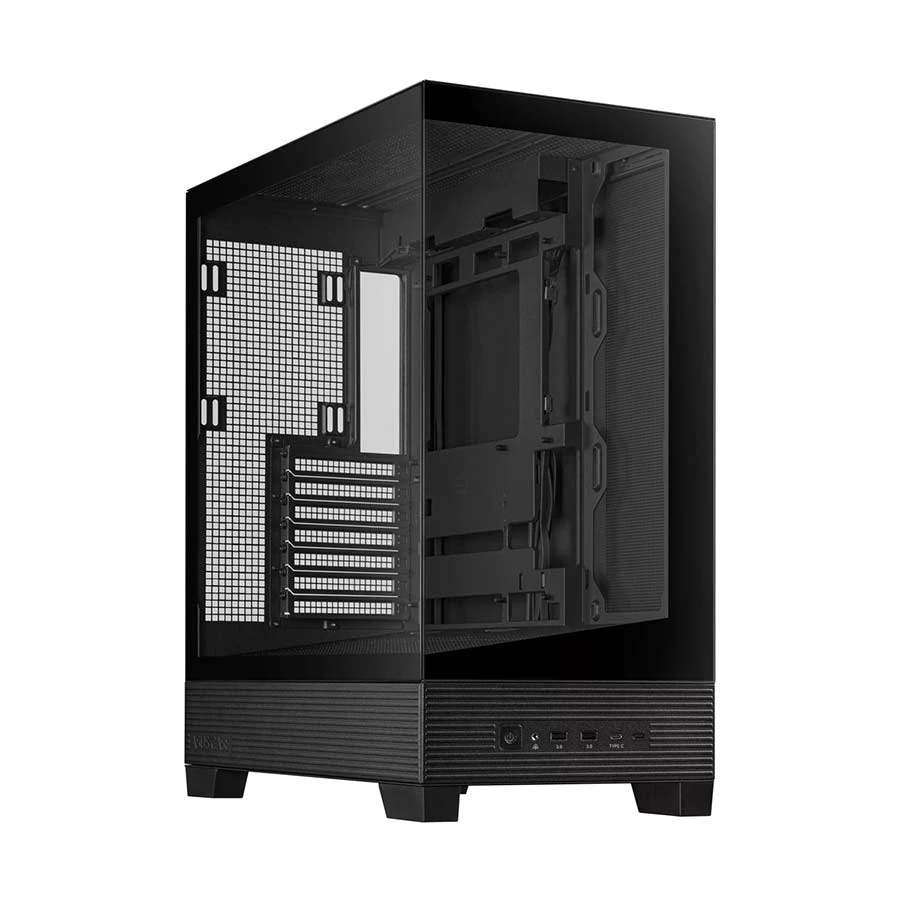

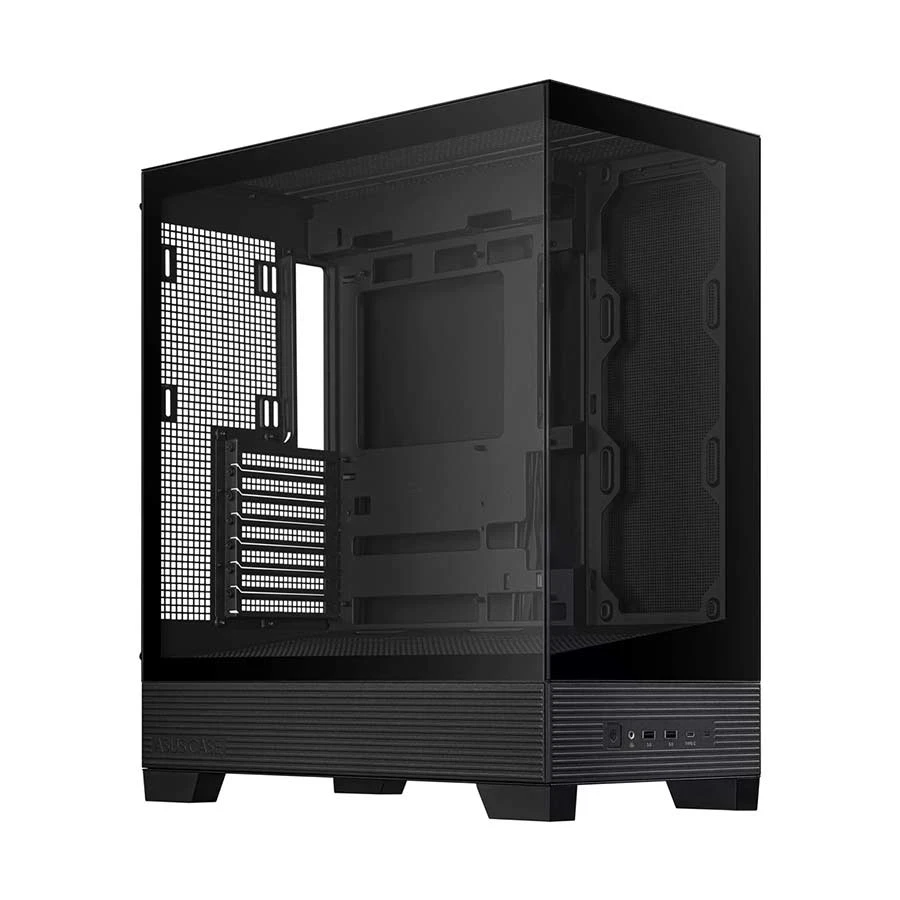

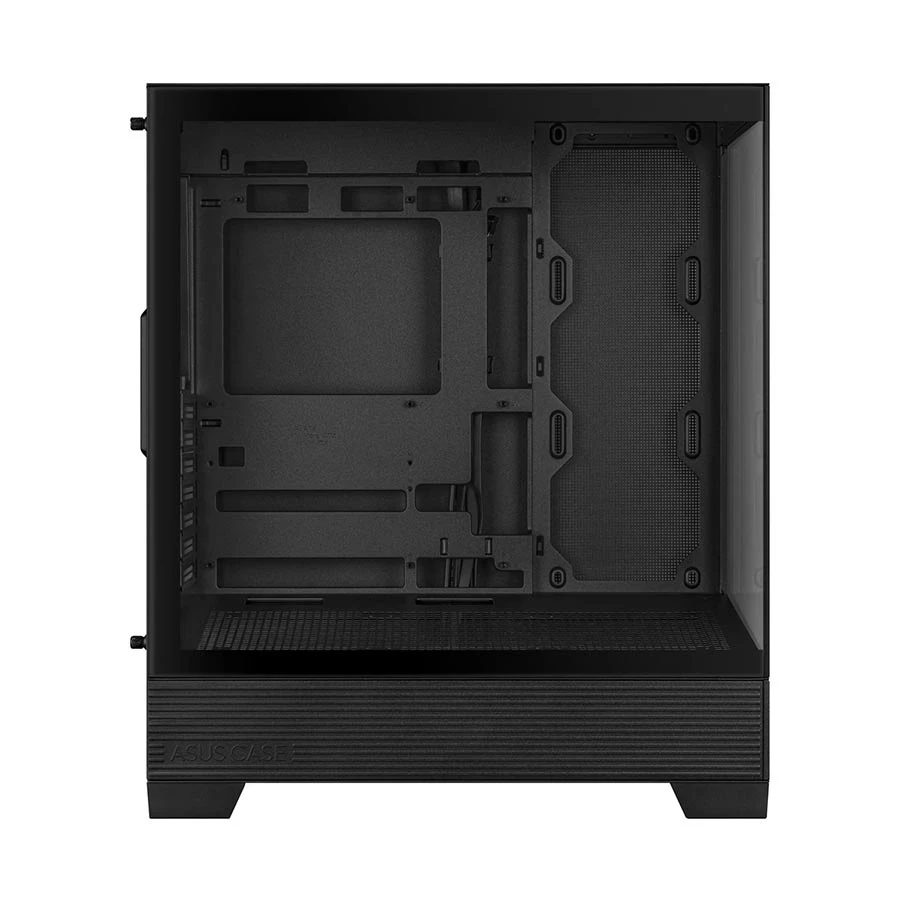

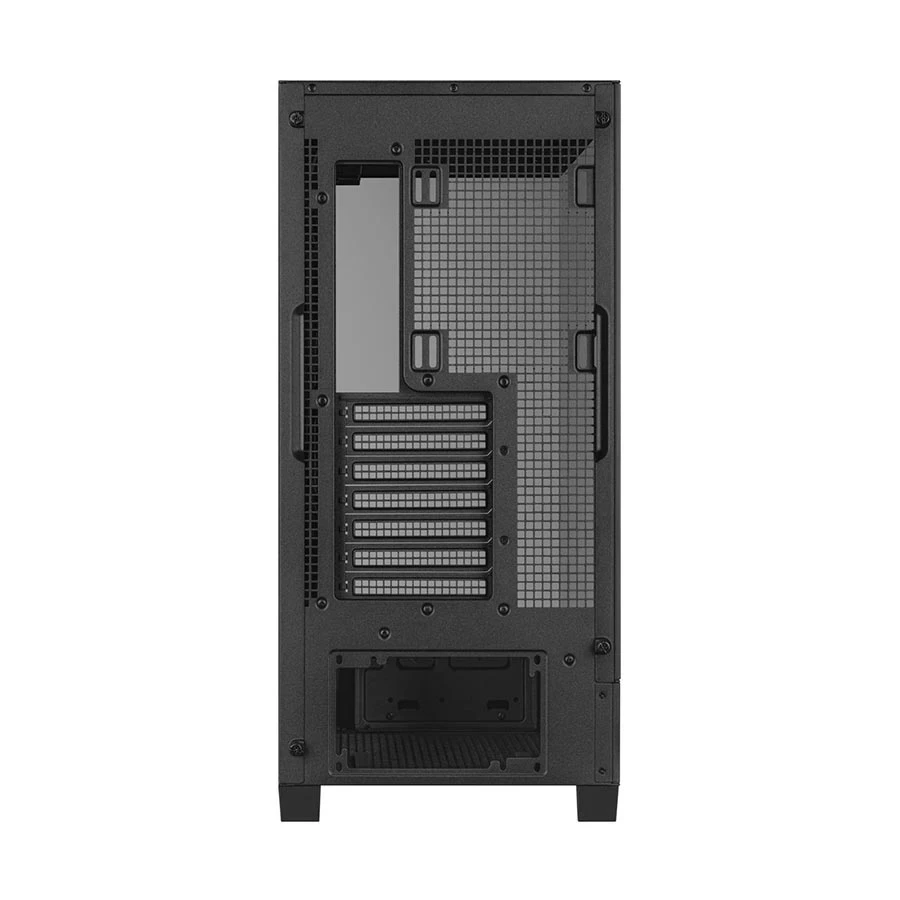

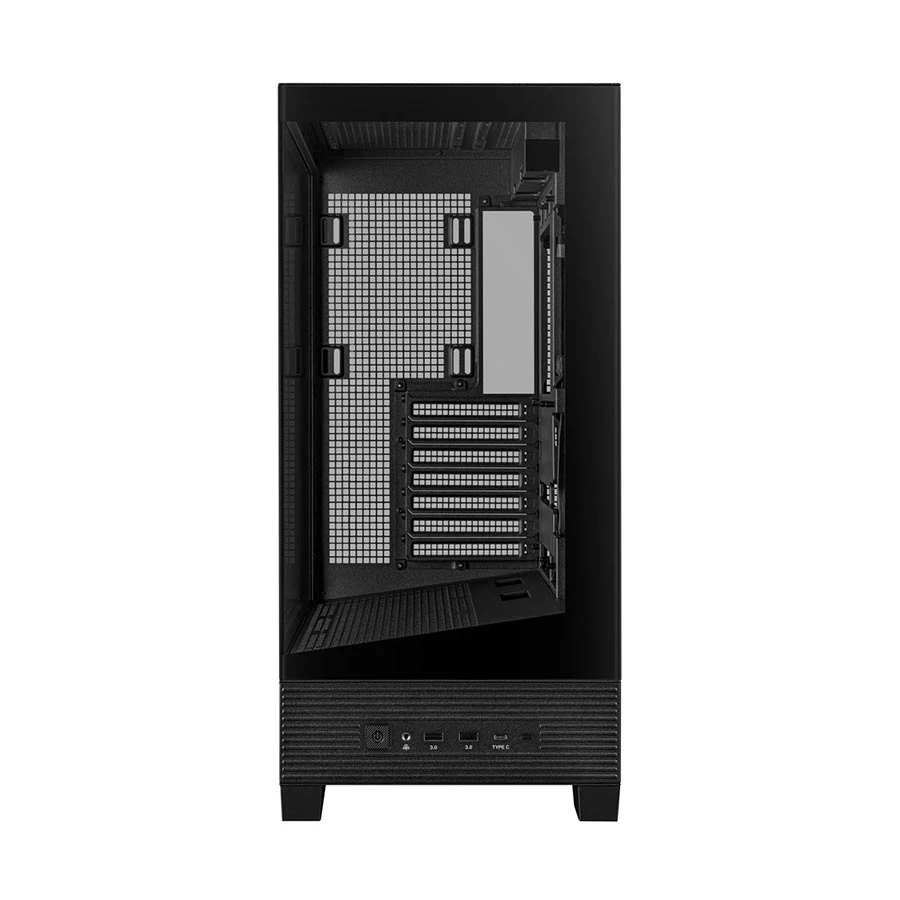

Asus A31

Series

Gaming

Type

Mid Tower

Technical Data

Supported Motherboard Type: ATX/ Micro-ATX/ Mini-ITX/ BTF motherboard compatible

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: Yes

Graphics-Card Length: 380mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 165mm

PSU Length: 200mm

Cable Management Depth: 34mm

Interfaces & Slots

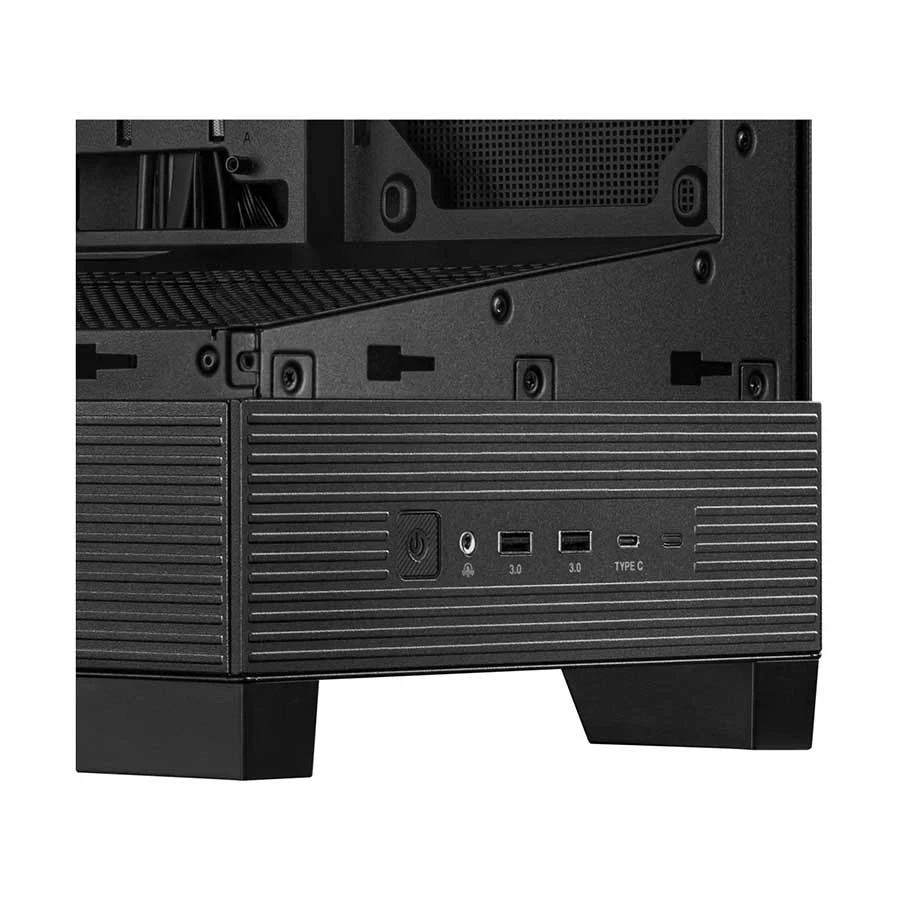

Front/Top USB port: 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen 2x2 Type C

Front/Top Audio Port: 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen 2x2 Type C

3.5 Inch Drive Bay: 1

2.5 Inch Drive Bay: 1

Expansion Slots: 7

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): No

Additional Fan Slot: 4

Supported Fan Size: 3 x 120 mm, 2 x 140 mm (Top), 1 x 120 mm, 1 x 140 mm (Rear)

Lighting Fan: No

Radiator Support Front/Top/Rear: Top: 20 mm/ 140 mm/ 240 mm/ 280 mm/ 360 mm, Rear: 120 mm

Radiator Support Max.: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Type: Bottom

Approx. Power Consumption: 5W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass Window

Buttons: 1 x Power

Number of Buttons: 1

Dust Cover: Top, Bottom

Color: Black

Dimensions: 238 x 511 x 435mm

Weight (Kg): 8.2 Kg

Handle: No

Extra Data

Specialty

Ready for Hidden Connectors: Built for motherboards featuring hidden connectors to optimize cable management for a clutter-free setup. Broad Compatibility: The A31 supports up to 360mm radiators combined with fans of up to 80mm thick, plus graphics cards up to 380mm in length and CPU air coolers with heights of up to 165mm. Panoramic Design: Tempered glass panels on the front and side offer unobstructed views of the main chamber. 8 Degree Angled Base: The golden angle combines functionality and aesthetics, enhancing airflow efficiency for better thermal performance while widening the viewing angle for a more immersive experience.

Warranty

No warranty

* Product may vary with different Kit or Version
