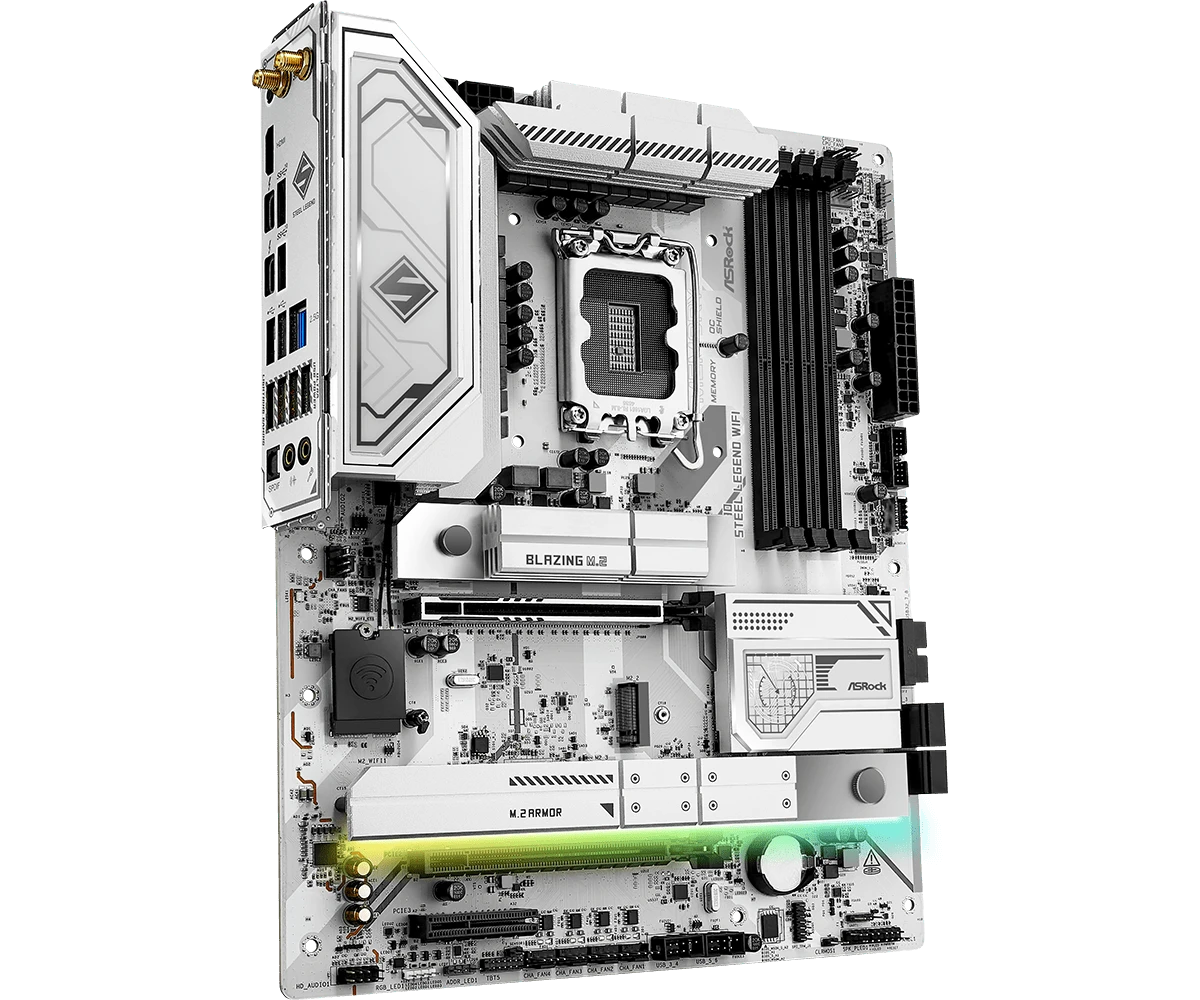

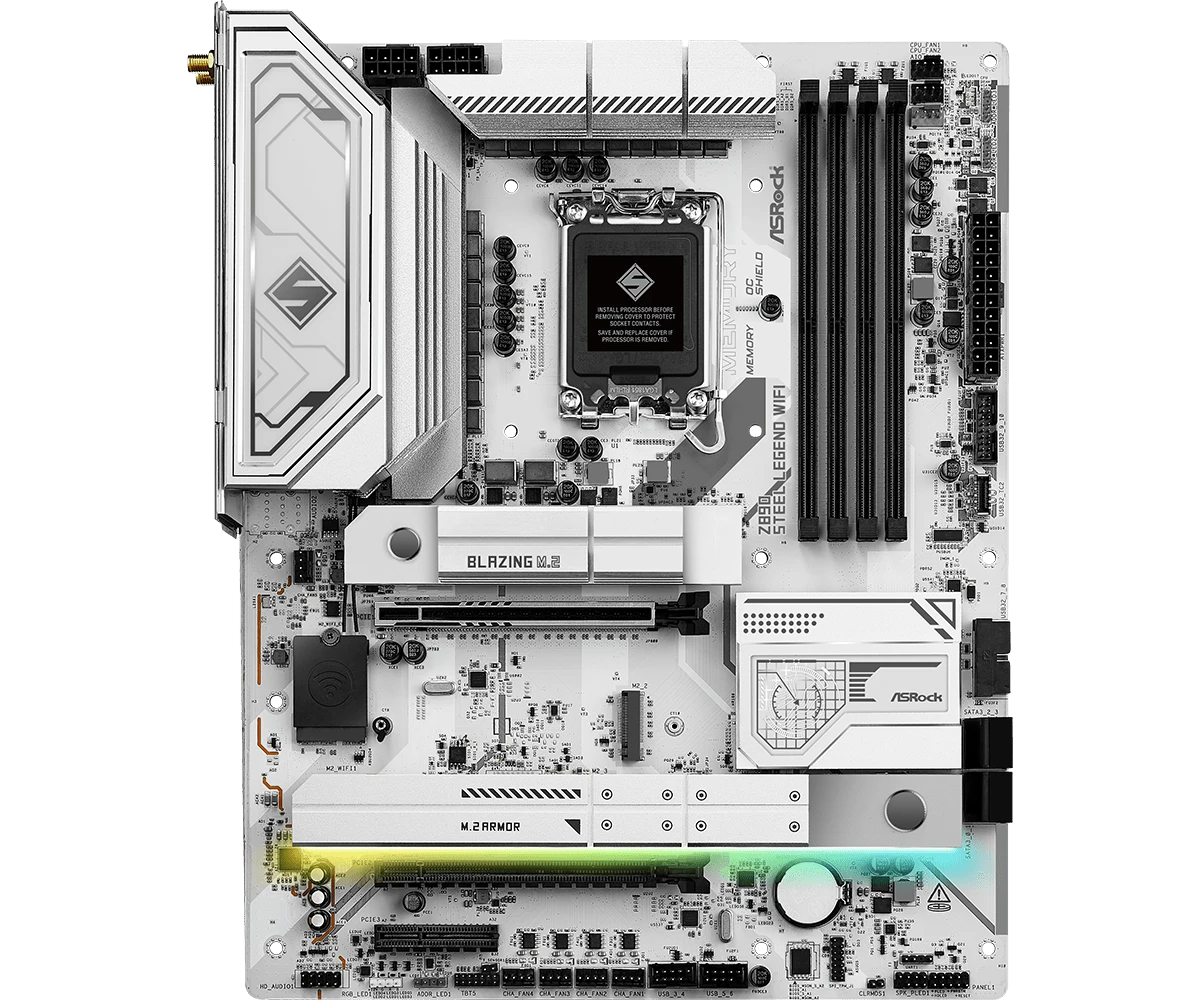

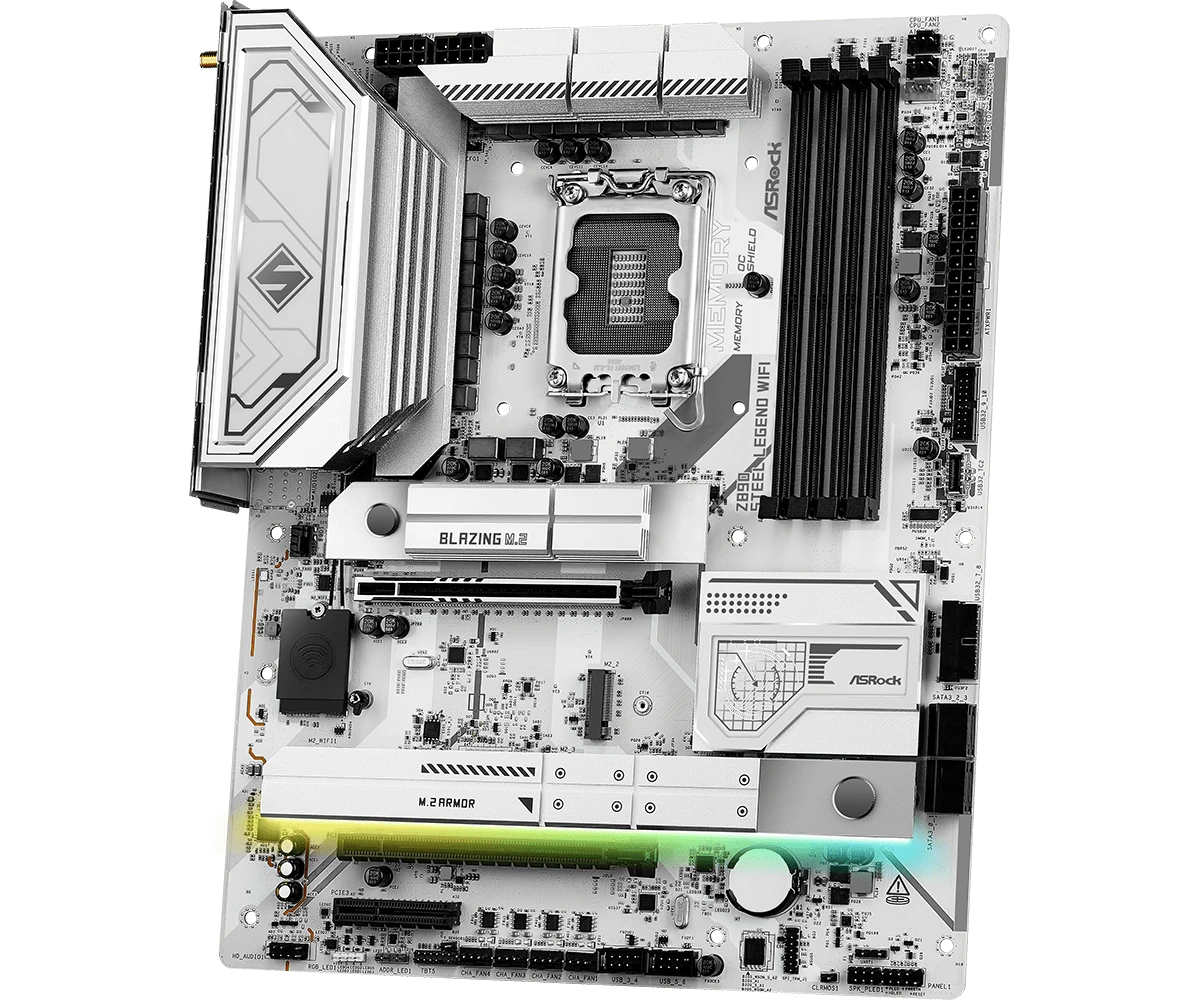

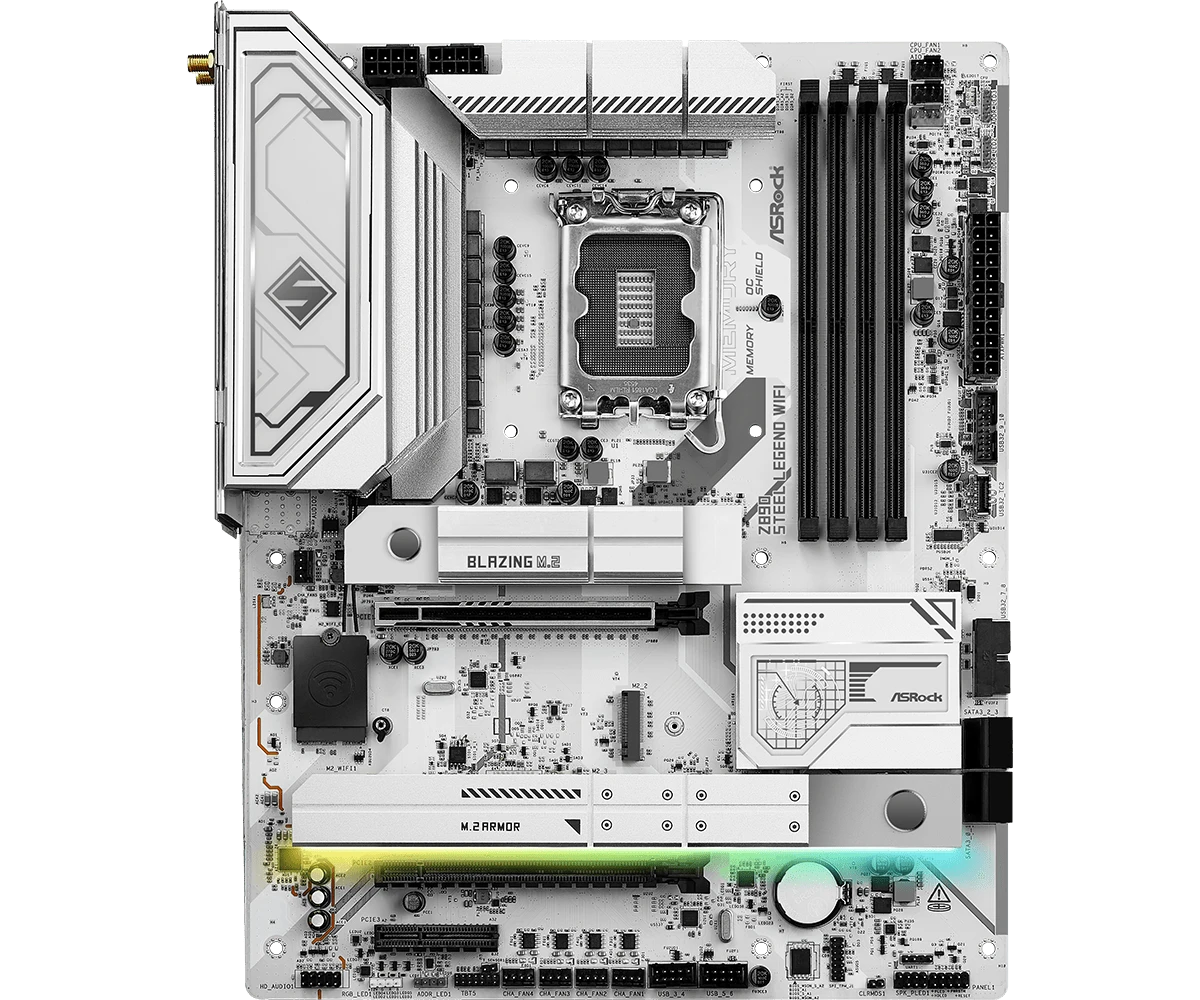

ASRock Z890 STEEL LEGEND (Wi-Fi 7) ATX Motherboard

The ASRock Z890 STEEL LEGEND (Wi-Fi 7) motherboard is designed to support Intel Core Ultra Processors (Series 2) with cutting-edge features like DDR5 memory, PCIe Gen5, and Wi-Fi 7. Ideal for gamers, content creators, and professionals, this motherboard delivers exceptional performance, superior connectivity, and future-proofing technology.

Features

• Intel Z890 Chipset: Powered by the Intel Z890 chipset, this motherboard provides enhanced performance and stability for Intel Core Ultra Processors (Series 2).
• LGA1851 Socket: Compatible with the LGA1851 socket, allowing users to take full advantage of the latest Intel Core Ultra processors.

Memory Support

• DDR5 Memory: Supports DDR5 memory with speeds up to 9466MHz+ (OC), delivering a significant performance boost for demanding applications.
• Dual-Channel Configuration: Equipped with 4 DIMM slots, it supports up to 256GB of memory for efficient multitasking and intensive workloads.
• Overclocking: Designed with overclocking in mind, users can push memory speeds for maximum performance.

Storage Expansion and Connectivity

• 5 M.2 Slots: Includes 5 M.2 slots, with PCIe Gen5 x4 support in M2_1 for blazing-fast storage speeds and PCIe Gen4 x4 support in other slots for additional expansion.
• SATA Ports: The motherboard features 4 x SATA3 ports, providing more options for storage devices.

Graphics and PCI Expansion

• PCIe Slots: Features:
• 1 x PCIe 5.0 x16 Slot (PCIE1) for high-performance GPUs.
• 2 x PCIe 4.0 x4 Slots (PCIE3, PCIE4) for expansion cards.
• 1 x PCIe 4.0 x1 Slot (PCIE2) for smaller expansion cards.
• Multi-GPU Support: Supports CrossFire technology for users who wish to install multiple AMD GPUs for enhanced graphical performance.

Audio and Networking

• Audio Chipset: Equipped with the Realtek ALC897 audio codec, offering 7.1-channel high-definition audio for immersive sound.
• 2.5G Ethernet: Dragon RTL8125BG 2.5 Gigabit Ethernet supports 10/100/1000/2500 Mbps speeds for fast and stable internet connections.
• Wi-Fi 7: The motherboard features 802.11be 2x2 Wi-Fi 7, providing ultra-fast wireless connectivity with reduced latency and increased bandwidth.
• Bluetooth 5.4: Includes Bluetooth 5.4 for reliable wireless connection to peripherals such as headphones, mice, and keyboards.

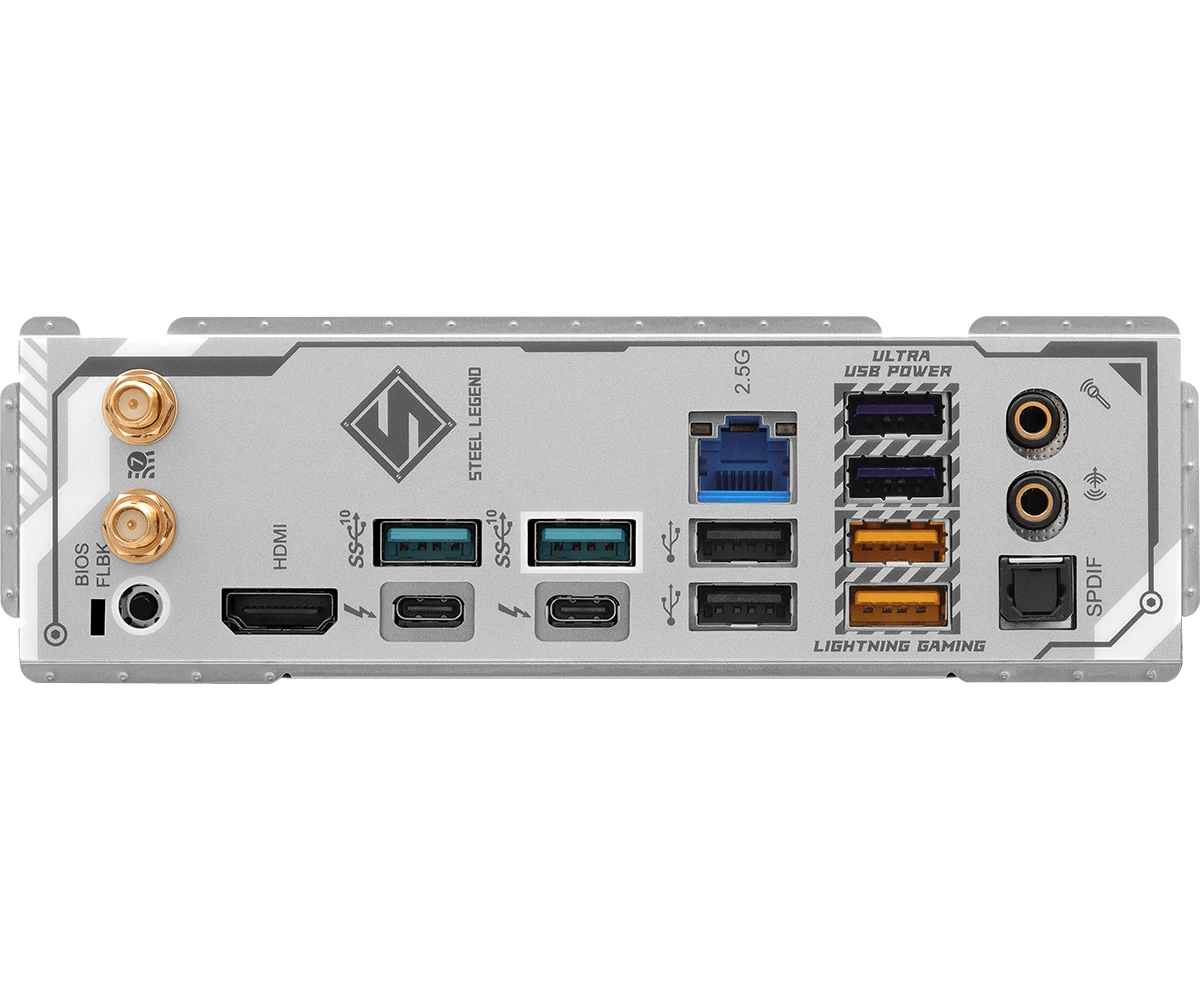

Ports and I/O

• USB Ports: Includes:
• 2 x USB 2.0 Ports for basic peripherals.
• 4 x USB 3.2 Gen 1 Type-A Ports for faster devices.
• 2 x USB 3.2 Gen2 Type-A Ports for high-speed data transfer.
• Video Outputs: 1 x HDMI Port and 1 x DisplayPort (DP) for multi-monitor setups with 4K support.

Design and Build Quality

• Form Factor: ATX form factor, offering plenty of space for expansion and additional components.
• RGB Support: Features ARGB, with 1 x RGB LED Header and 3 x Addressable LED Headers for customizable lighting effects.
• Cable Management: Front cable management ensures a clean and organized build.

Power and Efficiency

• Power Consumption: The motherboard has a 70W power consumption, balancing performance and energy efficiency.

Compatibility

• Operating System: Fully compatible with Windows 11, ensuring the latest software features and performance optimizations.
• Processor Support: Compatible with Intel Core Ultra Processors (Series 2), utilizing the LGA1851 socket for powerful processing capabilities.

Warranty and Support

• 3-Year Warranty: The motherboard comes with a 3-year warranty, ensuring long-term reliability and peace of mind.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
