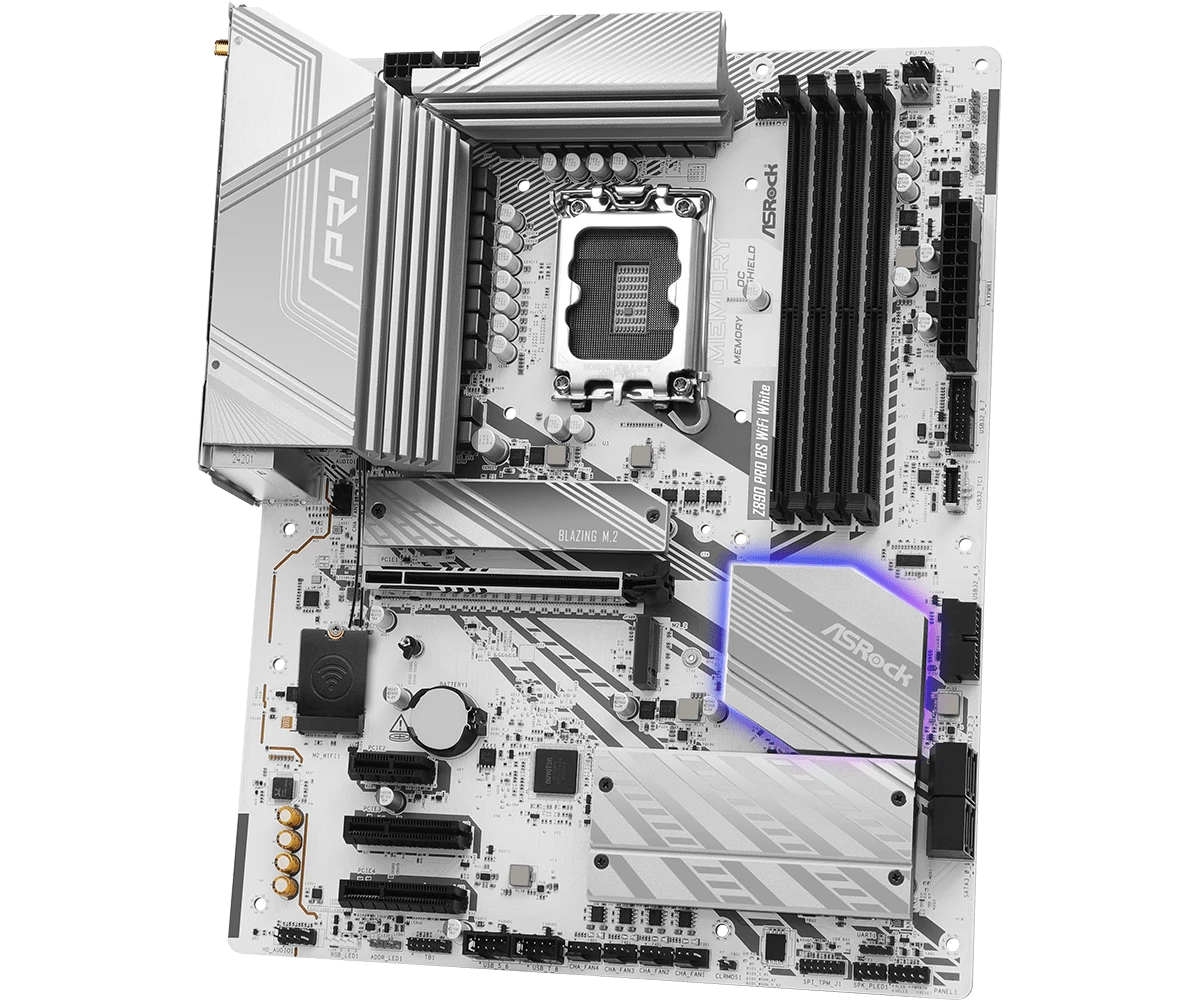

ASRock Z890 Pro RS (Wi-Fi 6E) ATX Motherboard

The ASRock Z890 Pro RS (Wi-Fi 6E) motherboard is engineered for Intel Core Ultra Processors (Series 2), offering top-tier performance with features like DDR5 memory, PCIe Gen5, and Wi-Fi 6E. This motherboard is ideal for users who demand exceptional speed, reliability, and future-proof technology for gaming, content creation, and high-performance computing.

Features

• Intel Z890 Chipset: Powered by the Intel Z890 chipset, the motherboard ensures a stable and high-performance experience for Intel Core Ultra Processors (Series 2).
• LGA1851 Socket: The LGA1851 socket provides full compatibility with Intel Core Ultra processors, unlocking the latest processor capabilities.

Memory Support

• DDR5 Memory: Supports high-performance DDR5 memory, overclockable up to 9066MHz+, offering a substantial performance boost for demanding applications and workloads.
• Dual-Channel Configuration: Equipped with 4 DIMM slots, it supports up to 256GB of memory, ensuring smooth multitasking and high memory demands.
• Overclocking Support: Designed with overclocking in mind, allowing users to push the limits of their memory for enhanced performance.

Storage Expansion and Connectivity

• 5 M.2 Slots: The motherboard comes with 5 M.2 slots, including a PCIe Gen5 x4 slot (M2_1) for ultra-fast storage speeds and PCIe Gen4 x4 slots (M2_2, M2_3, M2_4) for additional expansion. One slot also supports SATA3 for versatile storage options.
• SATA Ports: Features 4 x SATA3 ports for adding more storage devices to your setup.

Graphics and PCI Expansion

• PCIe Slots: Includes:
• 1 x PCIe 5.0 x16 Slot (PCIE1) for high-performance GPUs.
• 2 x PCIe 4.0 x4 Slots (PCIE3, PCIE4) for expansion cards.
• 1 x PCIe 4.0 x1 Slot (PCIE2) for additional smaller expansion cards.
• Multi-GPU Support: Supports CrossFire, allowing you to install multiple AMD GPUs for enhanced graphical performance.

Audio and Networking

• Audio Chipset: The motherboard features the Realtek ALC897 audio codec with 7.1-channel high-definition audio, providing immersive sound quality.
• 2.5G Ethernet: Equipped with Dragon RTL8125BG 2.5 Gigabit Ethernet, offering fast and stable internet speeds of 10/100/1000/2500 Mbps.
• Wi-Fi 6E: With 802.11axe Wi-Fi 6E, the motherboard provides fast and reliable wireless connectivity, ideal for high-bandwidth applications.
• Bluetooth 5.3: Supports Bluetooth 5.3 for seamless wireless connectivity with peripherals like headsets and keyboards.

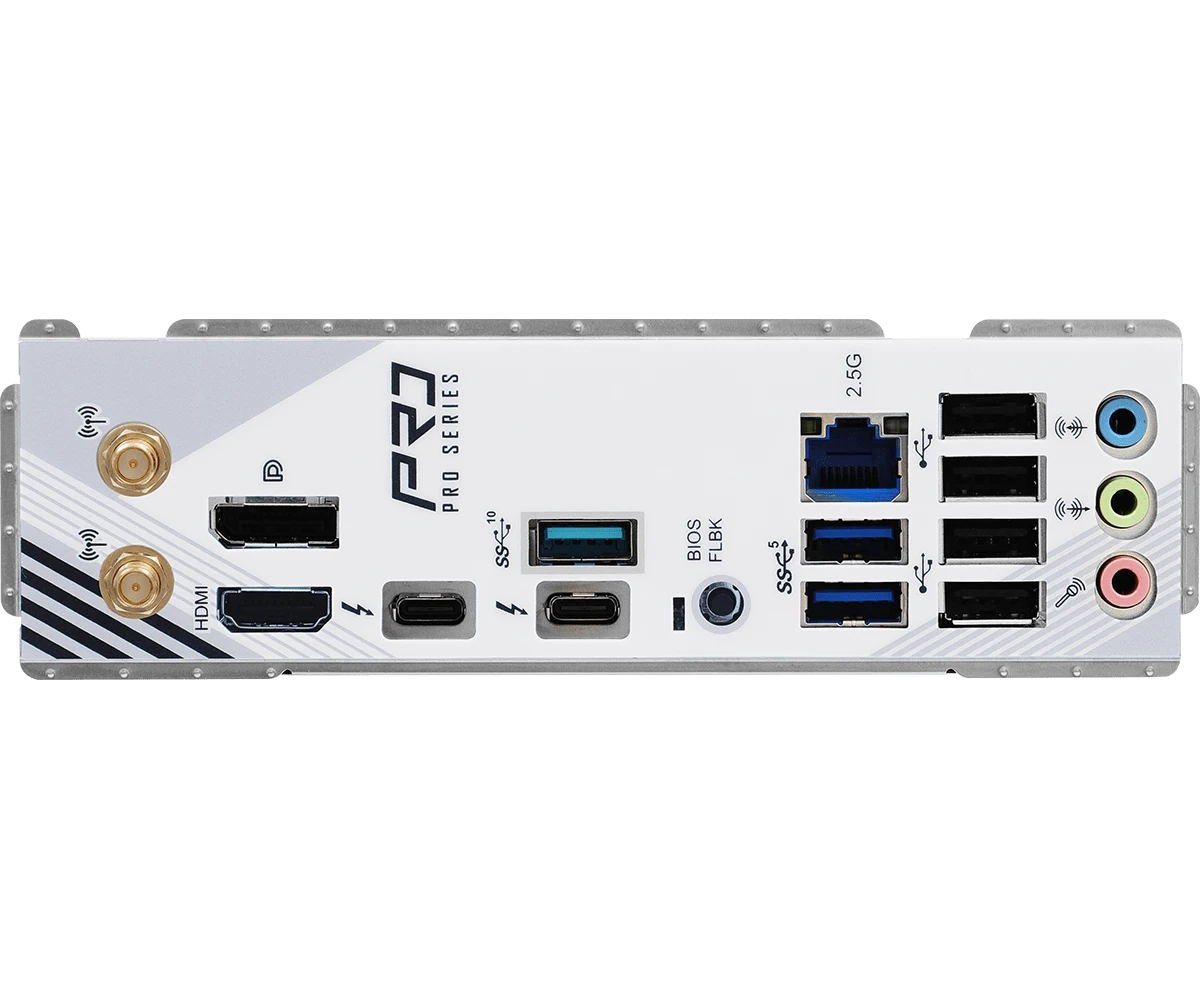

Ports and I/O

• USB Ports: The motherboard includes:
• 4 x USB 2.0 Ports for basic peripherals.
• 2 x USB 3.2 Gen 1 Type-A Ports for faster devices.
• 1 x USB 3.2 Gen 2 Type-A Port for even higher-speed devices.
• 1 x USB 3.2 Gen 2x2 Type-C Port for ultra-fast data transfer.
• Video Outputs: Features 1 x HDMI Port and 1 x DisplayPort (DP), supporting 4K video output for multi-monitor setups.

Design and Build Quality

• Form Factor: The motherboard follows the ATX form factor, offering ample expansion possibilities.
• RGB Support: Supports ARGB, with 1 x RGB LED Header and 3 x Addressable LED Headers for customizable lighting effects.
• Cable Management: The motherboard features front cable management for a clean and organized setup.

Power and Efficiency

• Power Consumption: The motherboard has a 70W power consumption, balancing efficiency with performance.

Compatibility

• Operating System: Compatible with Windows 11, ensuring support for the latest software and features.
• Processor Support: Fully compatible with Intel Core Ultra Processors (Series 2) using the LGA1851 socket for high-end computing power.

Warranty and Support

• 3-Year Warranty: The motherboard comes with a 3-year warranty, ensuring long-term reliability and support.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
