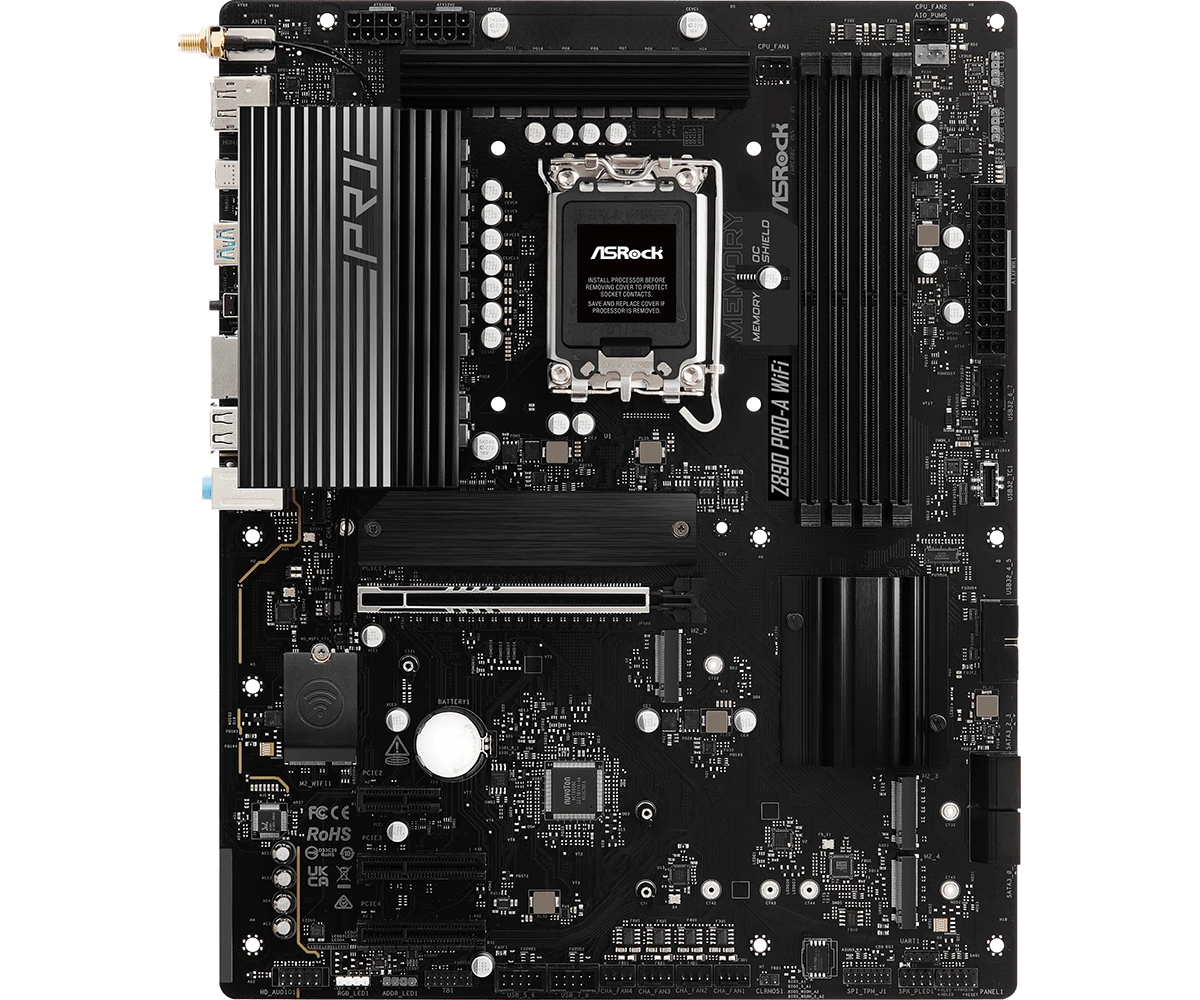

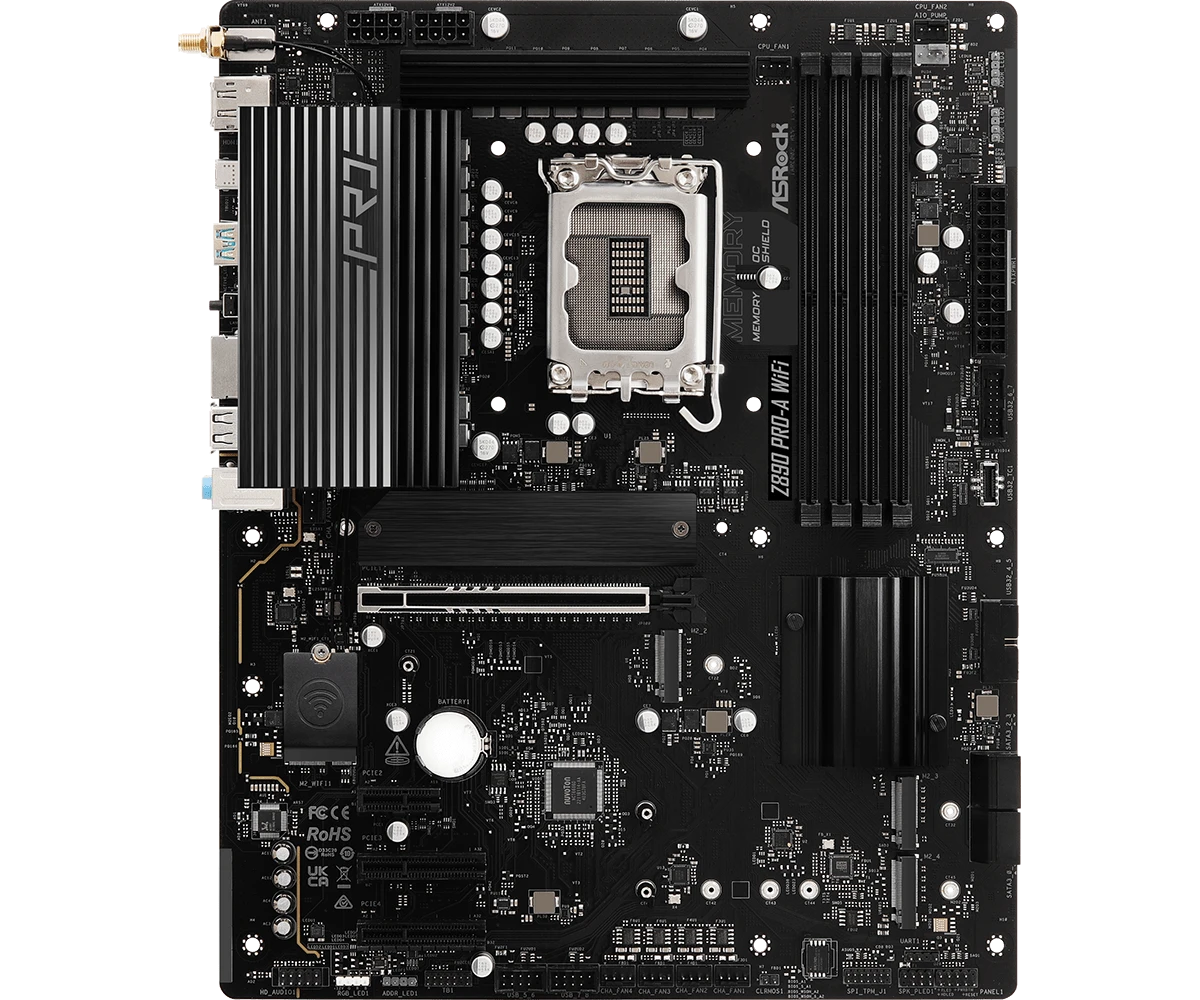

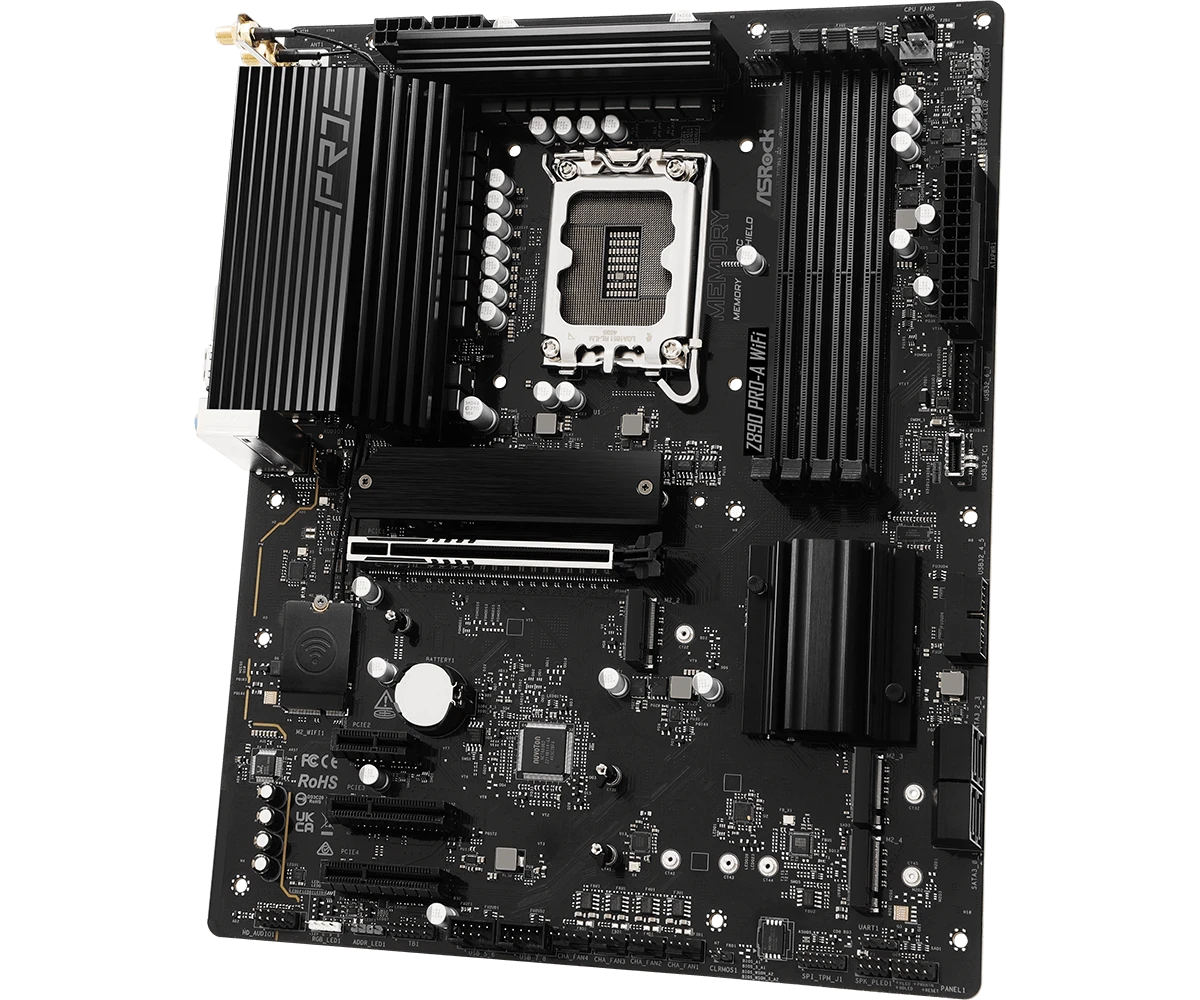

ASRock Z890 Pro-A (Wi-Fi 6E) ATX Motherboard

The ASRock Z890 Pro-A (Wi-Fi 6E) motherboard is designed for Intel Core Ultra Processors (Series 2), featuring cutting-edge technologies such as DDR5 memory, PCIe Gen5, and Wi-Fi 6E. It is built to deliver high performance for gamers, content creators, and professionals. This motherboard supports extreme overclocking, multiple high-speed storage options, and modern networking technologies, making it an excellent choice for high-performance computing needs.

Features

• Intel Z890 Chipset: The motherboard is powered by the Intel Z890 chipset, providing enhanced stability and performance for Intel Core Ultra Processors (Series 2).
• LGA1851 Socket: It supports Intel Core Ultra processors with the LGA1851 socket, enabling full utilization of next-generation processor capabilities.

Memory Support

• DDR5 Memory: The Z890 Pro-A supports high-performance DDR5 memory, with a maximum overclocked speed of 9066MHz+, providing substantial performance improvements in demanding applications.
• Dual-Channel Configuration: With 4 DIMM slots, the motherboard supports up to 256GB of memory, allowing for smooth multitasking and handling of intensive workloads.
• Overclocking Potential: The motherboard enables overclocking of memory speeds, catering to performance enthusiasts.

Storage Expansion and Connectivity

• 5 M.2 Expansion Slots: It features 5 M.2 slots, with PCIe Gen5 x4 support in the M2_1 slot for ultra-fast storage speeds. The other slots support PCIe Gen4 x4 for high-speed expansion, with one slot also supporting SATA3 for more versatile storage options.
• SATA Ports: The motherboard includes 4 x SATA3 ports for additional storage devices, providing more options for data storage.

Graphics and PCI Expansion

• PCIe Slots: The motherboard includes:
• 1 x PCIe 5.0 x16 Slot (PCIE1) for high-performance GPUs.
• 2 x PCIe 4.0 x4 Slots (PCIE3, PCIE4) for additional expansion cards.
• 1 x PCIe 4.0 x1 Slot (PCIE2) for smaller expansion cards.
• Multi-GPU Support: It supports CrossFire, enabling users to install multiple AMD GPUs for improved graphical performance.

Audio and Networking

• Audio Chipset: The Realtek ALC897 audio codec supports 7.1-channel high-definition audio, complemented by Nahimic Audio for enhanced sound quality.
• 2.5G Ethernet: The motherboard comes with Dragon RTL8125BG 2.5 Gigabit Ethernet, offering 10/100/1000/2500 Mbps speeds for a stable and fast internet connection.
• Wi-Fi 6E: It includes 802.11axe Wi-Fi 6E, providing faster and more reliable wireless connectivity, even in congested network environments.
• Bluetooth 5.3: The latest Bluetooth 5.3 enables seamless wireless connectivity for peripherals like headsets, keyboards, and mice.

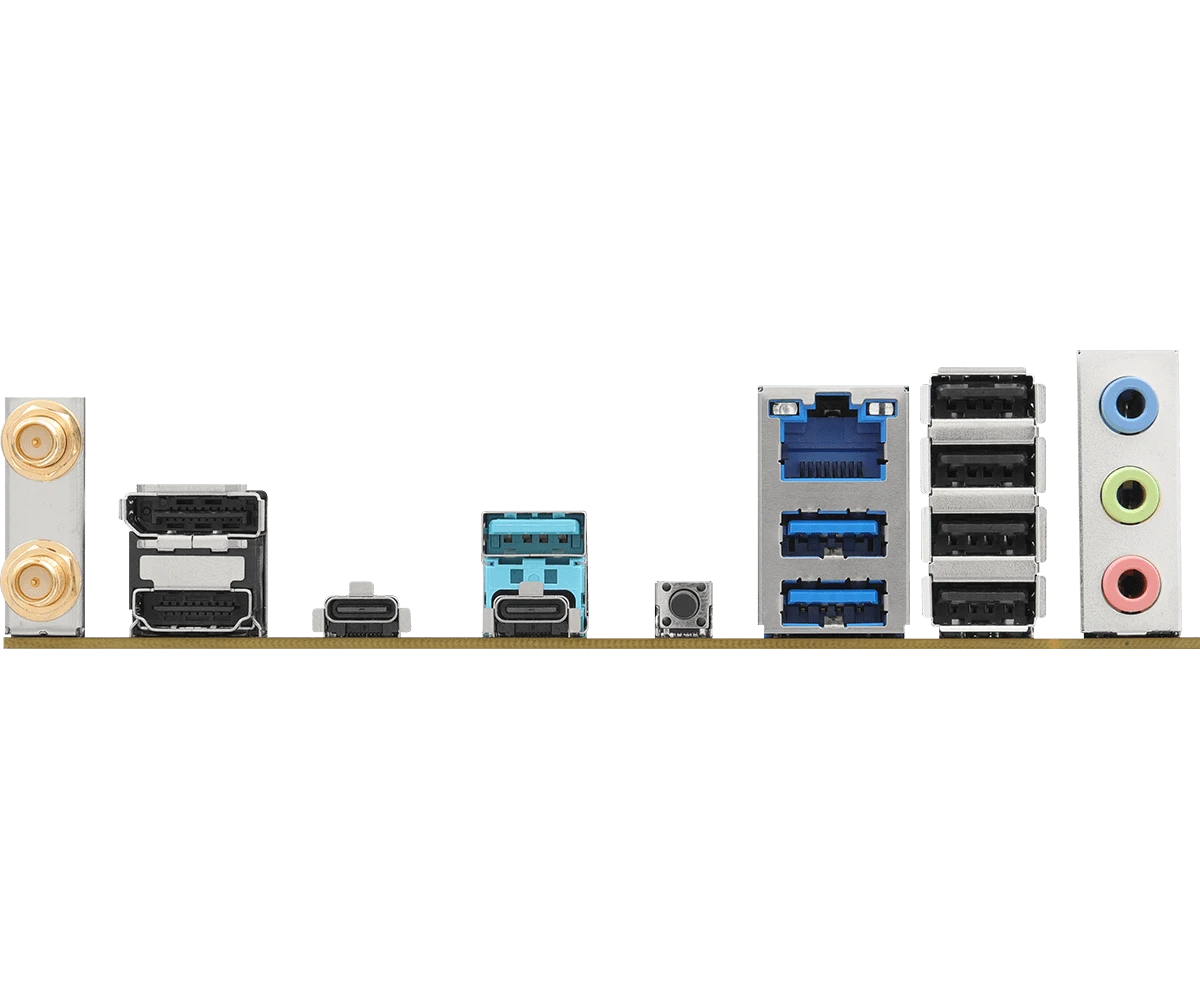

Ports and I/O

• USB Ports: The motherboard includes:
• 4 x USB 2.0 Ports for basic peripherals.
• 2 x USB 3.2 Gen 1 Type-A Ports for faster devices.
• 1 x USB 3.2 Gen 2 Type-A Port for even higher-speed devices.
• 1 x USB 3.2 Gen 2x2 Type-C Port for ultra-fast data transfer.
• Video Outputs: It offers 1 x HDMI Port and 1 x DisplayPort (DP) for multi-monitor setups, with 4K video output support.

Design and Build Quality

• Form Factor: The motherboard follows the ATX form factor, providing ample expansion capabilities and room for additional components.
• RGB Support: It supports ARGB, with 1 x RGB LED Header and 3 x Addressable LED Headers for customizable lighting effects.
• Cable Management: Front cable management is included, ensuring a clean and organized build.

Power and Efficiency

• Power Consumption: The motherboard consumes around 70W, offering efficiency without compromising on features or performance.

Compatibility

• Operating System: Compatible with Windows 11, ensuring compatibility with the latest software and features.
• Processor Support: It is compatible with Intel Core Ultra Processors (Series 2) using the LGA1851 socket, unlocking powerful computing capabilities.

Warranty and Support

• 3-Year Warranty: The motherboard comes with a 3-year warranty, ensuring reliability and long-term support.

Price and Availability

• Available at: Computer Village Agrabad, Chattogram, Bangladesh.
