ASRock Z790 Pro RS/D4 DDR4 Intel Motherboard
Key Specification
Product Specification
|
Brand |
ASRock |
|
Model |
ASRock
Z790 Pro RS/D4 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel Z790 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: 12th/ 13th/ 14th Gen Intel Core Processors Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 5333+(O.C.)/ 5133(O.C.)/
5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/
4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/
3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/
3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/
2400/ 2133 MHz Memory Channel: Dual Memory Slot: 4 Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 5 M.2/SSD
Expansion : 5 x M.2 Slots (1 x Hyper M.2 Socket Key M type 2260/2280 supports
PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Key M type 2260/2280 supports PCIe
Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket Key M type 2260/2280 supports
PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket Key M type 2260/2280
supports PCIe Gen4x4 (64 Gb/s) mode, 1 x M.2 Socket Key E type 2230 supports
WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2) |
|
Graphics Info |
Multi-GPU Support: AMD CrossFireX PCI Express Slot: 1 x PCIe 5.0 x16 Slot
(PCIE2) supports x16 mode, 1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode, 2
x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio Codec, Nahimic Audio Audio
Channel - 7.1 |
|
Network & Connectivity |
LAN Chipset: Dragon RTL8125BG LAN Speed (Mbps): 10/100/1000/2500 Mb/s WiFi: Yes WiFi Technology: 802.11axe Wi-Fi 6E Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB
Port: 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1
Type-A, 4 x USB 2.0 Type-A. VGA
Port: N/A HDMI
Port: 1 DisplayPort
(DP): 1 SATA
Port: 4 x SATA TPM: 1 Thunderbolt:
1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes CrossFire Support: Yes RGB Support: RGB RGB Connector: 1 x RGB LED Header, 3 x
Addressable LED Headers Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported
Operating System: Windows 10, Windows 11 Compatible
Products: Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th
Gen & 14th Gen) |
|
Warranty |
3 year |
|
* Product may vary with different
Kit or Version |
|
Product Details
ASRock
Z790 Pro RS/D4 ATX Motherboard

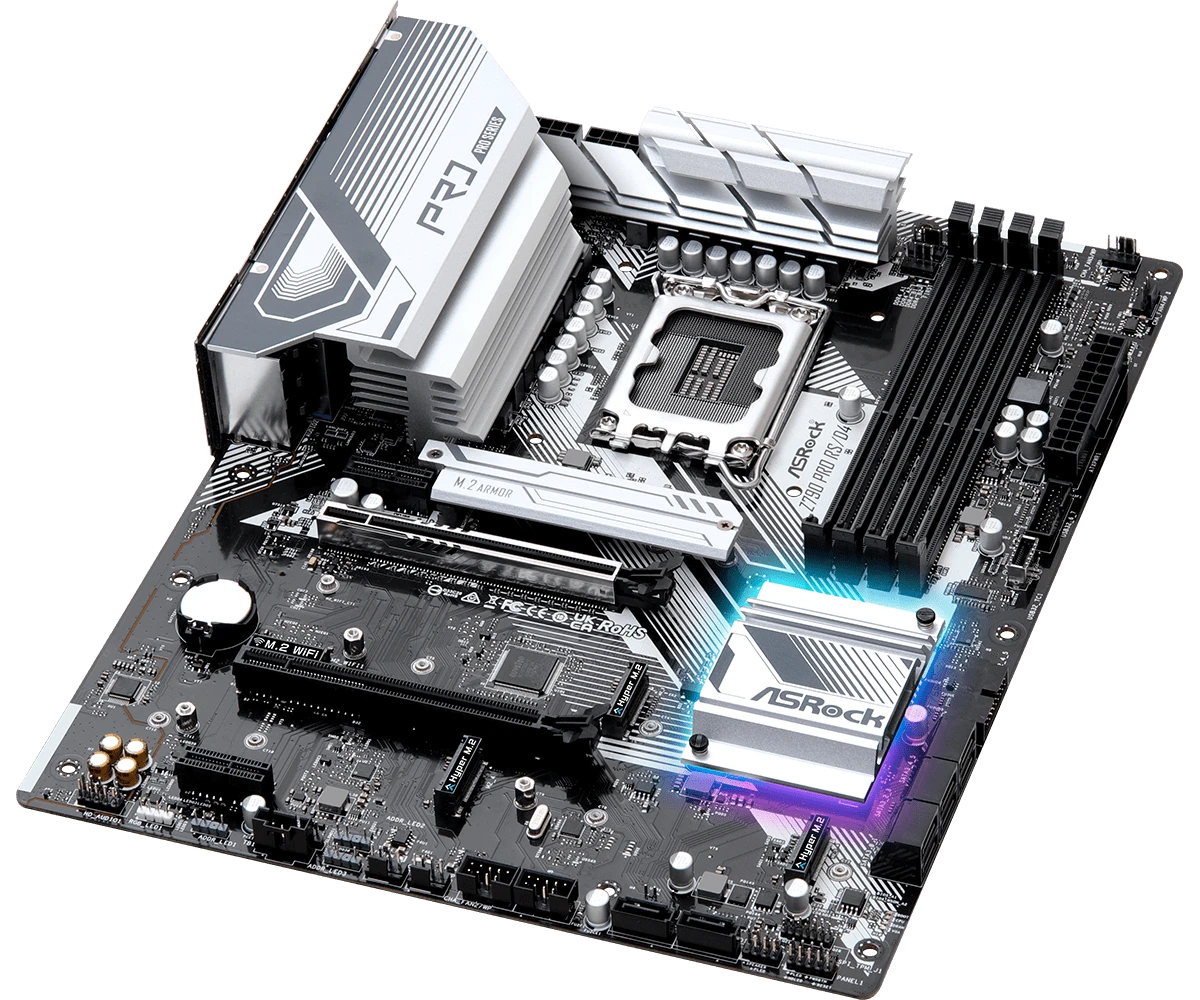

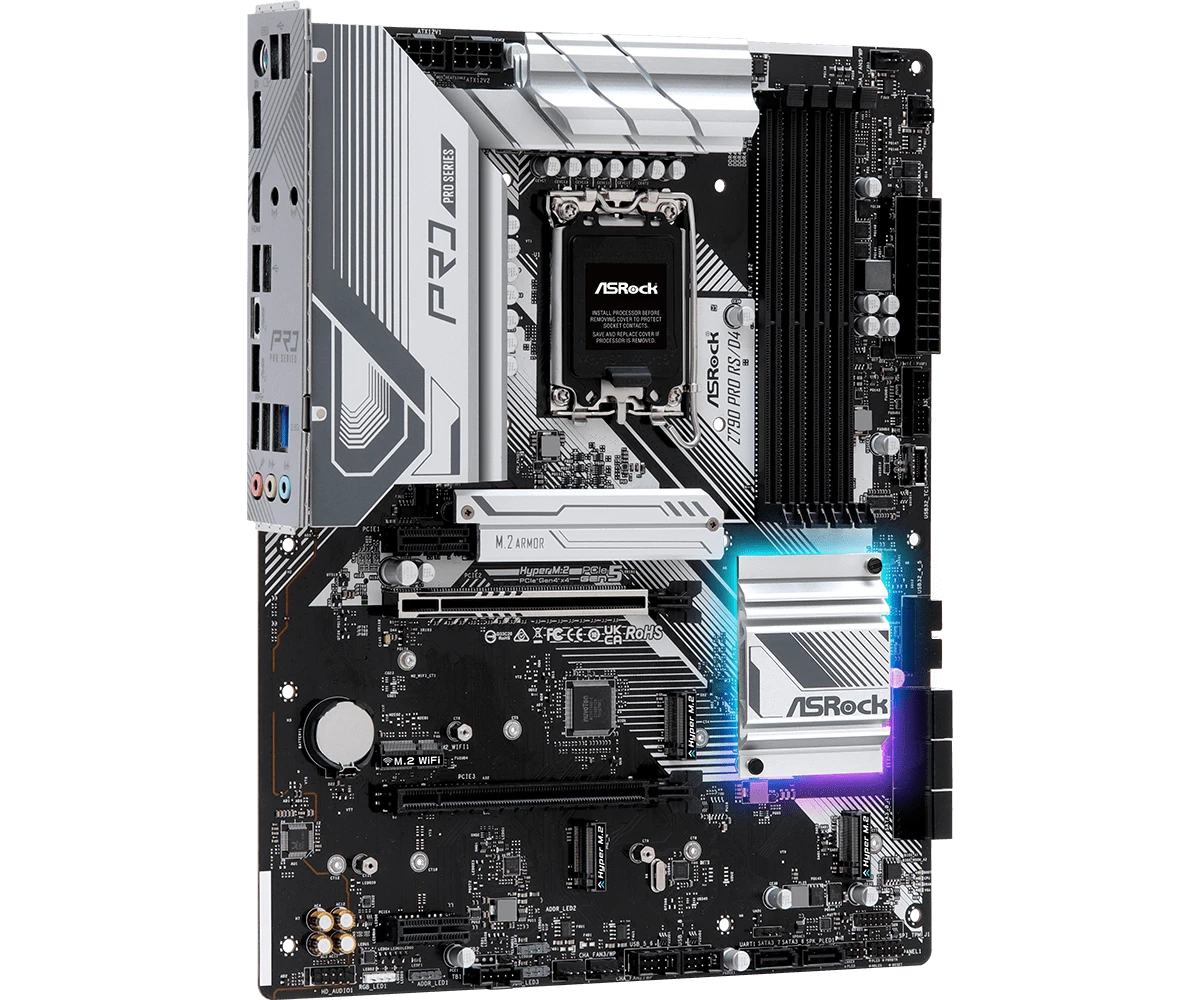

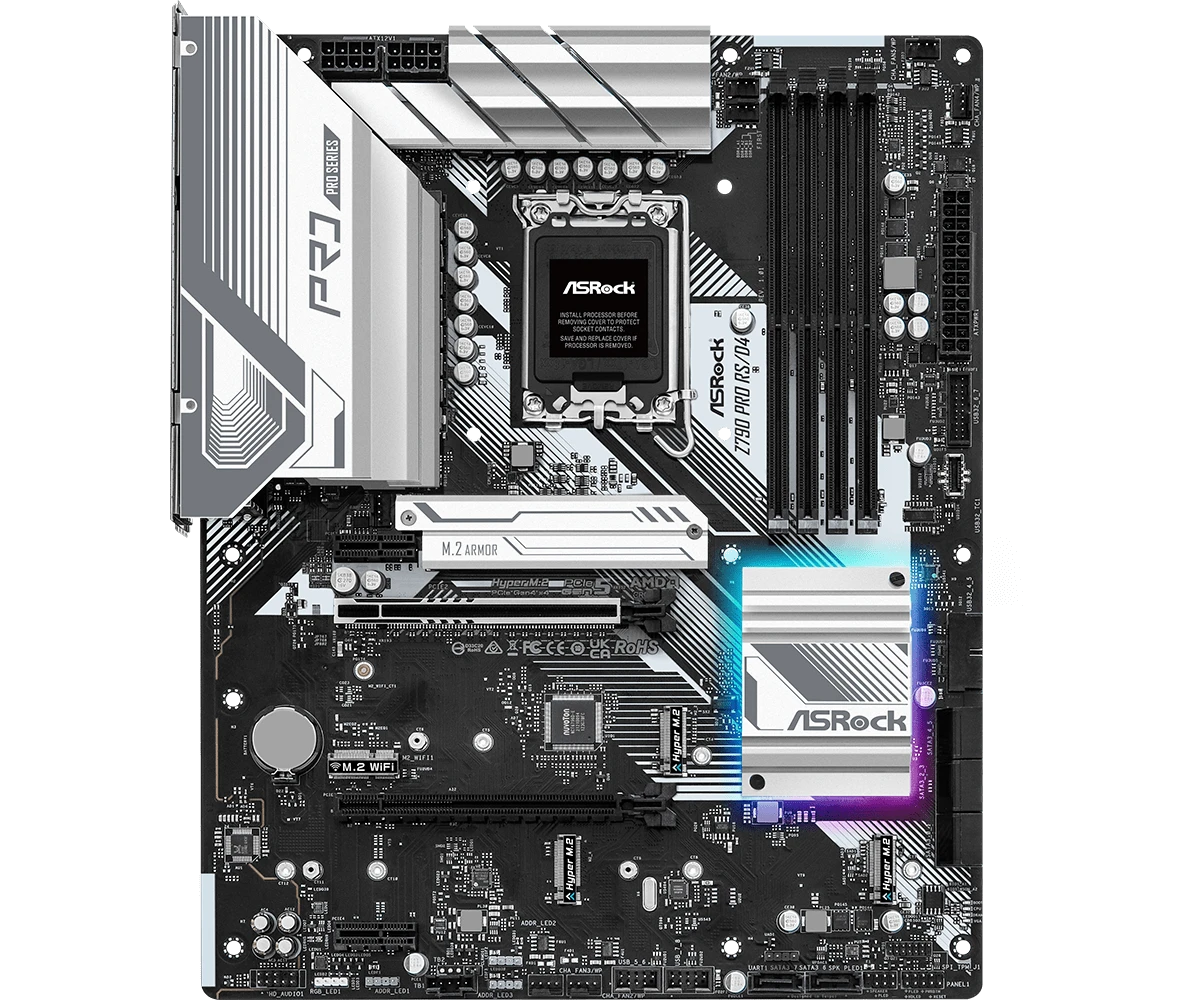

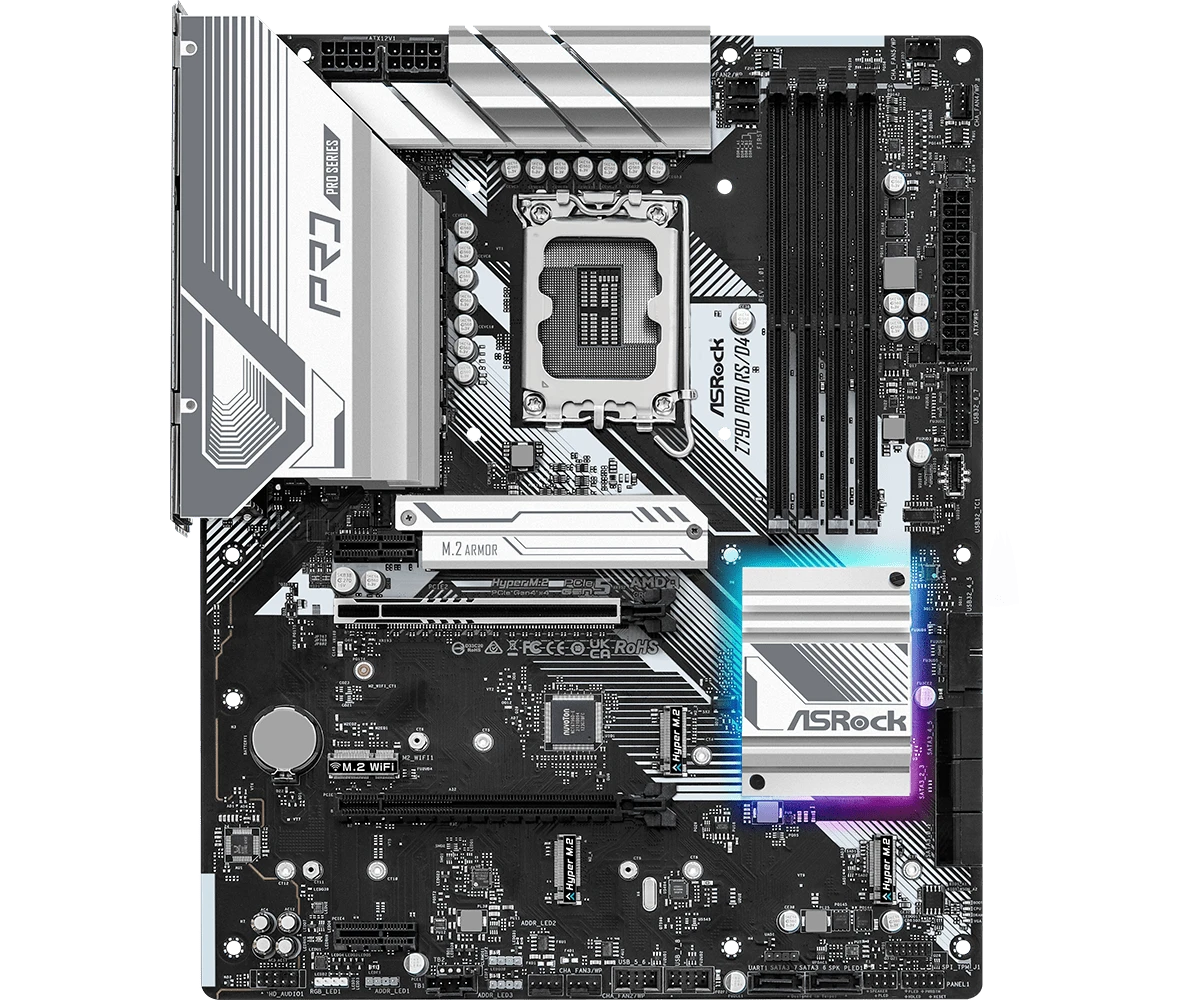

The ASRock Z790 Pro RS/D4
motherboard is designed for Intel's 12th, 13th, and 14th generation Core
processors with LGA1700 socket support. It offers DDR4 memory
support and a wide range of overclocking options up to 5333MHz,
providing an excellent balance of performance and scalability. Ideal for gamers
and power users, this motherboard includes multi-M.2 slots, PCIe Gen4
support, and enhanced Wi-Fi 6E technology to ensure a fast and stable
computing experience.
Features
- Chipset:
- Powered by the Intel Z790 chipset, providing
stable and reliable performance for Intel Core processors.
- Socket Type:
- Supports LGA1700 socket for 12th, 13th, and
14th Gen Intel Core processors.
- Memory Support:
- DDR4 memory support
up to 5333MHz (OC), providing fast data speeds and performance.
- Dual-channel architecture with 4 DIMM slots, supporting up to 128GB
of memory.
Storage
and Expansion
- Storage Interface:
- 6.0Gb/s SATA interface for reliable storage device connections.
- M.2 Expansion Slots:
- 5 x M.2 slots
with PCIe Gen4x4 (64 Gb/s) support on all five, ensuring
ultra-fast storage capabilities.
- One slot supports Intel CNVio/CNVio2 for Wi-Fi/BT
PCIe modules.
Graphics
and Audio
- Multi-GPU Support:
- Supports AMD CrossFireX for multi-GPU setups to
enhance graphical performance.
- Graphics Expansion:
- 1 x PCIe 5.0 x16 slot (PCIE2) supporting x16 mode for the latest GPUs.
- 1 x PCIe 4.0 x16 slot (PCIE3) supports x4 mode for additional expansion
cards.
- 2 x PCIe 3.0 x1 slots (PCIE1 and PCIE4) for further expansion.
- Audio Chipset:
- Realtek ALC897
audio codec with Nahimic Audio for 7.1-channel high-definition
audio.
Connectivity
and Ports
- Wi-Fi 6E:
- 802.11axe Wi-Fi 6E
technology ensures faster, lower-latency wireless connections for a
seamless internet experience.
- Bluetooth:
- Bluetooth 5.3
for improved connectivity with wireless peripherals.
- LAN:
- Dragon RTL8125BG
for 2.5 Gigabit Ethernet providing 10/100/1000/2500 Mbps
speeds.
- USB Ports:
- 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen
1 Type-A, 4 x USB 2.0 Type-A for extensive connectivity
options.
- Video Outputs:
- 1 x HDMI
and 1 x DisplayPort (DP) for video display connections.
- Thunderbolt:
- 1 x Thunderbolt port
for high-speed data transfer.
Design
and Build
- Form Factor:
- ATX
form factor, offering ample space for expansion and connectivity.
- Cable Management:
- Front cable management to keep the system clean and efficient.
- RGB Support:
- RGB lighting support
with 1 x RGB LED Header and 3 x Addressable LED Headers for
customizable lighting effects.
- Heatsink:
- Integrated heatsinks
for improved cooling, enhancing system stability under heavy loads.
Compatibility
- Operating System Compatibility:
- Fully compatible with Windows 10 and Windows
11, ensuring ease of installation and stable performance.
- Processor Compatibility:
- Supports Core i3, i5, i7, i9, and Pentium
Gold processors from the 12th, 13th, and 14th Gen Intel Core
series.
Warranty
Information
- 3-Year Warranty,
providing reliable protection for your motherboard.
- Note: Product may vary with different kit or version.
Included
Accessories
- 1 x ASRock Z790 Pro RS/D4 ATX Motherboard
- 1 x I/O Shield
- 1 x User Manual
Price
and Availability
- Available at Computer Village Agrabad, Chattogram,
Bangladesh.
