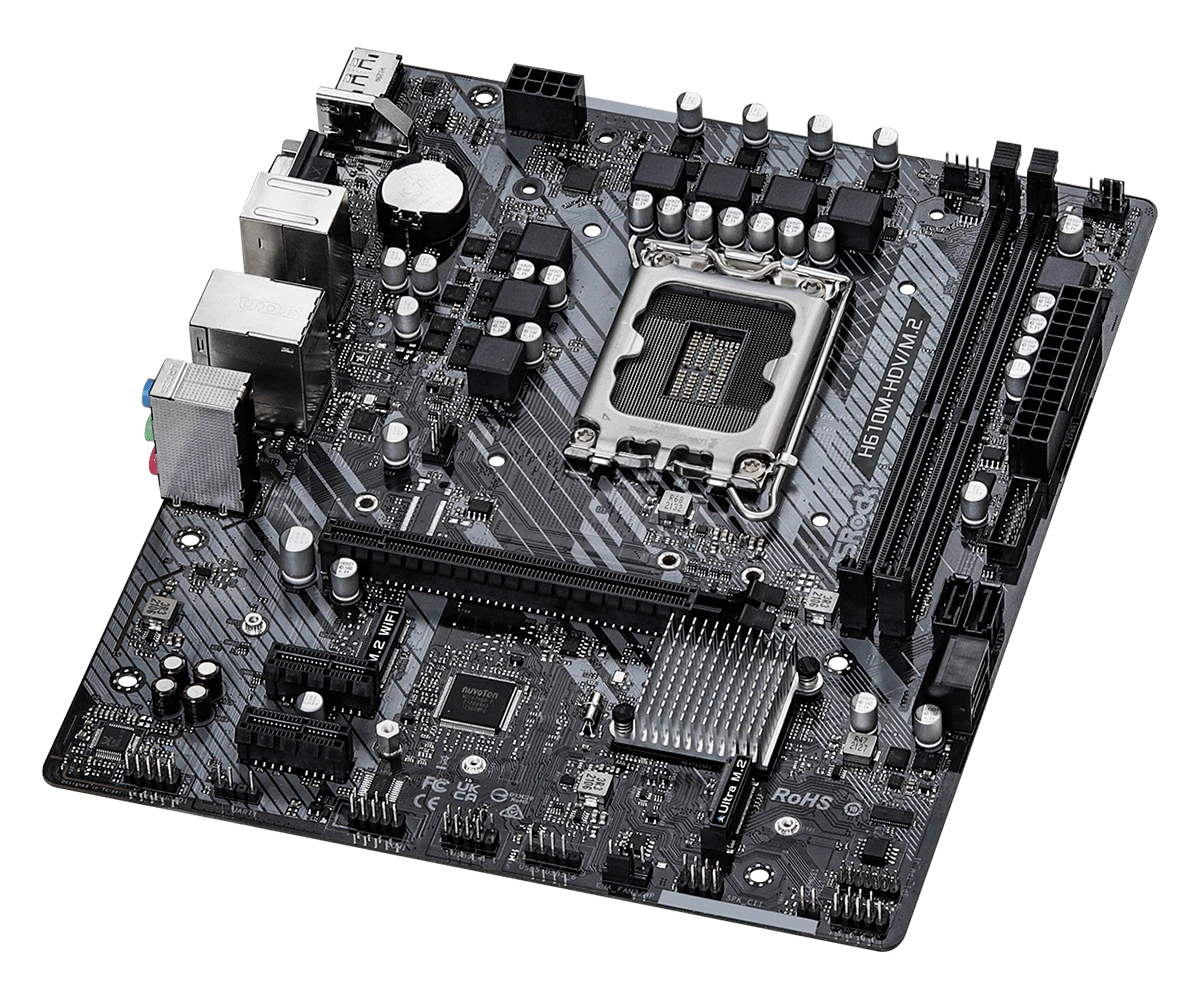

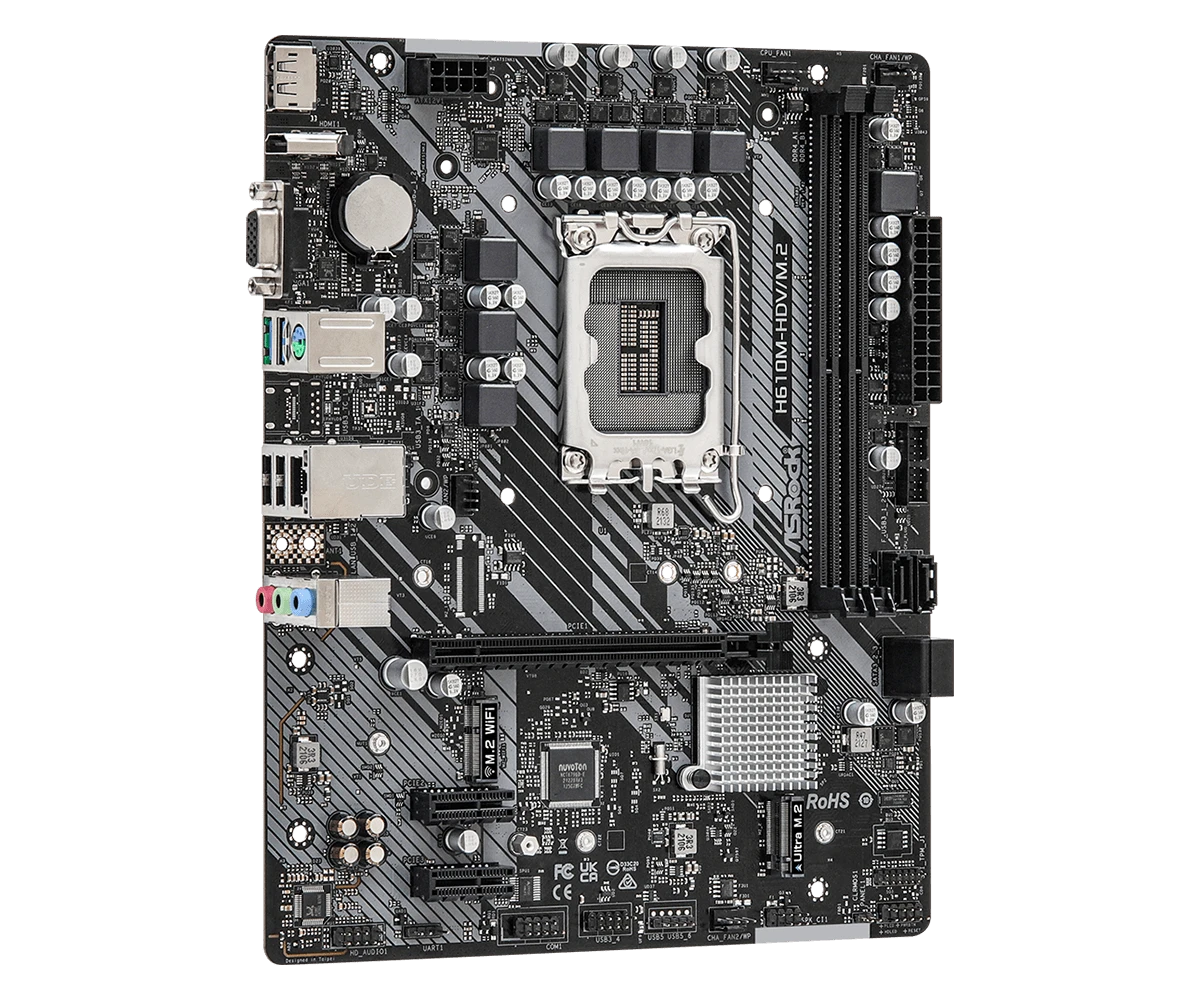

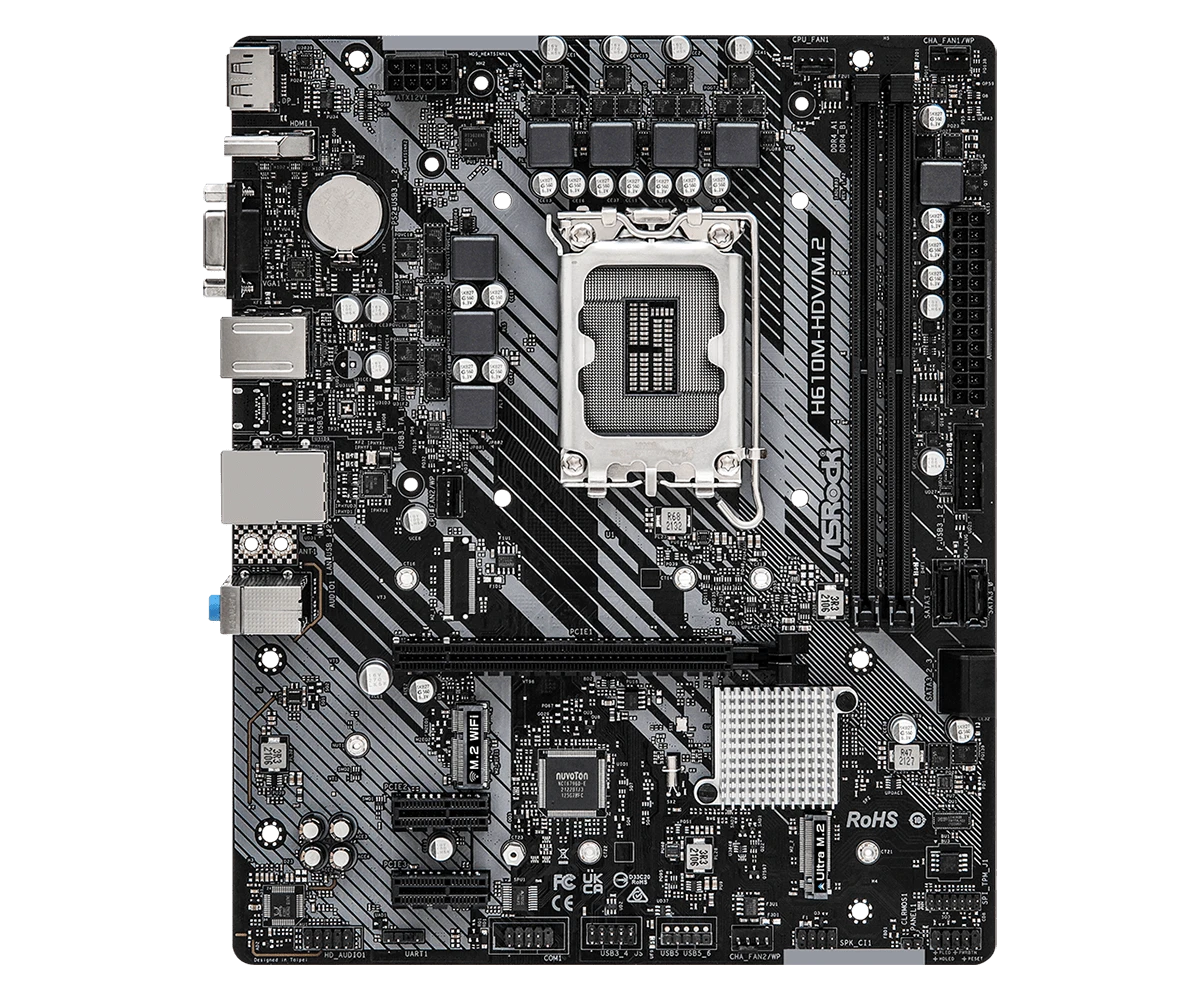

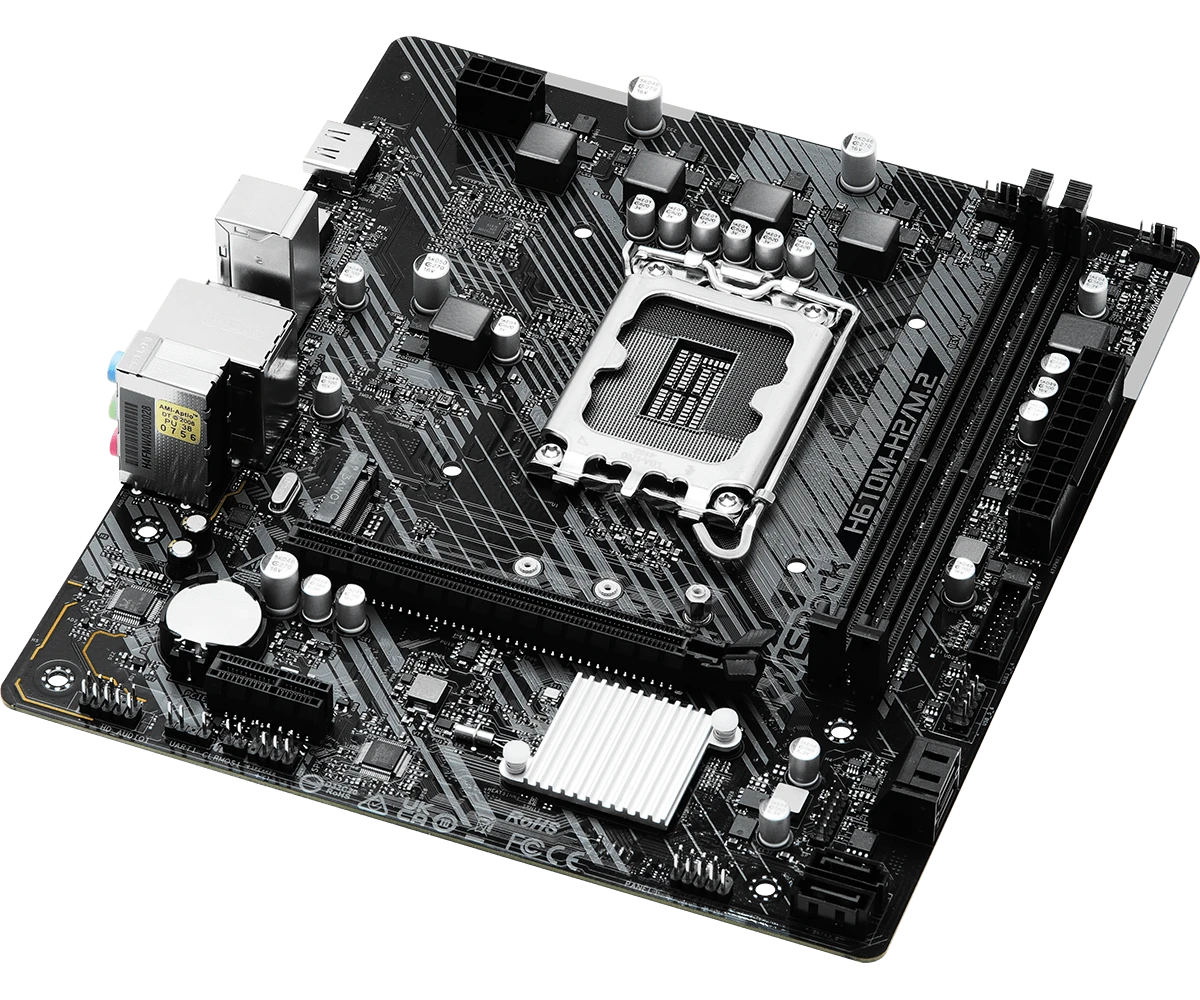

ASRock H610M-HDV/M.2 Micro-ATX DDR4 Intel Motherboard
Key Specification
‣ Chipset - Intel H610
‣ Sockets Supported - LGA1700
‣ Supported CPU - Intel Core Processors (12th/13th/14th Gen)
‣ Generation – 12th/13th/14th
‣ Memory Slot - 2
‣ Memory Max - 64GB
‣ Form Factor - Micro-ATX
Product Specification
|
Brand |
Asrock |
|
Model |
ASRock H610M-HDV/M.2 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H610 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU : Intel Core Processors (12th/13th/14th Gen) Generation
: 12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 3200(O.C.)/ 3000(O.C.)/
2800(O.C.)/ 2666/ 2400/ 2133MHz Memory Channel: Dual Memory Slot: 2 Memory Slot (Additional Info) : 2 x DDR4 DIMM Memory Max: 64GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details 1 x M.2
(supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated With Processor Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCIe 4.0 x16 Slot
(PCIE1), supports x16 mode, 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897/887 Audio Codec Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Giga PHY Intel I219V LAN Speed (Mbps): 10/100/1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A VGA
Port: 1 DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: 1 |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 Compatible
Products: LGA1700 Sockets : 12th/13th & 14th Gen |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
ASRock
H610M-HDV/M.2 Micro-ATX Motherboard
The ASRock H610M-HDV/M.2
motherboard is designed to support Intel Core processors from the 12th,
13th, and 14th generations with the LGA1700 socket. This Micro-ATX
motherboard is equipped with essential features such as DDR4 memory
support, a PCIe 4.0 x16 slot, and 7.1-channel audio for a
solid and reliable computing experience, suitable for home, office, and light
gaming use.
Features
• Processor Compatibility: Supports Intel Core processors from the 12th,
13th, and 14th generations (LGA1700 socket).
• Chipset: Intel H610 chipset for essential functionality and
cost-effectiveness.
• Memory Support: Dual-channel DDR4 memory, with speeds ranging
from 2133MHz to 3200MHz (OC), and a maximum capacity of 64GB.
• Audio: Realtek ALC897/887 codec, providing 7.1-channel
high-definition audio for immersive sound.
Storage
Support
• M.2 Slots:
1 x M.2 slot supporting SATA3 6.0 Gb/s and PCIe Gen3 x4,
compatible with 2260/2280 M.2 form factors.
• SATA Ports:
4 x SATA 6Gb/s ports for additional storage devices.
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 4.0 x16 slot (supports x16 mode)
2 x PCIe 3.0 x1 slots
• Integrated Graphics: Supports Intel integrated graphics with the
processor for general computing and light gaming.
• Multi-GPU Support: Not specified.
Connectivity
Options

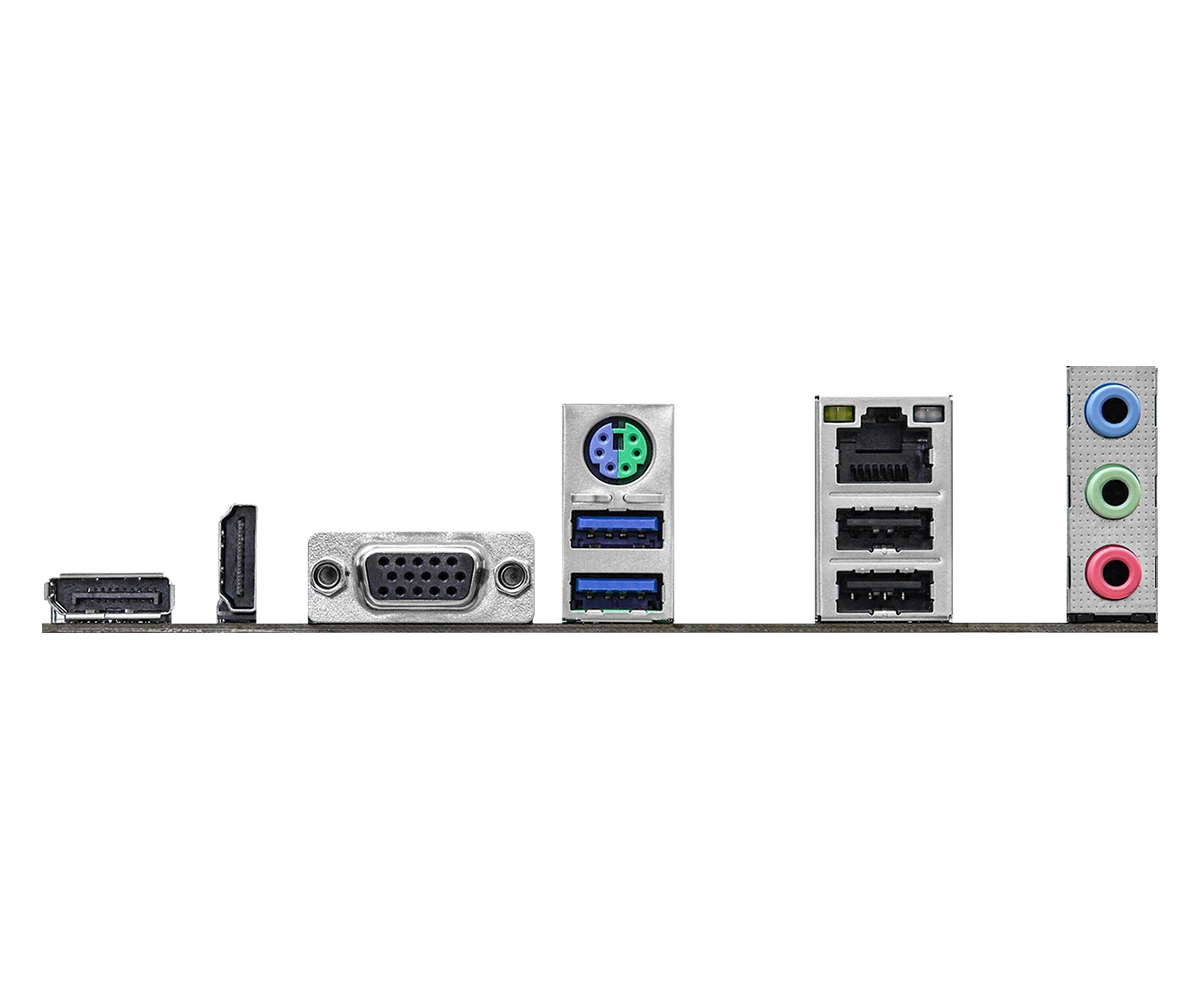

• USB Ports:
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
• Video Outputs:
1 x VGA port
1 x HDMI port
1 x DisplayPort (DP)
Network
and Audio
• LAN Chipset: Intel I219V for reliable wired networking.
• LAN Speed: 10/100/1000Mbps for stable network connectivity.
Design
and Build
• Form Factor: Micro-ATX
• Color Scheme: Black
• Heatsink: Unmentioned, likely varies based on version.
• Power Consumption: Approx. 60W.
Compatibility
• Supported Operating System: Windows 10 and Windows 11
• Compatible Products: Compatible with LGA1700 socket for Intel
12th, 13th, and 14th Gen processors.
Warranty
Information
• Warranty: 3 years warranty, ensuring durability and
reliability.
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh, the ASRock H610M-HDV/M.2
motherboard offers an affordable and solid platform for users building a
budget-friendly or mid-range PC.
