Asrock H610M-H2/M.2 D4 DDR4 Intel Motherboard
Key Specification
‣ Chipset - Intel H610
‣ Sockets Supported - LGA1700
‣ Supported CPU - Supports 14th, 13th & 12th Gen Intel Core Processors
(LGA1700)
‣ Generation – 12th/13th/14th
‣ Memory Slot - 2
‣ Memory Max - 64GB
‣ Form Factor - Micro-ATX
Product Specification
|
Brand |
Asrock |
|
Model |
Asrock H610M-H2/M.2
D4 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H610 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU : Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Generation
: 12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: up to 3200MHz Memory Channel: Dual Memory Slot: 2 Memory Slot (Additional Info) :Supports DDR4
non-ECC, un-buffered memory up to 3200MHz Memory Max: 64GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details 1 x
Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32
Gb/s) mode |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Intel Xe Graphics
Architecture (Gen 12) Support Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCIe 4.0 x16 Slot
(PCIE1), supports x16 mode, 1 x PCIe 3.0 x1 Slot (PCIE2) |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio Codec Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111 LAN Speed (Mbps): 10/100/1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 2 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports VGA
Port: Unmentioned DVI
Port: 0 HDMI
Port: 2 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: 1 |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 64-bit / 11 64-bit Compatible
Products: Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
ASRock

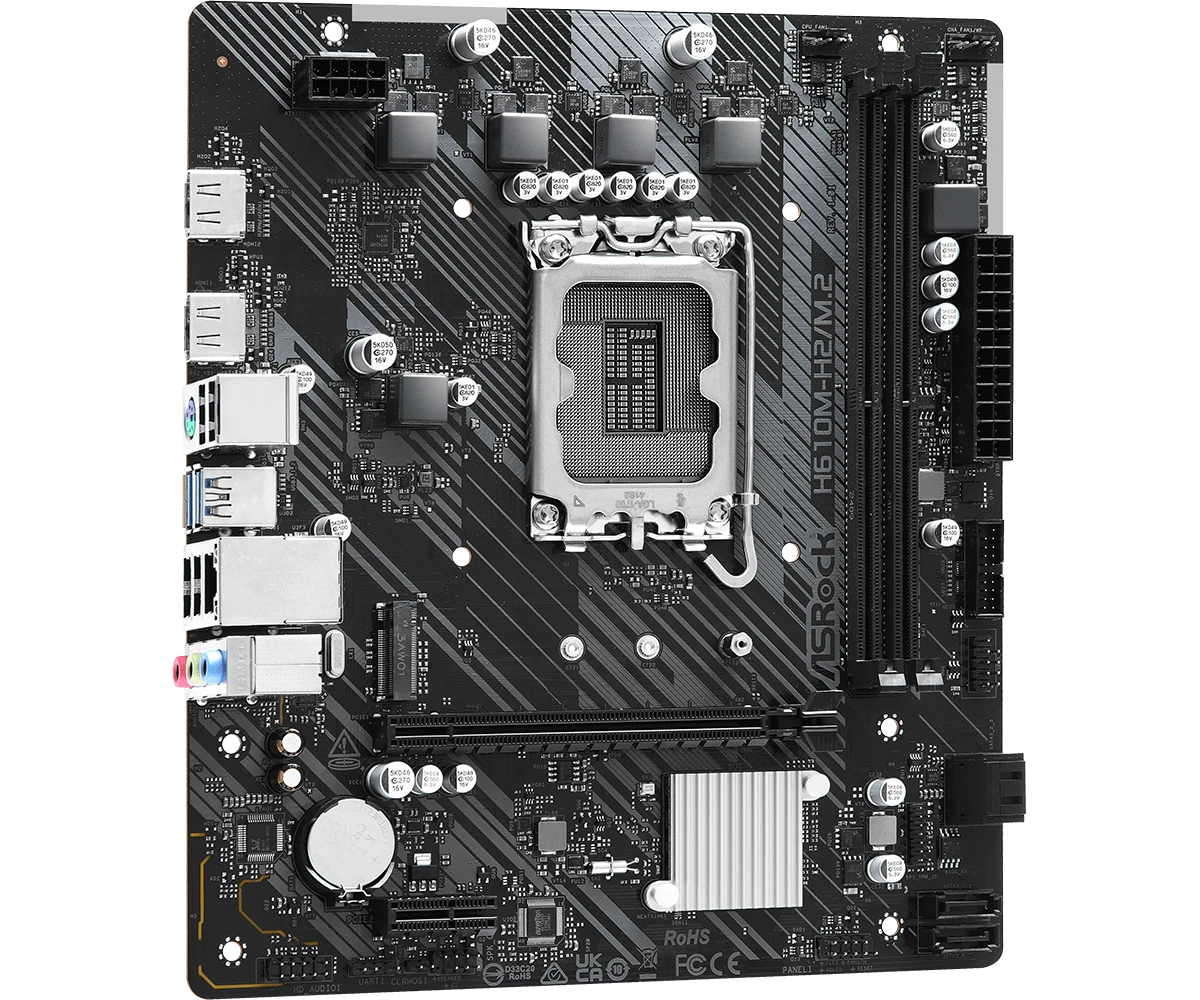

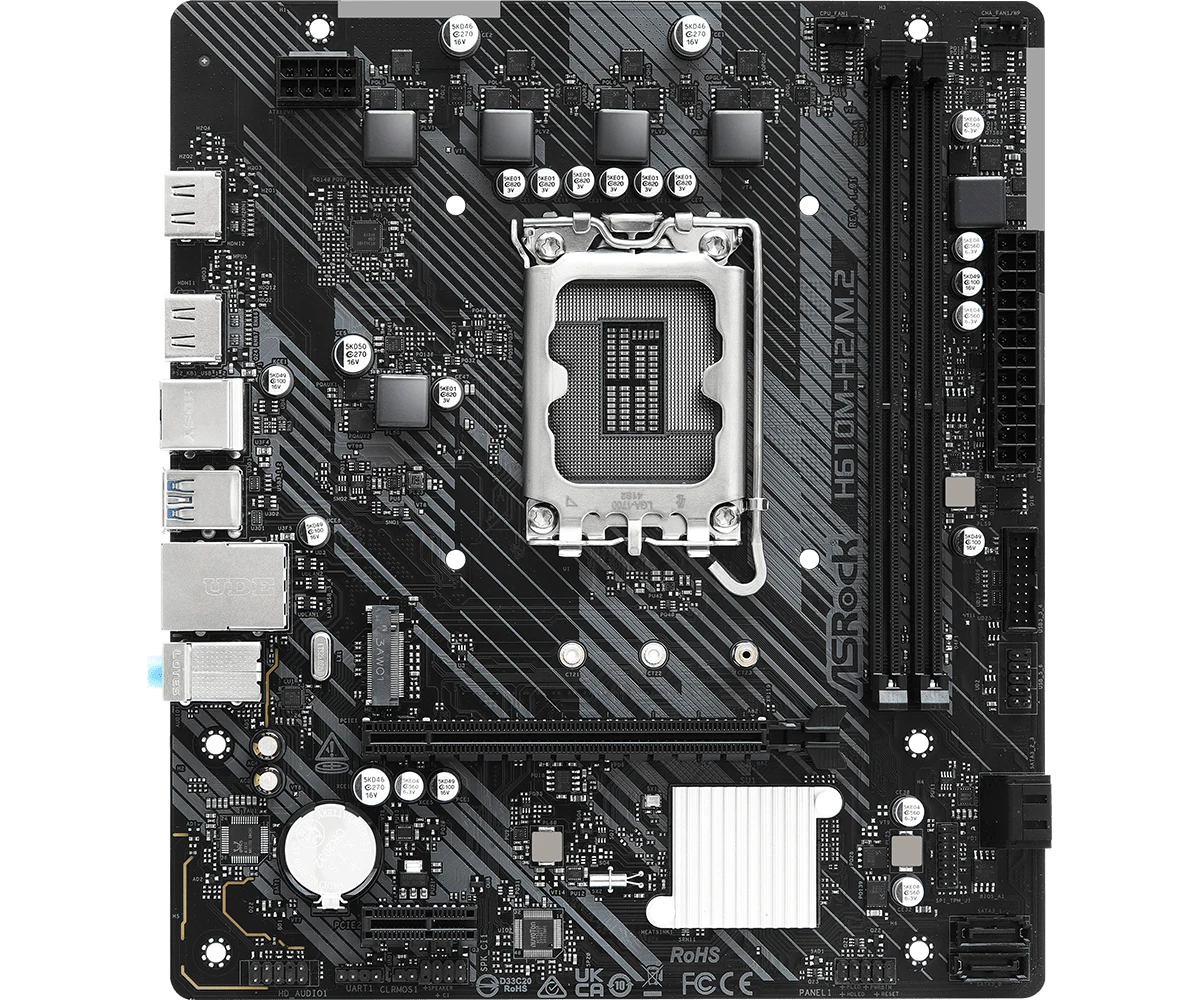

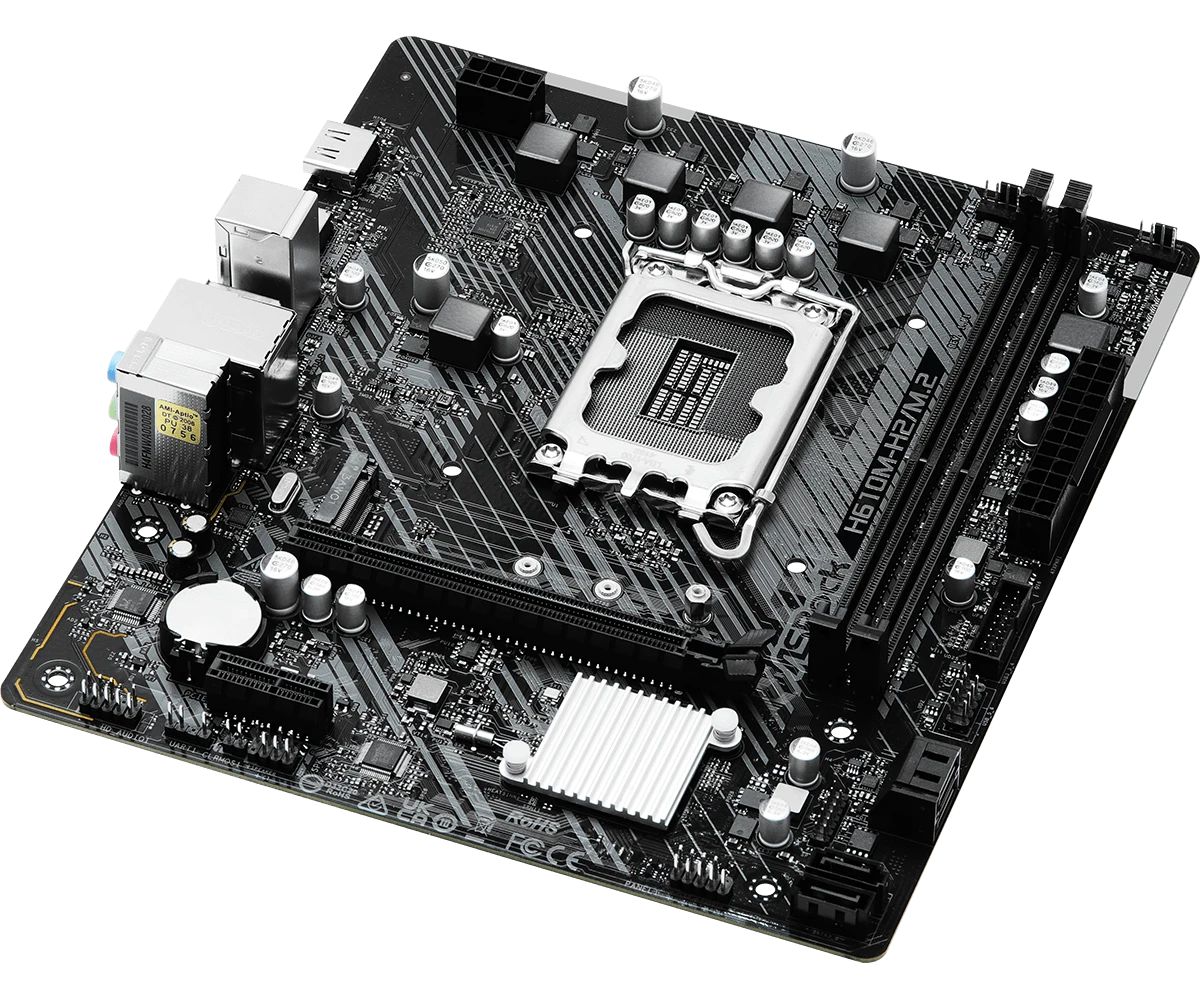

H610M-H2/M.2 D4 Micro-ATX Motherboard
The ASRock H610M-H2/M.2 D4 is
a Micro-ATX motherboard designed to support Intel Core processors
from the 12th, 13th, and 14th generations. With its LGA1700 socket
and DDR4 memory compatibility, this motherboard provides solid
performance and essential features for both basic and mid-range computing
tasks.
Features
• Processor Compatibility: Supports Intel Core processors from the 12th,
13th, and 14th generations (LGA1700 socket).
• Chipset: Intel H610 chipset for efficient performance and
compatibility.
• Memory Support: Dual-channel DDR4 memory, with speeds up to 3200MHz
and a maximum capacity of 64GB.
• Audio: Realtek ALC897 codec for 7.1-channel
high-definition audio.
Storage
Support
• M.2 Slots:
1 x Ultra M.2 Socket (M2_1, Key M) supports PCIe Gen3 x4 (32 Gb/s)
mode for fast storage performance.
• SATA Ports:
4 x SATA 6Gb/s ports for connecting additional storage devices.
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x1 slot
• Integrated Graphics:
Supports Intel Xe Graphics Architecture (Gen 12) for integrated GPU
capabilities.
• Multi-GPU Support: Not specified.
Connectivity
Options

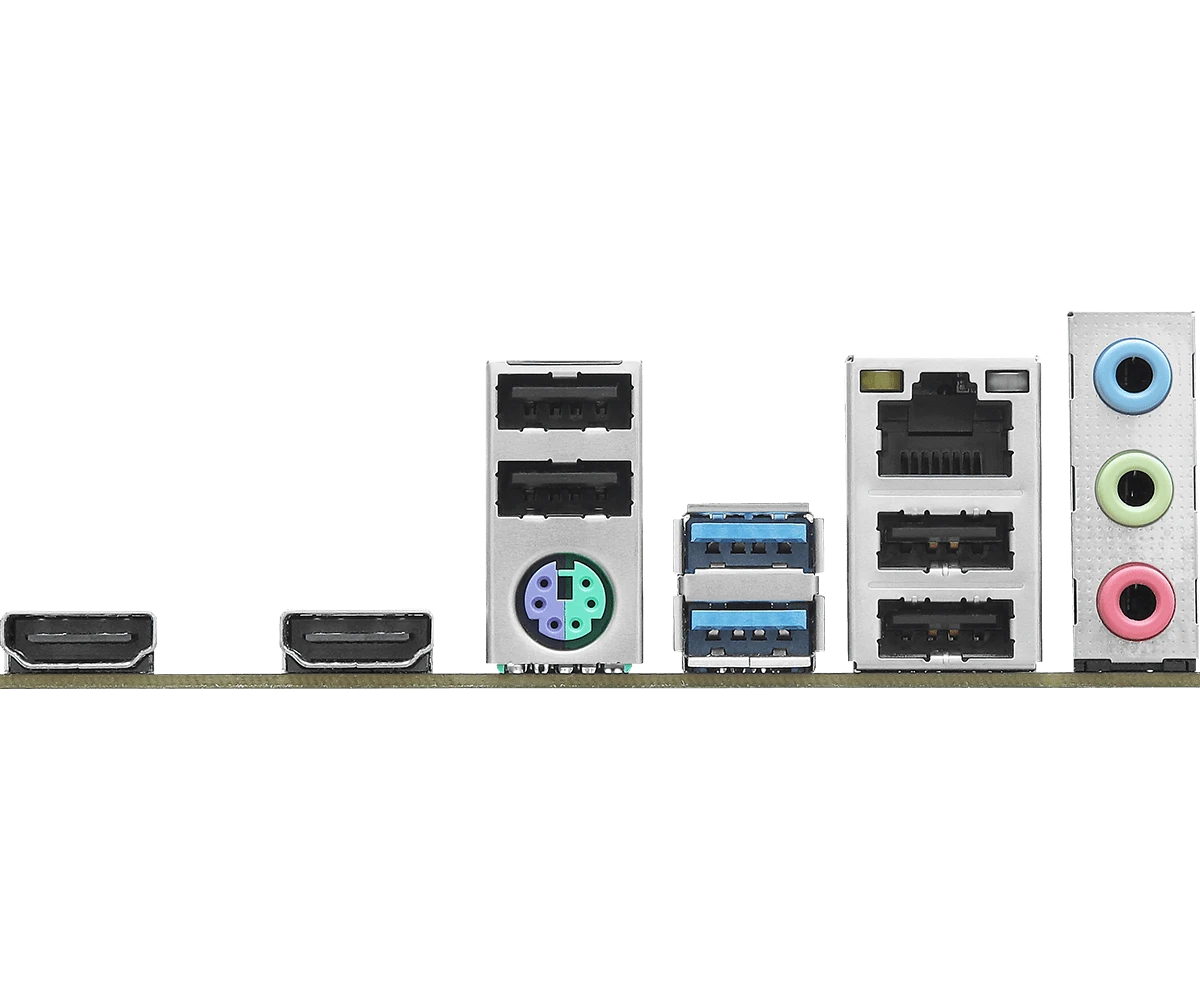

• USB Ports:
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
• Video Outputs:
2 x HDMI ports for video output.
Network
and Audio
• LAN Chipset: Realtek RTL8111 for reliable wired networking.
• LAN Speed: 10/100/1000Mbps.
Design
and Build
• Form Factor: Micro-ATX
• Color Scheme: Black
• Power Consumption: Approx. 60W.
Compatibility
• Supported Operating System: Windows 10 64-bit / Windows 11 64-bit.
• Compatible Products: Compatible with LGA1700 socket for Intel
12th, 13th, and 14th Gen processors.
Warranty
Information
• Warranty: 3 years warranty.
Price
and Availability
Available at Computer Village
Agrabad, Chattogram, Bangladesh, the ASRock H610M-H2/M.2 D4
motherboard offers an affordable and capable platform for users needing a
reliable base for budget-conscious builds.
in Bangladesh looking for durable
and efficient system performance at an affordable price.
