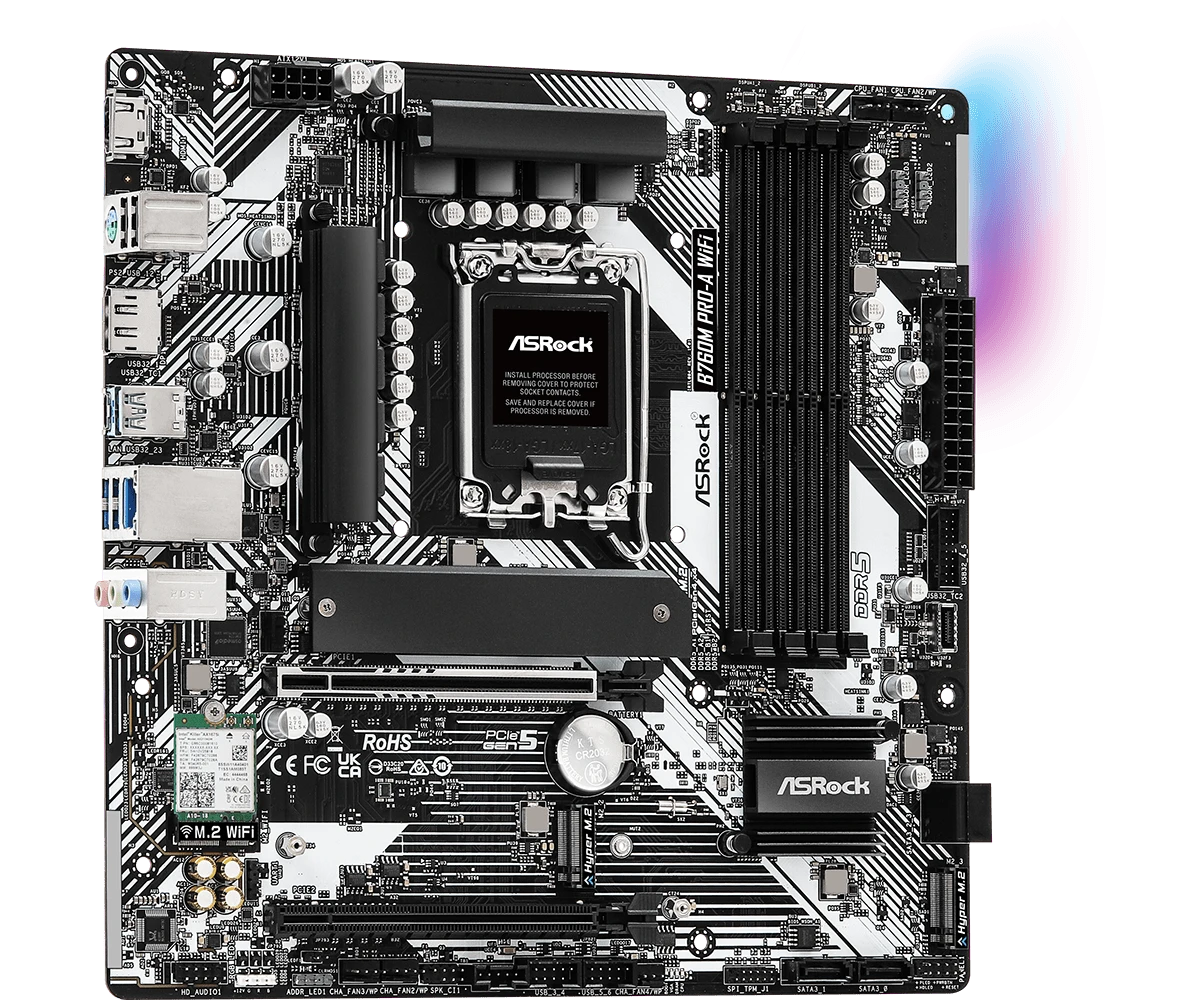

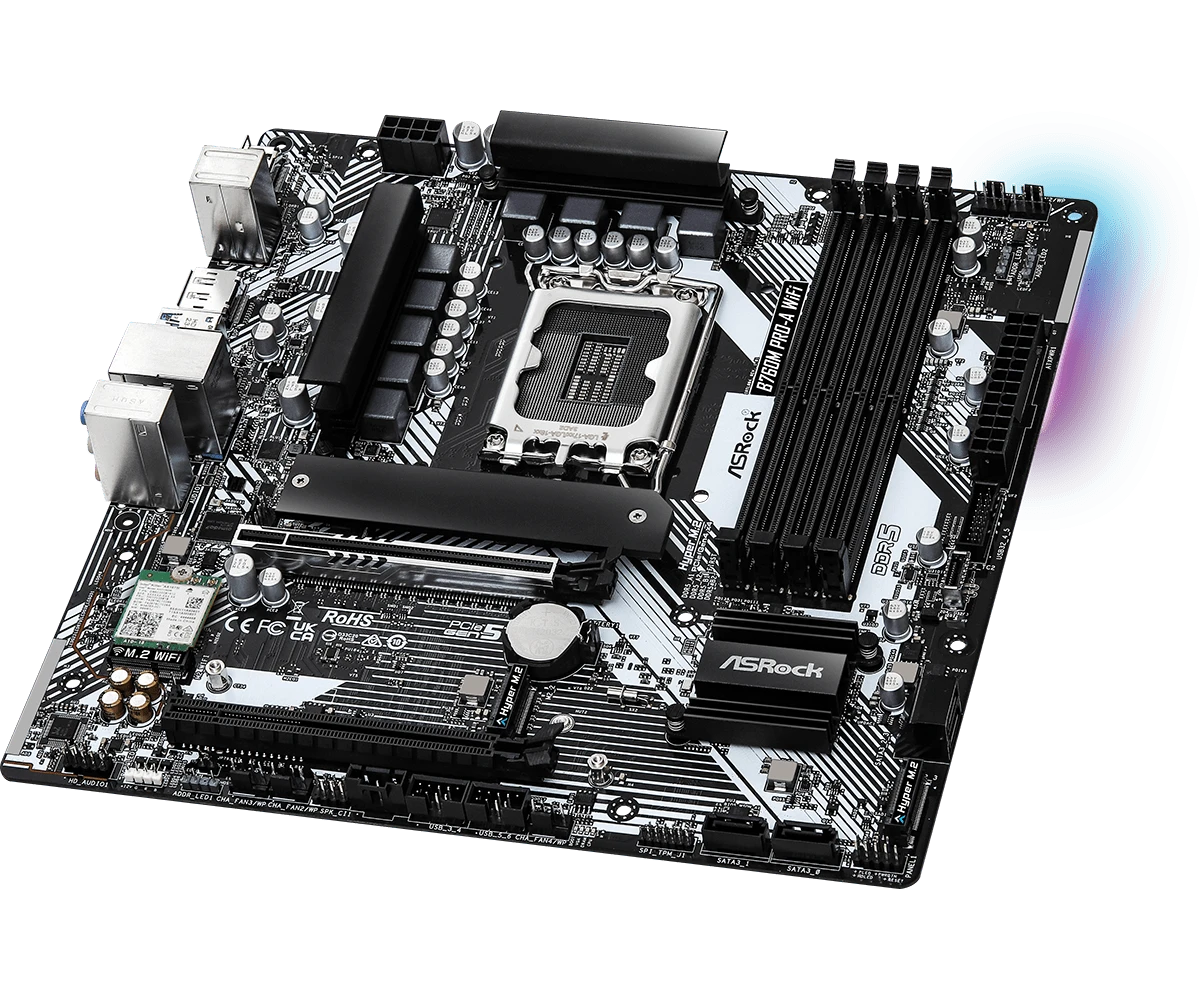

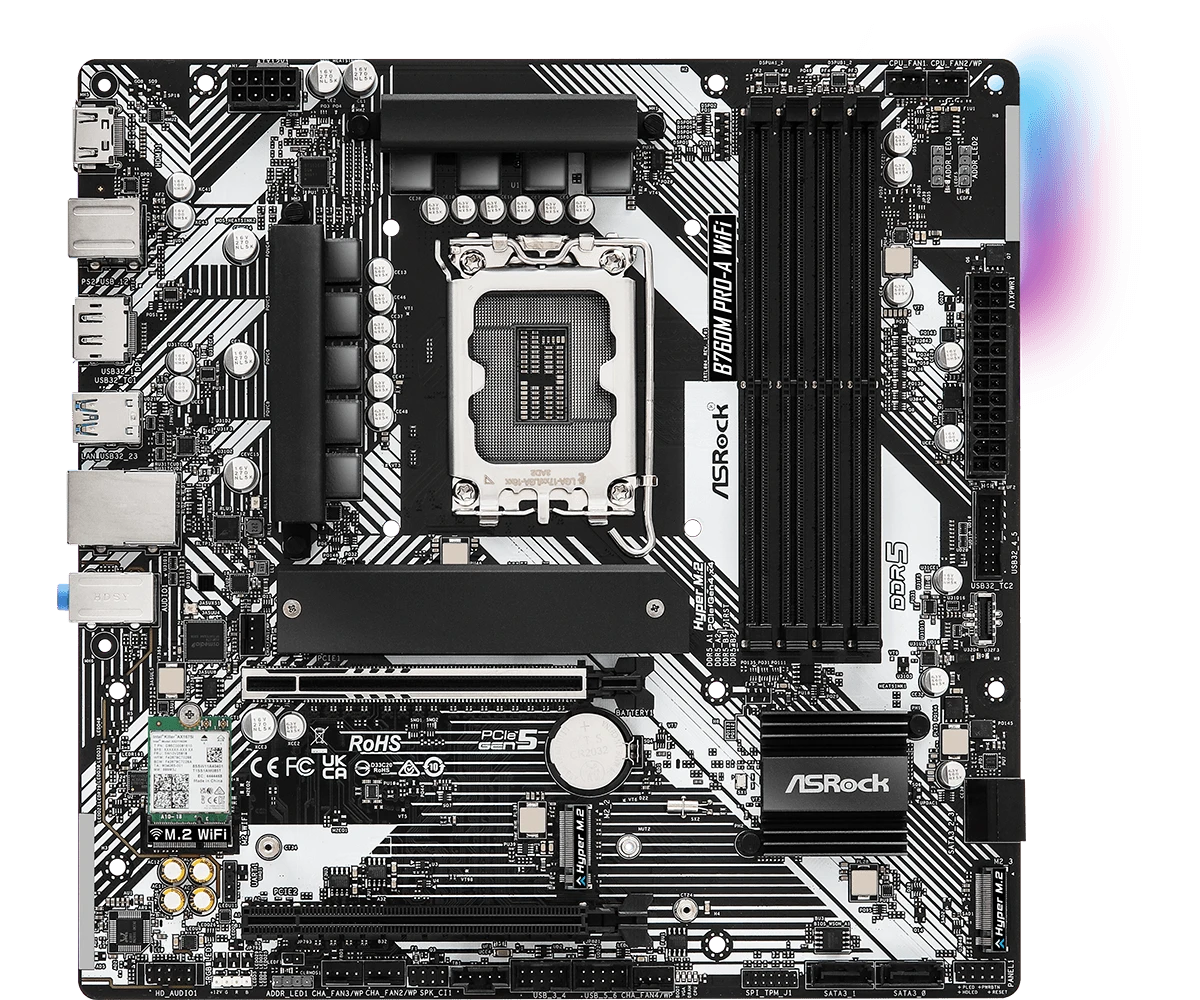

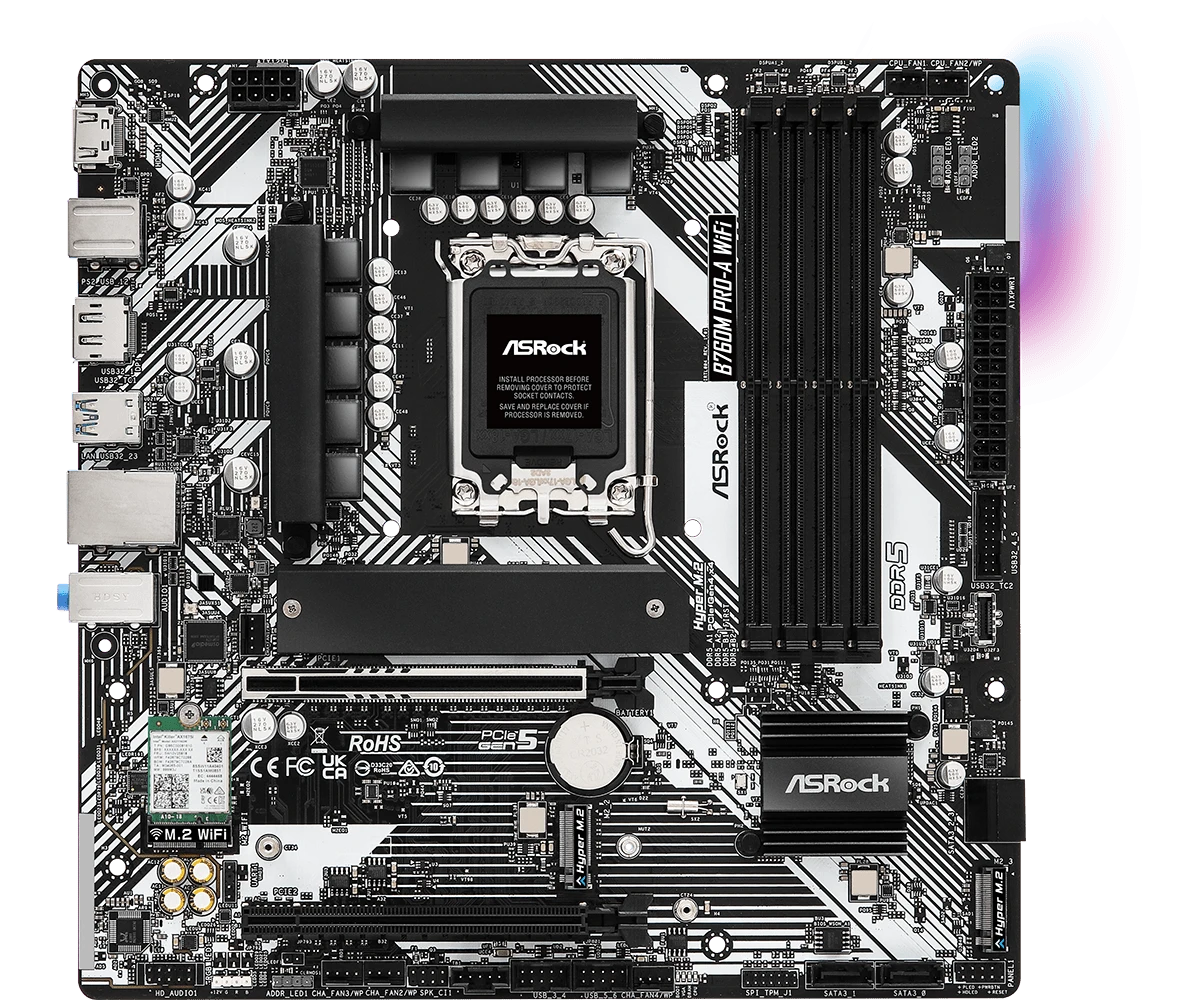

ASRock B760M Pro-A D5 (Wi-Fi 6E) Micro-ATX Motherboard

The ASRock B760M Pro-A D5 (Wi-Fi 6E) motherboard combines Intel B760 chipset capabilities with Wi-Fi 6E technology to offer cutting-edge connectivity and support for 12th, 13th, and 14th generation Intel Core processors. It is designed for high-performance builds, featuring DDR5 memory support, PCIe 5.0, and multi-M.2 slots for ample expansion. This motherboard provides robust features for gamers, content creators, and general users seeking a high-performance system with the added benefit of Wi-Fi 6E for enhanced wireless performance.

Features

• Chipset:
• Intel B760 chipset for efficient management of Intel Core i9, i7, i5, and i3 processors.
• Socket Type:
• LGA1700 socket, supporting Intel 12th, 13th, and 14th Gen Core processors.
• Memory Support:
• DDR5 memory support up to 7200MHz (OC), delivering high-speed data transfer rates and optimized performance for gaming and multitasking.
• Dual-channel memory architecture with 4 DIMM slots, supporting up to 256GB of memory.

Storage and Expansion

• Storage Interface:
• 6.0Gb/s SATA interface for reliable connectivity with traditional HDDs and SSDs.
• M.2 Expansion Slots:
• 3 x M.2 slots, including Hyper M.2 sockets for PCIe Gen4x4 (64 Gb/s), providing ultra-fast storage solutions and expandability for NVMe drives.

Graphics and Audio

• Multi-GPU Support:
• AMD CrossFireX for multi-GPU setups to boost graphical performance in demanding applications.
• Graphics Expansion:
• 1 x PCIe 5.0 x16 slot (supports x16 mode) and 1 x PCIe 3.0 x16 slot (supports x4 mode), offering ample space for high-performance GPUs and expansion cards.
• Audio Chipset:
• Realtek ALC897 audio codec, supporting 7.1-channel high-definition audio for a rich audio experience.

Connectivity and Ports

• Wi-Fi 6E:
• 802.11axe Wi-Fi 6E technology for faster wireless speeds, lower latency, and improved connectivity over the latest Wi-Fi 6E spectrum.
• Bluetooth:
• Bluetooth 5.3 for seamless wireless connections with Bluetooth-enabled devices.
• LAN:
• Dragon RTL8125BG 2.5 Gigabit Ethernet controller providing 10/100/1000/2500 Mbps LAN speeds for high-performance network connectivity.
• USB Ports:
• 2 x USB 2.0, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C for fast data transfer and peripheral connectivity.
• Video Outputs:
• 1 x HDMI and 1 x DisplayPort (DP), enabling flexible display options for various setups.
• Thunderbolt:
• 1 x Thunderbolt port for ultra-fast data transfer and connectivity with compatible devices.

Design and Build

• Form Factor:
• Micro-ATX form factor, providing an optimal balance of compact design and expansion options.
• Cable Management:
• Front cable management to keep your system clean and organized while enhancing airflow.
• RGB Support:
• ARGB support, with 1 x RGB LED Header and 3 x Addressable LED Headers for customizable lighting effects.

Compatibility

• Operating System Compatibility:
• Fully compatible with Windows 10 and Windows 11, ensuring a smooth experience with the latest software and updates.
• Processor Compatibility:
• Supports 12th, 13th, and 14th Gen Intel Core processors (LGA1700 socket).

Warranty Information

• 3-Year Warranty, providing peace of mind with comprehensive coverage for your motherboard.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x ASRock B760M Pro-A D5 (Wi-Fi 6E) Micro-ATX Motherboard
• 1 x I/O Shield
• 1 x User Manual

Price and Availability

• Available at Computer Village Agrabad, Chattogram, Bangladesh.
