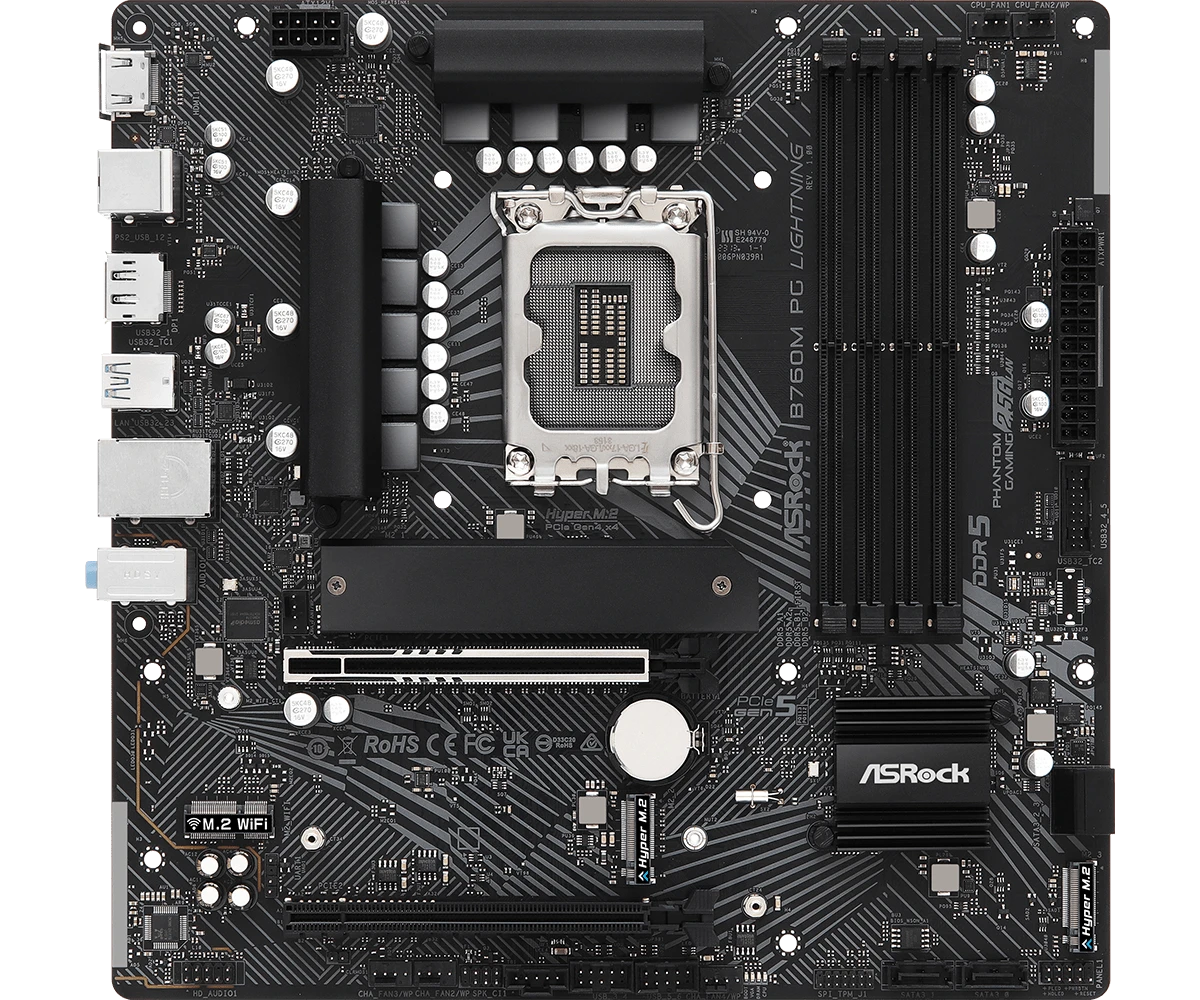

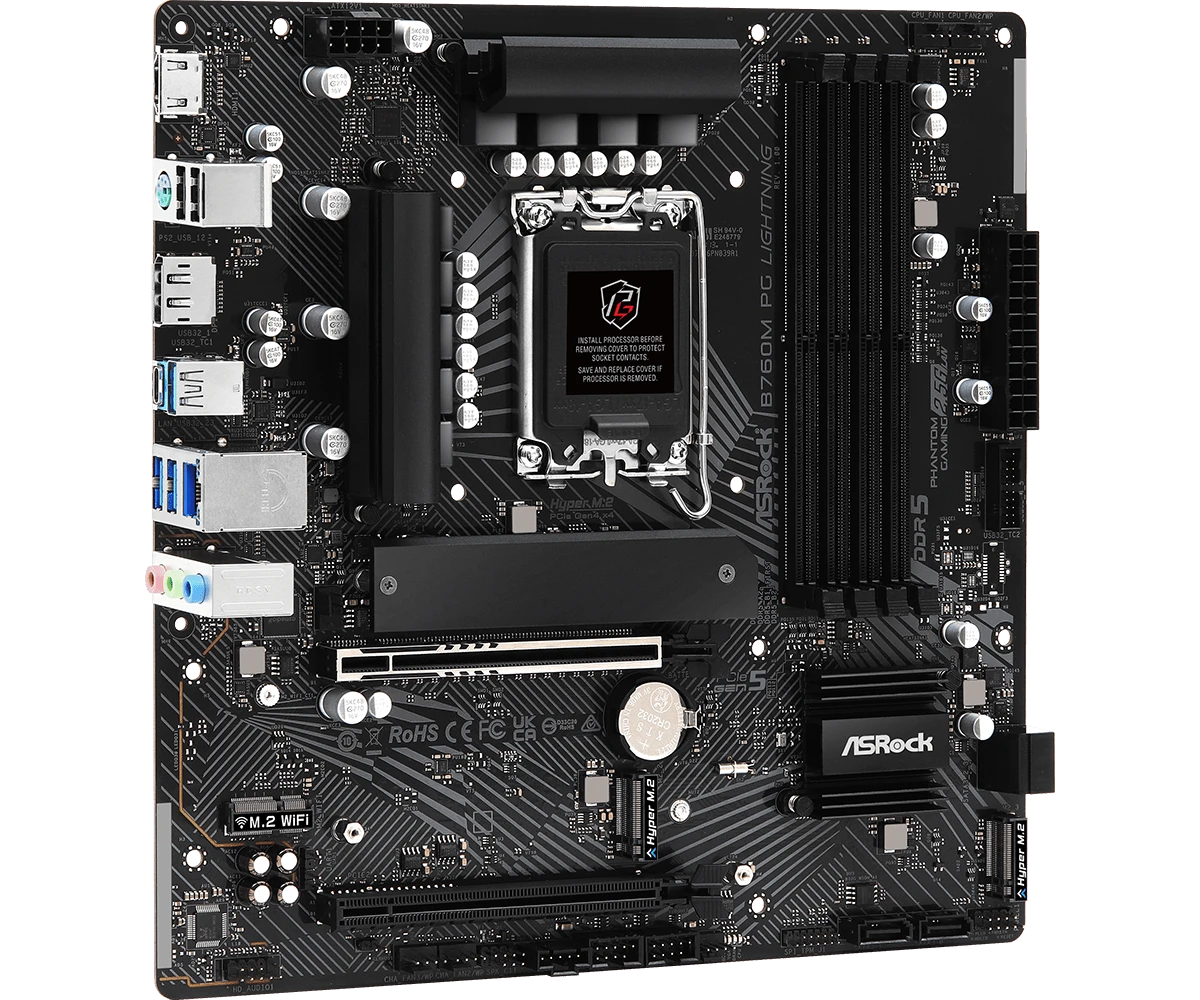

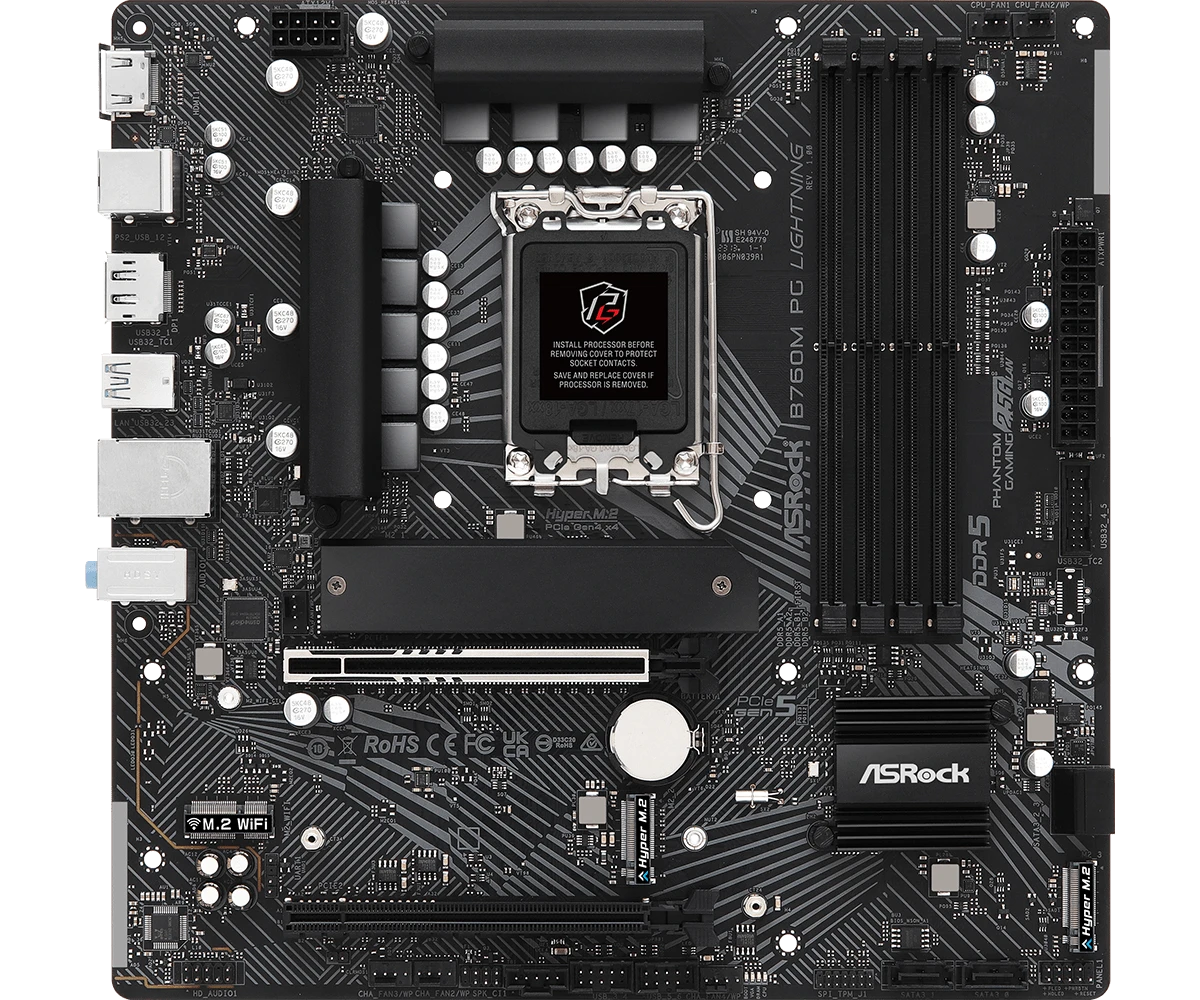

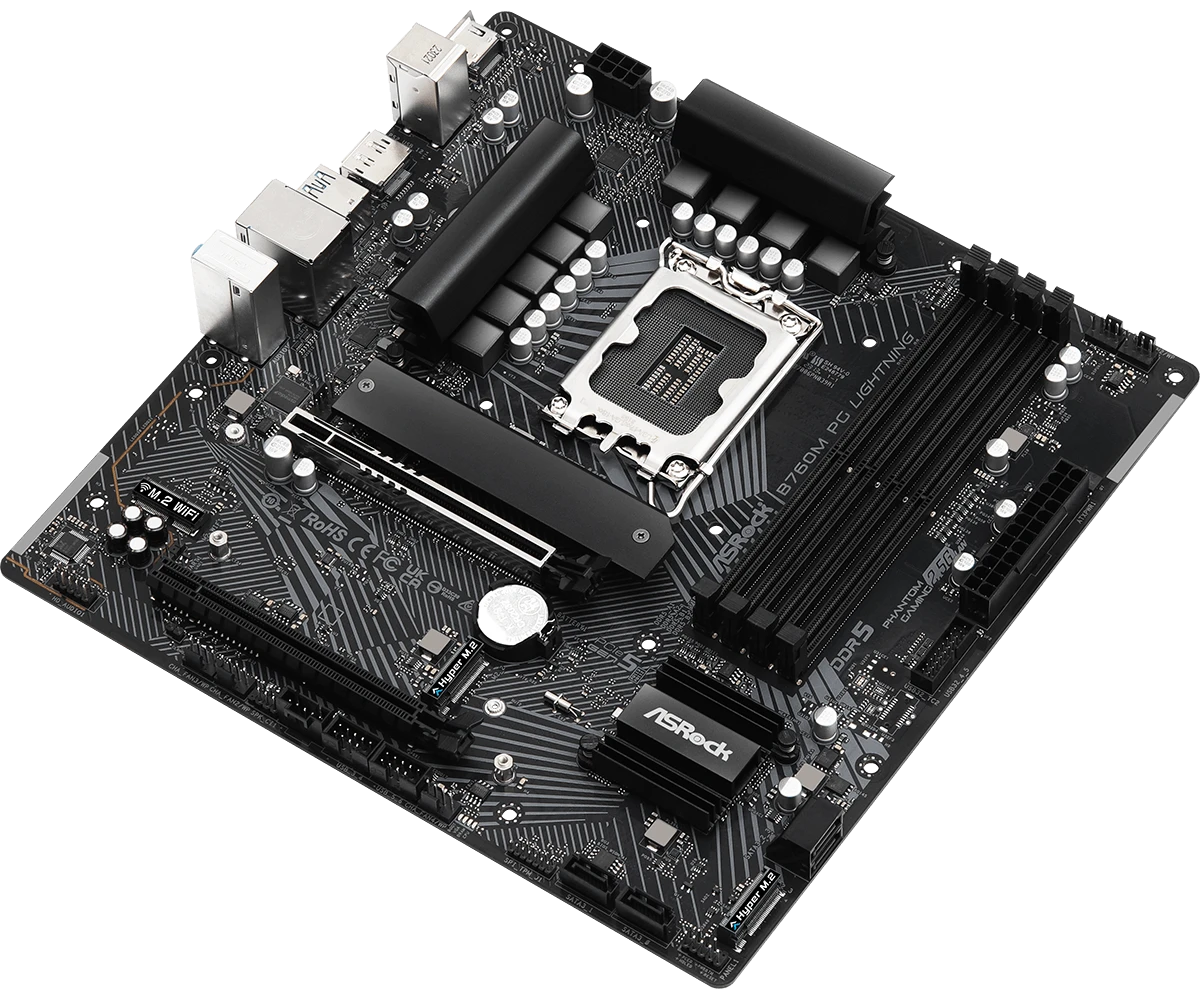

ASRock B760M PG LIGHTNING D5 Micro-ATX Motherboard

The ASRock B760M PG LIGHTNING D5 is a feature-rich micro-ATX motherboard designed to support the latest Intel Core processors from the 12th, 13th, and 14th generations. Built for high-performance computing, this motherboard combines cutting-edge features like DDR5 memory support, PCIe Gen 5.0, and multiple M.2 expansion slots to offer users an exceptional experience in gaming, content creation, and multitasking. The Intel B760 chipset ensures stability and versatility, making it an ideal choice for those looking to build a future-proof system.

Features

• Chipset:
• Intel B760 chipset, optimized for 12th, 13th, and 14th generation Intel Core processors, supporting LGA1700 socket for efficient and powerful computing.
• Socket Type:
• LGA1700 socket, designed to support the latest Intel processors, including Intel Core i9, i7, i5, and i3 from the 12th to 14th generation.
• Memory Support:
• DDR5 memory support with speeds of up to 7200MHz (OC), offering exceptional performance for gaming and professional applications.
• Dual-channel memory with 4 DIMM slots, allowing users to install up to 256GB of memory for intensive multitasking and demanding workloads.

Storage and Expansion

• Storage Interface:
• 6.0Gb/s SATA interface for reliable storage device connections.
• M.2 Expansion Slots:
• 3 x M.2 slots, including one with PCIe Gen4x4 (64 Gb/s) mode, offering the fastest data transfer speeds for SSDs.
• These slots provide high-speed storage for faster boot times and file transfers.

Graphics and Audio

• Multi-GPU Support:
• Supports AMD CrossFireX, enabling multiple GPUs for enhanced graphics performance in gaming and graphics-intensive tasks.
• Graphics Expansion:
• 1 x PCIe 5.0 x16 slot for high-speed graphics card support.
• 1 x PCIe 3.0 x16 slot for additional expansion options (x4 mode).
• Audio Chipset:
• Realtek ALC897 audio codec, supporting 7.1-channel high-definition audio, delivering immersive sound for gaming and media consumption.

Connectivity and Ports

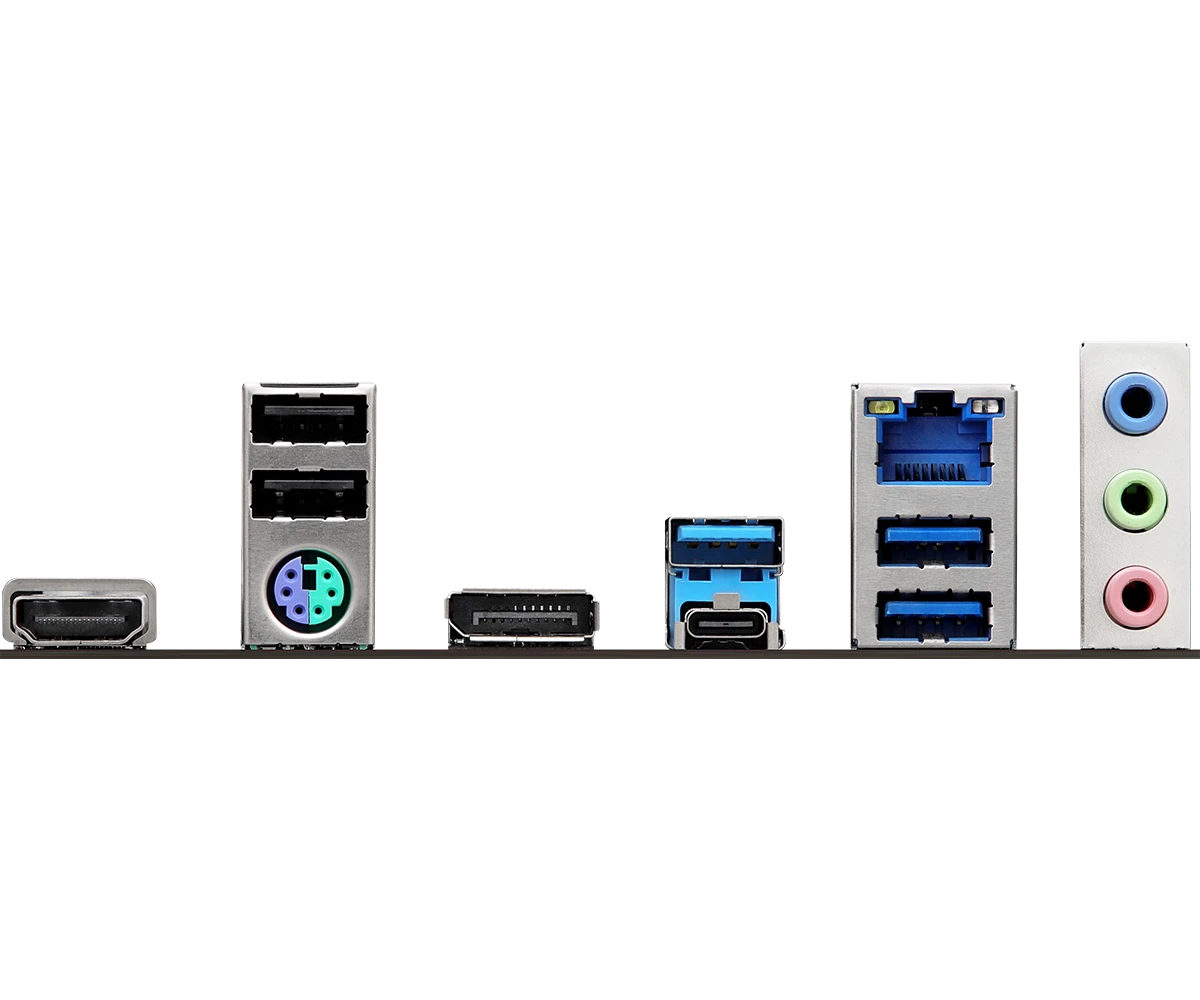

• USB Ports:
• 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, and 2 x USB 2.0 ports for versatile connectivity with a wide range of devices.
• Video Outputs:
• 1 x VGA, 1 x HDMI, and 1 x DisplayPort (DP) for flexible display connectivity options.
• Network Connectivity:
• Dragon RTL8125BG 2.5Gb Ethernet controller, offering high-speed 10/100/1000/2500 Mbps LAN speeds for stable and fast network performance.

Design and Build

• Form Factor:
• Micro-ATX form factor, providing a compact design that fits into smaller PC cases while still offering ample expansion options.
• Cable Management:
• Front cable management for an organized and clean build, improving airflow and aesthetics.
• Power Consumption:
• Approximate power consumption of 60W, ensuring efficient power use for a variety of builds.

Compatibility

• Operating System Compatibility:
• Supports Windows 10 and Windows 11, ensuring compatibility with the latest software and features.
• Processor Compatibility:
• Compatible with Intel Core 12th, 13th, and 14th generation processors (LGA1700 socket), making it ideal for both current and future Intel CPU models.

Warranty Information

• 3-Year Warranty provides reliable support and coverage for your motherboard, ensuring long-lasting performance.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x ASRock B760M PG LIGHTNING D5 Micro-ATX Motherboard
• 1 x I/O Shield
• 1 x User Manual

Price and Availability

• Available at Computer Village Agrabad, Chattogram, Bangladesh.
