Asrock B650M PG Lightning DDR5 AMD Motherboard
Key Specification
Product Specification
|
Brand |
Asrock |
|
Model |
Asrock B650M PG
Lightning |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B650 Sockets
Supported: AM5 Built-in
Processor: Unmentioned Supported
CPU : Ryzen 9000, 8000 and 7000 Series Processors Generation
: N/A |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 7200+(OC)/ 7000(OC)/ 6800(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/
5000/ 4800 Non-ECC, Un-buffered Memory Memory Channel: Dual Memory Slot: 4 Memory Slot (Additional Info) : Unmentioned Memory Max: 256GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion Slot Details: 3 x M.2, (1 x Blazing M.2 Socket (M2_1, Key M),
supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket
(M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x M.2
Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode)) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: AMD RDNA Graphics Support Multi-GPU Support: Yes PCI Express Slot: 1 x PCIe 4.0 x16 Slot
(PCIE1), supports x16 mode, 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Audio Codec Audio
Channel – 7.1 |
|
Network & Connectivity |
LAN Chipset: Dragon RTL8125BG LAN Speed (Mbps): 10/100/1000/2500Mb/s WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1 x USB 3.2 Gen2 Type-C Port
(10 Gb/s), 2 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports VGA
Port: Unmentioned DVI
Port: Unmentioned HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
1 TPM
Port: Unmentioned |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Yes Sli Support: Unmentioned RGB Support: RGB RGB Connector: 1 x RGB LED Header Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10, Windows 11 Compatible
Products: AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Asrock
B650M PG Lightning Micro-ATX Motherboard

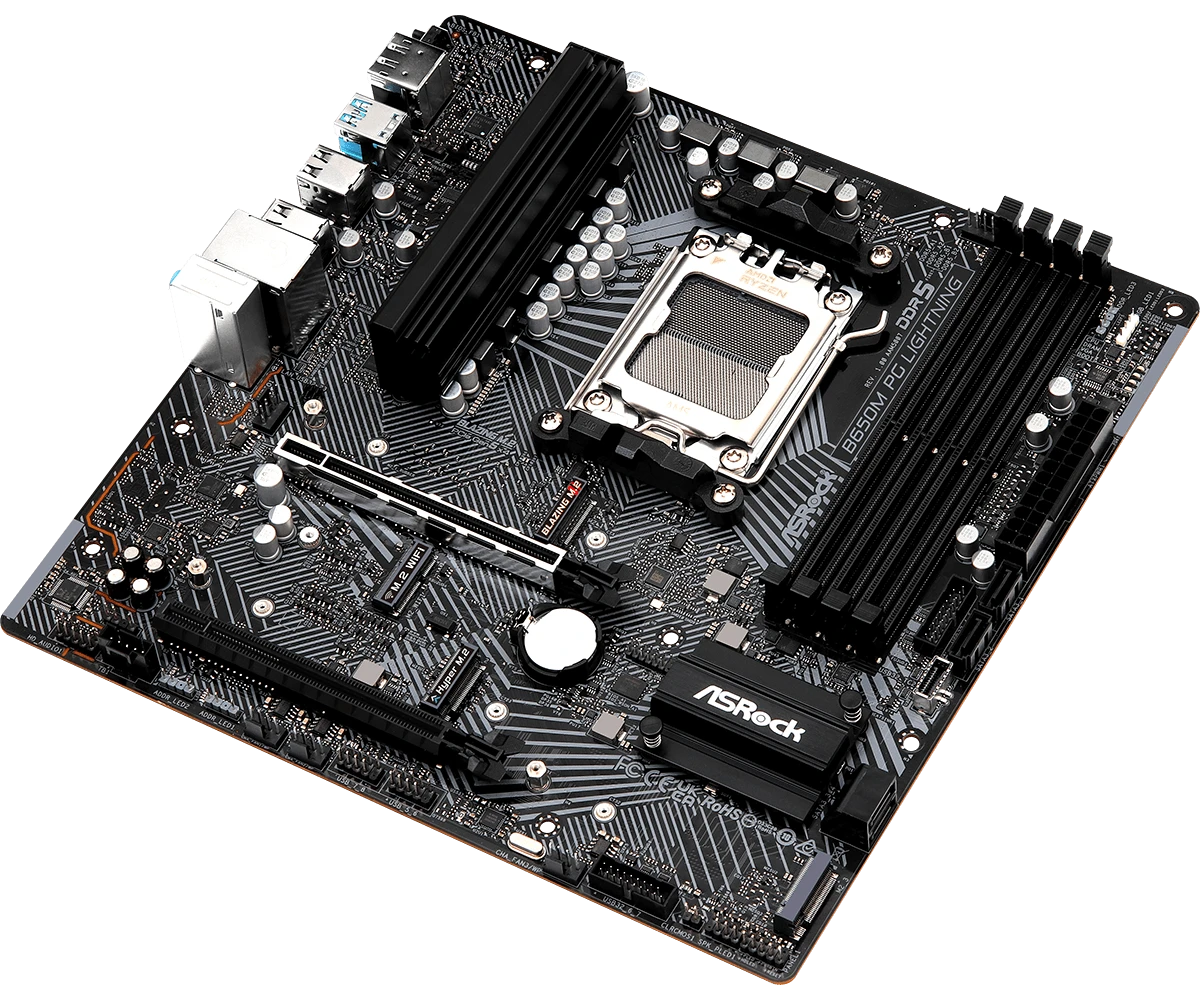

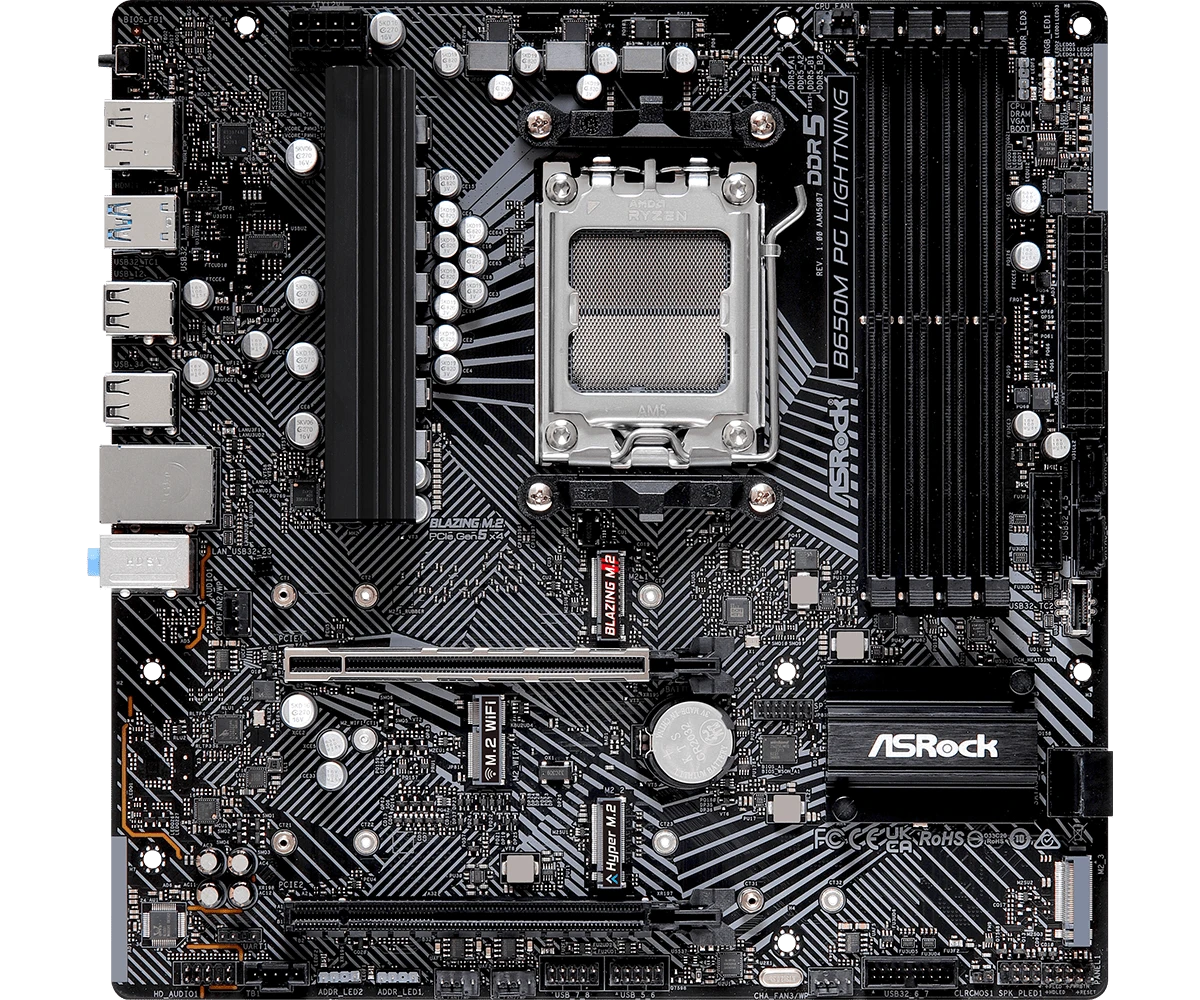

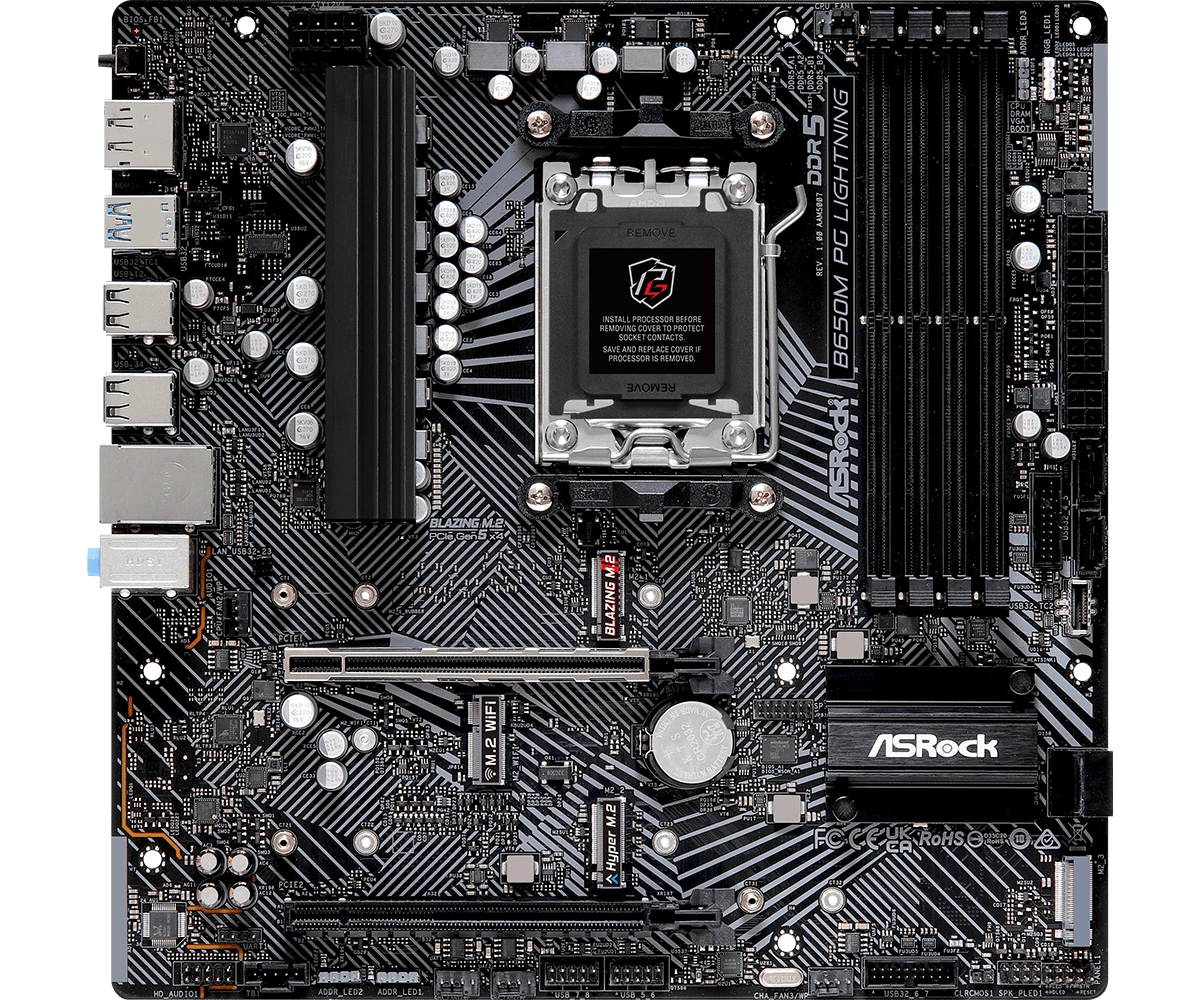

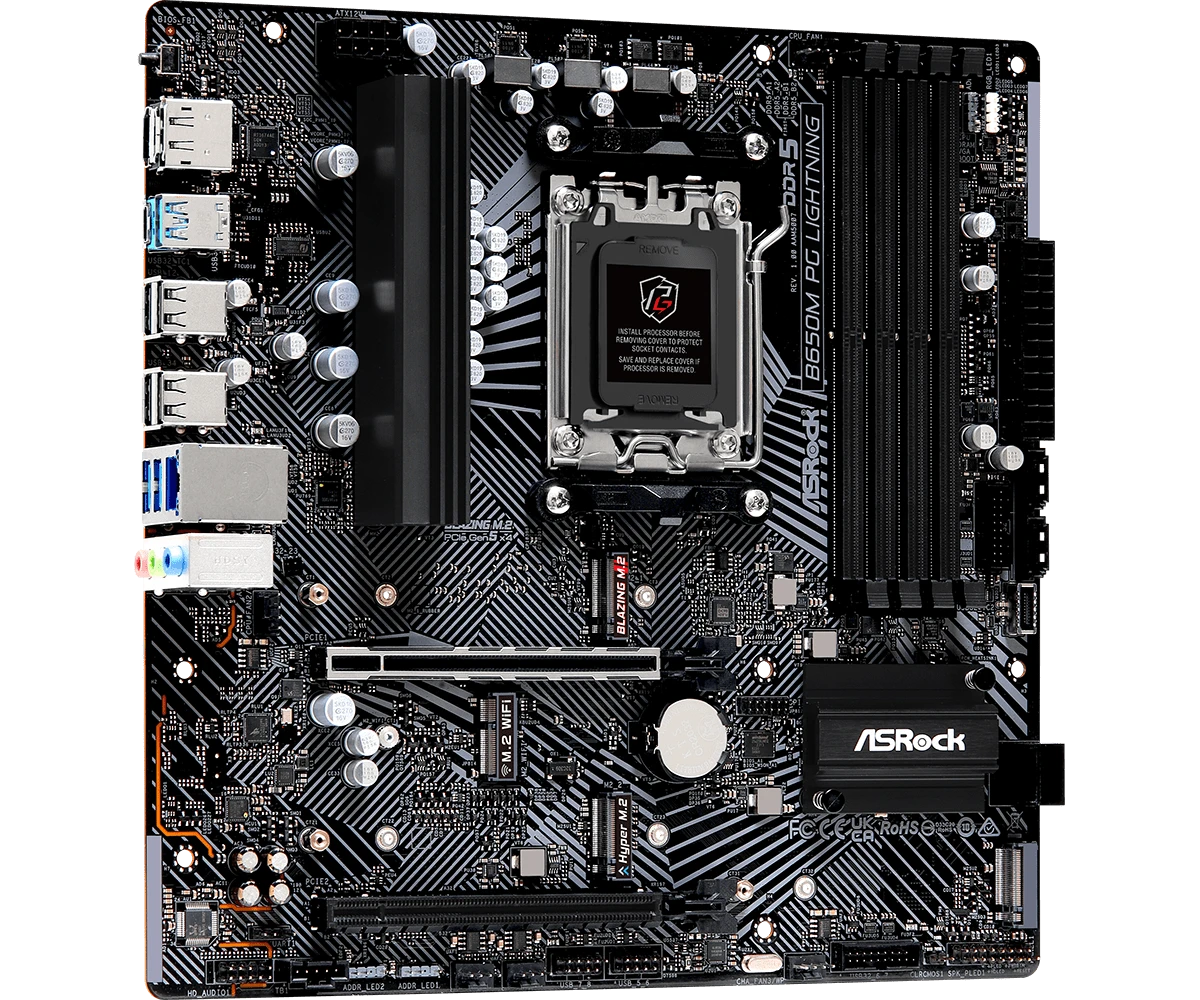

The Asrock B650M PG Lightning
is a feature-rich Micro-ATX motherboard that supports the latest AMD
Ryzen 9000, 8000, and 7000 Series processors. With DDR5 memory
support, PCIe Gen5 and PCIe Gen4 M.2 slots, and robust networking
options, this motherboard is an excellent choice for gamers and content
creators looking to build a high-performance system.
Features
• Processor Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series
processors for cutting-edge performance.
• Chipset: AMD B650 chipset for optimal system stability and
performance.
• Memory Support: Dual-channel DDR5 memory, up to 256GB,
with speeds from 4800MHz to 7200+MHz (OC).
• Audio: Realtek ALC897 codec for 7.1-channel high-definition
audio, providing immersive sound quality.
Storage
Support
• M.2 Slots:
3 x M.2 slots:
1 x Blazing M.2 Socket (M2_1) supports PCIe Gen5 x4 mode (128
Gb/s),
1 x Hyper M.2 Socket (M2_2) supports PCIe Gen4 x4 mode (64 Gb/s),
1 x M.2 Socket (M2_3) supports PCIe Gen4 x2 mode (32 Gb/s).
• SATA Ports:
4 x SATA 6Gb/s connectors for additional storage devices.
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)
• Integrated Graphics: Supports AMD RDNA graphics with the integrated
processor for basic tasks.
• Multi-GPU Support: Yes, supporting advanced graphics setups.
Connectivity
Options

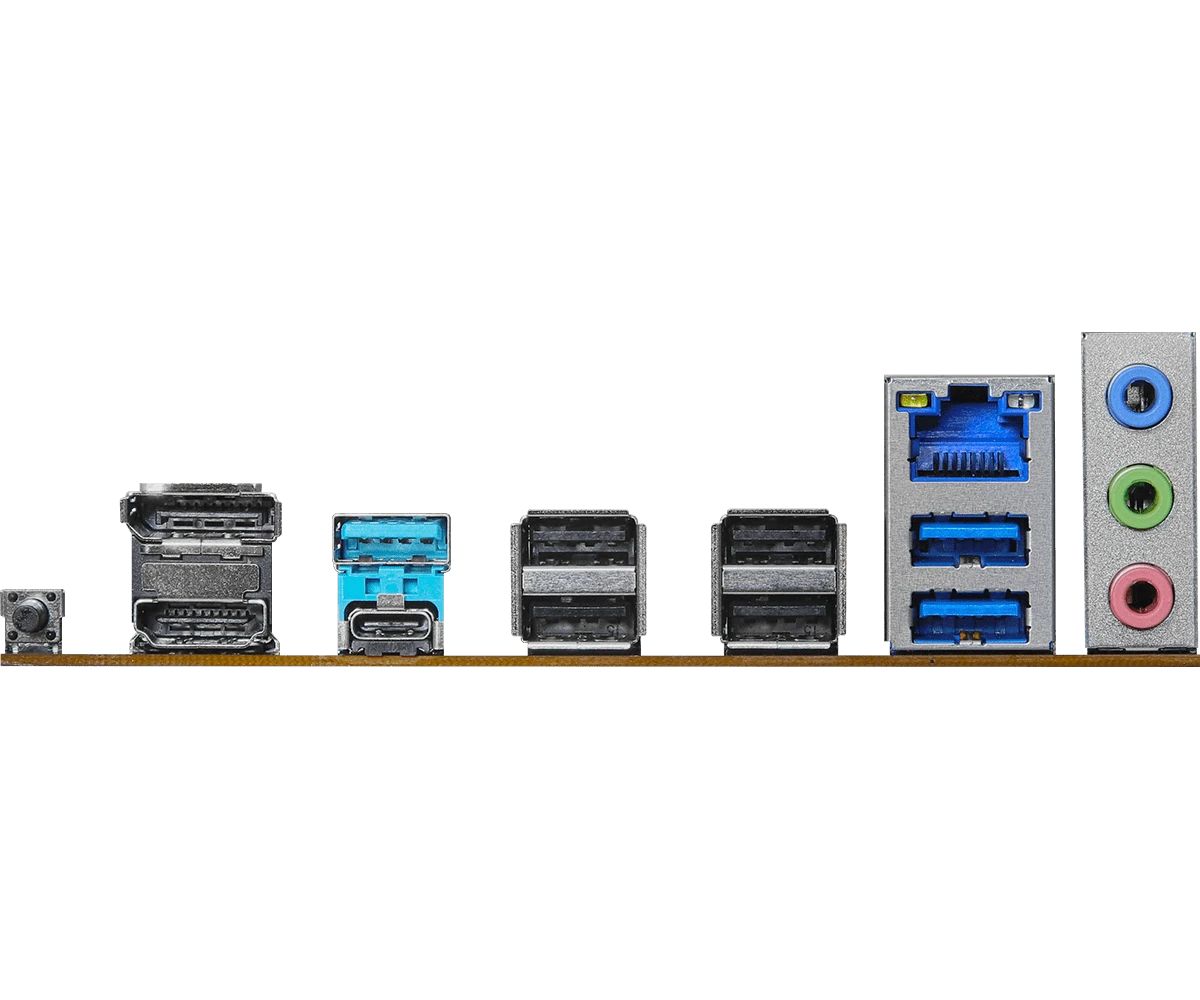

• USB Ports:
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C port (10 Gb/s)
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0 ports
• Video Outputs:
1 x HDMI port
1 x DisplayPort (DP)
Network
and Audio
• LAN Chipset: Dragon RTL8125BG for high-speed wired networking.
• LAN Speed: 10/100/1000/2500Mbps for fast and stable internet
connectivity.
Design
and Build
• Form Factor: Micro-ATX
• Color Scheme: Black
• Heatsink: Unmentioned, may vary depending on the version.
• Power Consumption: Approx. 60W.
Compatibility
• Supported Operating System: Windows 10 and Windows 11
• Compatible Products: Compatible with AMD Socket AM5 and AMD
Ryzen 9000, 8000, and 7000 Series processors.
Warranty
Information
• Warranty: 3 Years warranty for peace of mind.
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh, the Asrock B650M PG Lightning
offers great value with DDR5 memory support, PCIe Gen5/Gen4 M.2 slots,
and excellent networking options. Perfect for users looking for
high-performance and expandability in their builds.
