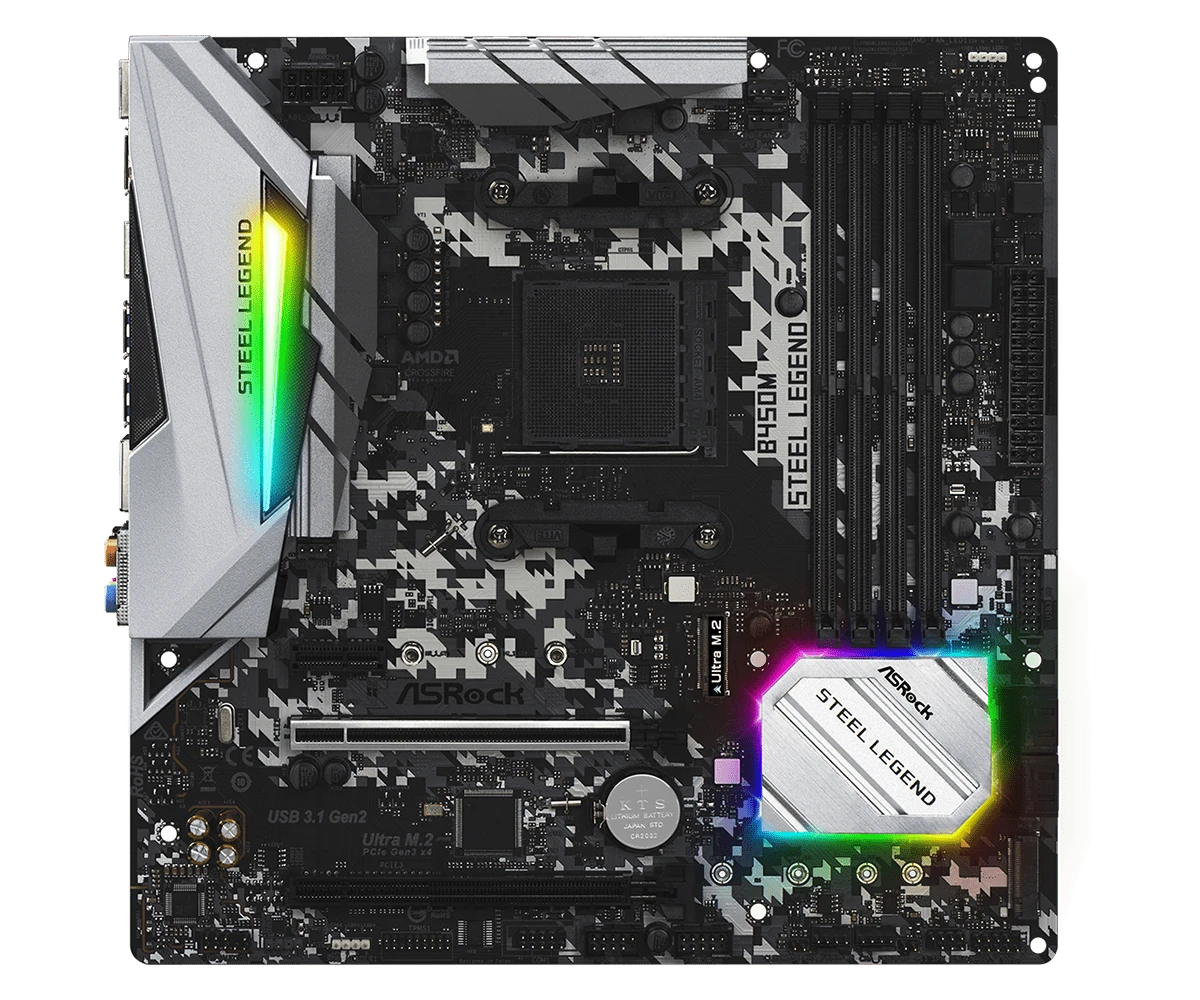

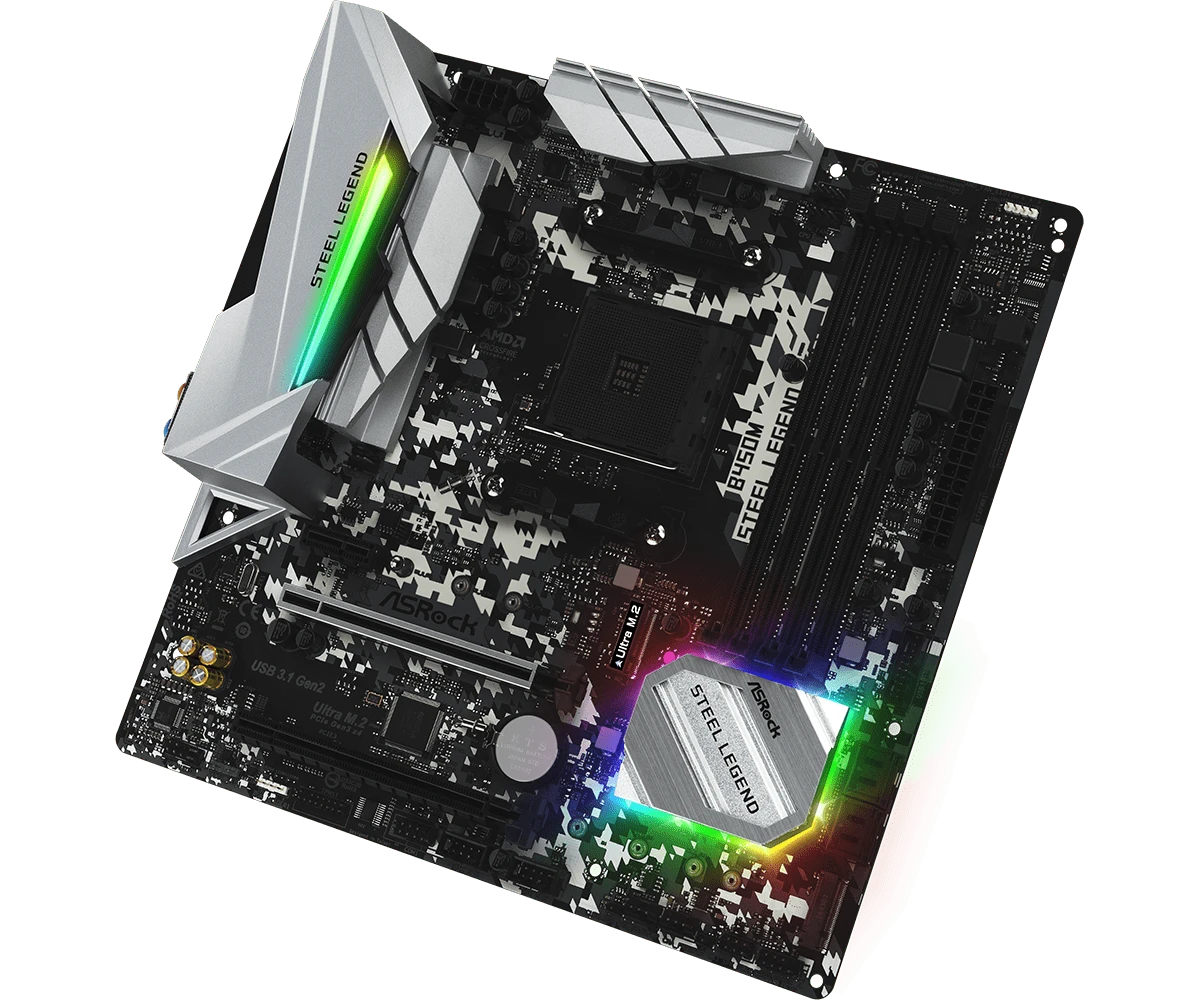

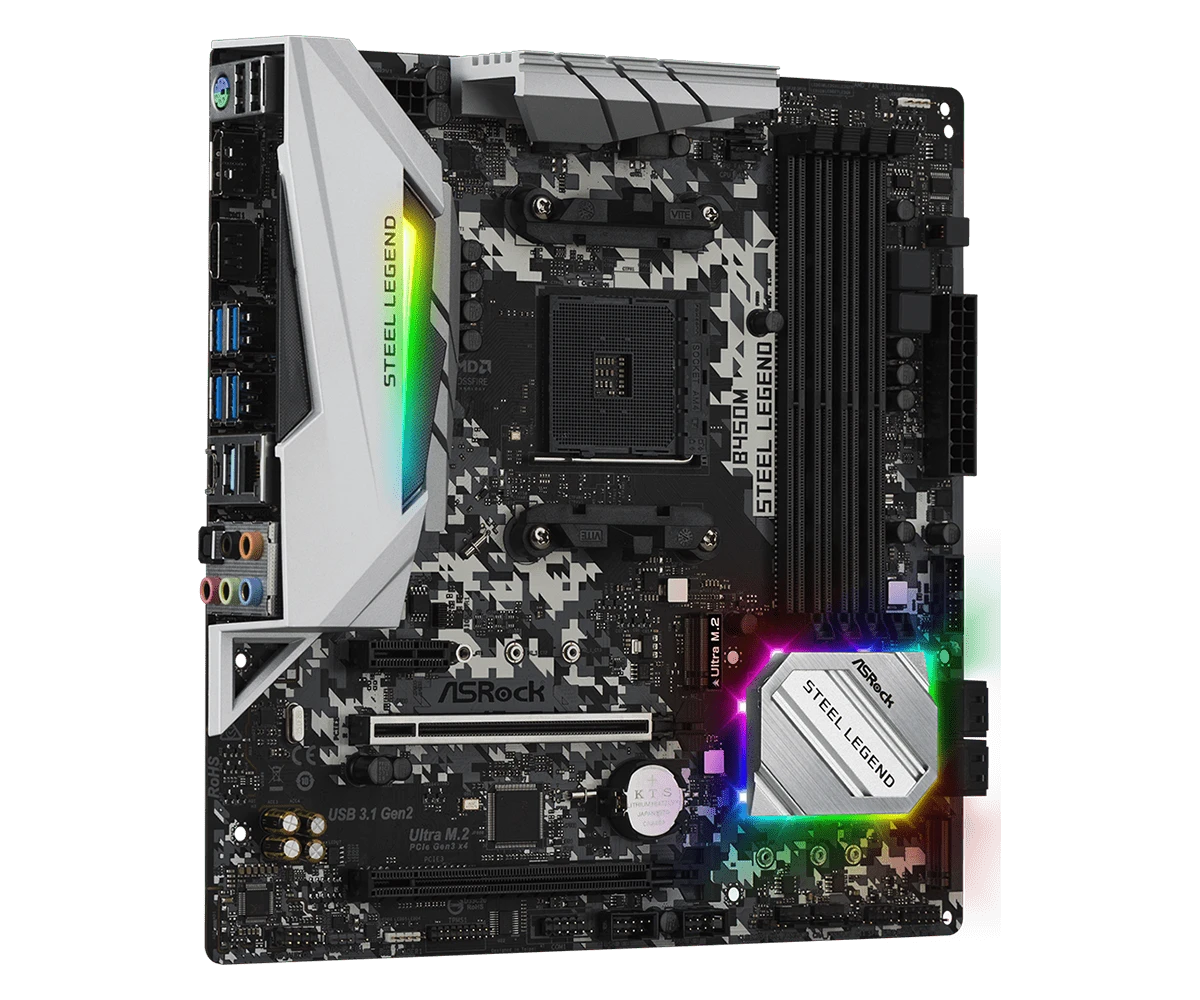

ASRock B450M Steel Legend Micro-ATX Motherboard

The ASRock B450M Steel Legend is a Micro-ATX motherboard designed for high-performance builds using AMD Ryzen 2000, 3000, and 5000 Series processors. With support for DDR4 memory, multiple M.2 slots, and 7.1-channel audio, this motherboard provides an excellent foundation for gaming, content creation, and general computing.

Features

• Processor Compatibility: Supports AMD Ryzen 2000, 3000, and 5000 Series processors with AM4 sockets.
• Chipset: AMD B450 chipset for stability and optimized performance.
• Memory Support: Dual-channel DDR4 memory, with speeds ranging from 2133MHz to 3466+MHz (OC), and a maximum capacity of 128GB.
• Audio: Realtek ALC892/897 codec for 7.1-channel high-definition audio, ensuring high-quality sound for an immersive experience.

Storage Support

• M.2 Slots:
2 x M.2 slots:
1 x Ultra M.2 (PCIe Gen3 x4), supports 2242/2260/2280 M.2 form factors,
1 x M.2 (SATA3), supports 2230/2242/2260/2280 M.2 form factors for SATA storage.

• SATA Ports:
4 x SATA 6Gb/s connectors for additional storage devices.

Expansion and Graphics

• PCIe Slots:
1 x PCIe 3.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)

• Integrated Graphics: Supports AMD Vega Graphics, ideal for light gaming or non-graphic intensive tasks.
• Multi-GPU Support: Not specified.

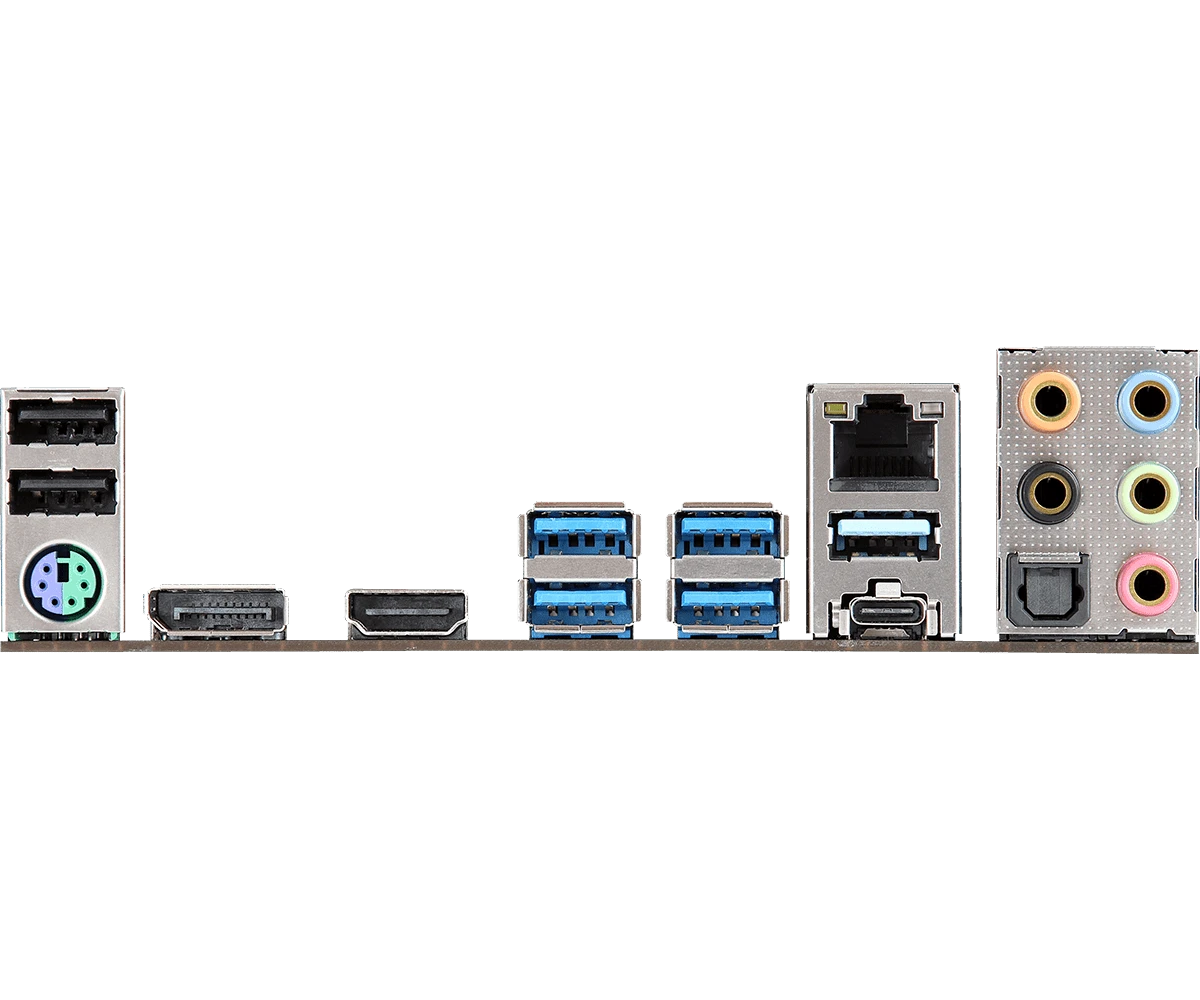

Connectivity Options

• USB Ports:
4 x USB 2.0 ports
5 x USB 3.1 Gen 1 ports
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port

• Video Outputs:
1 x HDMI port
1 x DisplayPort (DP)

Network and Audio

• LAN Chipset: Realtek RTL8111H for reliable wired networking.
• LAN Speed: 10/100/1000Mbps for a stable internet connection.

Design and Build

• Form Factor: Micro-ATX
• Color Scheme: Black
• Heatsink: Unmentioned, but the design may vary based on the version.
• Power Consumption: Approx. 60W.

Compatibility

• Supported Operating System: Windows 10
• Compatible Products: Compatible with AM4 sockets and AMD Ryzen 2000, 3000, and 5000 Series processors.

Warranty Information

• Warranty: 3 Years warranty, ensuring peace of mind for your build.

Price and Availability

Available now at Computer Village Agrabad, Chattogram, Bangladesh, the ASRock B450M Steel Legend offers a great mix of performance and value, making it ideal for users looking to build a powerful yet budget-friendly system.
