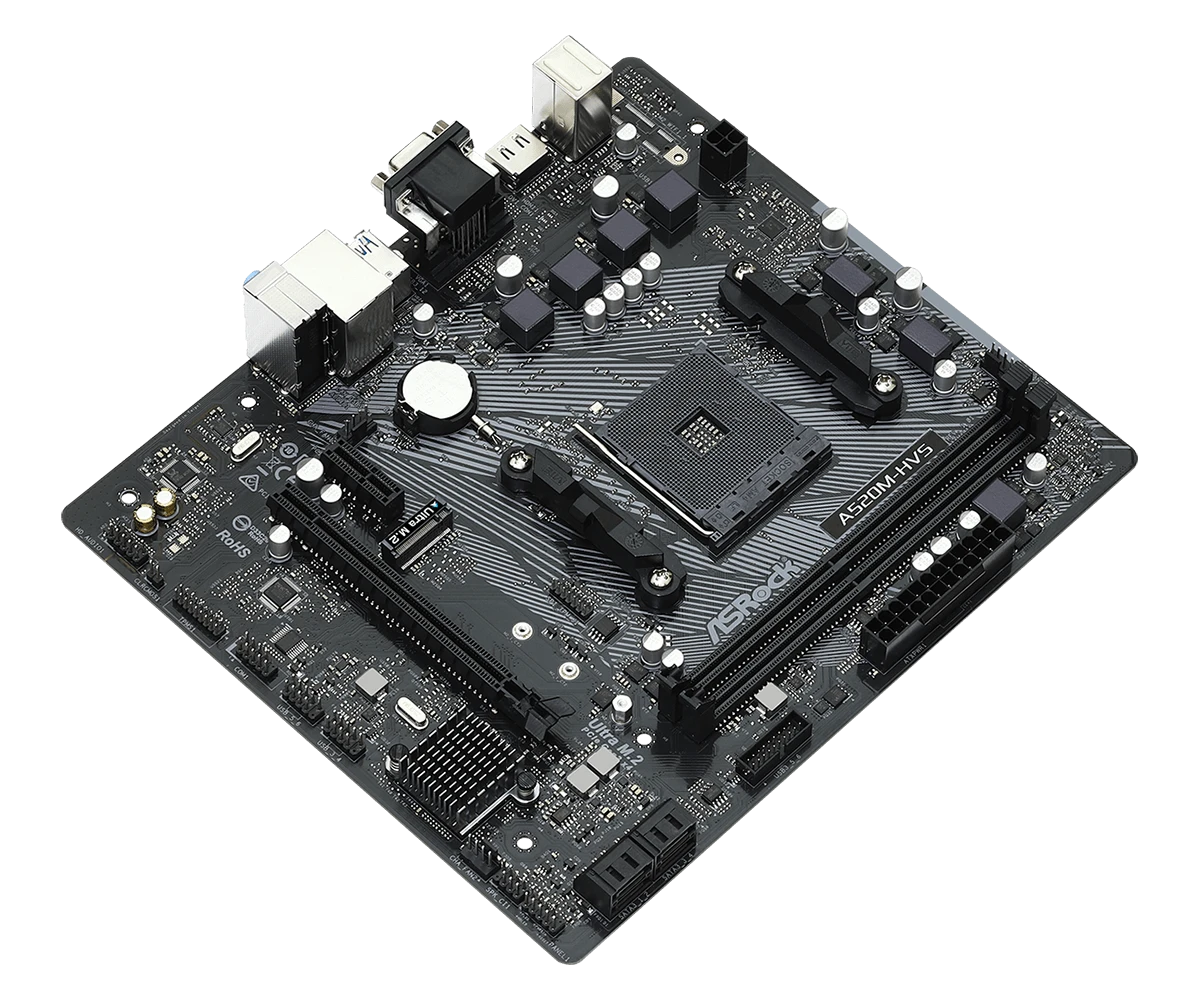

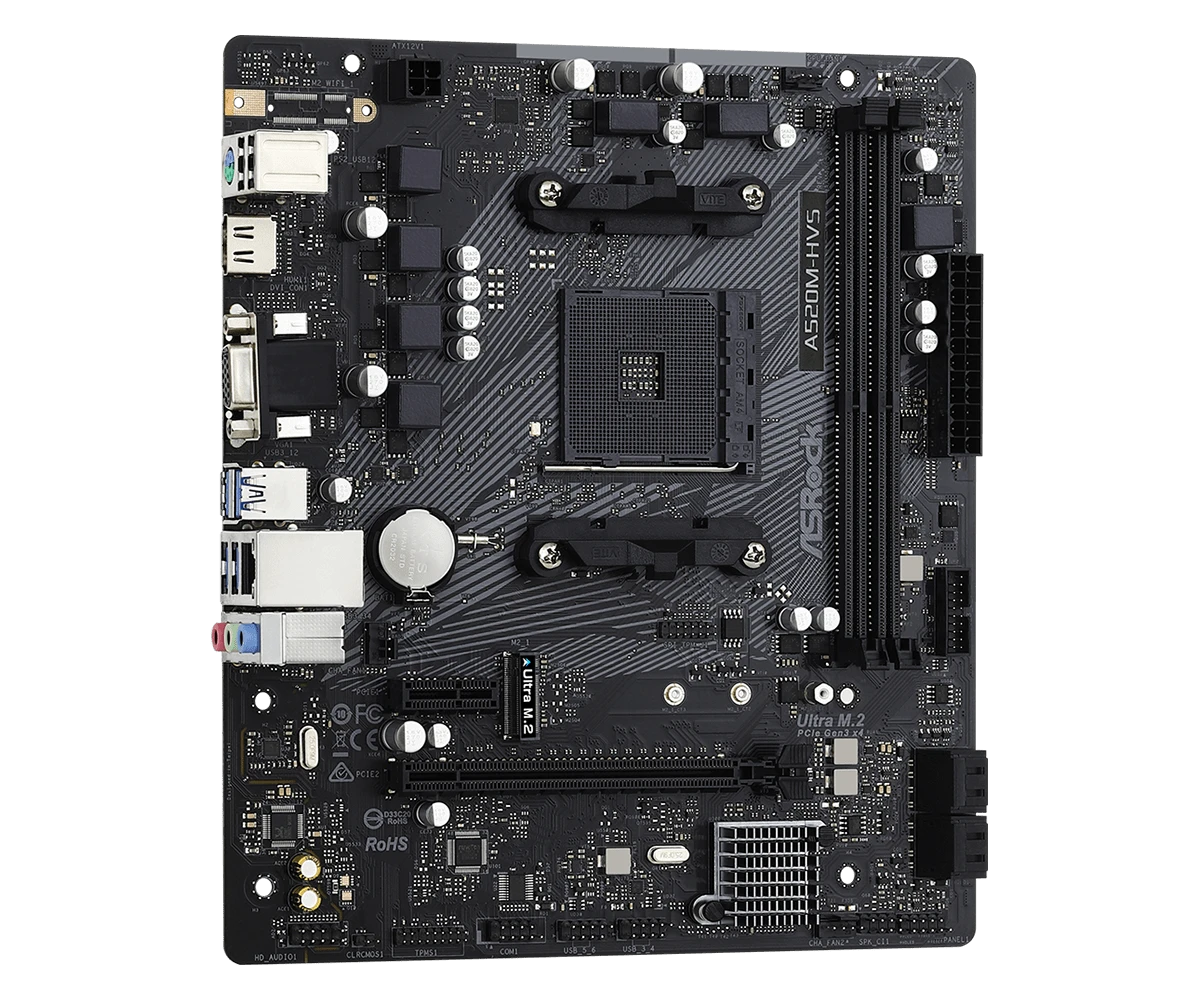

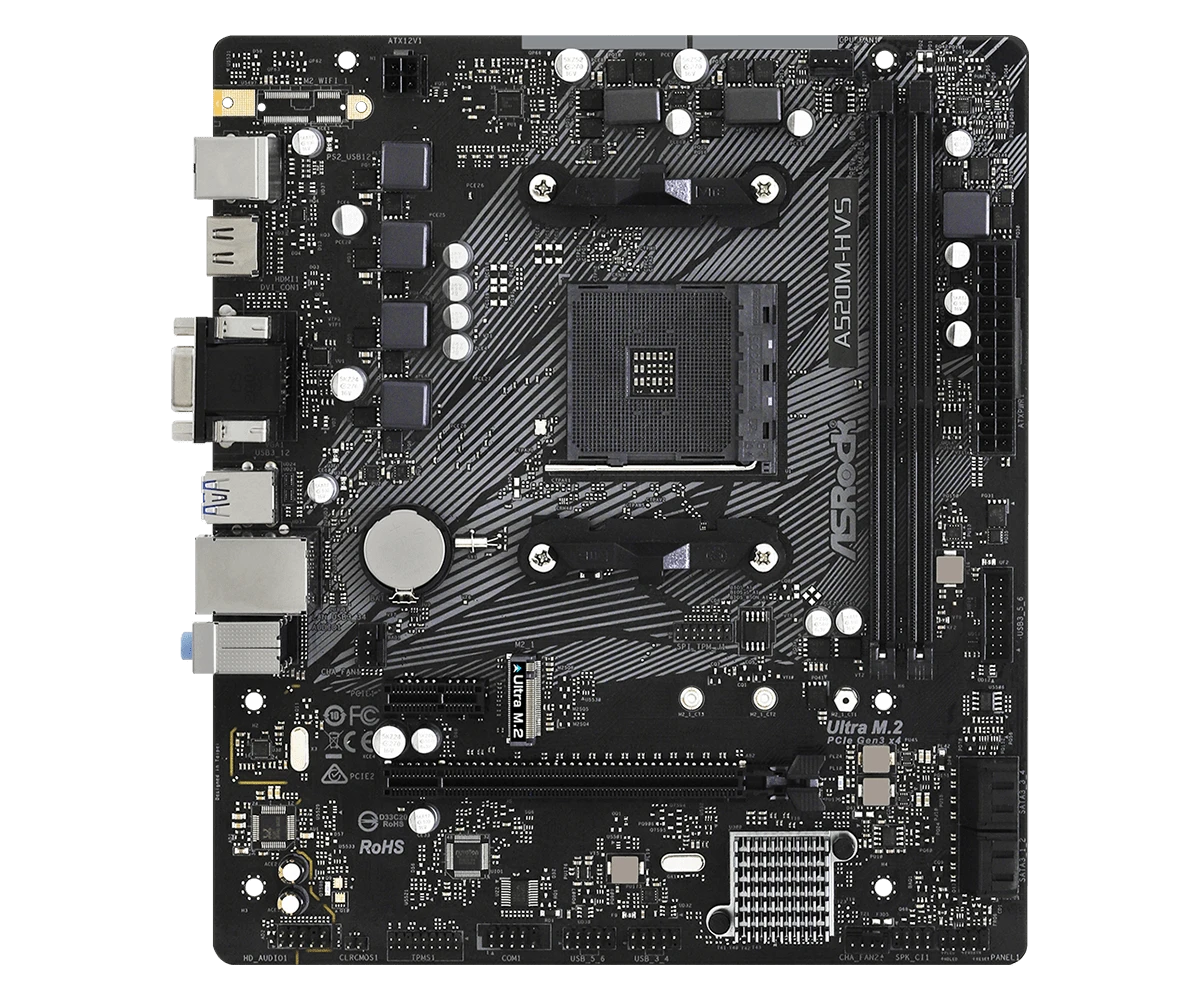

ASRock A520M-HVS Micro-ATX Motherboard

The ASRock A520M-HVS is a compact, budget-friendly motherboard designed to deliver solid performance for AMD Ryzen processors. Ideal for general computing, gaming, and entry-level builds, this motherboard supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors. With DDR4 memory support, M.2 SSD expansion, and USB 3.1 Gen 1 ports, it ensures fast data transfer, smooth multimedia performance, and the ability to handle multitasking with ease.

Features

• Chipset:
• AMD A520 chipset, offering compatibility with the latest AMD Ryzen processors (3000, 4000 G-Series, and 5000 Series) for solid performance and future-proofing your system.
• Socket:
• AM4 socket, supporting a wide range of AMD Ryzen CPUs for a variety of computing needs.
• Memory Support:
• DDR4 memory support with speeds up to 4733MHz (OC), allowing you to maximize memory performance.
• Dual-channel configuration, with 2 DIMM slots and a maximum memory capacity of 64GB, making it ideal for high-performance tasks.

Storage and Expansion

• Storage Interface:
• 6.0Gb/s SATA interface for reliable data transfer with traditional hard drives and SSDs.
• M.2/SSD Expansion Slot:
• 1 x M.2 slot supporting PCIe Gen3x4 (32 Gb/s) and SATA3 6.0 Gb/s, enabling faster storage options with modern SSDs.

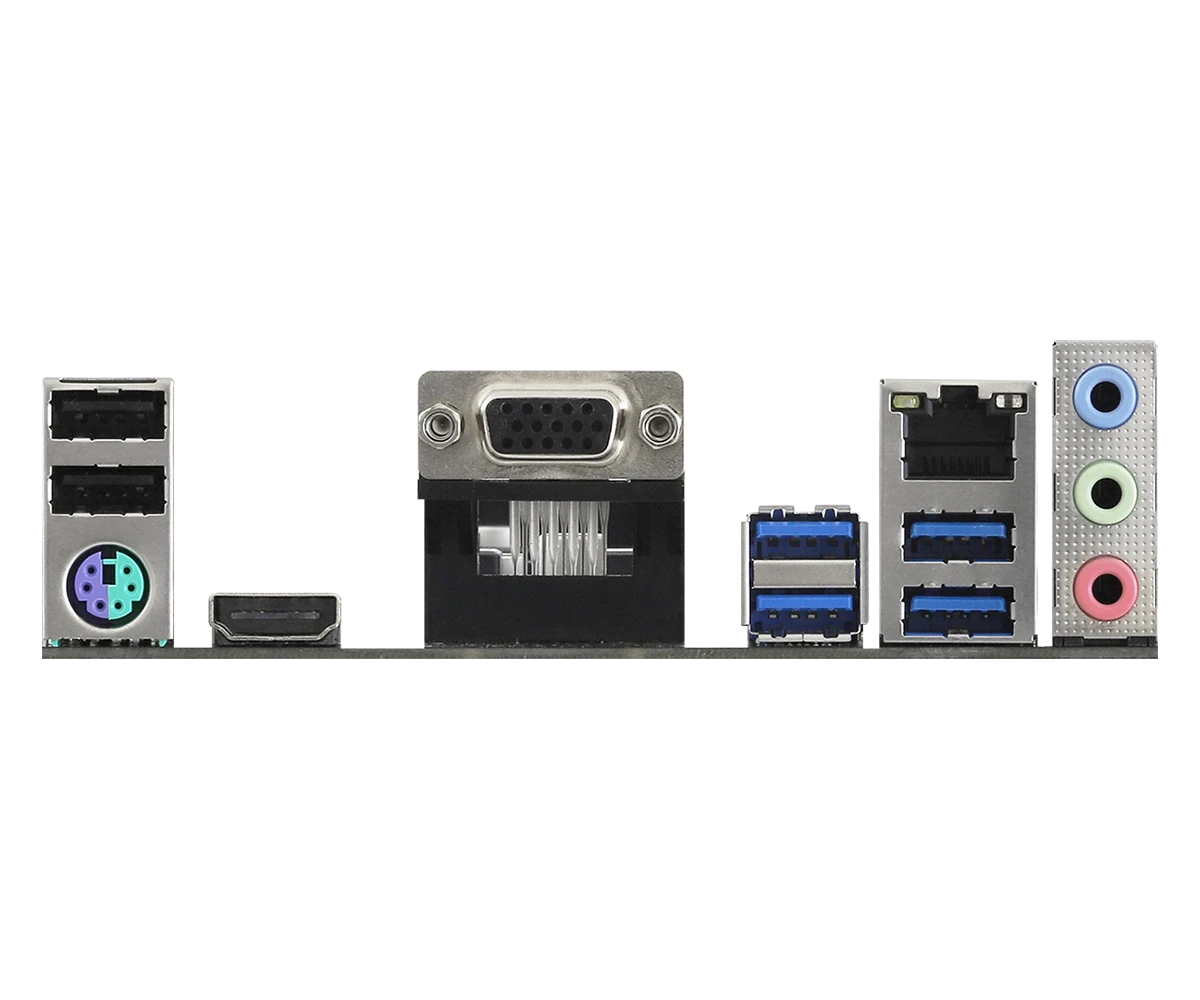

Connectivity and Ports

• USB Ports:
• 2 x USB 2.0 and 4 x USB 3.1 Gen 1 ports for connecting a range of devices, from peripherals to external storage.
• Network Connectivity:
• Realtek RTL8111H Gigabit Ethernet controller for 10/100/1000 Mbps LAN speeds, ensuring stable network performance.
• Video Outputs:
• 1 x VGA and 1 x HDMI port for flexible display connectivity.

Audio and Graphics

• Audio Chipset:
• Realtek ALC887/897 audio codec, supporting 7.1-channel high-definition audio for immersive sound.
• Graphics Expansion:
• 1 x PCIe 3.0 x16 slot and 1 x PCIe 3.0 x1 slot for upgrading to a dedicated graphics card or other expansion cards, enhancing visual performance.

Design and Build

• Form Factor:
• Micro-ATX form factor, providing a compact and flexible design, ideal for smaller builds and cases.
• Cable Management:
• Front cable management for an organized, clutter-free build that promotes better airflow and easier maintenance.
• Heatsink:
• Equipped with a heatsink to ensure efficient cooling and stable performance during heavy workloads.

Compatibility

• Supported Operating Systems:
• Compatible with Windows 10 and Windows 11, ensuring seamless operation for a wide range of applications.
• Processor Compatibility:
• Designed for AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors (AM4 socket), providing flexibility for users choosing from a range of AMD's latest CPUs.

Warranty Information

• 3-Year Warranty provides peace of mind and reliable support throughout the lifespan of the motherboard.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x ASRock A520M-HVS Micro-ATX Motherboard
• 1 x I/O Shield
• 1 x User Manual

Price and Availability

• Available at Computer Village Agrabad, Chattogram, Bangladesh.
