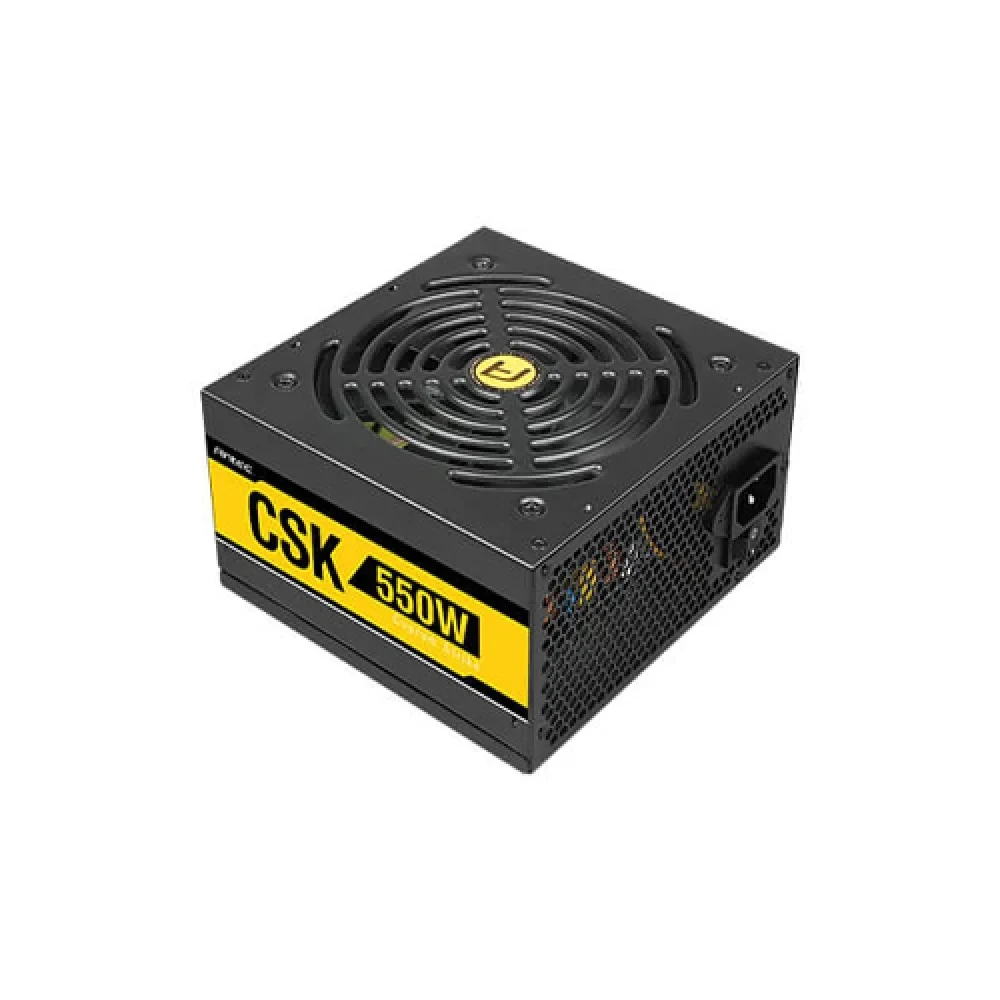

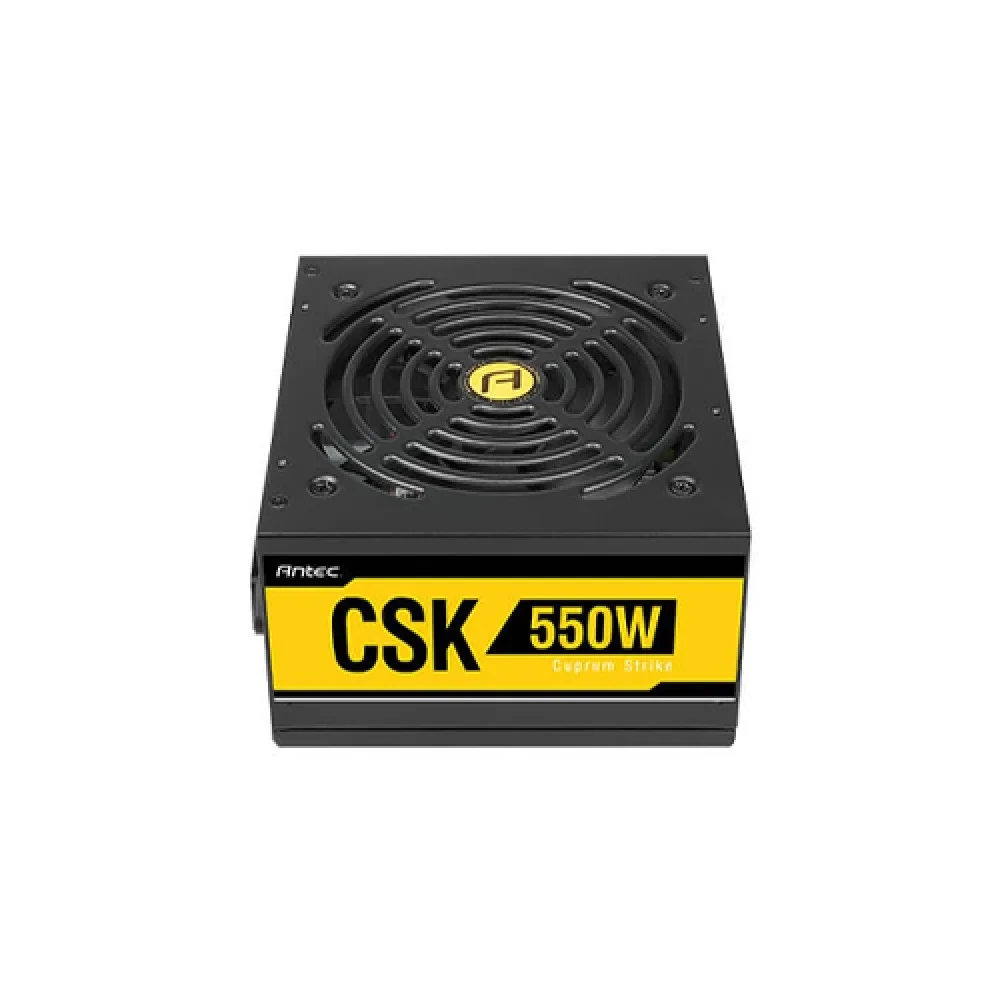

Antec Caprum Strike Series CSK550 550W Power Supply

The Antec Caprum Strike Series CSK550 is a non-modular power supply designed to provide 550W of power, making it a suitable option for mid-range desktop systems. With 80 Plus Bronze certification, it offers a decent level of energy efficiency.

Power and Performance

• Maximum Power Output: 550W – Ideal for mid-range PCs, including general computing and light gaming setups.
• Efficiency Rating: 80 Plus Bronze – This certification ensures efficiency in energy consumption, helping to reduce your electricity costs.
• Efficiency: 88% – The unit provides a relatively high efficiency, contributing to better energy savings during normal operations.
• PFC (Power Factor Correction): Unmentioned – Typically, this ensures the PSU operates efficiently, but this model doesn't explicitly state its PFC.

Protection Features

• Over Voltage Protection (OVP): Yes – Ensures that excess voltage does not harm your components.
• Over Power Protection (OPP): Yes – Protects the PSU from overload situations, automatically shutting it down to prevent damage.
• Over Current Protection (OCP): No – There's no dedicated protection for overcurrent situations, which might be a concern for users running high-powered components.
• Over Temperature Protection (OTP): Yes – Prevents overheating by shutting down the PSU if temperatures exceed safe levels.
• Short Circuit Protection (SCP): Yes – Safeguards the PSU and connected devices in the event of a short circuit.
• Under Voltage Protection (UVP): Yes – Prevents operation under low voltage, avoiding potential instability.

Connectors and Ports

• ATX Main Connector: 1 x 24-pin (20+4) – Standard main connector for most modern motherboards.
• EPS Connector: 1 x 8-pin (4+4) – Essential for powering the CPU, ensuring compatibility with most motherboards.
• PCIe Connectors: 2 x 6+2-pin PCIe – Supports dual graphics cards or high-performance GPUs.
• SATA Power Connectors: 7 – Provides sufficient connections for modern storage devices.
• 4-Pin Peripheral Connectors: None – This PSU does not include any 4-pin peripheral connectors, which may be needed for older devices.
• Floppy Connectors: 1 – A legacy connector, though rarely used in modern builds.

Cooling and Fan

• Fan Size: 120mm – A standard fan size to maintain cooling and airflow in the PSU.
• Zero RPM Fan Mode: No – The fan runs continuously while the PSU is in use.
• Fan Bearing: Unmentioned – The fan bearing type isn't specified, but it generally affects noise levels and longevity.

Physical Attributes

• Form Factor: ATX – Standard form factor for most desktop cases.
• Dimensions: 150 x 140 x 86mm – Slightly larger in depth, so make sure it fits in your PC case.
• Color: Black – A common, neutral color that fits most PC builds.

Warranty

• 5-Year Warranty – Provides long-term assurance of product quality and reliability.
