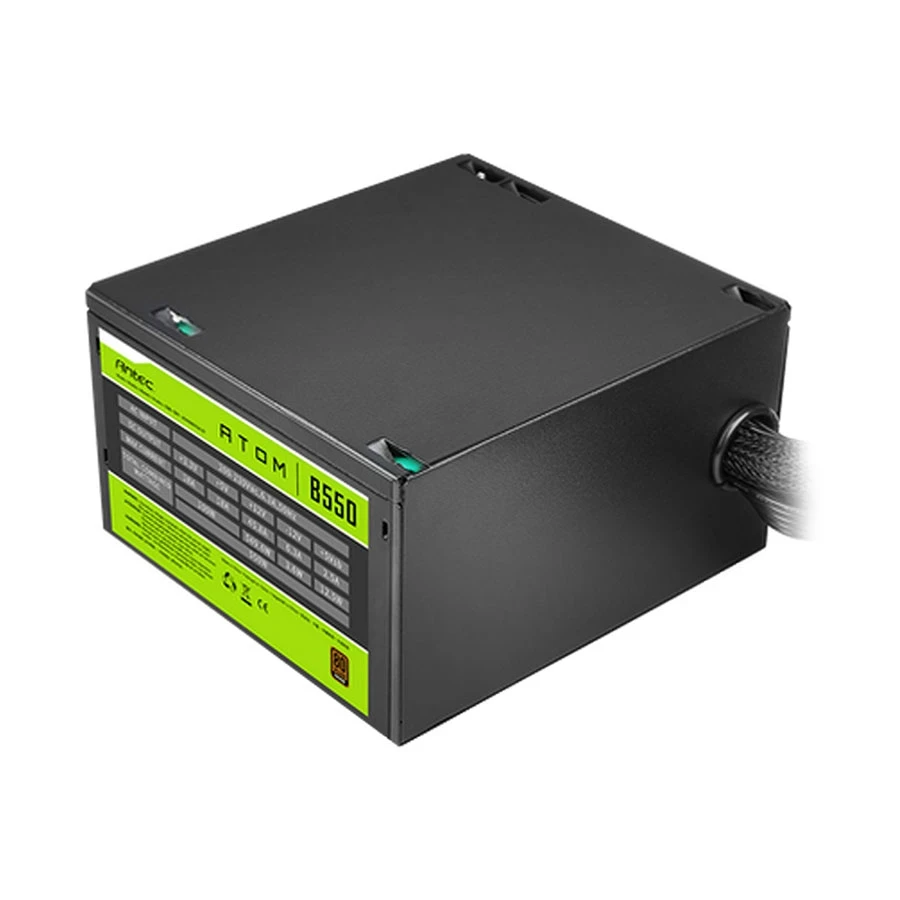

Antec ATOM B550 550W Power Supply

The Antec ATOM B550 is a 550W non-modular power supply that delivers stable and efficient power for mid-range PC builds. Certified with 80 Plus Bronze, it offers good energy efficiency, making it suitable for general computing and light gaming systems.

Power and Performance

• Maximum Power Output: 550W – Adequate for mid-range systems, such as general use PCs or systems with a single graphics card.
• Efficiency Rating: 80 Plus Bronze – Provides a minimum of 82% efficiency at 20% load, 85% at 50%, and 82% at 100% load, reducing energy consumption and improving stability.
• Efficiency: Unspecified, but the 80 Plus Bronze rating suggests decent energy savings.
• PFC (Power Factor Correction): Unmentioned – While this is typically included in modern PSUs, it's not specified here.

Protection Features

• Over Voltage Protection (OVP): Yes – Protects against dangerous voltage surges that could damage the components.
• Over Power Protection (OPP): Yes – Prevents damage if the PSU is overloaded.
• Over Current Protection (OCP): Unmentioned – Lack of explicit OCP means there's a potential risk for damage under high-current conditions.
• Over Temperature Protection (OTP): No – There's no direct thermal protection in this model.
• Short Circuit Protection (SCP): Yes – Ensures the PSU shuts down in the event of a short circuit.
• Under Voltage Protection (UVP): Yes – Shuts down the PSU if the input voltage is too low, preventing instability.

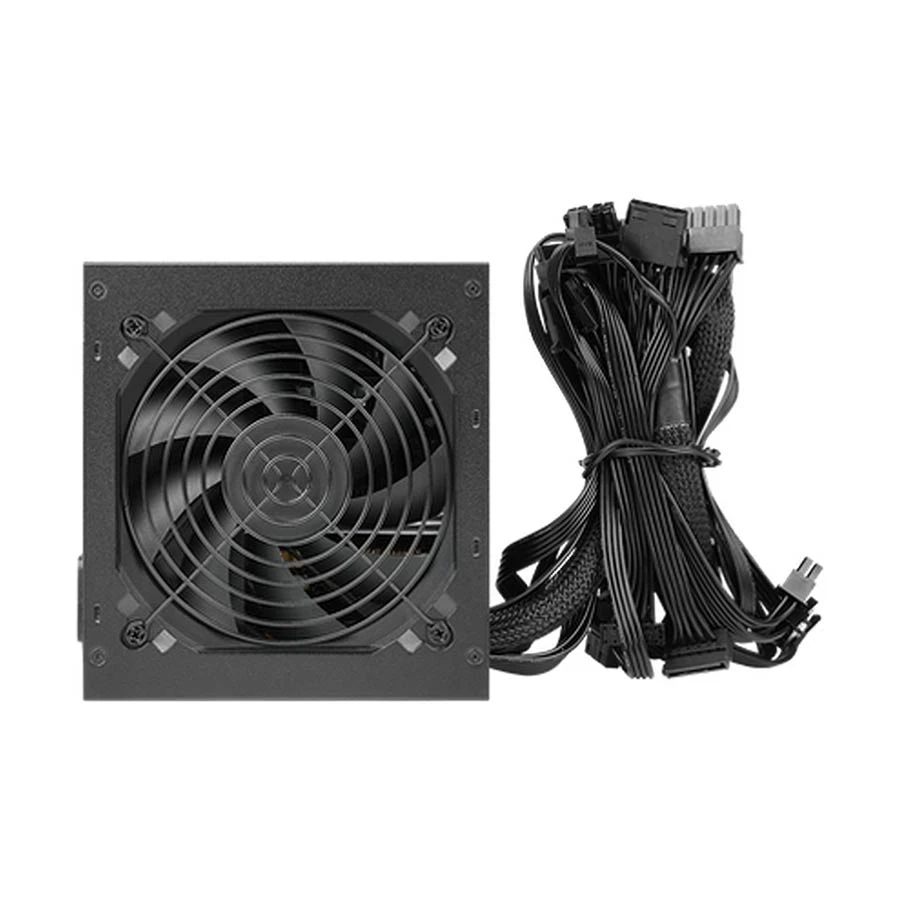

Connectors and Ports

• ATX Main Connector: Unmentioned – The main ATX connector type (24-pin or 20+4) is not specified.
• EPS Connector: 1 x 8-pin – Provides power for the CPU, ensuring stability for most motherboards.
• PCIe Connectors: 2 x 6+2 Pin PCIe – Supports dual graphics cards or high-performance GPUs with enough power.
• SATA Power Connectors: 5 – Provides ample connections for modern storage devices, such as hard drives and SSDs.
• 4-Pin Peripheral Connectors: Unmentioned – This detail is missing for legacy components.
• Floppy Connectors: Unmentioned – No mention of floppy support, which is rare in modern systems.

Cooling and Fan

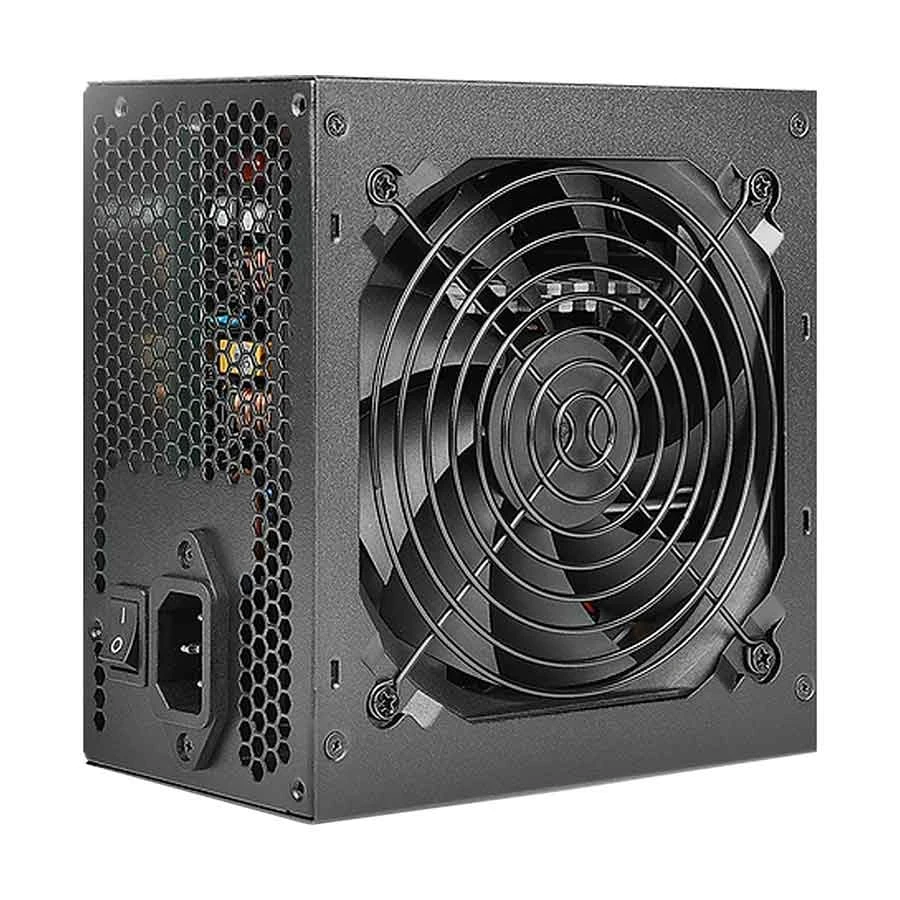

• Fan Size: 120mm – A standard cooling fan size for optimal airflow and cooling.
• Zero RPM Fan Mode: No – The fan runs continuously during operation.
• Fan Bearing: Unmentioned – The type of fan bearing used is unspecified.

Physical Attributes

• Form Factor: Unmentioned – Typically ATX, but not explicitly stated.
• Dimensions: 140 x 150 x 86mm – Standard size for most ATX cases.
• Color: Black – Neutral color, fitting for most PC builds.

Warranty

• 5-Year Warranty – Offers a reliable warranty period, ensuring confidence in product durability and support.
