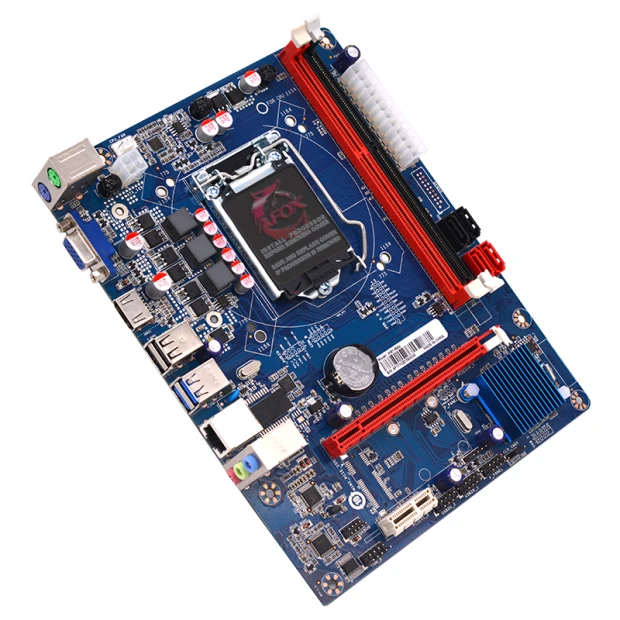

Afox IH81-MA5-V4 DDR3 4th Gen Intel LGA1150 Socket Motherboard
Key Specification
Product Specification
|
Brand |
Afox |
|
Model |
Afox IH81-MA5 |
|
Color |
Blue |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H81 Sockets
Supported: LGA1150 Built-in
Processor: Unmentioned Supported
CPU: 4th generation Core i7 / Core i5 / Core i3 / Pentium / Celeron / Xeon
Processors Generation:
4th |
|
Memory Support |
Memory Type: DDR3 Memory MHz: 1860/ 1600/ 1333/ 1066MHz Memory Channel: Dual Memory Slot: 2 Memory Max: 16GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: Unmentioned M.2/SSD
Expansion Slot Details Unmentioned |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Integrated With Processor Multi-GPU Support: Unmentioned PCI Express Slot: Unmentioned |
|
Audio
& Video |
Audio
Chipset: Realtek 662 on board Audio
Channel - 6 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111 Gigabit
Ethernet on board LAN Speed (Mbps): 10 / 100 / 1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A VGA
Port: 1 DVI
Port: Unmentioned HDMI Port:
1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Unmentioned |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 8 Compatible
Products: Compatible with 4th generation Core i7 / Core i5 / Core i3 /
Pentium / Celeron / Xeon Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Afox
IH81-MA5 Micro-ATX Motherboard
The Afox IH81-MA5 is a
compact and efficient Micro-ATX motherboard powered by the Intel H81
chipset, offering support for a wide range of 4th generation Intel
processors. With essential connectivity and multimedia features, it's ideal
for office builds or entry-level desktops.
Features
Supports 4th Generation Intel
Core i7, i5, i3, Pentium, Celeron, and Xeon processors
Built on the Intel H81 chipset
LGA1150 socket for processor compatibility
Integrated Intel HD Graphics support
Memory
Support
Supports DDR3 memory modules
Compatible speeds: 1860 / 1600 / 1333 / 1066MHz
Dual-channel memory architecture
2 x DIMM slots with up to 16GB total memory capacity
Storage
and Expansion
4 x SATA 6.0Gb/s ports for storage connectivity
M.2 slot: Not mentioned
PCIe slots: Unspecified
Graphics
and Audio
Integrated graphics through CPU's
Intel HD Graphics
1 x HDMI port and 1 x VGA port for dual-display support
Onboard Realtek ALC662 audio codec
6-channel HD audio output
Connectivity
Options
Realtek RTL8111 Gigabit LAN
Supports 10/100/1000Mbps Ethernet
2 x USB 3.0 Type-A ports
2 x USB 2.0 Type-A ports
Wi-Fi and Bluetooth not included
Design
and Build
Micro-ATX form factor
Color: Blue
Front-side cable management support
Approximate power usage: 60W
Compatibility
Compatible with Windows 8 and
above
Designed for Intel 4th Gen Core, Pentium, Celeron, and Xeon processors
Warranty
Information
Backed by a 3-year warranty
Product appearance and feature set may vary by version or kit
Price
and Availability
Available at Computer Village
Agrabad, Chattogram, Bangladesh
Best suited for budget builds, educational PCs, or office
systems
