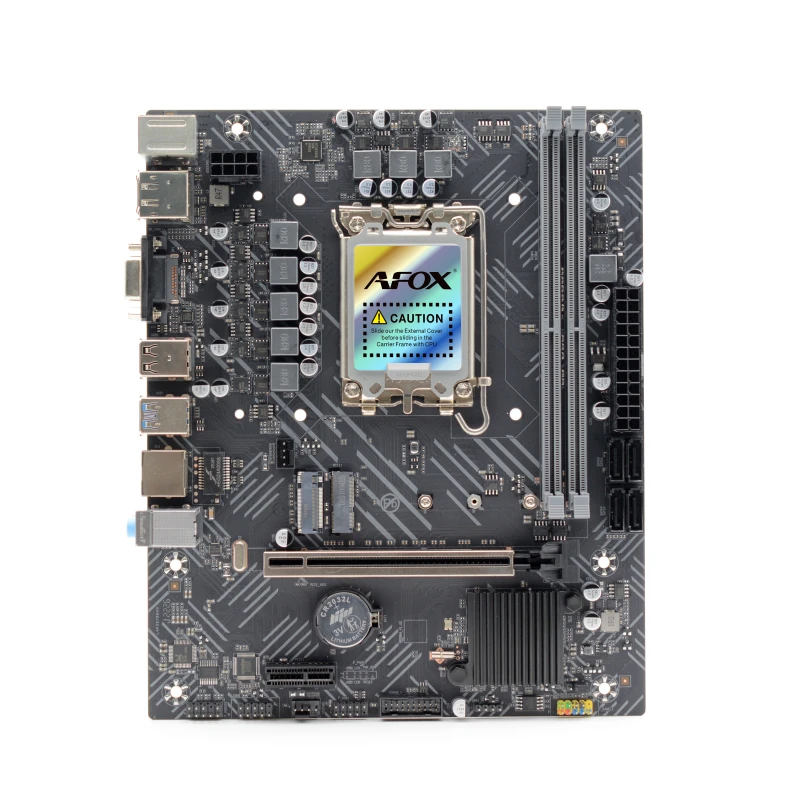

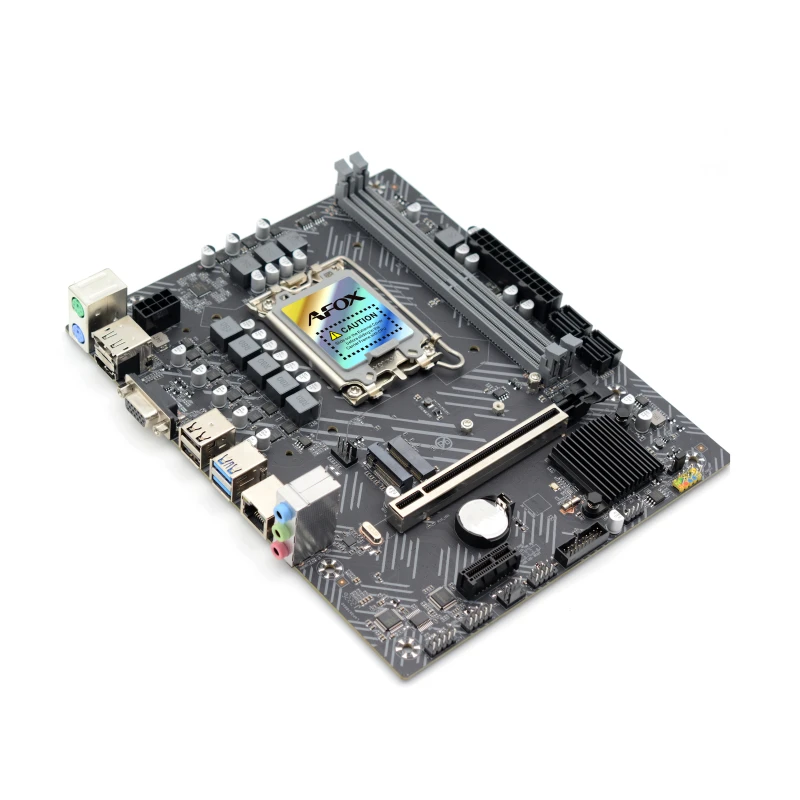

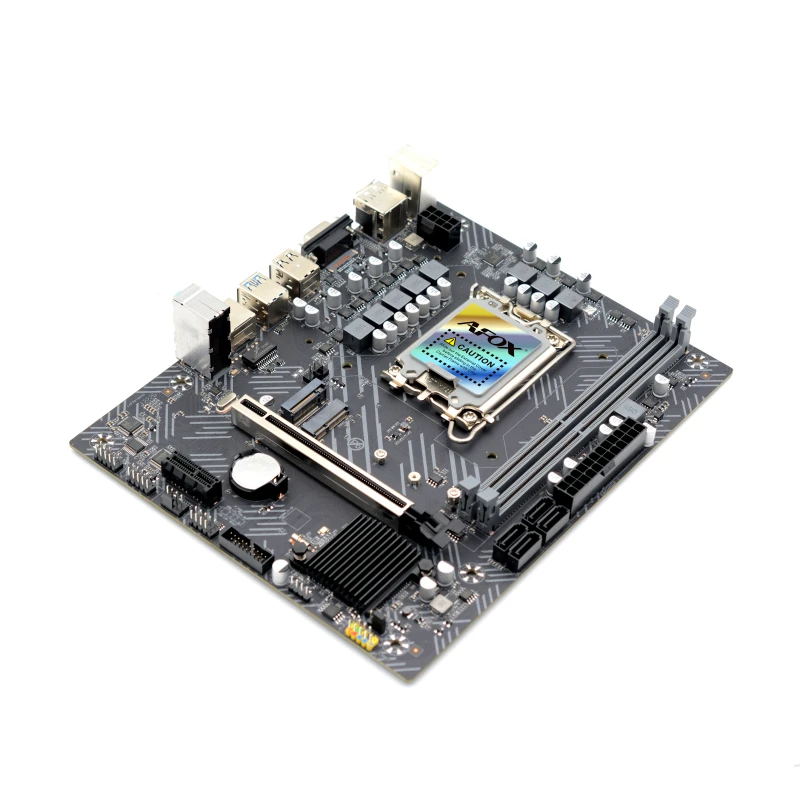

AFOX IH610D4-MA-V2 Intel LGA 1700 12th, 13th & 14th Gen Micro-ATX Motherboard
Key Specification
§ Intel®
B610 Express Chipset
§ 12th,
13th & 14th Gen CPU Support
§ 2x
DDR4- 3200MHz Support (Maximum 64GB)
§ 1x
HDMI, 1x DP Port & 1x D-Sub Output
§ Micro
ATX From Factor
Product Specification
|
Model |
IH610D4-MA-V2 |
|
CPU Support |
INTEL Socket 1700 Supports Intel Core™
i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors Supports Intel 12th
/ 13th / 14th Generation |
|
Chipset |
Intel® H610 |
|
Form Factor |
Micro-ATX (18*22cm) |
|
Memory Support |
2 x Memory Slots
(Max. capacity of system memory 64GB) Dual channel DDR4
memory 2133 / 2400 / 2666 /
2800(O.C) / 3000(O.C) / 3200(O.C) MHz Memory up to 64GB |
|
Storage Support |
4 x SATA III 1 x M.2 (PCIe NVMe
Gen3 x4) |
|
M.2 Socket |
1 x M.2 (PCIe NVMe
Gen3 x4) |
|
Graphics |
1 x D-Sub (VGA) Port 1 x HDMI 1 x DP Port |
|
Network |
Realtek RTL8111
Gigabit Ethernet on board Wake-On-LAN |
|
PCI |
1 x PCI Express x16
4.0 slot 1 x PCI Express x1
slot 1 x Mini PCI-E Slot
(Supports 4G/WIFI Module) |
|
Internal
Connectors |
1 x USB 2.0
pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0
pinheader (supports additional 2 USB 3.0s) 1 x Front Panel
Audio pinheader 1 x Com |
|
Back Panel Ports |
1 x D-Sub (VGA) Port 1 x HDMI 1 x DP Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard
Port 2 x USB 3.0 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack
(Line in / Front Speaker / Microphone) |
|
Audio |
Supports 6-channel
audio-out |
|
USB |
1 x USB 2.0
pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pin
header (supports additional 2 USB 3.0s) |
|
BIOS |
UEFI BIOS |
|
Special Features |
Gigabit LAN PCI Express 4.0
Architecture USB 3.0 |
|
Software
Features |
Driver CD |
|
Warranty |
3 Years |
Product Details
AFOX IH610D4-MA-V2 motherboard is a versatile and powerful option designed for
users seeking reliable performance for their computing needs. Equipped with the
Intel® H610 chipset and Intel Socket 1700, this motherboard
supports Intel Core™ i9, i7, i5, i3, Pentium®, and Celeron® processors
from the 12th, 13th, and 14th generation, ensuring compatibility with
the latest Intel processors for exceptional performance in both personal and
professional environments.
Advanced
Memory Support
The IH610D4-MA-V2 motherboard
provides 2 memory slots that support DDR4 memory with speeds
ranging from 2133 MHz to 3200 MHz (overclocked) and a maximum
capacity of 64GB. Its dual-channel memory architecture ensures
improved data transfer rates, which enhances overall system responsiveness.
This makes it ideal for memory-intensive tasks such as gaming, content
creation, and multitasking, while supporting both standard and overclocked
configurations for additional performance gains.
High-Speed
Storage Solutions
This motherboard offers a wide range
of storage options, including 4 SATA III ports and 1 M.2 PCIe NVMe
Gen3 x4 slot for fast and efficient data access. The M.2 slot
provides high-speed storage performance, ideal for SSDs that can take full
advantage of the PCIe 3.0 architecture, ensuring smooth load times and improved
data handling for applications and games.
Versatile
Graphics Outputs
The IH610D4-MA-V2 is equipped
with multiple video outputs, including 1 D-Sub (VGA) port, 1 HDMI
port, and 1 DisplayPort (DP), offering flexible options for
connecting to monitors or displays. Whether you’re setting up a multi-monitor
workstation or simply need a high-definition display, these ports provide a
reliable and high-quality output for all your visual needs.
Networking
and Expansion
For networking, the motherboard
features the Realtek RTL8111 Gigabit Ethernet on board, ensuring fast
and stable internet connectivity with Wake-On-LAN support. Whether
you're gaming, streaming, or working remotely, the Ethernet connection ensures
seamless online activity. The motherboard also includes 1 PCI Express x16
4.0 slot, 1 PCI Express x1 slot, and 1 Mini PCI-E slot for
expansion, allowing users to add additional components like graphics cards,
WiFi modules, or 4G connectivity.
User-Friendly
and Convenient Design
This motherboard offers a variety of
internal connectors, including support for USB 2.0 and USB 3.0
ports, front panel audio, and additional USB expansion. The UEFI BIOS
provides a streamlined, user-friendly interface for configuring system
settings, ensuring easy customization and optimization for different use cases.
With a 3-year warranty, the AFOX
IH610D4-MA-V2 motherboard is designed for long-term reliability and offers
an excellent foundation for users looking to build a high-performance, stable
system for gaming, work, or general use.
