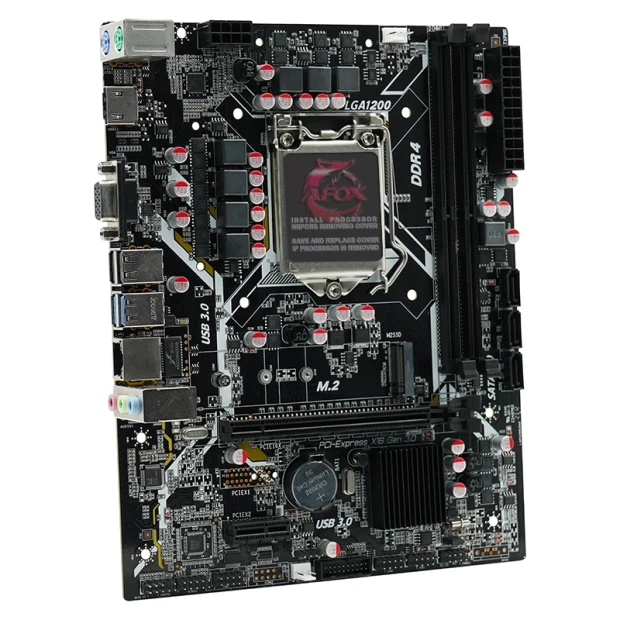

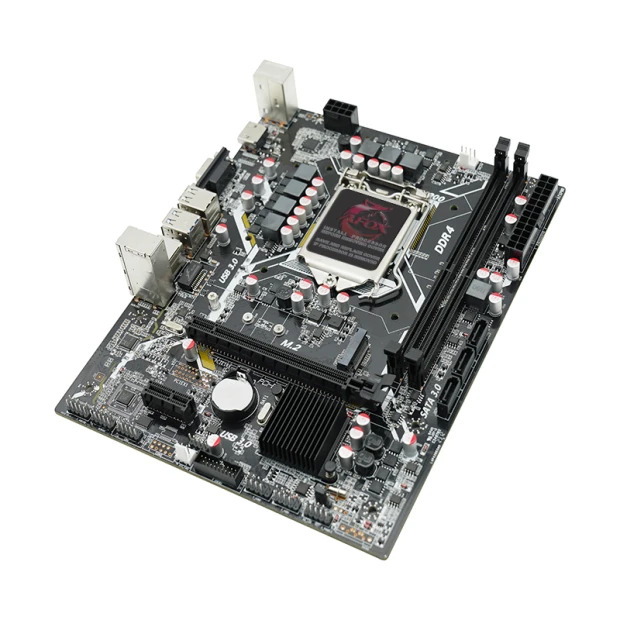

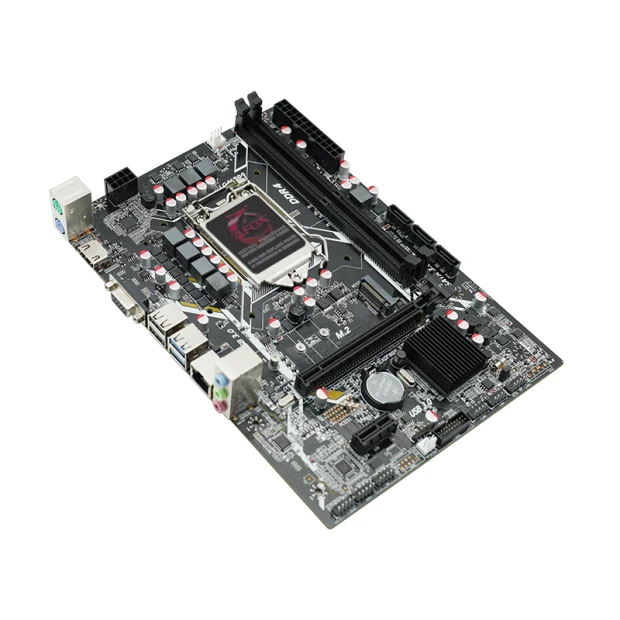

Afox IH510D4-MA6-V2 Micro-ATX Motherboard

The Afox IH510D4-MA6-V2 is a Micro-ATX motherboard featuring the Intel H510 chipset, designed for 10th and 11th Generation Intel Core processors. This motherboard is an ideal choice for users looking to build a reliable yet affordable Intel-based system.

Features

• Processor Compatibility:
Supports Intel Core i9, i7, i5, i3 processors from 10th and 11th Gen with LGA1200 socket.
• Chipset: Intel H510 chipset for stable and efficient performance.
• Memory Support:
Dual-channel DDR4 memory up to 3200 MHz (OC), with a maximum capacity of 64GB.
• Audio:
Onboard Realtek 662/887/897 audio chipset with 6-channel audio support for a rich sound experience.

Storage and Expansion

• M.2 Slot:
1 x M.2 PCIe NVMe Gen3 x4 slot for fast data storage options.
• SATA Ports:
3 x SATA 6Gb/s ports for additional storage devices.

Graphics and Expansion

• PCIe Slots:
1 x PCIe 4.0 x16 slot for discrete graphics cards.
1 x PCIe x1 slot for expansion cards.

• Integrated Graphics:
Supports Intel HD Graphics for basic visual tasks.
• Multi-GPU Support: Not mentioned.

Connectivity Options

• USB Ports:
2 x USB 3.0
2 x USB 2.0
• Video Outputs:
1 x VGA
1 x HDMI

Network and Audio

• LAN Chipset:
Realtek RTL8111 for 1000 Mbps Ethernet connectivity.
• LAN Speed: 10/100/1000 Mbps.

Design and Build

• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black

Compatibility

• Supported Operating System: Windows 10 / Windows 11
• Compatible Products: Compatible with LGA1200 socket processors (Core i9, i7, i5, i3, 10th/11th Gen, CPUs up to 125W).

Warranty Information

• Warranty: 3 years warranty.

Price and Availability

The Afox IH510D4-MA6-V2 motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh, and provides a solid platform for users seeking to build an efficient Intel-based system.
