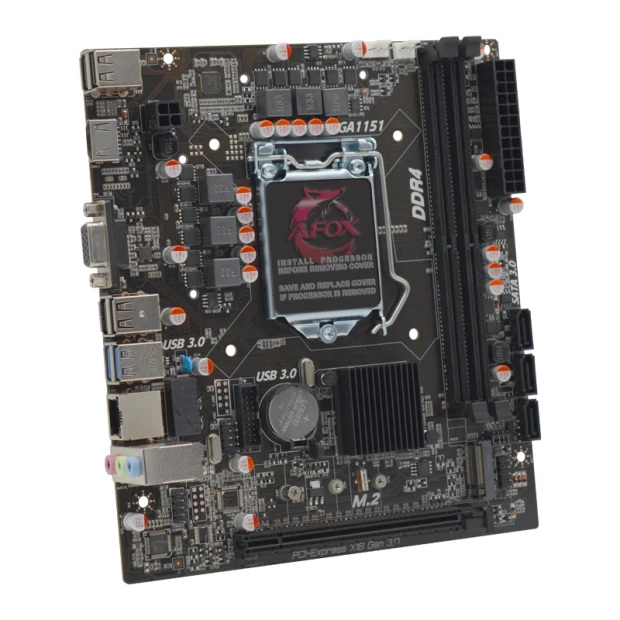

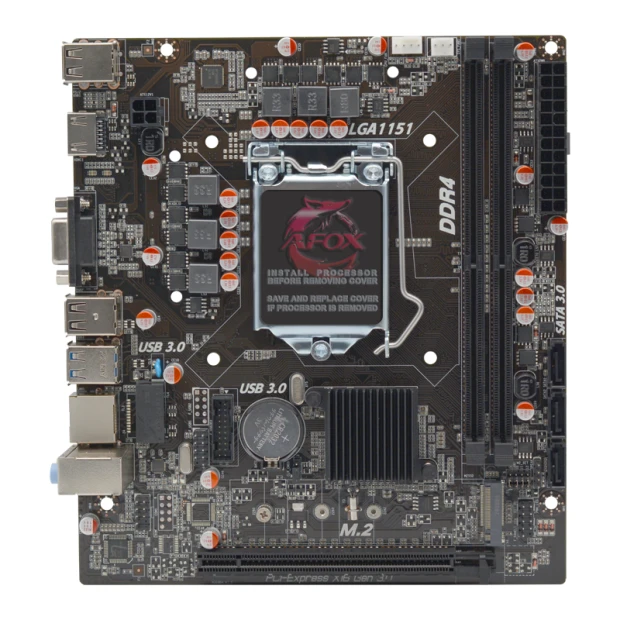

AFOX IH310C-MA6-V4 Intel LGA 1155 6th, 7th, 8th & 9th Gen Micro-ATX Motherboard

(0 reviews)

Key Specification

§  Intel® H310C Express Chipset

§  6th, 7th, 8th & 9th Gen CPU Support

§  2x DDR4- 3000MHz Support (Maximum 64GB)

§  1x HDMI & 1x D-Sub Output

§  Micro ATX From Factor

Contact : 01713-240726
Price
৳6,800.00 /1
Quantity
(5 available)
Total Price
Share

Product Specification

Model

AFOX IH310C-MA6-V4

CPU Support

Intel Core™ i7 / Core™ i5 / Core™ i3 Processors, Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)

Chipset

Intel® H310C

Form Factor

Micro-ATX (17 × 19cm)

Memory Support

2 x Memory Slots (Max. capacity of system memory 64GB)

Dual channel DDR4, two memory slots

2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 64GB

Storage Support

3 x SATA3

1 x M.2 (1 x PCIe NVMe Gen3 x4 & SATA3)

M.2 Socket

1 x M.2 (1 x PCIe NVMe Gen3

Graphics

1 x HDMI Port

1 x D-Sub (VGA) Port

Network

Realtek RTL8111 Gigabit Ethernet on board

Wake-On-LAN

PCI

1 x PCI Express x16 3.0 slot

Internal Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)

1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)

1 x Front Panel Audio pinheader

Back Panel Ports

1 x HDMI Port

1 x D-Sub (VGA) Port

2 x USB 3.0 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port with LED

3 x HD Audio Jack (Line in / Front Speaker / Microphone)

Audio

Realtek 662 on board, Supports 6-channel audio-out

USB

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)

1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)

BIOS

UEFI BIOS

Special Features

SATA 3Gb/s

PCI Express Architecture

USB 2.0

Software Features

Driver CD

Warranty

3 Years

Product Details

AFOX IH310C-MA6-V4 motherboard is a powerful and versatile platform designed to provide optimal performance for users who need reliable computing solutions. Compatible with Intel Core™ i7, i5, and i3 processors, it supports Intel 6th, 7th, 8th, and 9th Generation CPUs, offering compatibility with processors up to 95 watts. The Intel® H310C chipset provides solid support for a range of tasks, from everyday computing to more demanding applications, making this motherboard ideal for both home and office setups.

Memory and Performance

This motherboard features 2 memory slots, supporting dual-channel DDR4 memory with speeds up to 3000 MHz (overclocked). It supports up to 64GB of system memory, ensuring you can handle multitasking, gaming, and professional-grade workloads with ease. Whether you're running multiple applications or editing large media files, the AFOX IH310C-MA6-V4 delivers the performance you need for a smooth, responsive computing experience.

Storage and Expansion

With 3 SATA3 connectors and 1 M.2 slot (supporting PCIe NVMe Gen3 x4 and SATA3 drives), the motherboard provides ample storage options for your needs. The inclusion of an M.2 SSD slot allows for faster data transfers, which improves boot times and access speeds, offering an enhanced overall system experience. Whether for gaming, content creation, or data-heavy applications, the AFOX IH310C-MA6-V4 ensures your storage needs are met.

Graphics and Video Outputs

For video output, the motherboard features 1 HDMI port and 1 D-Sub (VGA) port, providing flexibility in connecting to a variety of displays. The HDMI port supports high-definition video output, while the VGA port allows compatibility with older monitors, ensuring users can utilize both modern and legacy display equipment.

Networking and Connectivity

Equipped with Realtek RTL8111 Gigabit Ethernet onboard, the motherboard ensures a stable and fast network connection, ideal for internet browsing, streaming, and gaming. The Wake-On-LAN feature adds convenience by allowing you to remotely wake up your system when needed.

Connectivity and Audio

With 2 USB 3.0 ports and 4 USB 2.0 ports on the back panel, along with additional internal connectors for more USB devices, the motherboard provides ample options for connecting peripherals. The Realtek 662 audio chip supports 6-channel audio-out, delivering high-quality sound for gaming, music, and entertainment.

User-Friendly Features

The motherboard features a UEFI BIOS for easy setup and system configuration. It also includes a driver CD for convenient software installation.

With a 3-year warranty, the AFOX IH310C-MA6-V4 motherboard provides a reliable and cost-effective solution for users seeking performance, expandability, and flexibility in their desktop builds.
