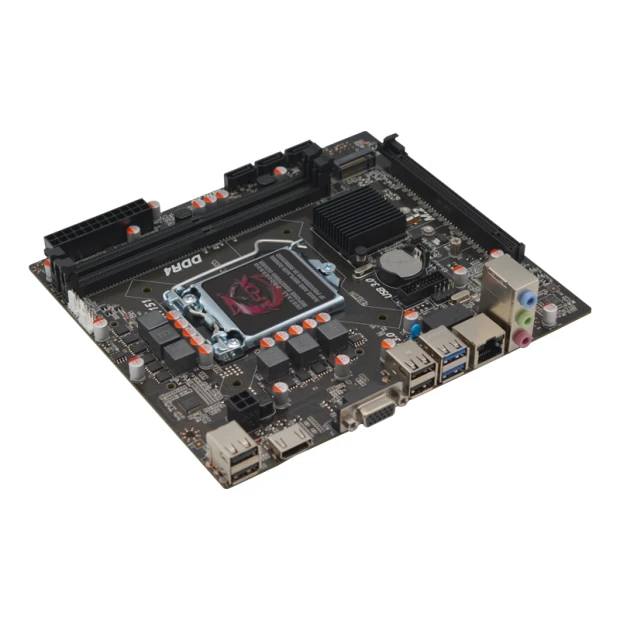

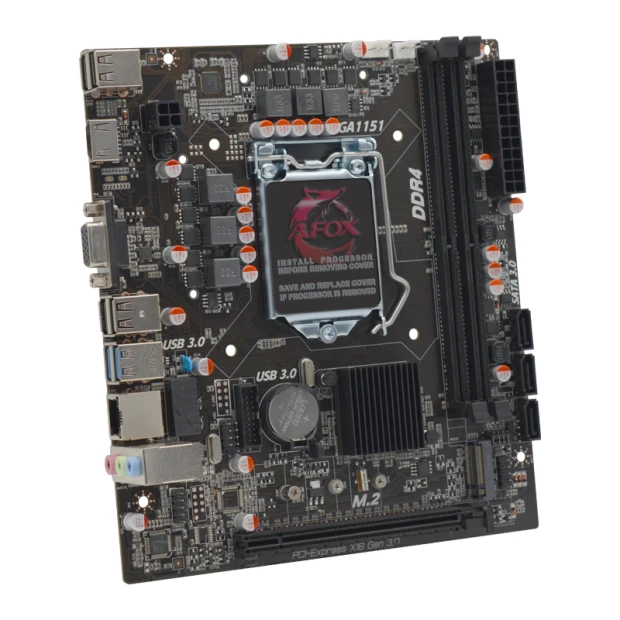

Afox IH310C-MA6 Micro-ATX Motherboard

The Afox IH310C-MA6 is a compact and efficient Micro-ATX motherboard built around the Intel H310 chipset. Designed to support 8th and 9th Generation Intel Core processors (as well as Pentium and Celeron models), it offers a solid foundation for building reliable budget-friendly desktops for general productivity, educational, or light multimedia use. With support for DDR4 memory, PCIe NVMe SSDs, and integrated Intel graphics, this board delivers all the essentials you need for a modern computing experience.

Features

• Chipset: Built on the Intel H310 platform, offering stability and compatibility with mainstream Intel CPUs.
• CPU Compatibility: Supports Intel Core i7, i5, i3, Pentium, and Celeron processors of the 8th and 9th Generations, using the LGA1151 socket.
• Memory Support:
• Supports DDR4 memory modules
• Speeds: 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz
• Dual-channel architecture with 2 DIMM slots
• Maximum capacity: 32GB
• Storage Options:
• 1 x M.2 slot compatible with both PCIe NVMe Gen3 x4 and SATA3 SSDs, providing high-speed storage options
• 6 x SATA 6Gb/s ports for additional hard drives and SSDs
• Graphics Support:
• Integrated graphics via Intel HD Graphics, dependent on the processor
• Suitable for everyday visuals, web browsing, and video playback

Connectivity Options

• USB Ports:
• 2 x USB 3.0 ports for faster data transfer
• 4 x USB 2.0 ports for peripherals like keyboard, mouse, and printers
• Display Outputs:
• 1 x HDMI port for modern monitors and TVs
• 1 x VGA port for legacy displays
• Networking:
• Realtek RTL8105/8106 Ethernet Controller
• Supports 10/100Mbps LAN, suitable for standard wired internet connections
• Expansion Slots:
• 1 x PCI Express x16 slot for graphics or other expansion cards
• No mention of additional PCIe x1 slots

Audio & Video

• Audio Chipset: Realtek ALC662
• Audio Output: Supports 6-channel HD Audio, suitable for basic multimedia setups

Design and Build

• Form Factor: Micro-ATX, perfect for compact or mid-sized cases
• Color: Grey, offering a neutral aesthetic
• Cable Management: Front-oriented layout for easier cable routing
• Build Quality: Functional design optimized for budget builds
• Power Consumption: Approximately 60W, making it energy-efficient and ideal for low-power builds

Compatibility

• Operating System Support: Windows 8, though also compatible with Windows 10 in most setups
• Compatible CPUs:
• Intel 8th/9th Gen Core i7, i5, i3
• Pentium and Celeron processors
• Backward compatible with 6th and 7th Gen CPUs, depending on BIOS and version
• Supports processors up to 95W TDP

Warranty Information

• Backed by a 3-Year Manufacturer Warranty, ensuring long-term reliability and peace of mind

Price and Availability

The Afox IH310C-MA6 motherboard is currently available at Computer Village Agrabad, located in Chattogram, Bangladesh. This model is a great choice for budget system builders, educational institutions, or office PCs, where stable performance and essential features are a priority.
